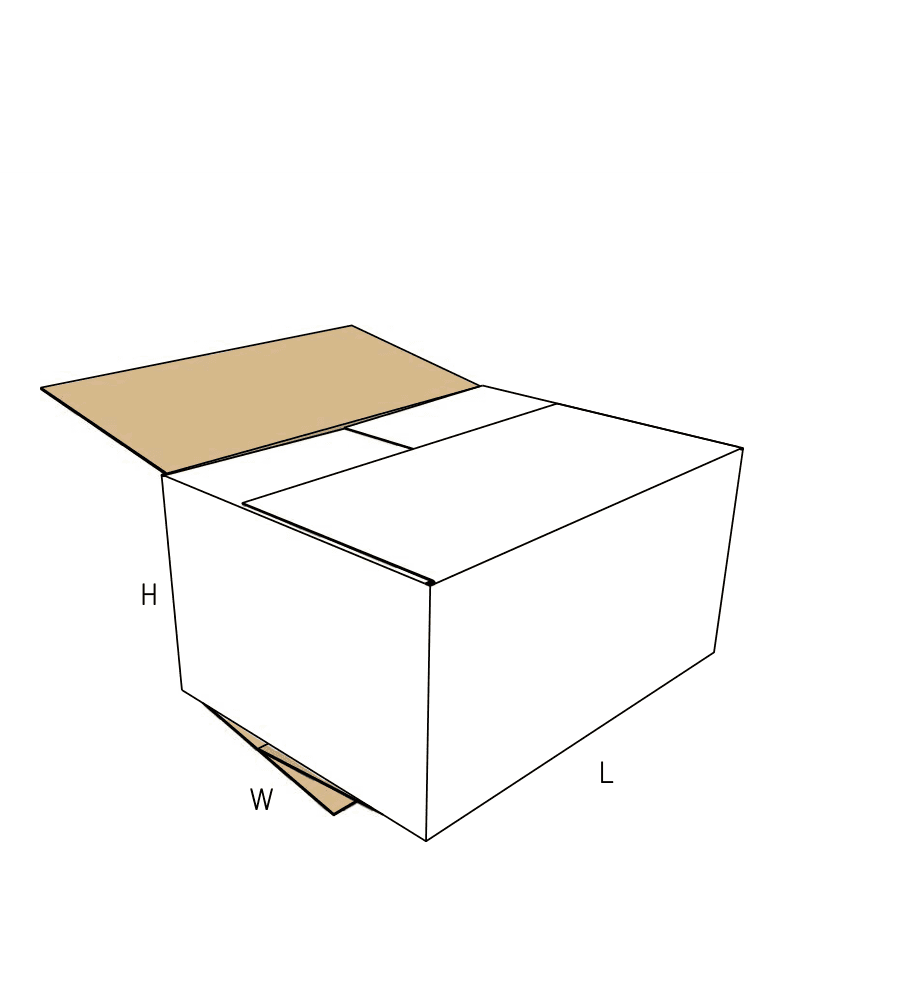

FEFCO 0205

Center Special Overlap Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Inner flaps close flush to create a smooth, gapless floor
  • Overlapping outer flaps provide double-thick puncture resistance

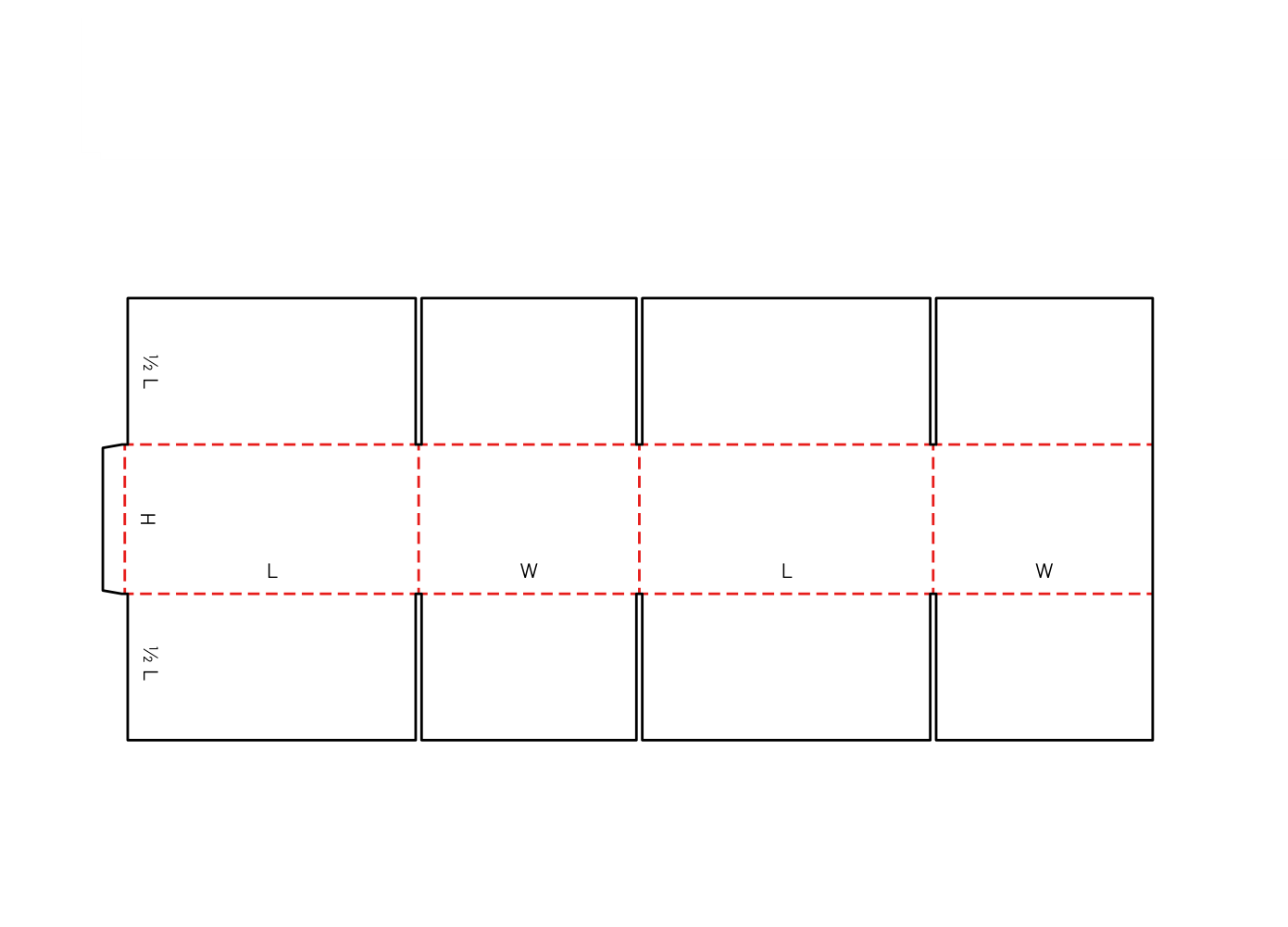

  • Manufactured from a simple rectangular blank without shaped die-cutting

About this product

The Center Special Overlap Box provides a perfectly flat, gapless interior floor for heavy, dense, or snag-prone products. By extending the inner flaps so they close flush in the center, this package prevents items from wedging into base seams or concentrating their weight on a single vulnerable line.

To achieve this flat floor from a simple rectangular blank, the outer flaps are also extended, causing them to partially overlap on the exterior. This creates a double-thick barrier against punctures, making it a durable choice for industrial transit, loose parts, and heavy appliances.

Common uses

  • Loose hardware and dense metal parts
  • Heavy cylinders or appliances
  • Industrial transit requiring high puncture resistance

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Packing heavy parts, cylinders, and snag-prone goods

Loose hardware and dense metal components

When packing loose bolts, brackets, or dense industrial parts, a standard box gap can allow items to wedge, snag, or tear through the base tape. The flush inner flaps create a continuous floor that distributes weight evenly and prevents parts from slipping through.

Heavy cylinders and concentrated loads

Products with small footprints but high weight, like motors or heavy cylinders, can punch through a standard center seam. The flat inner floor supports the load evenly, while the overlapping outer flaps add a second layer of corrugated board to absorb transit impacts.

Multi-part assemblies and kits

Kits containing multiple small components benefit from a smooth base. A gapless floor ensures that small items do not get trapped under larger components or lost in the bottom seam during unpacking.

Export shipping and rough handling

For demanding transit routes, the double-thick top and bottom faces provide exceptional puncture resistance. The overlapping outer flaps can be secured with heavy-duty tape or metal stitching, creating a resilient closure for mixed-freight networks.

Industrial, automotive, and appliance transit

Industrial and machinery transport

Manufacturers shipping heavy machinery parts rely on the double-wall end protection. The overlapping flaps provide a strong anchor for heavy-duty stitching, ensuring the base remains secure under heavy weight.

Automotive parts distribution

Automotive components often have irregular shapes that can catch on uneven box floors. The smooth interior prevents snagging, while the reinforced exterior handles the rigors of automotive supply chains.

Appliance and heavy equipment logistics

Large appliances require a stable, flat base to prevent tipping or uneven weight distribution inside the package. The flush inner flaps provide the necessary stability without requiring a complex die-cut blank.

When to consider flush-cut or standard slotted boxes

When board economy outweighs the need for a flat floor

Because the flaps on this box are longer than those on a standard shipping carton, it consumes more corrugated board. If the product is lightweight or large enough that it will not snag on a base gap, a standard Regular Slotted Container (FEFCO 0201) will do the job with less material.

When automated taping lines require a perfectly flush exterior

The overlapping outer flaps create a physical step on the top and bottom of the box. If the facility relies on automated case tapers that struggle with uneven surfaces, consider a Center Special Slotted Container (FEFCO 0204), which provides a flat floor and a flush exterior.

When full overlap is required for maximum base strength

If the primary goal is maximum puncture resistance rather than a flat interior floor, a Full Overlap Box (FEFCO 0203) extends the outer flaps across the entire width of the box, providing complete double-wall coverage.

Close variants and lookalike dielines

The closest library neighbors include 0202b, 0202a, 0202. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, closure methods, and packing line setup

Manual sealing versus automated case taping

The exterior overlap means the taping surface is not perfectly flat. Manual packing stations handle this easily, but automated taping heads may wrinkle the tape or fail to adhere it securely over the step. If the packing line is automated, the equipment should be tested with a physical sample first.

Heavy-duty stitching for heavy loads

While tape is common for lighter loads, the overlapping outer flaps provide an excellent anchor for metal stitching. For heavy appliances or export crates, stitching the overlap creates a rigid, tamper-evident seal that resists base blowouts better than adhesive alone.

Board thickness and flute profile selection

Specifying heavy double-wall or triple-wall corrugated board makes the overlap step much more pronounced. Thick board can also cause the flaps to bind against each other during folding, requiring specific slot clearances to ensure a clean fold.

Inner flap orientation for specific product loading

The inner flaps are attached to the width panels by default, meaning the seam runs along the length of the box. Depending on how the product is loaded and where its weight is concentrated, the layout can be adjusted to change the seam direction.

Adjusting the overlap, slot clearances, and factory layout

Slot tuning for double-wall and triple-wall board

When using heavy corrugated board, the overlapping flaps can bind against each other. The template can be explicitly tuned with wider slot clearances to ensure the thick board folds cleanly without crushing the flutes.

Alternative factory layout for the manufacturer joint

The manufacturer joint can be shifted to a different panel to optimize the run for specific folding and gluing machines. This layout adjustment does not change the final box shape but can improve production efficiency.

Overlap width adjustments based on box proportions

The width of the exterior overlap is determined by the difference between the length and width of the box. Adjusting the box proportions directly changes how much the outer flaps overlap.

Board and packing details

How the overlap amount is determined

The width of the exterior overlap is not arbitrary; it is determined by the difference between the box length and width. For long, narrow boxes, the overlap will be substantial. If the box is perfectly square, the overlap drops to zero, and the outer flaps will close flush.

Stacking considerations for the exterior step

The overlapping outer flaps create a slight unevenness on the top and bottom faces. When stacking multiple boxes on a pallet, this step can affect stability, especially if the boxes are made from thick double-wall board.

Box variants for heavy board and factory routing

Heavy-board tuned slots (0205b)

A specific box variant that widens the slot clearances between flaps, preventing heavy double-wall or triple-wall board from binding when the overlapping flaps are folded.

Alternative factory layout (0205a)

A layout adjustment that shifts the manufacturer joint to a different panel, allowing the converter to optimize the run for specific folding and gluing machines.

Additional notes

Metal stitching for heavy loads

For heavy appliances or export crates, the double-thick overlap provides an excellent anchor point for heavy-duty metal stitching, creating a stronger seal than tape alone.

Related slotted containers to evaluate

0202b: Overlap Container (OC)

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Product fit and protection

Why choose the Center Special Overlap Box instead of a standard slotted container?

A standard slotted container leaves a gap between the inner flaps, which can cause loose parts to snag or heavy items to sit unevenly. This box extends the inner flaps so they close flush in the center, creating a smooth, gapless floor that distributes weight evenly.

Production and tooling

How does the manufacturing process differ from a flush-floor box?

A flush-floor box like the FEFCO 0204 requires a shaped blank, which involves a flatbed cutting process. By allowing the outer flaps to overlap, the FEFCO 0205 keeps the blank perfectly rectangular, allowing it to be produced efficiently on standard slotting machines.

Closure and packing

Will the overlapping flaps cause issues with packing tape?

It depends on the packing setup. Manual packers can easily smooth tape over the slight step created by the overlap. However, automated case tapers calibrated for flat surfaces may struggle to apply tape securely over the uneven edge. Testing a physical sample on the line helps verify compatibility.

Board and material

Can this box be made from heavy double-wall board?

Yes, but it requires careful specification. Heavy board makes the overlap step much more pronounced, and the flaps can bind when folded. Specific slot-tuning adjustments are used to ensure thick board folds cleanly without crushing.

Cost and efficiency

Does this box use more corrugated board than a standard slotted container?

Yes, it typically uses more corrugated board because all the flaps are longer. While it avoids the need for a shaped blank, the increased material usage means the production economics is usually higher than a basic slotted container.

Box dimensions

How much will the outer flaps overlap?

The overlap is determined by the box dimensions, specifically the length minus the width. A long, narrow box will have a large overlap, while a nearly square box will have a very small overlap.

Closure and packing

What is the best way to seal the overlapping flaps for heavy loads?

For heavy appliances or export crates, the double-thick overlap provides an excellent anchor point for heavy-duty metal stitching, creating a stronger and more rigid seal than tape alone.

Product fit and protection

Can the inner flaps be oriented to support specific product shapes?

Yes, the layout can be adjusted so the inner flaps are attached to either the length or width panels. This changes the direction of the internal seam, allowing it to be aligned with the product weight distribution.
