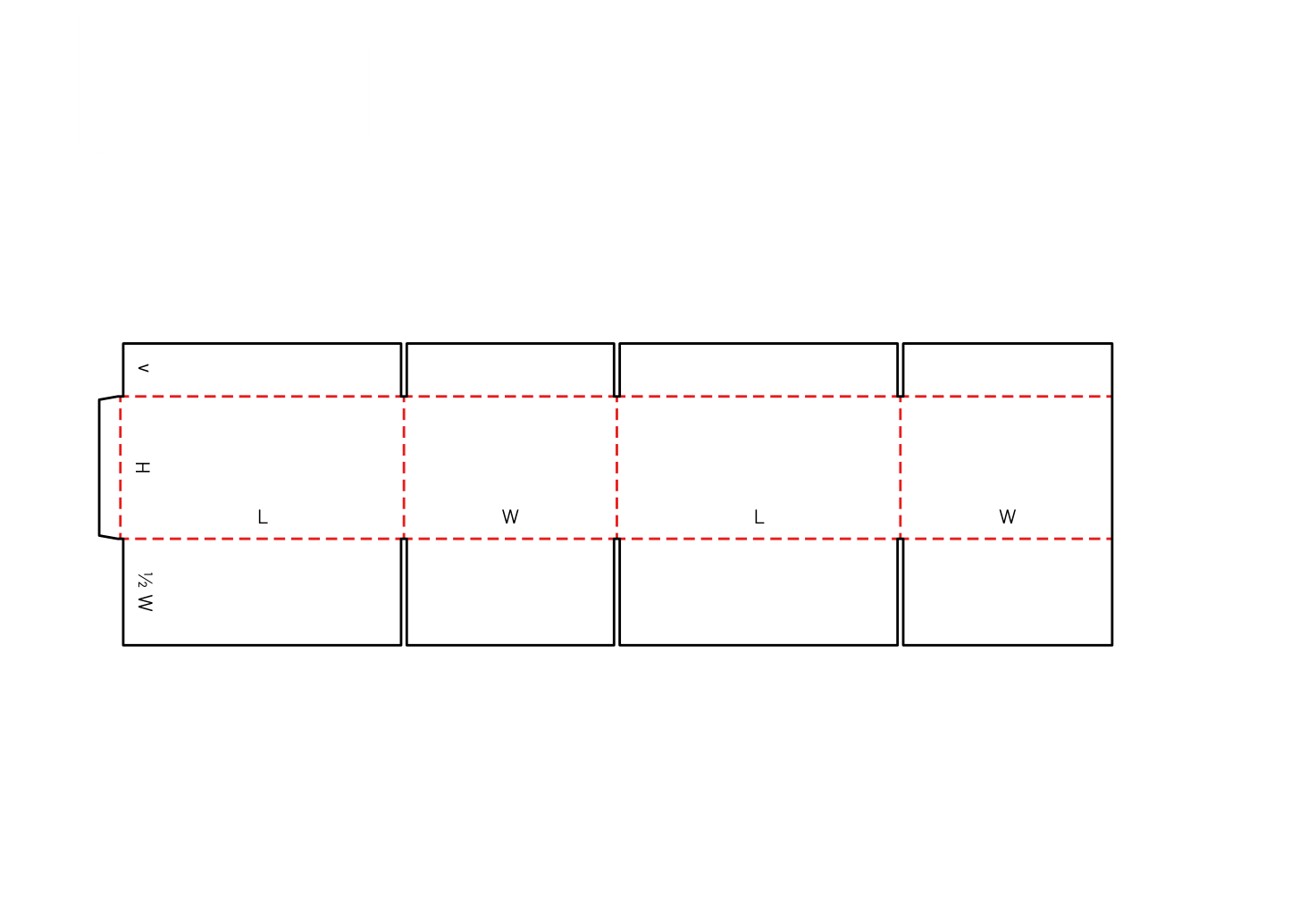

FEFCO 0209

Flange-Top Display Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Permanent top window for retail display or quick picking access
  • Regular closed bottom must be taped, glued, or stitched
  • Top flanges provide more side-wall stability than a completely open tray

About this product

The flange-top display box combines the taped bottom of a regular shipping box with a permanent viewing window on top. The upper flaps are cut short and fold inward to create a reinforced rim, keeping the contents visible and accessible without requiring retail staff to cut the box open.

Because the top remains open, this package trades top-load capacity for presentation and access. It works well as retail-ready packaging, a warehouse picking bin, or a ventilated tray, provided it travels on a stable pallet or inside a master shipper.

Common uses

  • Retail-ready packaging (SRP)
  • Warehouse picking bins
  • Ventilated produce trays
  • Industrial kitting trays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail display, picking bins, and ventilated packing

Retail-ready shelf packaging

The open window allows immediate product visibility on the store floor. Retail staff can place the box directly on the shelf without cutting away flaps or breaking seals, reducing stocking time and preventing accidental knife damage to the product.

Warehouse picking and parts bins

For internal fulfillment or assembly lines, the flanged top keeps loose components contained while leaving a wide opening for hands. The reinforced rim prevents the side walls from bowing outward when the bin is full.

Ventilated agricultural or bulk packing

Products that require airflow benefit from the permanent top opening. The flanges retain the goods during pallet movement while preventing moisture buildup inside the carton.

Industrial kitting and staging

Assembly teams use flanged boxes to organize hardware and sub-components. The open top allows fast visual inventory checks and easy access during fast-paced production shifts.

Retail, fulfillment, and parts distribution

Consumer goods and retail distribution

Brands packing for big-box retail often use this style to group individual units. The box travels as a transit tray on the pallet and moves directly to the shelf as a display unit, eliminating the need to unpack individual items.

Automotive and hardware fulfillment

Facilities managing dense, heavy parts rely on the closed bottom for containment while using the top window for rapid picking. The flanges help keep the side walls rigid under the outward pressure of loose components.

Produce and agricultural packing

Growers shipping field-packed goods use the open top to ensure proper ventilation during transit and cold storage, reducing the risk of trapped moisture.

When to choose a fully closed or fully open box

Standalone parcel shipping

If the box will travel individually through a courier network, the open window exposes the product to damage and compromises the box's crush resistance. Review the Regular Slotted Container (FEFCO 0201) for fully enclosed transit.

Maximum vertical stacking

The missing top flaps remove the central lateral support that gives a closed box its vertical strength. If the warehouse requires stacking dense pallet loads high without a master shipper, a fully closed box is a better option.

Close variants and lookalike dielines

The closest library neighbors include 0214, 0214a, 0201b. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Flange width, board thickness, and closure choices

Securing the top flanges

The top flanges fold inward 90 degrees but do not interlock. Decide whether the packing line will tape or glue them down for maximum rigidity, or leave them resting loose for easier end-user access.

Board thickness to offset the open top

Because the window reduces overall box strength, packers often upgrade to heavier double-wall board to restore stacking stability. Heavy board requires specific slot widening during manufacturing to ensure the flaps fold cleanly.

Base sealing method

The bottom flaps close the base completely but do not lock. The packing line must secure the bottom with tape, hot-melt adhesive, or industrial stitching before loading.

Pallet stabilization

Without a solid top surface, palletized loads of flanged boxes often require top caps, corner boards, or heavy shrink wrap to prevent shifting during transit.

Adjusting the display window and board fit

Display window sizing

The width of the top flanges determines the size of the viewing window. Wider flanges increase the lateral bracing and product retention, while narrower flanges maximize visibility and access.

Heavy-board slot tuning

When upgrading to double-wall board to improve stacking stability, production requires widening the slots so the thick flaps do not bind or tear when folded.

Machine-direction layout shifts

Depending on the specific folding-gluing equipment used at the factory, the flat blank may be rotated to fit the machine's width limits. This changes nothing about the final assembled box.

Board and packing details

Palletizing and shrink wrap

When shipping flanged boxes on a pallet, the open tops require careful tier placement. Outer shrink wrap or a top pallet cap is usually necessary to lock the top flanges in place and protect the exposed products from dust.

Automated case erecting limits

While the factory supplies this box flat and pre-glued on the side seam, end-user automated case erectors may struggle to tape the top flanges without a solid substrate underneath. Hand taping or gluing is often required for the top rim.

Production layout and heavy-board variants

Heavy-board slot tuning (0209b)

A variant specifically engineered for thick double-wall board, featuring widened slots to prevent the flaps from binding during assembly.

Alternative folding layout (0209a)

A manufacturing variant that rotates the panel sequence to optimize the blank for specific factory folder-gluer machines.

Additional notes

Retail shelf placement

Because the window is permanently open, store staff can place the box directly on the shelf without cutting away flaps, reducing stocking time and preventing accidental product damage.

Related corrugated boxes

0201: Regular Slotted Container

Consider this if the packing line requires a fully enclosed top for parcel shipping, maximum stacking stability, or dust protection.

0200: Half-Slotted Container

Review this alternative if the inward-folding top flanges are unnecessary and a completely open top tray is preferred.

FAQs

Shipping and Route

Can I ship this box through a parcel courier?

Generally, no. The open top window exposes the product and reduces the box's ability to survive rough handling. It should be placed inside a master shipper or securely unitized on a pallet for transit.

Stacking and Strength

How does the open window affect stacking stability?

It reduces top-load capacity compared to a fully closed box. The side walls lack the central lateral support provided by meeting top flaps, making them more likely to bow under substantial top weight.

Closure and Assembly

Do the top flanges lock into place?

No. The top flaps fold inward 90 degrees but do not have native locking tabs. If the display requires them to stay rigidly flat, they must be secured with tape, adhesive, or outer shrink wrap.

How is the bottom sealed?

The bottom is a regular slotted base where the two outer flaps close the base. To hold product weight during transit, this base must be taped, glued, or stitched.

Board and Material

Should I use double-wall board for this box?

Upgrading to double-wall board is a common way to recover the stacking stability lost to the open top. If heavy board is selected, the slots will be widened so the flaps fold without tearing.

Design and Fit

How small can the top flanges be?

While the flanges can be narrowed to increase the window size, making them too narrow removes their ability to brace the side walls. The right balance depends on the product weight and how the box will be handled.

Shipping and Route

Does the open top leave products vulnerable to dust?

Yes. The permanent window leaves the contents exposed to warehouse dust and environmental moisture. If the product is sensitive, it may require internal poly bags or a master shipper.

Closure and Assembly

Can automated machines seal the top flanges?

Regular case erectors often struggle to apply tape to the top flanges because there is no solid product or flap underneath to press against. Top sealing is frequently done by hand or with specialized hot-melt equipment.
