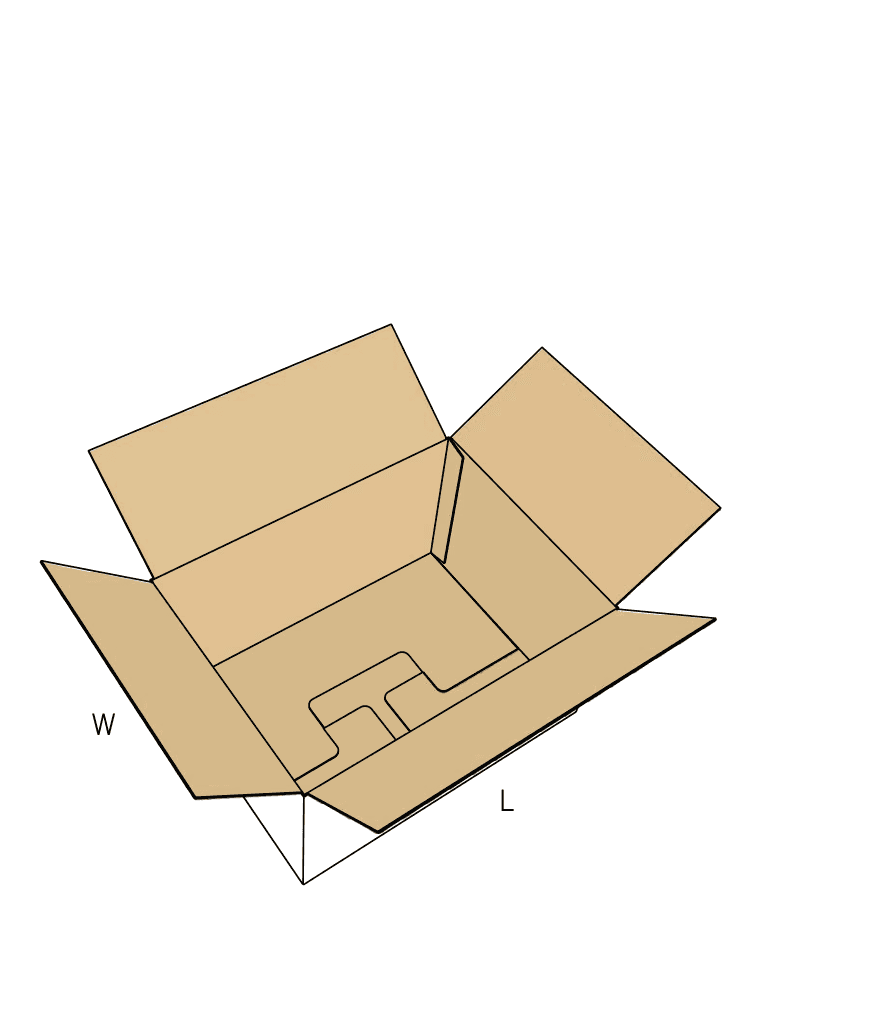

FEFCO 0216

Snap-Lock Bottom Box with Taped Top

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Tool-free interlocking base speeds up hand assembly
Meeting top flaps require tape or glue to seal
Best suited for single-wall board and light-to-medium payloads

About this product

The snap-lock bottom box speeds up manual packing lines. Instead of taping the base, packers fold four interlocking flaps that wedge together to form a secure floor. Once loaded, the top flaps meet in the center and tape shut like a regular shipping box.

This hybrid design requires die-cut manufacturing rather than straight-knife slotting, offering labor savings at the packing bench in return. It fits e-commerce and kitting operations that need fast assembly but still require the cross-bracing of a taped top.

Common uses

E-commerce fulfillment
Internal kitting
Lightweight industrial parts
Retail goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Height (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Are you currently using a box with a folding snap base?

How will this box be shipped?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Fulfillment and kitting applications

E-commerce fulfillment

When packing volume is high but order sizes vary too much for automated case erectors, the snap-lock base removes the bottleneck of taping the bottom of every box. The taped top secures the package for transit.

Internal kitting and parts consolidation

For assembling multi-part kits before final shipment, the fast-erecting base keeps the line moving. The secure floor holds loose components reliably during warehouse transfers.

Lightweight retail distribution

Shipping lighter consumer goods where a fully taped bottom is unnecessary. The snap base holds the product, while the taped top provides tamper evidence.

Subscription box packing

Batch packing operations where speed matters. Packers can erect the base quickly by hand, load the curated items, and seal the top for delivery.

Manual packing environments

Manual packing stations

If your team erects boxes by hand, the 1-2-3 folding sequence becomes muscle memory, saving seconds and a strip of tape on every unit.

Mixed-size order fulfillment

Operations dealing with varying product dimensions often cannot use automated erectors. The snap base provides a fast manual alternative.

Clean-floor presentation

The tape-free base provides a cleaner appearance on the bottom of the box, which helps when shelf presentation or unboxing aesthetics matter.

When to compare other base and closure styles

Heavy payloads or dense industrial parts

The friction-locked base can drop out under heavy downward pressure. If you are shipping dense hardware or liquids, compare this to a shipping box where the base is fully taped.

Fully automated packing lines

Automated case erectors cannot fold the interlocking snap base. If your line is mechanized, use a standard shipping box.

Need for a completely tape-free unboxing

If you want the customer to open the box without a knife, compare this to a snap-bottom box with a friction tuck top.

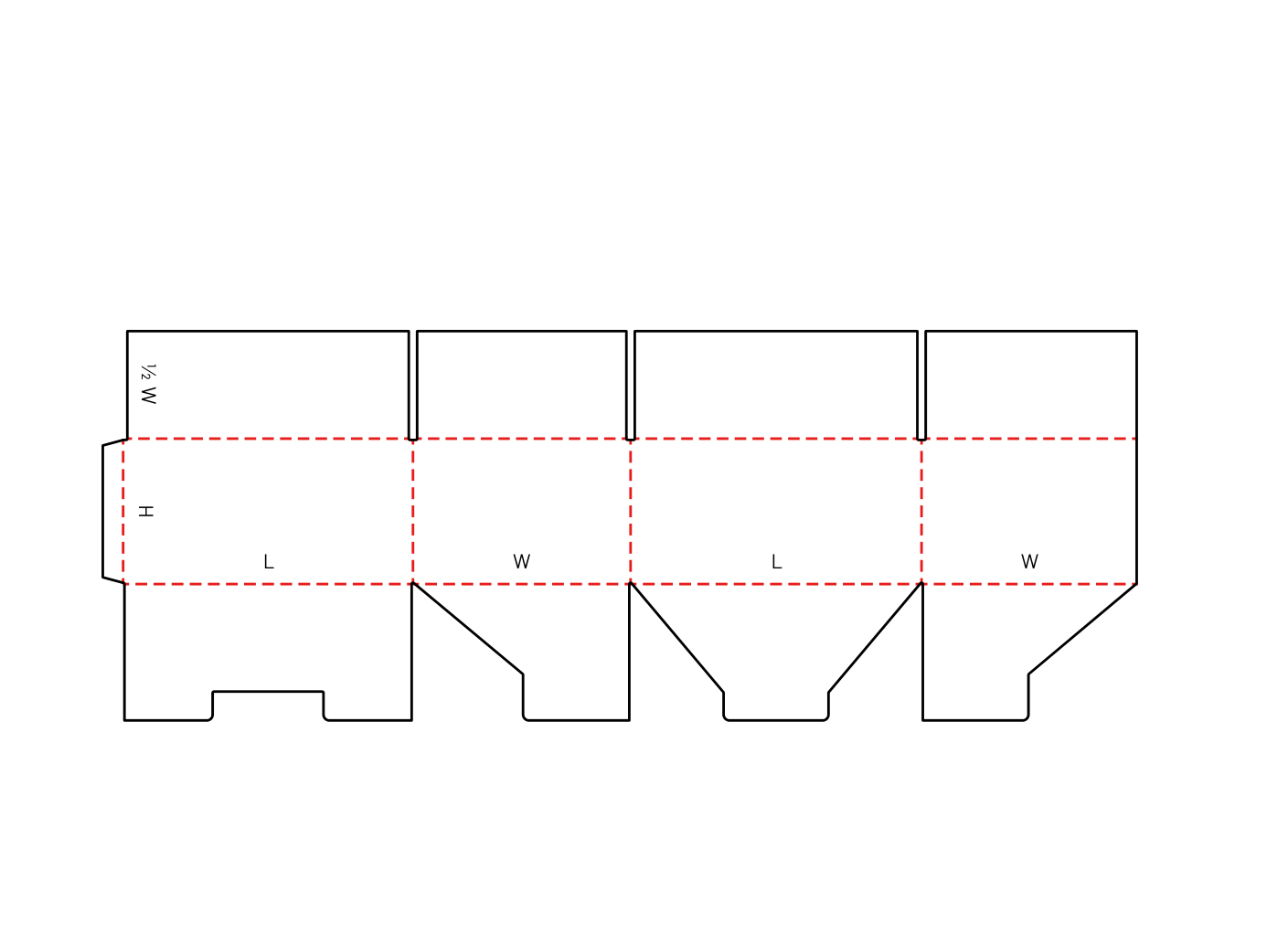

Close variants and lookalike dielines

The closest library neighbors include 0215, 0215_2, 0232. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness and packing line decisions

Board thickness and lock binding

The interlocking tabs rely on precise clearances. Fine flutes and standard single-wall boards fold cleanly. Heavy double-wall board fights the fold, causing the lock tabs to bind, crush, or tear during assembly.

Payload weight limit

Determine the maximum weight the box will carry. The friction lock has a lower drop-out threshold than a taped seam.

Packing line setup

Verify that your fulfillment center uses manual packing stations, as the 1-2-3 base fold requires human hands.

Top closure method

Decide whether the top flaps will be sealed with water-activated tape, plastic tape, or strapping, as this affects the final packing station setup.

Lock profile and layout adjustments

Lock tab friction

The exact shape of the locking hooks can be adjusted based on the chosen board grade to ensure the base snaps securely without requiring excessive force from the packer.

Manufacturer joint placement

The factory glue joint can be moved to a different panel to optimize how the flat tube runs through folding rails, which changes the flat delivery profile.

Top flap overlap

The top flaps can be extended to overlap rather than meet in the center, providing extra cross-bracing for wider boxes.

Board and packing details

Base drop-out testing

Because the floor relies on mechanical friction rather than adhesive, always test a physical sample with your actual product weight to ensure the base will hold during handling.

Lock profile variations

Folder-gluer layout shifts

The manufacturer's glue joint can be moved to a different panel to optimize how the flat tube runs through factory folding rails. This does not change the final 3D shape or assembly process for the packer.

Additional notes

Lock tab clearance and board changes

If you change the board grade or flute profile on a repeat order, the cutting profile may need to be adjusted. The locking tabs are engineered for a specific material thickness to ensure they hold tight without tearing.

FAQs

Assembly and Packing

Is a snap-lock bottom the same as an auto-bottom or crash-lock?

No. An auto-bottom is pre-glued at the factory and pops into place automatically when you open the box. This snap-lock bottom is unglued and requires the packer to fold four flaps in a specific sequence to lock the base.

Can automated case erectors assemble this box?

No. Case erectors are designed to fold and tape straight flaps. The sequential 1-2-3 folding motion required for the snap lock must be done by hand.

Route and Shipping

Will the snap bottom hold heavy items during shipping?

It depends on the product weight and the board strength. The interlocking flaps are strong, but they can disengage under heavy, concentrated downward force. Heavy payloads usually require a fully taped base.

Does this box require any tape?

Yes. While the bottom locks together without tape, the top features standard meeting flaps that must be sealed with packing tape or glue before shipping.

Materials and Board

Can this box be made with heavy double-wall corrugated?

It is generally not recommended. The thick board makes the interlocking tabs too stiff, causing them to bind or tear when the packer tries to force the final lock into place. It works best with single-wall board.

Production Path

How is the interlocking base manufactured?

Standard shipping boxes are made with straight slots. The snap-lock base features complex curves, hooks, and angled tabs that must be stamped out with a flatbed or rotary die.

Inserts and Fit

Can I use internal dividers with a snap-lock base?

Yes, internal partitions work well. However, ensure the weight of the divided items is distributed evenly across the locked floor panels to prevent concentrated pressure on the center seam.

Comparison

When should I choose a fully taped box instead?

Choose a fully taped box if your product is heavy, if you use automated case erectors, or if you want to avoid the die-cutting process entirely.
