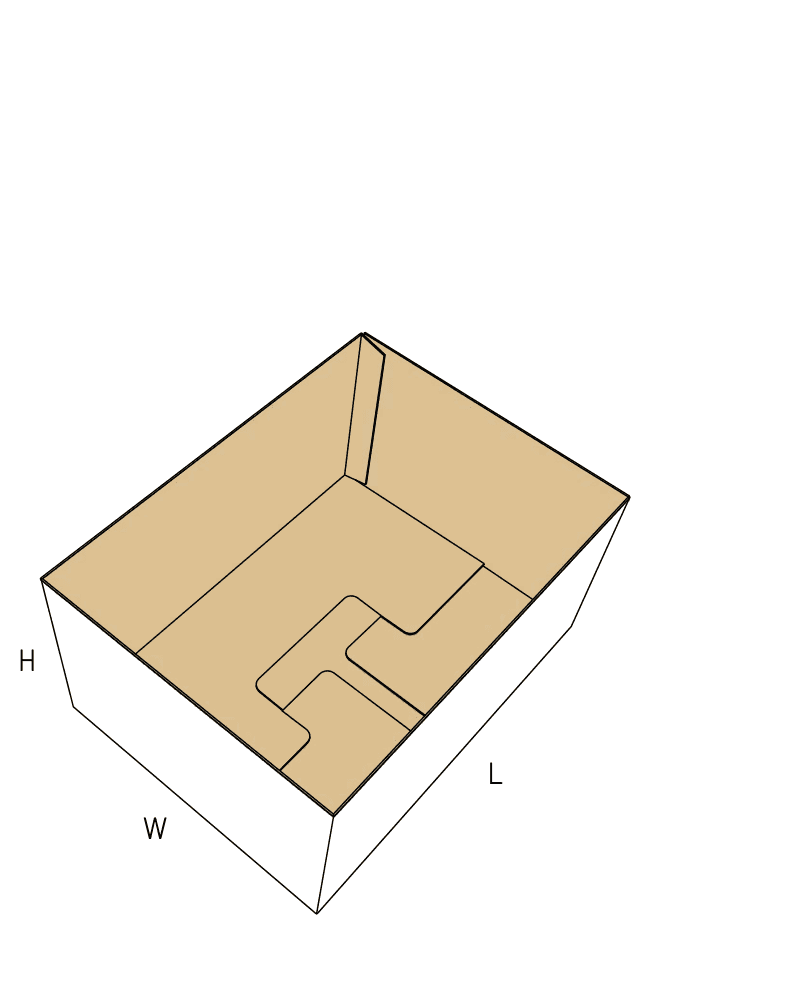

FEFCO 0221

Open-Top Snap-Lock Bin

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Tool-free 1-2-3 snap base speeds up manual assembly
Completely open top provides immediate access to contents
Suited for single-wall board and light-to-medium payloads

About this product

This open-top bin speeds up manual packing by replacing a taped floor with a tool-free interlocking base. Delivered flat, the carton pops open and the bottom flaps fold together in a quick 1-2-3 sequence, creating a secure tray without the need for tape dispensers or glue.

Because it relies on shaped hooks rather than a continuous tape seal, this style trades heavy-duty bottom strength for assembly speed. It is a useful choice for in-plant parts binning, retail display trays, or serving as the base for a two-piece telescopic box.

Common uses

In-plant parts binning
Telescopic box bases or lids
Retail shelf trays
Temporary sorting trays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this bin be used?

What is the estimated weight of the contents?

Do you need carrying handles cut into the sides?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

In-plant binning, retail staging, and telescopic components

In-plant parts binning

For assembly lines or internal logistics, the fast setup keeps the packing bench moving. The open top allows operators to reach in and grab components quickly without fighting flaps.

Telescopic box components

This structure frequently serves as either the base or the lid of a two-piece telescopic set. The tape-free exterior keeps the presentation clean when the two halves slide together.

Retail and shelf-ready trays

When loaded with lightweight consumer goods, the flush, interlocked bottom sits flat on retail shelves. The lack of bottom tape improves the visual presentation for customer-facing displays.

Temporary sorting and kitting

When fulfilling multi-item orders, packers can pop these trays open instantly to group items before final boxing. The tool-free assembly makes it easy to scale up tray counts during peak shifts.

Manual kitting lines and internal factory logistics

Manual kitting and fulfillment

Operations that rely on hand-packing benefit directly from the snap-lock base. Packers can erect the bins quickly using muscle memory, eliminating the bottleneck of taping every single floor.

Retail display staging

Brands preparing goods for direct shelf placement often use this tray to keep items organized. The clean, tape-free base looks professional when lifted directly from a master shipper onto a store shelf.

Internal manufacturing logistics

Factories moving components between workstations need containers that set up fast and provide immediate access. The open top removes the friction of opening and closing flaps during repetitive assembly tasks.

When to compare taped bases or fully enclosed shippers

Heavy payloads or dense metal parts

If the product is heavy enough to risk pushing through an interlocked floor, a standard taped base (FEFCO 0200) provides a more secure floor.

Standalone courier shipping

Because the top is completely open, this bin exposes contents during courier transit. If the package needs to travel individually, compare it to a snap-lock box with a closed lid (FEFCO 0215).

Close variants and lookalike dielines

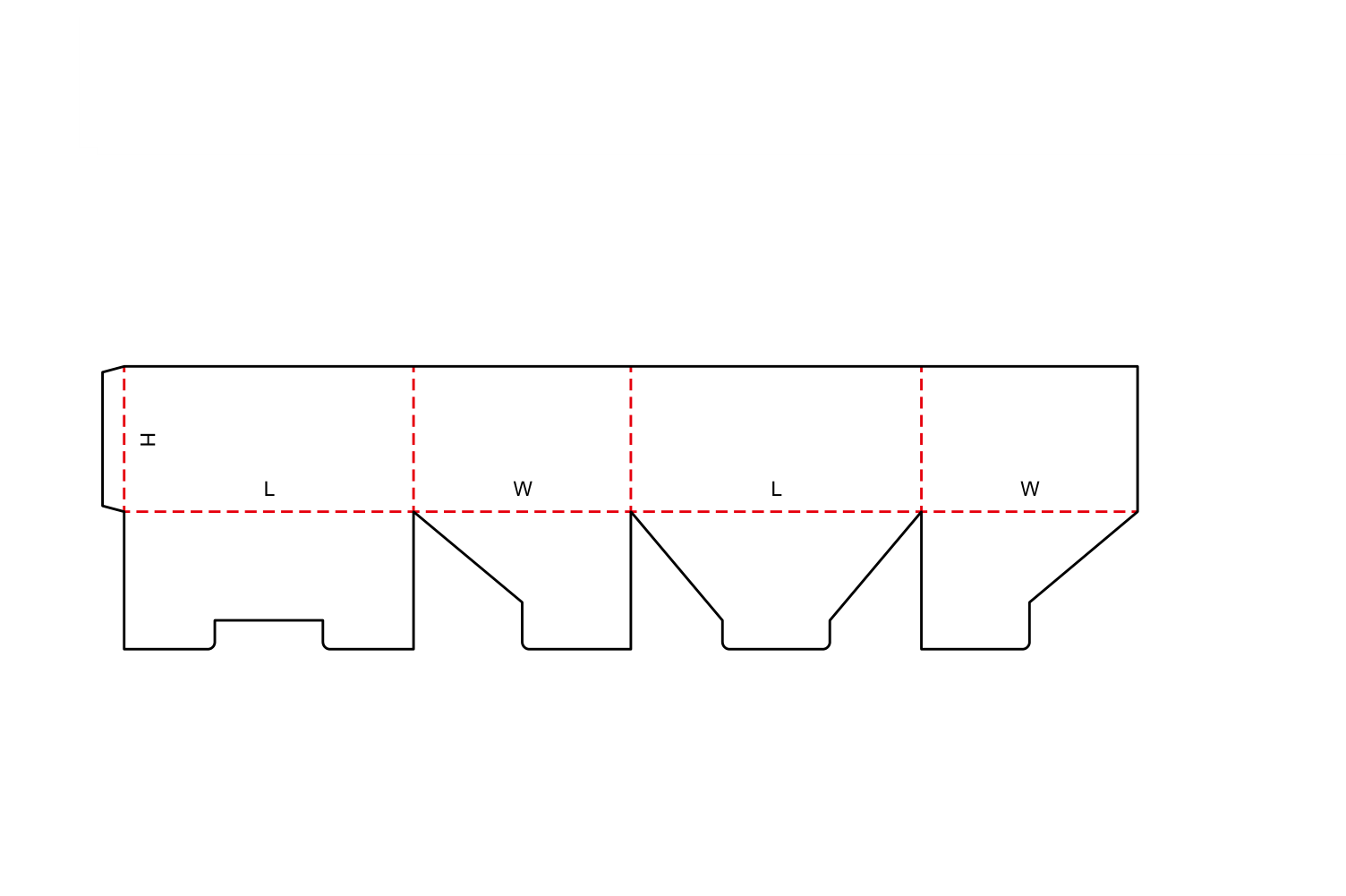

The closest library neighbors include EVC11930, 0700, EVC11931. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, payload limits, and outer transit protection

Board thickness and base binding

The interlocking hooks on the bottom flaps are sensitive to board thickness. Single-wall or fine-flute corrugated folds smoothly. Heavy double-wall board often causes the hooks to bind, tear, or refuse to lock properly during assembly.

Vertical stacking strength

Without top flaps to provide cross-bracing, the side walls are vulnerable to splaying outward under heavy vertical compression. If these bins will be stacked high on a pallet without a lid, the board grade must be specified to handle that crush risk.

Product weight and base blowout risk

The 1-2-3 interlocked floor holds less weight than a fully taped base. Heavy, concentrated loads like dense metal parts require physical drop testing to ensure the mechanical hooks stay engaged when lifted.

Transit protection and outer shippers

Because the top is completely open, this bin exposes contents during mixed courier transit. You must decide whether to pair it with a telescopic lid or pack multiple bins inside a larger master carton for shipping.

Carrying handles, base lock tension, and wall height adjustments

Adding die-cut carrying handles

While the standard template is a plain open rectangle, the side walls can easily accommodate shaped hand holes to make lifting and moving the loaded bins easier.

Adjusting the base lock tension

The exact clearance of the bottom hooks can be tuned based on the chosen board grade. This ensures the final tuck flap wedges the assembly tight without requiring excessive force from the packer.

Modifying wall height for display

The side panels can be lowered to increase product visibility on retail shelves, or raised to contain taller components during internal transit. The base mechanism remains the same regardless of wall height.

Board and packing details

Shaped base cuts and repeat packing

The intricate hooks of the snap base require shaped cutting rather than simple straight slots. This makes the tray a strong choice when the ongoing labor savings of tape-free hand packing outweigh the initial setup of a shaped profile.

FAQs

Shipping and route

Can I ship this open-top bin through a parcel network?

It requires an outer master shipper or a secure telescopic lid for courier transit. The open top exposes the contents, and the snap base can disengage if dropped.

Assembly and closure

Does the 1-2-3 base require packing tape?

The four bottom flaps fold in a specific sequence and interlock mechanically. The final tuck flap wedges the assembly tight, holding the floor together without tape or glue.

Board and material

Can we use double-wall board for extra strength?

Thick double-wall board often makes the intricate base hooks bind and tear when folded by hand. Single-wall board provides a smoother locking action.

Production and packing

Is this tray compatible with automated packing lines?

The 1-2-3 snap base requires a human operator to fold and interlock the flaps. It is not designed for automated case-erecting machinery.

Product fit

How much weight can the snap base hold?

The interlocked floor holds less weight than a fully taped box. The exact limit depends on the board grade and how the product weight is distributed across the floor. Heavy, concentrated loads require physical drop testing to ensure the base stays closed.

Modifications

Can we add carrying handles to the side panels?

Adding hand holes to the side panels is a straightforward modification, as the box already requires shaped cutting for the base.

Comparison

Why choose this over a standard taped open-top box?

The primary advantage is packing speed. If your operation relies on manual assembly, the tool-free snap base eliminates the time and material cost of taping every single floor, though it trades away some bottom strength.

Storage

Can these bins be stacked on top of each other?

Stacking is possible, but requires caution. Because the top is open, there are no flaps to brace the side walls. Stacking heavy bins directly on top of each other can cause the lower walls to crease or splay outward unless the board is specifically chosen for high vertical compression.
