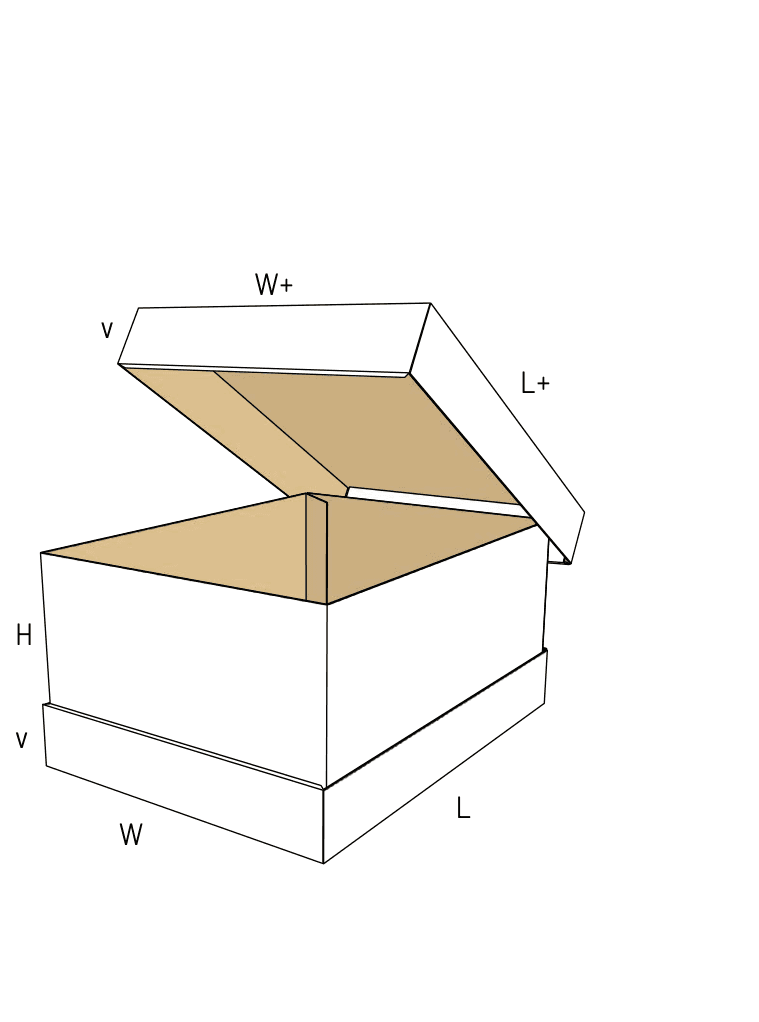

FEFCO 0314

3-Part Pallet Box with Self-Locking Caps

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Three-piece design enables drop-over loading for heavy or awkward items
  • Top and bottom caps lock mechanically without tape or staples
  • Cap locks are highly sensitive to board thickness and may resist heavy double-wall grades

About this product

This three-piece industrial package separates the walls from the top and bottom caps, allowing your team to build the base, stage heavy products, and drop the walls over the payload.

Unlike standard pallet boxes that require taping or stitching the corners of the caps, this style uses mechanical roll-over locks to hold the top and bottom trays together. You trade the need for packing tape for a more complex manual folding sequence that relies on precise board thickness.

Common uses

  • Heavy equipment staging
  • Tall or awkward assemblies
  • Tape-restricted packing environments
  • Reusable in-plant bins

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Drop-over loading and tape-free assembly

Heavy equipment staging

Workers stage heavy items on the bottom tray, slide the sleeve down around the payload, and secure the top lid. This removes the need to lift dense products over high corrugated walls, reducing physical strain and the need for specialized lifting gear.

Tall or awkward assemblies

For standing appliances or server racks, the sleeve provides uninterrupted side protection while the top and bottom caps secure the ends. The entire package then straps to a wooden pallet.

Tape-restricted packing environments

Because the top and bottom caps use mechanical roll-over locks, they assemble without packing tape or metal staples. This fits clean-room environments or facilities minimizing external fasteners.

Reusable in-plant bins

The friction-fit caps can be removed and replaced repeatedly without tearing tape joints. This allows the package to function as a temporary storage bin for organizing components on a factory floor.

Industrial, tech, and bulk food applications

Industrial component suppliers

Suppliers packing dense hardware benefit from the rigid, double-wall corners created where the caps overlap the sleeve. The tape-free caps allow quick assembly at pack stations lacking automated taping equipment.

Server and rack manufacturing

Tall electronics require packaging that builds around the product rather than forcing the product into the box. The drop-over sleeve prevents awkward lifting during final pack-out.

Bulk bakery and tiered food transport

Tall, fragile items like tiered cakes or bulk bakery racks cannot be lifted out of deep boxes without damage. The removable sleeve allows full side access for safe unloading.

When to evaluate taped caps or solid bases

When heavy double-wall caps are required

The 180-degree roll-over locks on this package fight the memory of thick double-wall board. If your payload requires double-wall caps for extreme protection, evaluate FEFCO 0310. The taped corners of 0310 are structurally safer for heavy board grades.

When drop-over loading is not needed

If your product can be easily lowered into a box, evaluate FEFCO 0313. An RSC-style body provides a solid, pre-glued base that may be faster to pack than a separate sleeve and bottom cap.

Close variants and lookalike dielines

The closest library neighbors include 0351, 0352, 0330. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, tooling, and assembly tradeoffs

Mixing board grades

You can specify a heavy double-wall board for the central sleeve to maximize vertical stacking strength, while using a lighter single-wall board for the caps so the mechanical locks fold easily and stay secure.

Flatbed tooling for the caps

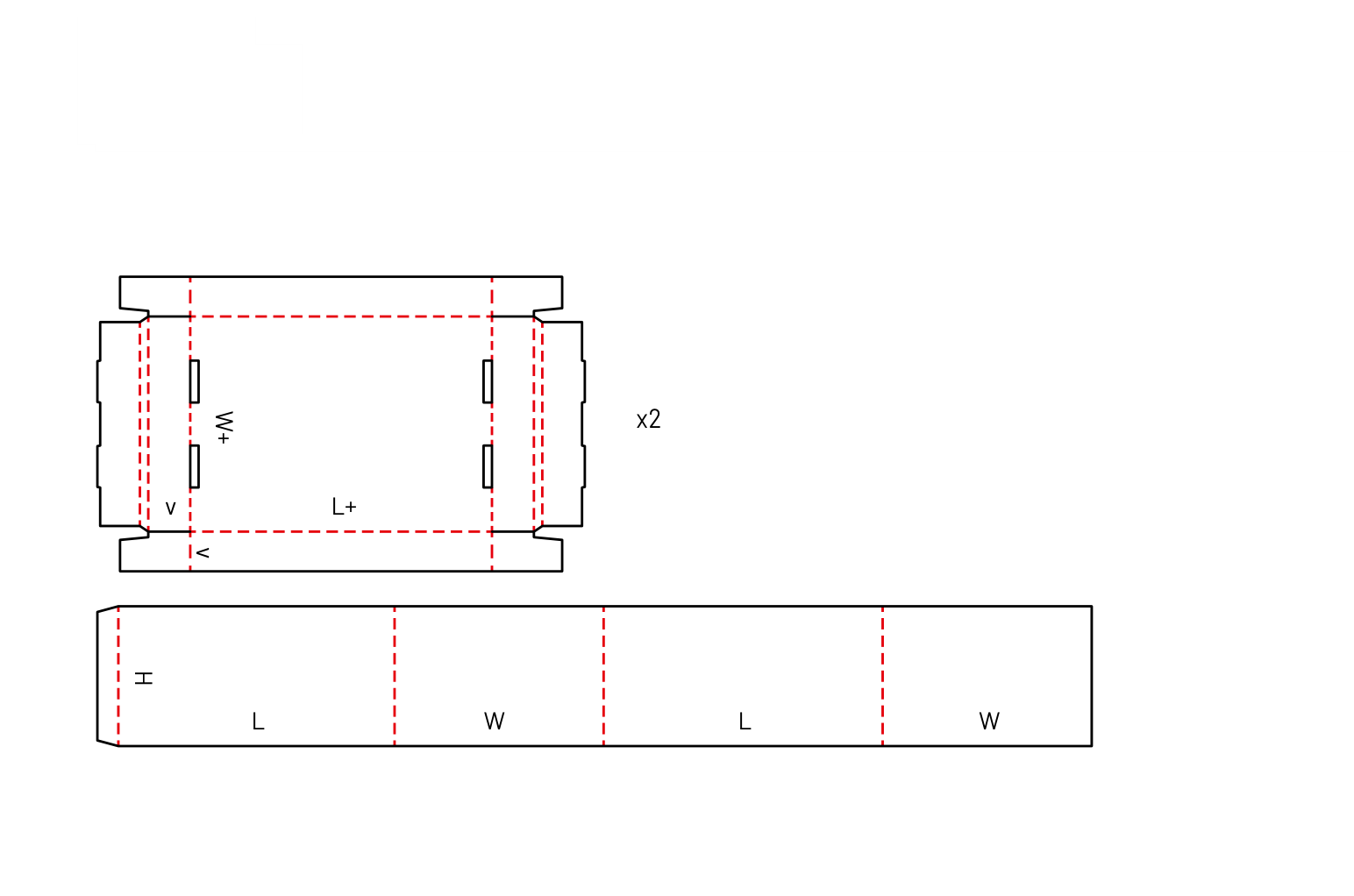

The central sleeve is a simple tube, but the intricate locking tabs and slots on the caps require custom flatbed cutting dies. This changes the upfront tooling calculation for short runs.

Sleeve joint method

The central sleeve requires a manufacturer's joint. Depending on the payload weight and overall dimensions, this joint will either be glued or heavy-duty stitched.

Pack bench assembly time

While this style eliminates taping the caps, the 180-degree roll-over locks require manual dexterity. Evaluate whether your pack bench prefers folding complex locks or simply taping standard corners.

Clearance, overlap, and cap depth

Cap depth and overlap

The side walls of the top and bottom caps can be extended to overlap more of the sleeve. A deeper overlap increases the double-wall perimeter, adding vertical stacking strength for heavy pallet loads.

Slot and tab clearance

The internal dimensions of the caps must be precisely offset to account for the thickness of the sleeve. Changing the board grade later requires recalculating these gaps so the caps slide on without binding.

Locking tab geometry

The shape and length of the locking tabs can be adjusted based on the chosen board grade to ensure they seat firmly into the base slots without tearing.

Board and packing details

Telescopic clearance and friction

The internal dimensions of the caps must be precisely offset to account for the thickness of the sleeve. Changing the board grade later requires recalculating these gaps so the caps slide on without binding or falling off.

Telescopic coverage

Partial versus full telescope

The top lid can be specified as a short cap just to close the tube, or extended to slide further down the sleeve for additional vertical reinforcement.

Additional notes

Mixed board grades for sleeve and caps

Buyers often optimize this system by specifying a highly rigid board for the load-bearing sleeve and a thinner, more pliable board for the caps to ensure the mechanical locks snap into place easily.

Alternative heavy-duty and telescopic boxes

FAQs

Assembly and packing

Does this box require any tape or glue?

The top and bottom caps assemble mechanically using roll-over locks and tabs, requiring no tape. However, the central sleeve is a continuous tube that requires a factory-glued or stitched joint.

Board and material

Can we use heavy double-wall board for the entire package?

The central sleeve easily handles double-wall board for high stacking strength. However, the caps require a 180-degree fold to lock. Thick board fights this fold, which can cause the locking tabs to pop out. We often recommend a lighter board for the caps or switching to a taped-corner style if heavy caps are mandatory.

Shipping and route

Can this ship through standard parcel networks?

This three-piece design relies on friction to keep the caps on the sleeve. For unpalletized courier shipping, the package needs external strapping or heavy-duty banding to prevent the caps from detaching during transit.

Production and tooling

Does this style require custom cutting dies?

Yes. While the central sleeve is a simple tube, the top and bottom caps feature intricate locking tabs and slots that must be cut on a flatbed die-cutter.

Product fit

How does drop-over loading work?

You place the bottom cap on a pallet or bench, stage your heavy product inside the shallow tray, and then slide the tall central sleeve down over the product. This prevents workers from having to lift heavy items over high box walls.

Assembly and packing

Can the caps be assembled by automated equipment?

No. The roll-over locking sequence requires manual two-hand dexterity to seat the tabs into the base slots. This is strictly a manual pack-bench operation.

Board and material

What happens if the board is too thick for the caps?

If the board is too thick, the memory of the corrugated material will resist the 180-degree fold. This tension often forces the locking tabs to pop out of their slots, causing the cap to unfold.

Shipping and route

Can the central sleeve be shipped flat?

Yes. Even though the sleeve is a continuous tube with a factory joint, it folds completely flat for delivery and storage, just like the unerected cap blanks.
