The open-top tray configuration provides a clean, unglued interior that looks premium on the shelf, keeping products accessible and neatly contained.
Internal kitting and component sorting
The glueless setup allows operators to build trays on demand at the pack bench without maintaining hot-melt glue equipment.
Bakery and pastry packaging
Often cut from lighter folding carton or fine-flute corrugated, the lidded version provides a classic, clean presentation that opens easily for the consumer.
Premium e-commerce inserts
When placed inside a larger master shipper, the lidded presentation box organizes multiple components securely without exposing the end customer to messy glue trails.
Premium Presentation and Hand-Packed Workflows
Premium unboxing and presentation
Brands that want a pristine interior without visible glue trails or tape residue benefit from the mechanical friction locks.
Low-volume or seasonal hand-packing
Operations that do not have the volume to justify an automated tray erector can rely on this style for fast, tool-free manual assembly.
Clean-room or food-adjacent packing
Facilities where hot-melt adhesive fumes or machinery are undesirable can use this folded design to keep the packing environment simple and clean.
Situations That Require Glued Trays or Parcel Mailers
High-speed automated packing lines
If you are processing thousands of trays per hour, the manual folding and locking of this design will create a bottleneck. Evaluate the FEFCO 0415, which is designed for automated hot-melt tray erectors.
Standalone parcel shipping
The friction locks risk springing open if the box is dropped or tumbled in a courier network. For rough transit, evaluate the FEFCO 0427 roll-end tuck-top mailer, or plan to use an outer master carton.
Board Thickness, Friction Locks, and Assembly Labor
Board thickness and fold resistance
This package is sensitive to board caliper. Thick double-wall corrugated will cause the 180-degree roll-over hinges to crack and the friction tabs to bind. Fine flutes or solid cartonboard are safer choices.
Surface finish and lock friction
The entire structure holds together via friction. High-gloss varnishes or slick laminations can reduce that friction, increasing the risk that the tuck flaps or corner tabs spring open under tension.
Assembly labor versus factory gluing
You avoid the need for factory gluing, but you shift that effort to manual pack-bench labor. The flatbed die-cutting required for the lock tabs also generates corner offcut waste, which affects the material yield.
Open tray versus lidded closure
Decide whether the product needs top protection or just lateral containment. The base tray leaves the top completely open for display, while the lidded variant adds a hinged cover with a front tuck flap.
Lock Tab Geometry and Fold Clearances
Lock tab geometry
The shape of the friction catch can be adjusted to tune how tightly the lid or end walls grip the base, depending on the board grade.
Inside fold corrections
For thicker corrugated boards, the template must be adjusted with specific layer-step creases to ensure the walls do not bow when folding over the internal dust flaps.
Corner slot profiles
The slots that receive the friction tabs can be cut with squared or rounded profiles. Rounded slots often strip more cleanly during the die-cutting process.
Board and packing details
Die-cutting and stripping waste
The complex lock tabs and dust flaps strictly require flatbed or rotary die-cutting. The cross-shaped blank creates offcut waste that impacts nesting efficiency on the sheet.
Open-Top Trays versus Lidded Presentation Boxes
Open-Top Tray (Base 0416)
The standard configuration features 180-degree roll-over end walls that lock into the base, leaving the top completely open for display or easy access.
Lidded Presentation Box (0416a / 0416_1)

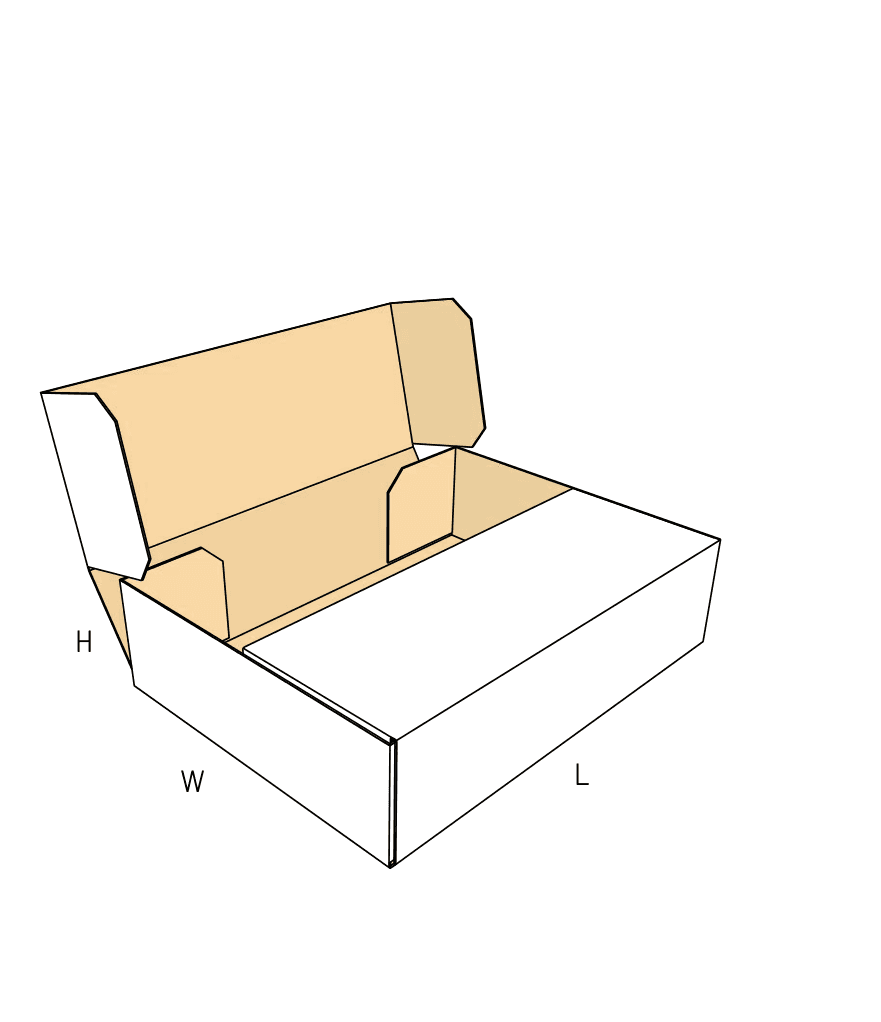

Adds a hinged lid with a front tuck flap. The side walls fold 90 degrees and lock via corner tabs, creating a clean, reclosable presentation box.
Additional notes
Physical sample testing for lock tension
Always request an unprinted physical sample in your exact chosen board grade. Lock friction is subjective and must be tested to ensure the box does not spring open under its own tension.
Related Trays and Mailers
FAQs
Shipping and Route
Can this box be shipped through a parcel courier?
Not reliably on its own. The friction locks risk springing open if the box is dropped or tumbled. It should be placed inside a master shipping carton or securely taped if entering a mixed-carrier network.
Board and Finish
What board types fit this glueless lock?
Fine flutes and solid folding cartonboard fit well. Heavy single-wall or double-wall corrugated is a poor fit because the thick board resists the tight folds and causes the friction locks to bind or tear.
Will a glossy print finish affect the box?
It can. Because the box relies on friction to stay locked, slick laminations or high-gloss varnishes can make the tabs slip, increasing the risk of the box springing open. A physical sample helps test the lock tension.
Assembly and Packing
Does this require any tape or glue to assemble?
No. The structure relies entirely on mechanical friction locks and tuck flaps. Once the creases are folded correctly, the box holds its shape without any adhesive.
Can this be assembled by automated machinery?
No. The 180-degree roll-overs and friction tucks are designed for manual, two-handed assembly. If you need automated forming, you should evaluate a glued tray style.
Closure and Access
How does the lidded version stay closed?
The lidded variants use a front tuck flap with small lateral tabs that catch inside the front wall slots. This friction fit allows the box to be opened and reclosed multiple times.
Board and Finish
Can I use double-wall corrugated for this tray?
Double-wall board is generally a poor choice. The thick material resists the 180-degree roll-over folds, causing the hinges to crack and the friction locks to bind.
Samples and Prototypes
How do I know if the friction locks will hold my product?
The only reliable way to verify lock tension is to test a physical, unprinted sample in your exact chosen board grade. Heavy products may cause the side walls to bow, which can pull the locks open.
