Pallet, warehouse, and bulk display applications
Agricultural and produce transport
The open top allows for natural ventilation, while the reinforced ends support the weight of stacked pallets. It is frequently modified with side vents and carrying holes for field-to-market logistics.
Industrial parts and warehouse storage
Functions as a durable, reusable picking bin. The double-wall ends withstand repeated handling, and the glueless interior prevents small components from snagging on tape or adhesive.
Heavy retail bulk displays
Provides a clean, structured presentation for dense items like beverages, hardware, or bulk foods, allowing customers immediate access without unpacking.
Internal work-in-progress kitting
Moving heavy sub-assemblies between factory stations requires open access and rigid stacking. The double-thick ends prevent the tray from bowing when loaded with dense metal or plastic components.
Industries relying on open-top stacking
Supply chain and logistics
Operations teams value the flat delivery and fast pack-bench assembly. The tray can be erected on demand without tape guns or hot-melt glue systems.
Produce and agriculture
Growers rely on the tray's stacking rigidity. When cut from heavy-duty board, it resists the high humidity and vertical compression typical of cold-chain transport.
Manufacturing and assembly
Production floors need durable, reusable bins that can handle heavy parts without collapsing. The glueless design means there is no adhesive to degrade over time.
When to consider a closed box or retail tray
Parcel and courier shipping
If the product will travel through a mixed courier network, the open top and friction locks are a risk. Compare a hinged-lid mailer or plan to use this tray inside a master shipping carton.
Lightweight retail presentation
If you are packing lightweight goods for a retail shelf and do not need high stacking strength, a standard display tray uses less material and is easier to fold.
Board thickness, assembly, and handling choices
Board grade and foldability
This tray is often cut from thick, double-wall corrugated board for maximum strength. However, thicker boards require precise crease scoring so the 180-degree hinges fold cleanly without cracking or binding.
Manual packing versus tray erectors
At lower volumes, the tray is easily folded by hand at a pack bench. For high-volume fulfillment, specialized plunger-style tray erectors can automate the process, provided the lock tabs are matched to the machine.
Surface coatings and friction
Because the tray holds its shape using mechanical tabs locked into the floor, heavy varnishes or slick coatings can reduce friction and cause the walls to spring open. Uncoated or standard kraft finishes often lock more securely.
Stacking height and pallet fit
Deciding the exact dimensions helps maximize pallet utilization. The double-thick ends must align exactly with the trays above and below to carry the vertical load effectively.
Ventilation, handles, and lock tuning
Ventilation and airflow slots
For produce or temperature-sensitive goods, the side walls and base can be modified with cutouts to improve airflow without compromising the load-bearing end walls.
Integrated carrying holes
Hand holes can be added to the short ends to assist with manual lifting, though this removes a small amount of material from the primary crush-resistant panels.
Lock tab and slot tuning
The friction fit of the base tabs can be adjusted to accommodate specific board thicknesses or automated assembly mandrels, ensuring the tray stays locked under tension.
Board and packing details
Die-cutting and material footprint

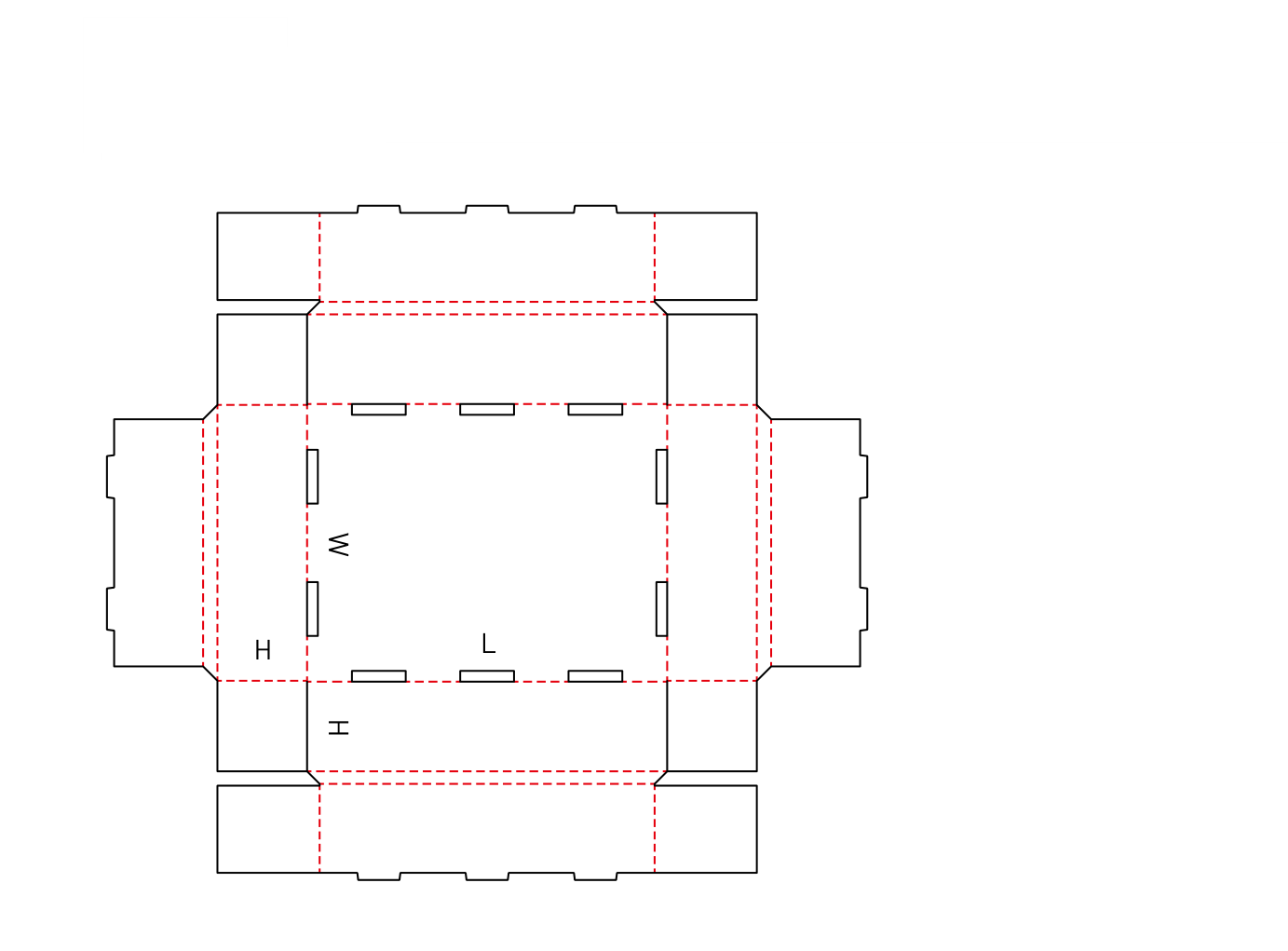

The extended flaps required to create the 180-degree roll-over walls result in a large, cross-shaped flat blank. This requires flatbed or rotary die-cutting and generates more corner offcut waste than a standard slotted box, a necessary tradeoff for the added structural strength.
Clearance and lock variations
Clearance-adjusted locks
When using exceptionally thick board or automated tray erectors, the lock tabs and fold clearances can be explicitly tuned to prevent the hinges from binding or the machinery from jamming.
Explicit lock holes
Adjusts the dimensions of the base receiving slots to fine-tune how tightly the friction tabs seat, which is critical for heavy-duty board grades.
Additional notes
Sample testing for thick board grades
When specifying heavy-duty corrugated board, always request a physical sample to verify that the lock tabs seat firmly and the hinges fold cleanly without excessive operator effort.
FAQs
Shipping and Route
Can this tray be shipped through standard parcel couriers?
On its own, it is generally not recommended for parcel networks. The open top exposes the product, and rough drops can cause the friction locks to spring open. It excels in palletized freight or when used as an inner tray inside a sealed master carton.
Assembly and Packing
Does this tray require tape or glue to stay together?
No. The tray uses a mechanical friction lock. The end walls roll over the corner flaps, and tabs snap directly into slots in the floor, holding the entire structure under tension.
Board and Material
Can we use heavy double-wall corrugated board for this tray?
Yes, it is frequently made from double-wall board for heavy industrial or agricultural use. However, the factory must carefully adjust the crease allowances so the thick board can fold 180 degrees without cracking.
Assembly and Packing
Can this be assembled on automated packaging lines?
It cannot be processed on standard linear folder-gluers because it has no glued seams. It can be automated using specialized plunger-style tray erectors, provided the lock tabs are matched to the specific machine.
Modifications
Can we add a lid to this tray?
If you need a lid, it is usually more practical to switch to a hinged-lid style or use a separate slip-lid rather than modifying this specific open-top template.
Print and Finish
Will a glossy finish affect how the tray stays together?
It can. Because the tray relies on the physical friction of cardboard tabs seated in slots, slick coatings or heavy varnishes can reduce that grip, increasing the risk of the walls springing open.
Performance
How does this tray handle heavy pallet stacking?

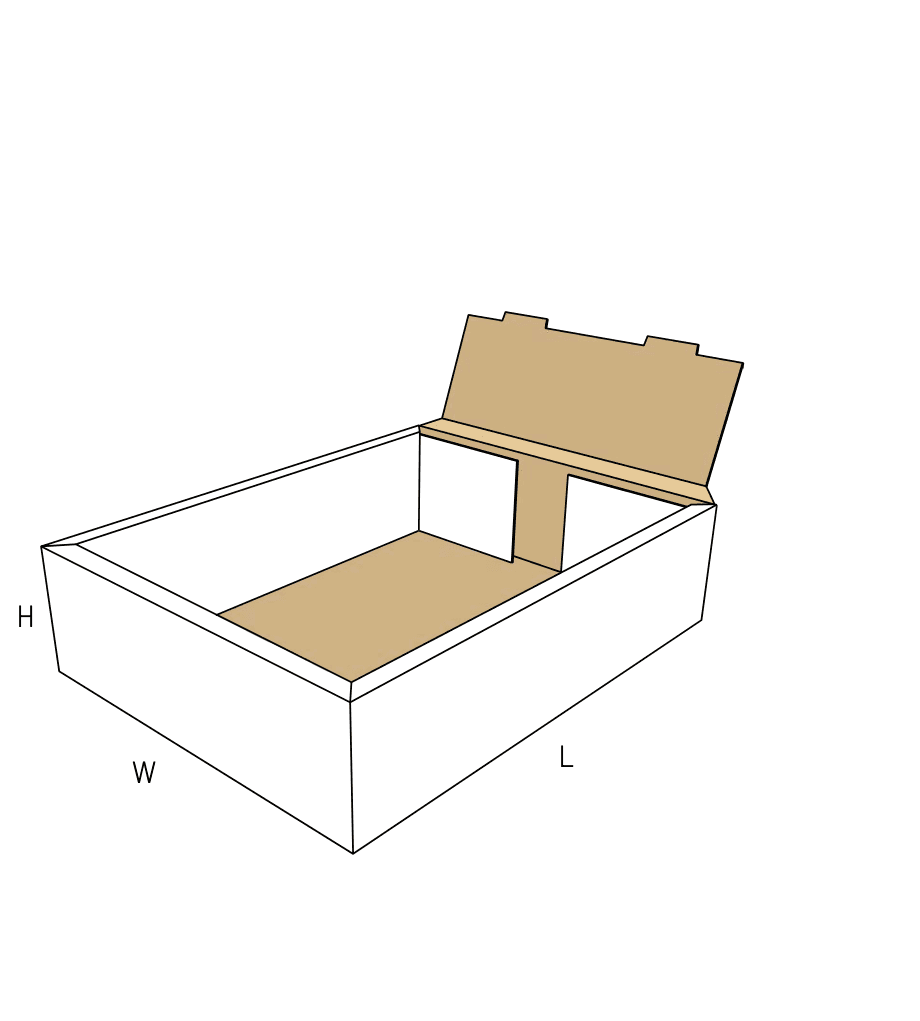

The 180-degree roll-over end walls create a double-thick structural column at each end. When stacked correctly on a pallet, these reinforced walls carry the vertical weight, preventing the tray from crushing under heavy loads.
Modifications
Are carrying holes recommended for heavy loads?
Hand holes can be added to the short ends for easier lifting. However, this removes material from the primary load-bearing panels, so the board grade may need to be increased to compensate for the lost stacking strength.
