Agricultural and Bulk Retail Packing
Field-to-shelf produce
The open top allows field heat to escape and frames fruits or vegetables for immediate display. The reinforced end walls bear the weight of stacked pallets, protecting delicate goods from crushing.
Bulk bakery and confectionery
Provides a rigid, breathable carrier for bulk baked goods moving between commercial kitchens and retail floors.
In-field picking and sorting
Since the tray requires no tape or glue, workers can erect it directly in the field or at the sorting bench, pack the goods, and send them straight to distribution.
Heavy root vegetables and melons
The double-wall ends and trapped corner flaps resist outward bulging, keeping heavy, loose items contained without tearing the corners.
Farms, Packhouses, and Grocers
Agricultural distributors
Need packaging that survives cold-chain moisture, stacks efficiently on pallets, and reduces handling steps at the grocery store.
Retail supermarkets
Prefer shelf-ready trays that eliminate the need to unpack individual items, reducing labor and product damage.
Commercial bakeries
Require a breathable, stackable tray that can move large volumes of fresh goods directly to display racks without trapping condensation.
When to Consider a Different Tray
Parcel and courier shipping
If the product will ship individually through a courier network, an open tray will fail. Consider a roll-over mailer or plan to use a master shipping carton.
Need for extreme ventilation
If the produce requires maximum lateral airflow, look at trays that feature native side cutouts or top stacking flanges.
Board, Moisture, and Assembly Choices
Board thickness and fold clearance
This tray's locking mechanism is highly sensitive to board thickness. Heavy double-wall boards provide excellent crush resistance but require precise die-cut adjustments to ensure the 180-degree hinges fold without cracking.
Moisture resistance
Fresh produce often requires water-resistant coatings to prevent the corrugated board from degrading in refrigerated environments. These coatings can reduce friction, meaning the locking tabs may need tightening to stay secure.
Assembly labor
Erecting the tray requires manual two-hand folding to roll the end walls over the corner flaps and seat the tabs. High-volume operations may need specialized plunger tray-forming equipment.
Print surface and branding
Because the end walls roll over to the inside, the exterior print surface remains uninterrupted. Decide if the tray needs high-graphic retail branding or simple flexographic routing information.
Clearance and Lock Adjustments
Locking tab friction
The width and depth of the base slots can be adjusted to create a tighter or looser friction fit, depending on the board finish and expected transit shock.
Corner flap tapers
The internal dust flaps can be tapered to prevent them from binding against the side walls when the end walls roll over them.
Base ventilation slots
Additional die-cut holes can be added to the floor panel to improve vertical airflow through stacked pallets, which is critical for field-packed produce.
Board and packing details
Blank sprawl and nesting yield

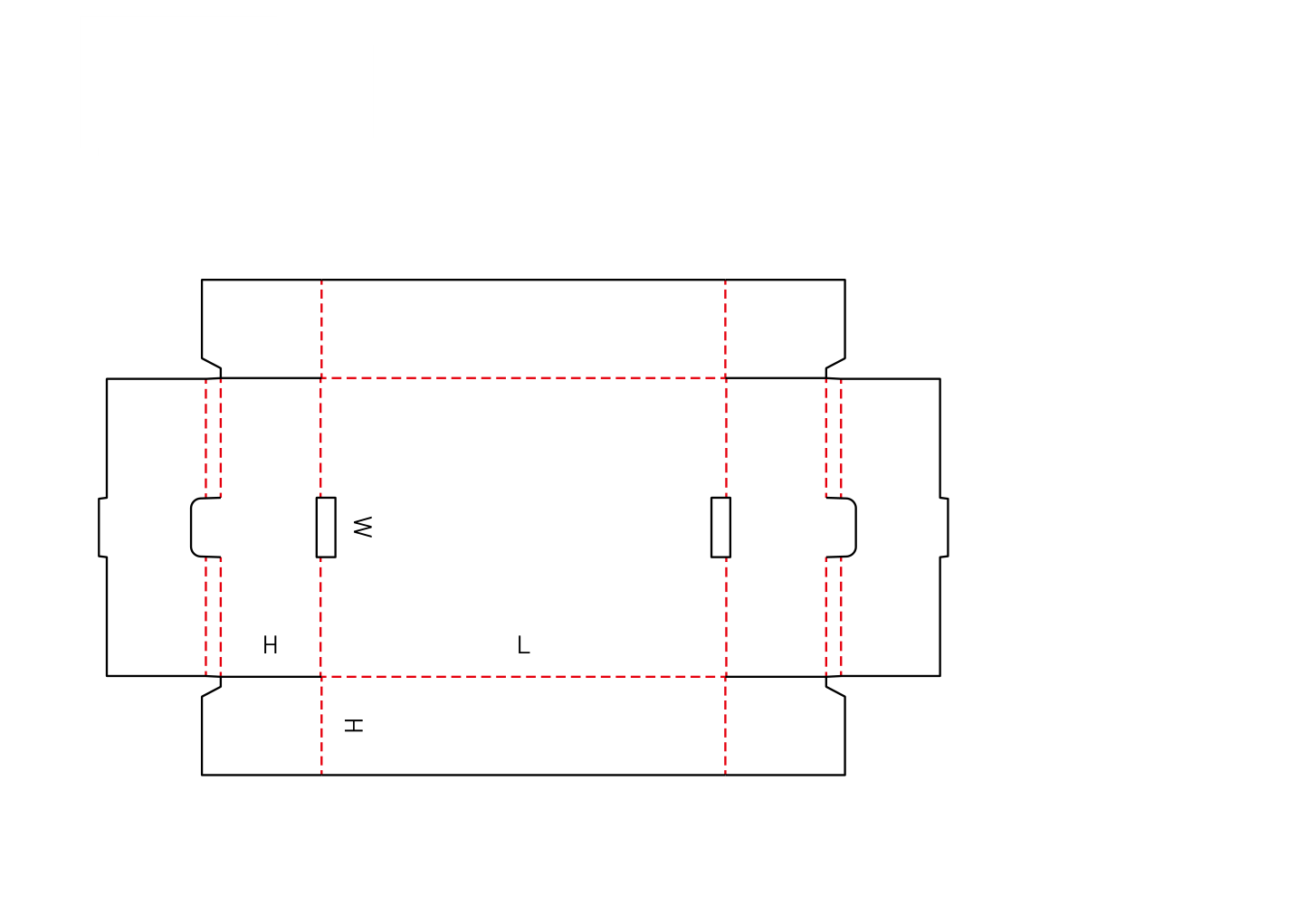

The extended roll-over end panels create a cross-shaped flat blank that consumes more material than a standard glued tray. This footprint requires flatbed or rotary die-cutting and affects how efficiently the design nests on a corrugated sheet.
Design Variants
0435.1 (Tapered Flap Variant)
Utilizes specific taper angles on the inner flaps to make manual insertion easier and prevent catching during the roll-over motion.
0435a (Clearance-Adjusted Variant)
Dynamically adjusts the flap height and fold clearances specifically to accommodate thick, heavy-duty corrugated boards without cracking the hinge.
Additional notes
Die-cutting and internal stripping
The lock holes in the base panel create internal waste during manufacturing. High-volume runs require specific stripping configurations on the die-cutter to ensure these holes are clean before delivery.
Related Display and Produce Trays
FAQs
Assembly and Route
Does this tray require glue or tape?
No. The tray relies entirely on mechanical friction. The end walls roll over 180 degrees and lock into base slots using extended tabs.
Can this tray be shipped through parcel networks?
Not on its own. The open top and friction locks are designed for palletized distribution. Courier transit requires placing the tray inside a sealed master carton.
Board and Fit
Can we use heavy double-wall corrugated board?
Yes, but the die-cut template must be precisely calibrated. If the fold allowances are not tuned for the exact board thickness, the hinges will crack and the locking tabs will fail to seat.
Will water-resistant coatings affect the tray?
Coatings are common for produce, but they can make the board slippery. The locking tabs and base slots may need tighter tolerances to ensure the tray does not spring open.
Production
Can this be assembled on automated packaging lines?
It cannot be processed on standard linear folder-gluers. Automated assembly requires specialized plunger tray-erecting equipment. Otherwise, it is erected manually.
Why does this tray cost more to cut than a standard box?
The 180-degree roll-over walls require a large, cross-shaped flat blank. This footprint reduces how many trays can be cut from a single sheet of corrugated board, and it strictly requires custom die-cutting tooling.
Assembly and Route
Do I need to pack the product before or after assembly?
Because the tray relies on friction locks and a 180-degree roll-over motion, it is typically erected empty at the packing bench, then loaded with produce.
Board and Fit
How does the tray handle heavy stacking on pallets?
The 180-degree roll-over end walls create double-thick columns that bear vertical weight. When properly aligned on a pallet, this provides excellent end-crush resistance for heavy agricultural loads.
