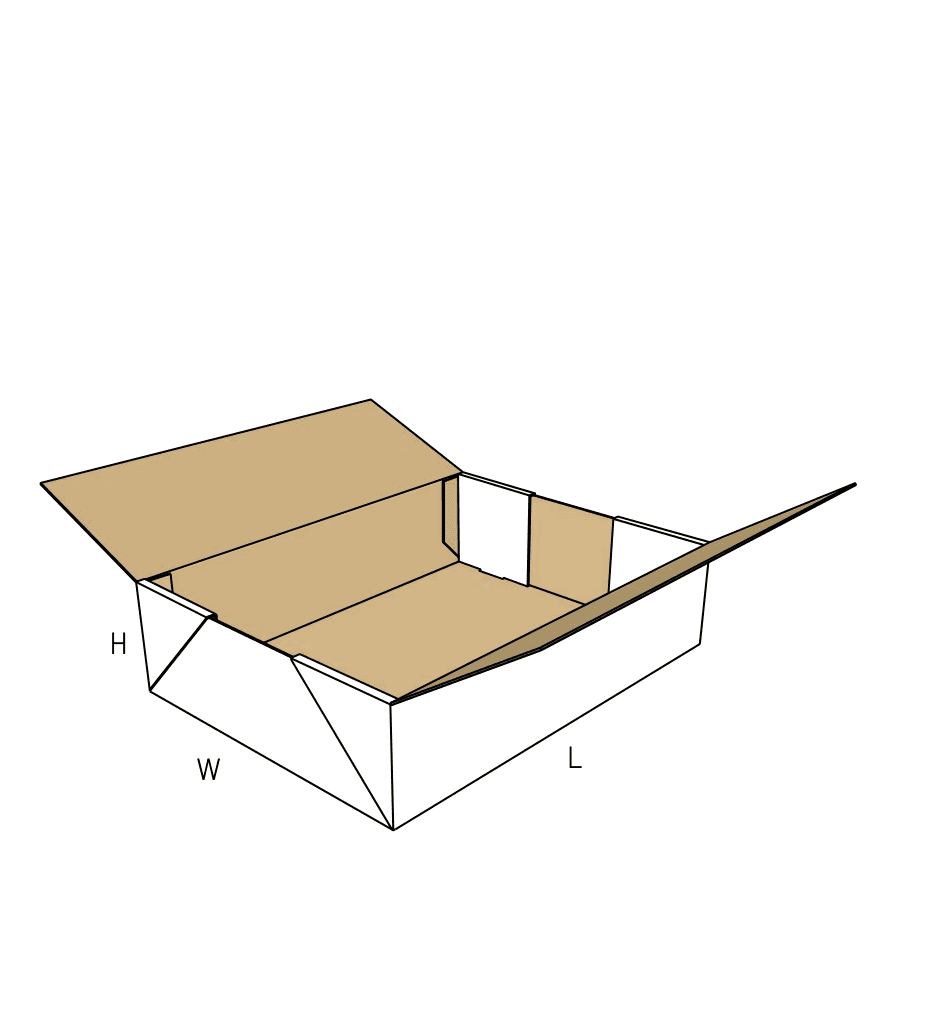

FEFCO 0437

Self-Locking Presentation Tray with Split Lid

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Split center lid creates a two-handed opening reveal
  • Double-thick end walls provide lateral crush resistance
  • Assembles entirely by hand using mechanical friction locks

About this product

This one-piece corrugated tray features a solid bottom, double-thick end walls, and a split lid that interlocks in the center. It folds by hand without glue or staples, creating a clean, self-contained package.

Because the top flaps meet in the middle rather than tucking into the front, it offers a distinct, theater-style opening. That split seam means it cannot bear heavy top loads and usually requires a clear wafer seal or outer mailer bag for rough courier transit.

Common uses

  • Retail shelf presentation
  • E-commerce kitting (inside a mailer bag)
  • Internal parts staging
  • Confectionery and delicate produce

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Presentation and Kitting Jobs

Premium retail and boutique packaging

The center-meeting flaps create a theater opening that fits apparel, cosmetics, or specialty foods. The solid bottom ensures small items stay contained, while the double-thick ends protect the contents on the shelf.

E-commerce kitting and subscription boxes

When placed inside a poly mailer or a master shipping carton, this tray keeps curated items organized and presents them the moment the outer packaging is removed.

Flat electronics and hardware staging

The continuous, gapless floor prevents small fasteners or flat components from slipping through, making it a reliable choice for organizing hardware kits.

Confectionery and delicate produce

The double-wall ends provide strong lateral crush resistance, allowing these trays to stack safely on retail shelves without damaging delicate food items inside.

E-commerce, Retail, and Parts Distribution

Boutique e-commerce brands

Brands looking to elevate the unboxing moment often choose this style over a standard front-tuck mailer. The split lid encourages the customer to open the box with both hands, focusing attention directly on the center.

Internal parts staging and organization

Because the center lock opens and closes repeatedly without wearing out a tuck flap, it fits assembly environments where workers need to access components multiple times.

Subscription box fulfillment

Fulfillment centers use this tray to organize multiple small items into a single, clean presentation layer before sliding the entire unit into a protective outer transit bag.

When a Solid Lid or Open Tray Fits Better

Direct parcel shipping without an outer bag

If you plan to place a shipping label directly on the box and hand it to a courier, the center friction lock is a risk. Drop shocks cause the flaps to pop open. Compare a standard roll-over mailer with a front tuck, which stays closed more reliably in transit.

Heavy top-load stacking

The split lid lacks the structural continuity of a solid top panel. If your pallets stack high with heavy goods, the center seam bows inward. Consider an open tray for pure column stacking or a solid-lid mailer.

Close variants and lookalike dielines

The closest library neighbors include 0437_1, 0424a, 0436. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Closure, and Material Yield

Board thickness and fold behavior

This structure relies on 180-degree roll-over folds to lock the base. Thick, double-wall corrugated board often binds, cracks, or prevents the locking tabs from seating properly. Fine flutes yield the crispest folds and the most reliable friction locks.

Securing the center seam

The top flaps stay closed purely through the friction of the interlocking tabs. Decide whether you will use a clear wafer seal, a branded sticker, or an outer mailer bag to ensure the lid stays shut during handling.

Surface finish and lock friction

High-gloss varnishes or slick coatings reduce the surface friction of the board. Because the top lid relies on friction to stay interlocked, a very slick finish makes the flaps prone to springing open.

Blank footprint and material yield

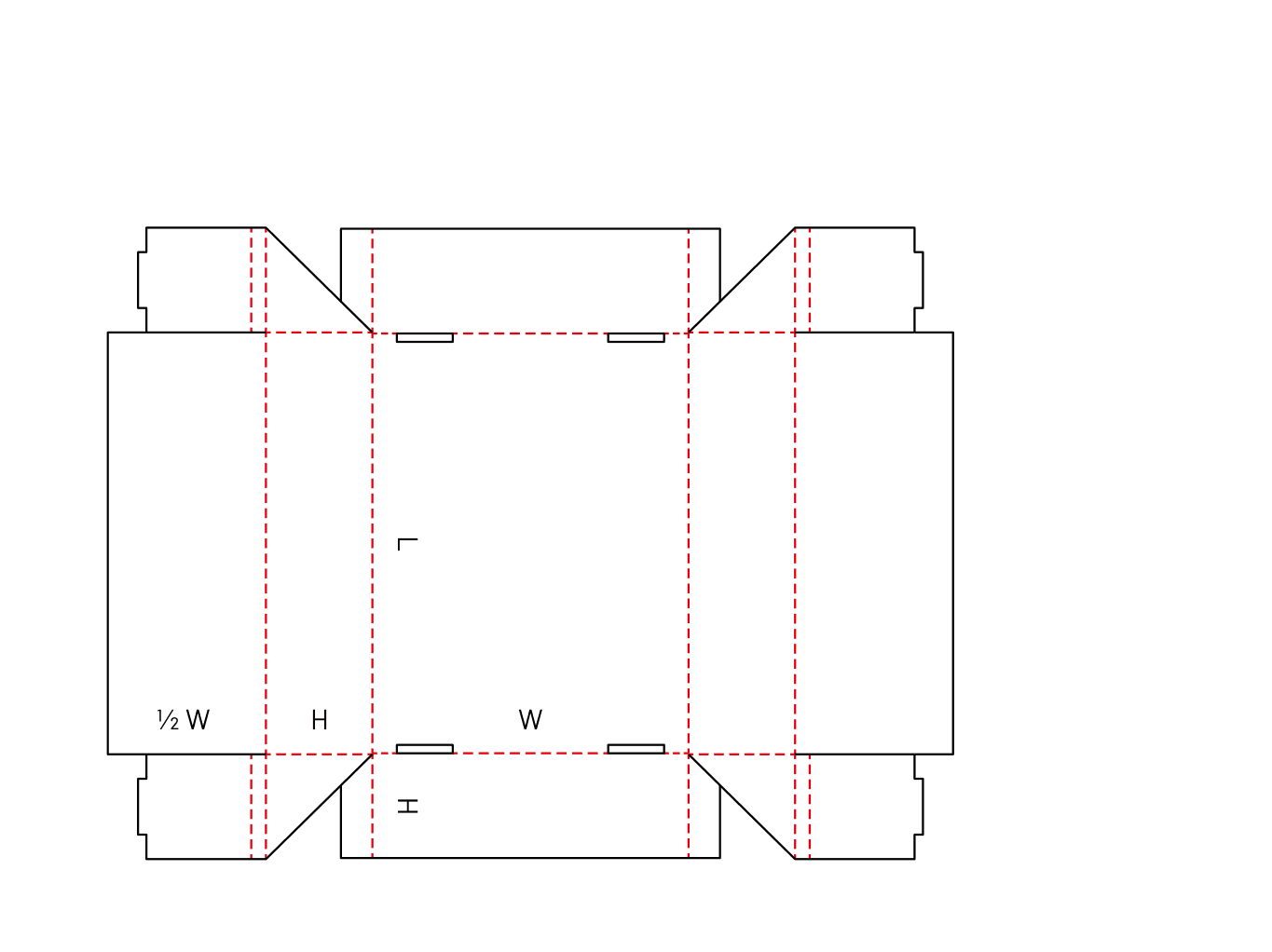

This tray uses a cross-shaped flat blank with extended flaps for both the double-thick walls and the lid. This requires a relatively large footprint of corrugated board, which limits how many boxes fit on a single sheet during die-cutting.

Adjusting Locks, Inserts, and Cutouts

Locking tab profiles

The shape and depth of the center interlocking tabs can be adjusted based on the board grade. Tighter tolerances provide a firmer lock but require more effort from the packing team to align and close.

Custom insert integration

The gapless solid floor provides a stable base for die-cut foam or board inserts, keeping small components or cosmetics securely in place.

Ventilation and display cutouts

Plotter-cut windows or air holes can be added to the side panels for produce ventilation or retail visibility without compromising the double-thick end walls.

Board and packing details

Base locking sequence

Attempting to interlock the top flaps before fully seating the end-wall roll-over tabs leads to geometric skew. Packers must press the base tabs firmly into their slots first.

Clearance and Profile Variants

Clearance-adjusted variants (0437.1)

Minor structural variations exist to adjust the lock hole clearances and meeting flap profiles, accommodating different board tolerances without changing the overall folding sequence.

Additional notes

Insert clearance for small parts

Because the base is completely solid and gapless, this tray pairs very well with custom die-cut inserts to hold small components, cosmetics, or electronics securely in place.

Related Trays and Mailers

0437_1: Self Locking Tray

Close FEFCO sibling to review if a code suffix or older dieline may point to a variant. The broad shape can be similar while locks, slots, clearances, or fold sequence change the package.

0424a: Tray with Self Locking Wall

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Shipping and Route

Can I ship this box through the mail without tape?

Generally, no. The center flaps lock using only board friction. The rough handling of a courier network easily causes the center seam to pop open. You will usually need a clear wafer seal, a branded sticker, or an outer mailer bag.

Material and Fit

What board thickness fits this tray?

Thinner, fine-flute corrugated boards fit best. The design requires the end walls to fold over 180 degrees. If the board is too thick, those hinges crack, and the locking tabs fail to reach their slots.

Packing and Assembly

Does this require any glue or special equipment to assemble?

No. It is a one-piece blank that folds and locks together entirely by hand. Because it requires several sequential folds and firm pressure to seat the roll-over tabs, it is slower to pack than a pre-glued crash-bottom box.

Print and Finish

How does a glossy finish affect the box?

High-gloss varnishes or slick coatings reduce the surface friction of the board. Since the top lid relies on friction to stay interlocked, a very slick finish makes the flaps prone to springing open.

Comparison

Why choose this over a standard front-tuck mailer?

The main advantage is the presentation. The split lid opens from the center, creating a distinct reveal for the customer. If that unboxing experience is less important than transit durability, a standard front-tuck mailer is usually the safer choice.

Stacking and Storage

Can this tray handle heavy top loads?

No. The split lid lacks the structural continuity of a solid top panel. If your pallets stack high with heavy goods, the center seam bows inward.

Material and Fit

Does this tray hold small loose parts securely?

Yes. The base is a continuous, solid panel with no gaps or slots in the floor, preventing small fasteners or components from slipping through.

Packing and Assembly

How does the base lock stay together?

The short end walls fold up and roll over 180 degrees, trapping the corner dust flaps inside. Friction tabs on the edges of those end walls then press into slots on the base panel to lock the shape.
