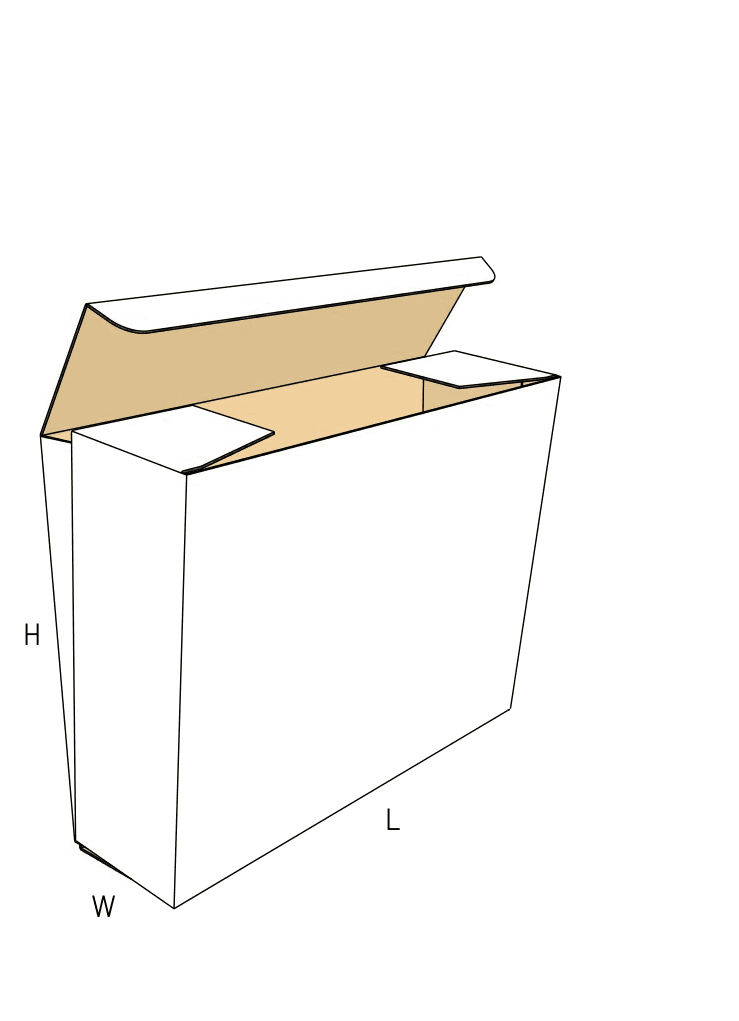

3D view
1 / 2

FEFCO 0444

Hinged Presentation Box with Roll-Over Front

This one-piece presentation box features a hinged lid and a front wall that rolls over 180 degrees to lock the tray together without glue. The design creates a clean, double-thick front edge that frames the product while keeping the side and back walls slim.

Because it relies entirely on mechanical friction and precise folds, it delivers a premium unboxing experience for retail kits and promotional items. It requires manual assembly and usually needs an outer master carton if shipped through mixed-carrier parcel networks.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Assembles entirely by hand without glue or tape
  • Double-thick front wall provides a clean presentation edge
  • Hinged lid closes with a customizable front tuck flap

Common uses

  • Corporate event kits
  • Luxury retail goods
  • Sales samples

Get a quote

Or email us at info@herculeindustrial.com

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Premium Presentation and Retail Kits

High-end promotional kits and sales samples

The unglued construction leaves no visible seams or adhesive lines on the interior. The double-thick front wall creates a sturdy frame for the contents. This makes it a strong choice when the first impression matters more than packing speed.

Retail gift sets and luxury goods

The hinged lid and friction tuck allow customers to open and close the box repeatedly without damaging the cardboard. The flat interior floor provides a clean base for custom inserts or molded trays.

Influencer seeding and PR mailers

While it requires an outer shipping carton for courier transit, the unboxing experience is very engaging. The wide lid offers a large canvas for branding, and the rolled front edge presents the interior contents cleanly.

Corporate onboarding and welcome kits

Teams assembling employee welcome kits often prefer this style because it ships flat and folds together cleanly on a pack bench. The lack of glue means no messy assembly, and the box can be kept as a desk organizer.

Corporate Promotions and Luxury Goods

Corporate gifting and event marketing

Event marketers assembling VIP kits or trade show handouts use this box for its clean lines. The wide, uninterrupted lid offers a large canvas for event branding and graphics, while the unglued interior keeps the focus on the promotional items.

Boutique retail and cosmetics

Brands selling premium skincare or cosmetics use this box to frame their products. The unglued interior ensures no adhesive residue interferes with the presentation, and the friction tuck feels deliberate and high-end.

Specialized electronics and tech accessories

For high-value tech accessories, the flat interior floor easily accommodates custom foam or die-cut board inserts. The double-thick front wall adds rigidity where the user interacts with the box most.

When to Evaluate Other Roll-Over Trays

High-volume automated fulfillment

The 180-degree front roll-over and corner dust flaps require a two-handed manual fold. If your packing line relies on automated folder-gluers or tray erectors, evaluate a 4-point glued tray or a standard crash-lock box.

Rough parcel transit without an outer shipper

The friction tuck flap is designed for presentation, not courier networks. If the box will ship individually through the mail, an external wafer seal is necessary, or a locking mailer with side dust flaps may be a better fit.

Board Choice and Closure Security

Flute profile and board thickness

This design is very sensitive to board thickness. The front wall must roll completely over the side dust flaps and lock into the base. Fine flutes like E or F work beautifully. Thicker boards will cause the hinges to crack and the locking tabs to bind unless the fold clearances are heavily modified.

Friction tuck versus slit-lock closure

The front tuck flap can rely purely on friction against the front wall, which feels smooth and premium. Alternatively, adding small slit locks increases closure security but slightly changes the opening feel.

Outer shipping requirements

Because the lid relies on a friction tuck, it can open if dropped. Decide early if you will use a clear wafer seal for closure security or pack these boxes inside a separate master shipping carton.

Insert compatibility and interior depth

The flat floor is excellent for inserts, but the double-thick front wall takes up a fraction of the internal footprint. If you are designing tight-fitting foam or molded pulp inserts, ensure the dimensions account for that rolled front edge.

Tuck Flap and Corner Adjustments

Dust flap shoulder profiles

The inner dust flaps can be cut with specific shoulder angles to tighten the corner seals. This reduces dust entry and changes how the lid seats when closed.

Tuck flap style

The leading edge of the tuck flap can be squared, radiused, or chamfered. A radiused or chamfered edge makes the initial insertion smoother during manual packing.

Front panel extension

The depth of the front roll-over can be adjusted. A full-depth roll-over reaches the floor for maximum rigidity, while a partial roll-over can be used to create a specific framing effect for the product.

Board and packing details

Surface finish and closure friction

High-gloss varnishes or soft-touch laminates look excellent but reduce the natural friction of the cardboard. If you specify a slick finish, the front tuck flap may need deeper insertion or slit locks to prevent the lid from springing open.

Closure Variants

Friction vs. Slit-Lock Tuck

The standard closure relies on a smooth friction fit. A slit-lock variant adds small catches to the tuck flap for higher security during handling.

Additional notes

Sample testing for lock friction

Because the front roll-over and lid tuck rely entirely on mechanical friction, we suggest testing a physical prototype with your exact chosen board grade and surface finish before committing to a full production run.

Related Presentation Packaging

0427: Roll-End Tuck-Top Mailer

A better fit if you need double-thick side walls for better crush resistance and a more secure closure for parcel shipping.

FAQs

Assembly and Packing

Does this box require glue or tape to assemble?

No. The front wall rolls over the inner dust flaps and locks mechanically into slots on the floor of the tray. The entire box folds together by hand.

Shipping and Route

Can I ship this box directly in the mail?

Usually not without an outer seal. The front tuck flap is designed for a clean presentation and easy opening. For mixed-carrier parcel shipping, an external wafer seal or a separate master shipping carton is necessary to keep the lid closed during transit.

Print and Finish

How does a glossy finish affect the box?

Slick finishes like high-gloss UV or soft-touch laminates reduce the friction that keeps the lid tucked in. If you plan to use these finishes, we should discuss adding slit locks to the tuck flap so the box stays closed.

Materials

Can this be made from heavy double-wall cardboard?

It is not advised. The 180-degree front roll-over requires precise folding. Thick double-wall board will bind, crack, and prevent the locking tabs from seating properly. Fine flutes like E or F are the standard choice.

Inserts

Does the flat floor interfere with custom inserts?

No. Because the locking tabs sit flush in the base slots and the front wall rolls over cleanly, the interior floor remains flat and gapless. This makes it an excellent base for foam, molded pulp, or folded board inserts.

Production

Why does this box require flatbed die-cutting?

The complex locking tabs on the front roll-over and the precise slots in the base require flatbed die-cutting. This process ensures the locks align perfectly for manual assembly.

Materials

Will the front roll-over crack if I use a coated board?

It depends on the board thickness and the scoring profile. Fine flutes handle the 180-degree fold well, but heavy coatings on thicker boards can crack along the hinge. We suggest testing a physical sample with your chosen finish.

Dimensions

Does the rolled front edge reduce the internal volume?

Slightly. The double-thick front wall takes up a small fraction of the interior depth. If you are designing tight-fitting inserts or packing rigid items, the internal dimensions must account for that folded layer.
