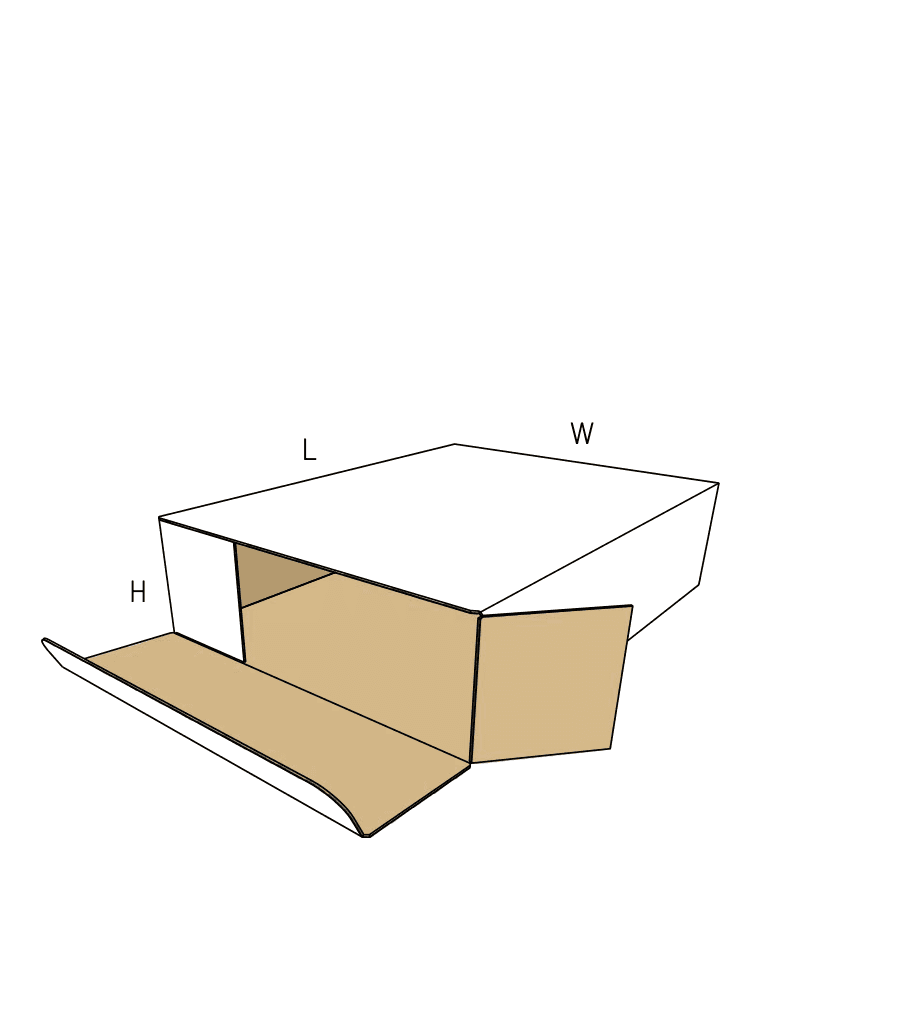

FEFCO 0447

Tuck-End Retail Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Ships flat as a pre-glued tube for instant pop-open assembly
  • Friction tuck closures allow repeated opening without damage
  • Requires fine-flute corrugated or boxboard for the tabs to seat cleanly

About this product

Often called a toothpaste box, this one-piece carton ships flat as a pre-glued tube and pops open with a quick squeeze. The ends secure with simple friction tuck tabs, creating a clean, tape-free exterior that looks great on a retail shelf.

Because it relies on friction to stay closed, it works best with fine flutes and lightweight products. If you are shipping directly through a parcel network, you will likely need an outer master carton or a clear wafer seal to keep the tucks from popping open in transit.

Common uses

  • Retail cosmetics and personal care packaging
  • Lightweight electronics and cable kitting
  • E-commerce returns utilizing the reusable closure
  • Wholesale inner cartons packed inside a larger shipper

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail display, kitting, and inner packing

Retail presentation and shelf display

The gapless front and back panels provide an uninterrupted canvas for branding, while the tuck closures keep the presentation clean. The flat base allows the carton to stand upright easily on store shelves.

Lightweight internal kitting

Teams assembling small parts or components can pop the tubes open and tuck the ends quickly without taping each box. This keeps pack-bench operations fast and reduces consumable waste.

E-commerce returns and reusable packs

The friction tabs allow customers to open the box, inspect the product, and reclose it securely without tearing the board. This makes it highly functional for items that might be returned or stored long-term in their original packaging.

Wholesale inner cartons

When shipping wholesale orders, these boxes act as clean individual unit packs that stack neatly inside a larger corrugated master shipper. The flat, uniform shape makes palletizing and master-packing highly predictable.

Product types that fit the tubular shape

Cosmetics and personal care

The classic tubular shape fits bottles, tubes, and jars perfectly. When paired with a custom internal insert, it prevents fragile items from rattling against the outer walls.

Electronics and small components

The clean interior and easy access make it a strong choice for cables, adapters, and lightweight hardware that require a professional presentation.

Pharmaceutical and healthcare packaging

Lightweight blister packs, supplement bottles, and medical devices fit naturally into this package, allowing for easy inclusion of printed instruction leaflets before the final tuck closure.

When to look at a different box style

Heavy or bulky items

The friction tucks will pop open under heavy internal pressure. Look at a crash-lock base or a fully taped slotted container for heavier payloads.

Direct parcel shipping

Without an external seal, drop shocks can force the tabs open. Consider a roll-end tuck-top mailer for better standalone transit security.

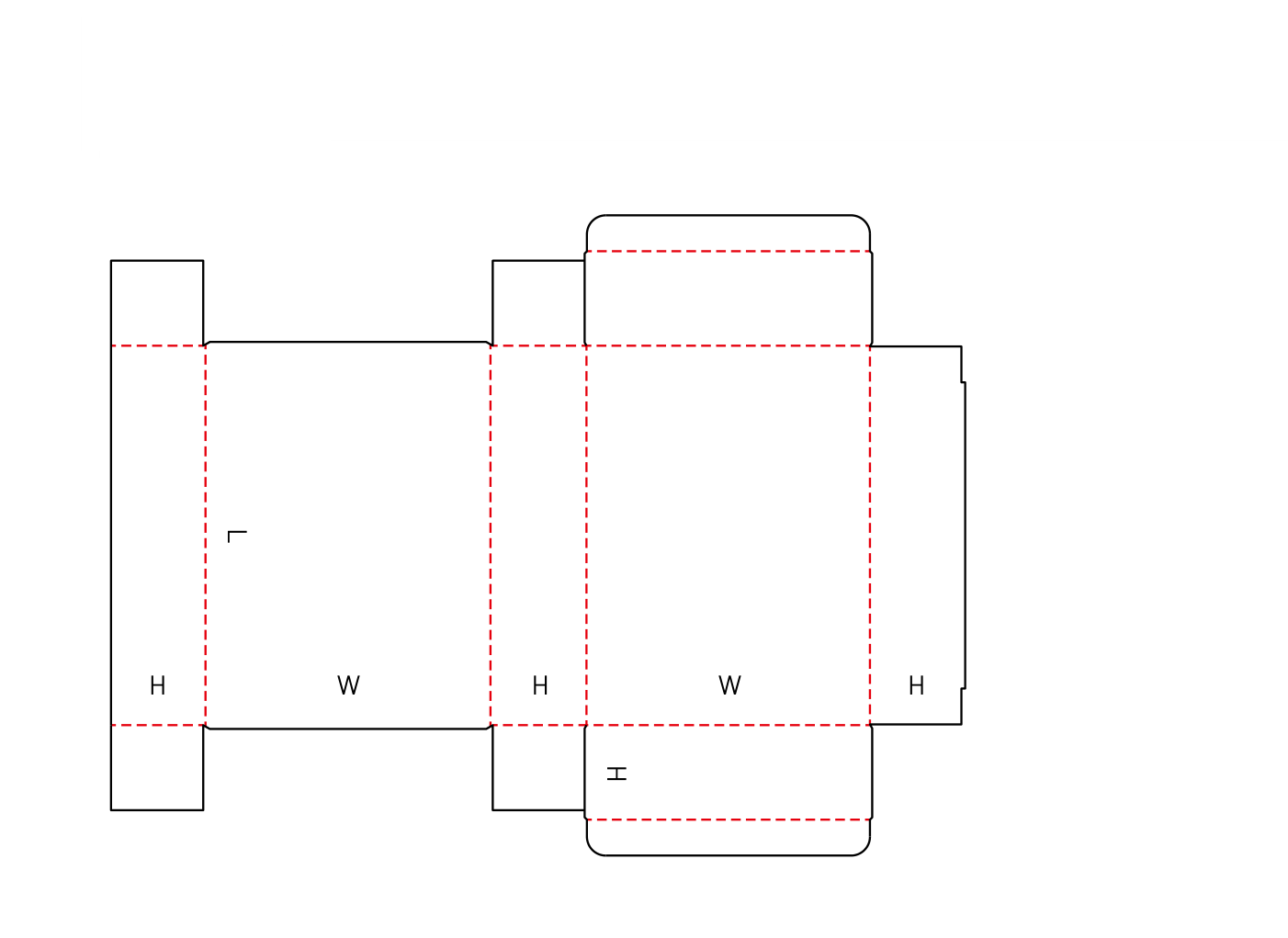

Close variants and lookalike dielines

The closest library neighbors include EVC11001, EVC11023, 0406. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, layout, and finish choices

Board thickness and flute profile

This design is extremely sensitive to board caliper. The tuck tab has to slide into a narrow gap between the outer wall and the folded inner dust flaps. Thick double-wall board will cause the hinges to crack and the tuck tabs to bind. Stick to E-flute, F-flute, or solid folding carton board.

Surface finish and friction

High-gloss coatings reduce the natural friction of the paperboard. If you apply a slick finish, the tuck tabs may slip out more easily, requiring tighter clearance adjustments during the design phase.

Packing line automation

Decide early if you will pack these by hand or use an automated cartoning machine. While the pre-glued tube pops open easily for manual packing, high-volume runs often rely on machinery to erect, load, and tuck the cartons automatically.

Master carton planning

Because these boxes rarely ship individually through parcel networks, you must plan their dimensions around how they will group together inside an outer shipping box.

Tuning the friction fit and access

Thumb notch sizing

The small cutouts that help fingers grip the tuck flap can be widened or deepened based on how often the user needs to open the box.

Friction clearance tuning

The exact width and depth of the tuck tab can be adjusted to make the closure tighter or looser, depending on the specific board grade chosen and the surface finish applied.

Slit locks for extra security

If the package needs more resistance against accidental opening, the tuck tabs can be modified with small side notches. These catch on the inner dust flaps, making the box harder to open accidentally.

Board and packing details

Automated filling potential

While the box pops open easily by hand, the pre-glued tubular shape is also highly compatible with automated cartoning machines for high-volume runs.

Straight tuck versus reverse tuck

Straight Tuck

Both closure flaps hinge from the front panel. This keeps the rear panel completely unbroken for graphics.

Reverse Tuck

The top and bottom flaps hinge from opposite panels. This layout often allows the flat blanks to nest more tightly on the cutting die, reducing material waste.

Additional notes

Print panel and label area

The four main walls provide a continuous, flat surface for printing or labeling, making it easy to wrap graphics around the entire tube.

Retail shelf loading

The flat bottom allows the box to stand upright cleanly on a shelf, while the vertical walls bear weight well if stacked in a retail display.

Related packaging to compare

0427: Roll-End Tuck-Top Mailer

Look at this style if the package needs a box that ships safely through mixed parcel networks without an outer master shipper.

EVC11001: Regular Tuck Lock - Snap Lock

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

EVC11023: Friction Tuck - Snap Lock

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

FAQs

Shipping and Route

Can I ship this box through the mail without an outer carton?

Usually no. The friction tucks can pop open if the box is dropped or crushed in a sorting facility. You will want to use a clear wafer seal on the flaps or pack these inside a larger master shipper.

Assembly and Packing

Does this box require tape or glue to assemble?

The factory glues the side seam before delivery. When it arrives at your facility, you simply pop the flat tube open and tuck the ends. No tape or glue is needed on the packing line.

Board and Finish

Why is board thickness so critical for this style?

The tuck tab has to slide into a narrow gap between the outer wall and the folded inner dust flaps. If the corrugated board is too thick, that gap disappears, and the tab will crush instead of sliding in.

Product Fit

Can I use this for heavy industrial parts?

It depends entirely on the weight. Heavy items shifting inside the box can push against the end flaps and force the friction locks open. A taped box or a crash-lock base is usually a safer choice for heavy parts.

Design Options

How does a straight tuck differ from a reverse tuck?

A straight tuck folds both end flaps from the same main panel. This keeps the back panel completely unbroken. A reverse tuck folds them from opposite panels, which often wastes less material during manufacturing.

Can the closures be made more secure?

Yes. We can add small slit locks to the sides of the tuck tab. These catch on the inner dust flaps, making the box harder to open accidentally, though it takes slightly more effort to close.

Assembly and Packing

Can this box be packed on automated lines?

Yes. The pre-glued tubular shape is highly compatible with automated cartoning machines, making it a strong choice for high-volume fulfillment.

Board and Finish

How does a glossy finish affect the box?

Glossy coatings reduce friction. Because this box relies on friction to stay closed, a slick surface can make the tuck tabs slip out more easily. tab clearances may need adjustment to the tab clearances if you choose a high-gloss finish.
