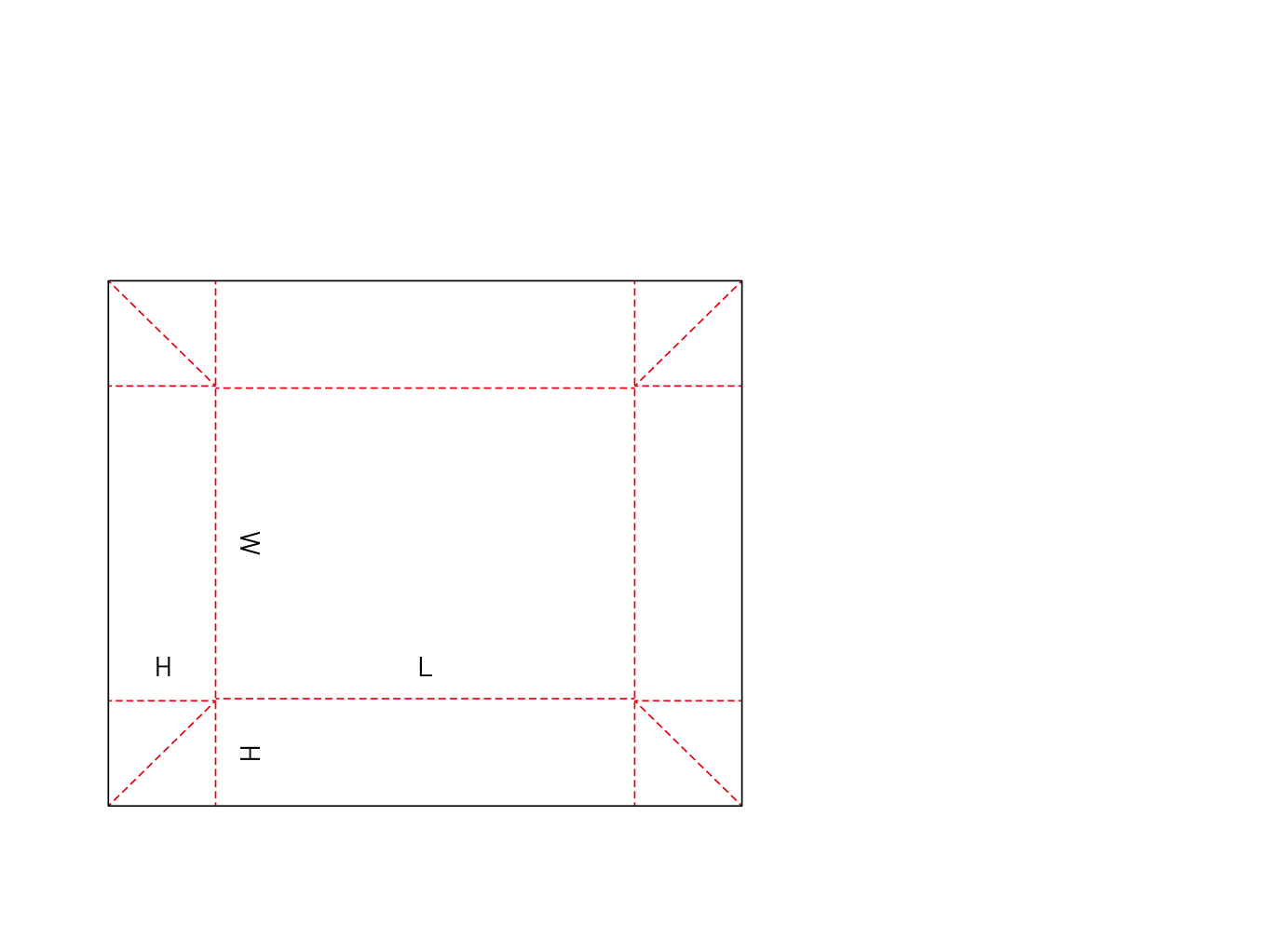

FEFCO 0449

Leak-Proof Webbed-Corner Tray

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Unbroken base corners contain fluids, powders, and granular goods
  • Requires hot-melt glue or stitching to stay erected
  • Designed for automated tray erectors; difficult to assemble by hand

About this product

This open tray uses continuous, diagonally folded corner webs instead of cut slots, creating an unbroken base that prevents wet, granular, or powder products from leaking out the bottom.

Because the corners remain solid, the folded board creates high spring-back tension. The tray has no native mechanical locks and relies entirely on hot-melt glue or stitching to hold its shape, making it a strong fit for automated plunger erectors but a poor choice for manual packing lines.

Common uses

  • Poultry and seafood packing
  • Bakery and granular food products
  • Automated high-volume tray erecting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product containment and automated packing

Wet and leaky product containment

The continuous corner gussets eliminate the bottom gaps found in standard trays. This keeps moisture, juices, or fine powders inside the tray, making it a frequent choice for poultry, seafood, and granular food packing.

High-speed automated erecting

The flat blank is designed to be pressed through a forming mandrel, which folds the walls and glues the corners in one motion. It runs predictably on specialized hot-melt tray erectors.

Packing loose or crumbly bakery items

For pastries, breads, or crumbly goods, the solid base ensures that crumbs and sugars do not fall through the corners during transit or retail display.

Field packing for damp produce

When harvesting damp or soil-covered produce, the unbroken base keeps moisture and dirt contained within the tray rather than leaking onto pallets or store floors.

Industries relying on unbroken trays

Food processing and meat packing

Processors handling raw meats or seafood use this tray to prevent cross-contamination and line messes. The solid corners keep fluids contained during transit and display.

Commercial bakeries

Bakeries rely on the unbroken base to keep flour, sugar, and crumbs inside the package, ensuring a clean presentation when the tray reaches the retail shelf.

Agricultural growers and packers

Farms packing wet produce need a tray that will not leak water or soil onto the warehouse floor. The webbed corners provide that containment while allowing for fast automated setup.

When to compare slotted or friction-lock trays

Manual packing lines without gluing equipment

If your team sets up boxes by hand, holding four tensioned corners square while applying glue or staples is slow and frustrating. Compare a friction-lock display tray (FEFCO 0422), which folds and locks securely without any adhesive, though it will have small corner gaps.

Dry goods where corner gaps do not matter

If you are packing solid, dry items, the webbed corners add unnecessary folding complexity. A standard slotted tray (FEFCO 0415) uses less board and is easier to erect.

Close variants and lookalike dielines

The closest library neighbors include 0449.1, 0448, 0450. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, coatings, and assembly method

Board thickness and corner tension

When the corner webs fold, three layers of corrugated board converge. Heavy double-wall board will cause severe binding and spring-back tension, often jamming automated erectors. Fine flutes or standard single-wall boards perform much better.

Moisture-resistant coatings and closure

Wet environments often require wax or waterproof coatings on the board. These coatings can repel standard hot-melt adhesives, causing the tensioned corners to pop open. You must verify that your specific adhesive works with the coated board, or plan to use mechanical stitching.

Closure method for the corners

Because the tray lacks mechanical locks, you must decide between hot-melt glue and metal stitching. Glue is faster for automated lines, while stitching provides a mechanical hold that resists moisture and cold storage environments.

Outer shipping requirements

As an open-top tray, this package cannot ship through parcel networks on its own. You must decide whether to pair it with a custom lid or pack multiple trays into a larger master carton for transit.

Corner web direction and fold clearances

Corner web fold direction

The diagonal corner webs can be configured to fold against either the end walls or the side walls. This adjustment is usually dictated by the specific tolerances and plow setup of your automated tray erector.

Wall height adjustments

The side and end walls can be raised or lowered to match the exact height of your product, ensuring that the tray provides adequate containment without wasting material.

Clearance tuning for thicker boards

If a slightly thicker board is required, the fold angles and score allowances can be adjusted to give the three-layer corners more room to bend, reducing the risk of the tray bowing outward.

Board and packing details

Flat delivery footprint

Because the corner webs extend diagonally outward, the flat blank takes up more space than a standard slotted tray. This larger footprint affects how the blanks stack and ship to your facility.

Tray variants

Clearance-adjusted variants (0449.1)

Minor geometric adjustments to the web flap angles can shift how the folded board layers stack, accommodating specific machine mandrels or slightly thicker board grades.

Additional notes

Automated erector compatibility

This tray requires a plunger-style tray erector with a forming mandrel. It cannot be erected on a standard straight-line folder-gluer.

Top-crush resistance

The single-layer walls offer relatively low vertical compression strength on their own. Heavy pallet loads usually require the tray to be fully packed with load-bearing products or protected by an outer shipper.

Related tray styles

0415: Standard Glued Tray

Uses cut slots instead of webbed corners. Easier to fold, but leaves small gaps at the bottom corners.

0449.1: Tray with Gusset Flaps

Close FEFCO sibling to review if a code suffix or older dieline may point to a variant. The broad shape can be similar while locks, slots, clearances, or fold sequence change the package.

FAQs

Assembly and Packing

Can we assemble this tray by hand?

It is highly inefficient. The continuous corners create strong spring-back tension. An operator has to hold all four corners perfectly square while applying glue or staples. It is designed almost exclusively for automated tray erectors.

Board and Finish

Can we use heavy double-wall board for extra strength?

It is a high risk. Because the corner webs fold flat against the walls, three layers of board stack up at each corner. Thick double-wall board will bind, warp the tray, and fight the glue joint. If you need high stacking strength, you may need a different tray style or an outer master carton.

Shipping and Route

Can this ship through parcel networks on its own?

No. It is an open-top tray. Parcel shipment requires an outer master carton or a secure lid to keep products contained and protected from drop shock.

Board and Finish

Will hot-melt glue work if we use a waterproof coating?

Waterproof and wax coatings often reject standard hot-melt adhesives. Because this tray relies entirely on glue to fight the board's natural spring-back tension, you must test your specific adhesive against the coated board, or switch to corner stitching.

Product Fit

How does this tray prevent leaks compared to a standard tray?

Standard trays have cut slots that separate the side and end walls, leaving small holes at the bottom corners. This tray uses continuous, diagonally folded webs, meaning the base and walls remain a single unbroken sheet of board.

Do the folded corners take up space inside the tray?

Yes, slightly. The corner webs fold flat against the inside or outside of the adjacent walls. If they fold inward, they add a layer of board thickness to the interior corners, which can affect extremely tight product fits.

Assembly and Packing

What happens if the board is too thick for the corner folds?

Thick board creates excessive tension when folded into three layers. This tension can overpower the hot-melt glue, causing the tray to splay open on the packing line, or it can jam the automated erecting equipment.

Shipping and Route

Can we add a lid to this tray?

Yes. While it is natively an open tray, it can be paired with a separate corrugated lid (like a FEFCO 0452 or 0422 lid) to enclose the products for transit or stacking.
