Heavy-Duty Roll-Over Display Tray

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-thick side walls provide high side-crush resistance and a clean retail edge
  • Assembles manually via friction tabs and base slots without adhesive
  • Requires an outer master carton or lid for parcel delivery

About this product

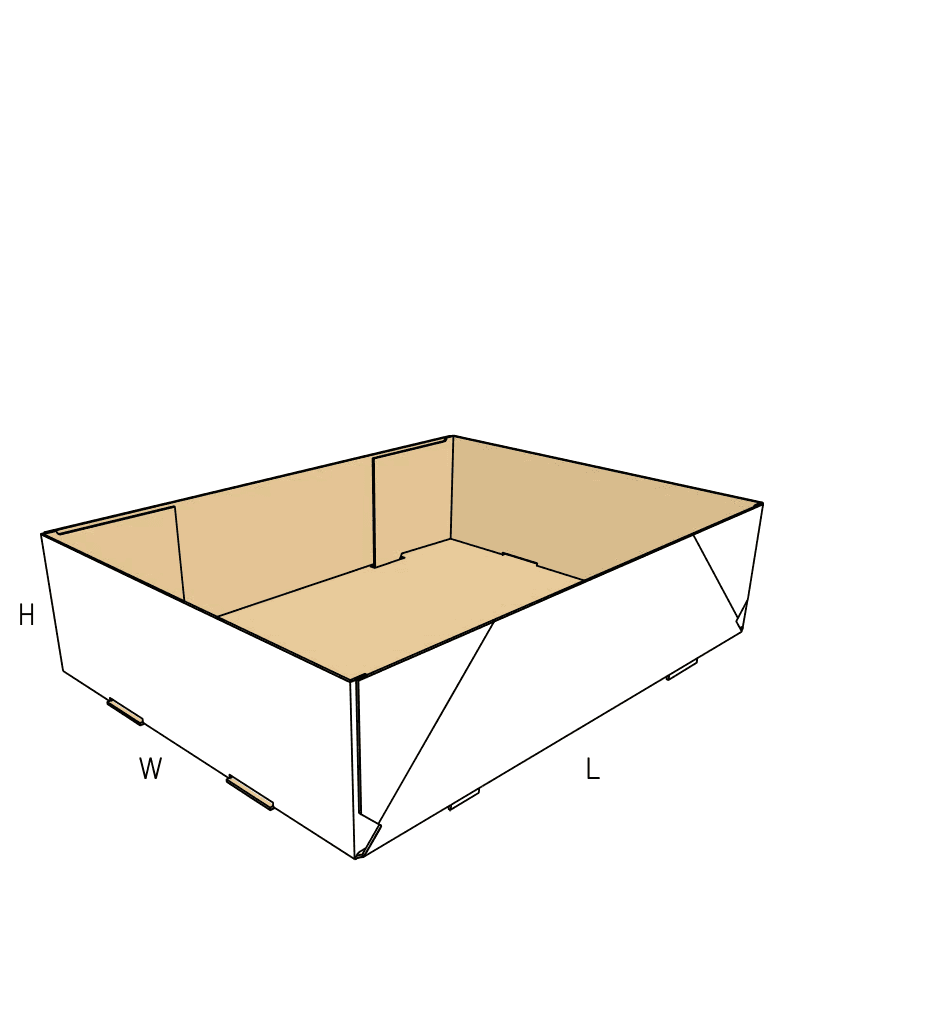

The heavy-duty roll-over display tray is a one-piece, open-top container that locks together entirely through mechanical friction. By rolling the long side walls over 180 degrees and snapping their tabs into base slots, packers create a rigid, double-thick perimeter that resists side crushing and hides raw corrugated edges.

Because it relies on manual folding and base slots rather than adhesive, it is an excellent fit for retail shelves, produce packing, and internal staging where a clean presentation matters more than automated assembly speed.

Common uses

  • Retail shelf-ready packaging
  • Heavy produce and agricultural staging
  • Internal warehouse kitting for dense parts
  • Heavy component staging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Heavy-duty display and staging jobs

Retail shelf-ready packaging

The 180-degree roll-over walls hide the raw flutes of the corrugated board, creating a smooth, premium frame for consumer goods. The double-thick sides prevent the tray from bowing when stacked on retail shelves.

Dense produce and agricultural packing

For heavy fruits or vegetables, the reinforced side walls provide the necessary stacking strength. The glueless construction also keeps adhesive away from fresh food environments.

Internal warehouse kitting

Warehouse teams can erect these trays on demand to move heavy metal or electronic components between workstations. The mechanical locks hold firm under dense payloads, and the trays can be knocked down flat when not in use.

Heavy component staging

Manufacturing facilities use this tray to organize dense parts along an assembly line. The double-thick side walls resist lateral crushing if parts shift during internal transport.

Retail, agriculture, and internal logistics

Retail brand managers

Brands looking for a display base that looks premium without requiring complex automated erecting equipment often choose this tray. The clean interior walls keep the focus on the product.

Fulfillment operations

Operations teams balancing material costs against packing speed use this tray when they have the manual labor to fold and lock the tabs, but want to avoid the maintenance of adhesive application machinery.

Agricultural packers

Farms and packing houses rely on this tray because it assembles cleanly in the field or facility, provides strong vertical support for stacked produce, and avoids hot-melt glue in fresh environments.

When to evaluate other tray styles

High-speed automated packing lines

If your facility uses automated tray erectors or folder-gluers, a mechanically locking tray will slow you down. Review a 4-point glued tray, which is designed to be popped open or mandrel-formed at high speeds.

Single-item parcel delivery

Because this is an open-top tray, it cannot handle direct parcel delivery on its own. If you are shipping directly to consumers, review a roll-over mailer with an integrated lid, or plan to use this tray inside a master shipper.

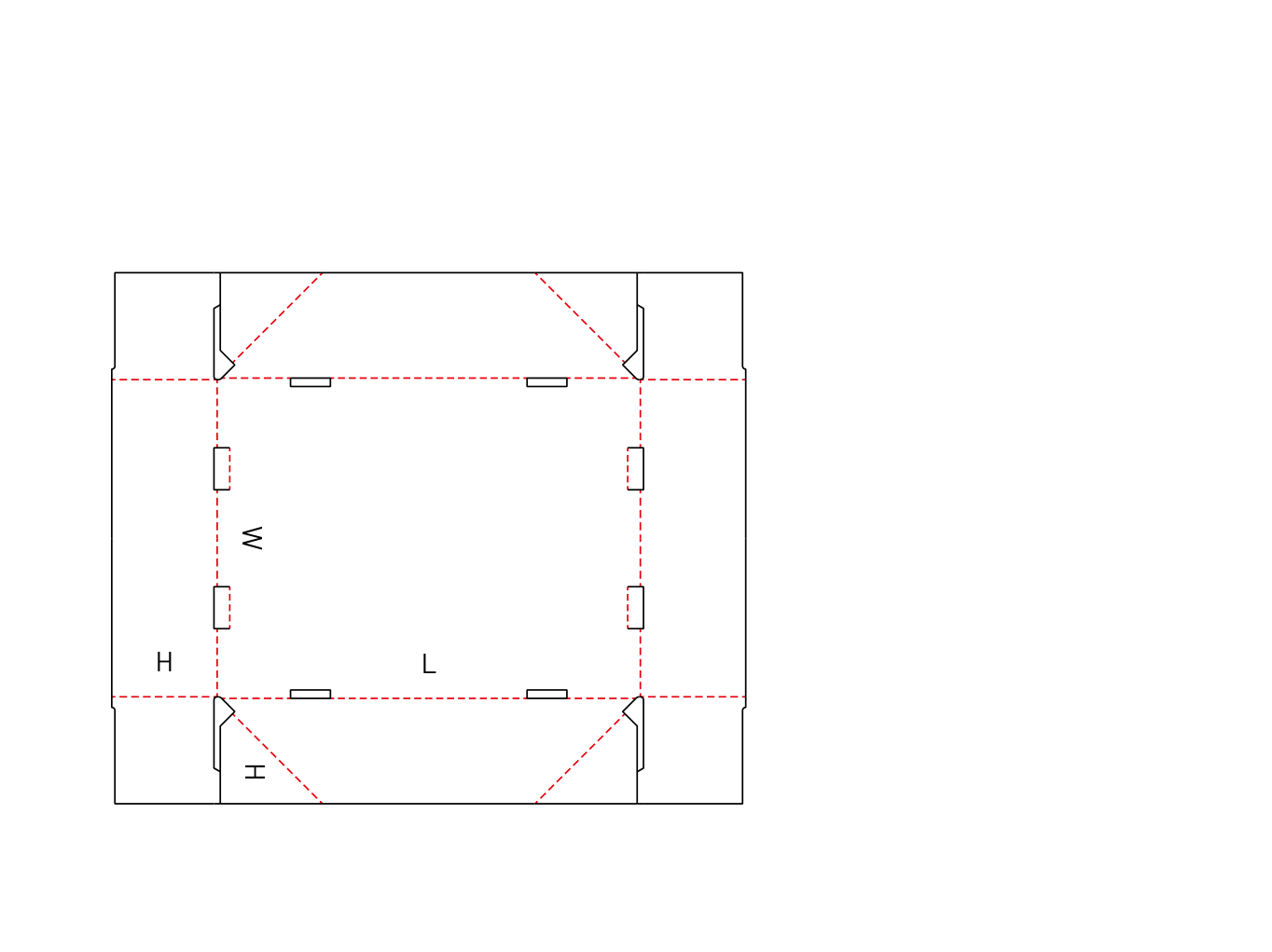

Close variants and lookalike dielines

The closest library neighbors include 0451_1, 0451_2, 0451. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, finishes, and packing labor

Board thickness and foldability

The 180-degree roll-over hinges are highly sensitive to board thickness. While double-wall board offers extreme strength, it requires precise die-cut adjustments to prevent the hinges from cracking and to ensure the locking tabs can reach the base slots.

Surface finishes and friction

Because this tray relies on mechanical friction to stay locked, high-gloss varnishes or slick coatings can cause the tabs to slip out of the base slots under tension. Discuss your finish requirements early so the lock clearances can be tightened.

Manual assembly labor

Erecting this tray requires two hands and firm thumb pressure to seat the locking tabs into the floor. Factor this manual effort into your packing line planning.

Outer shipping requirements

This tray is designed for display and palletized transit. If the packed tray will be shipped individually through mixed-carrier networks, you will need to specify a matching master carton or a separate lid.

Tapered flaps and lock clearances

Tapered inner flaps

For faster manual assembly, the inner roll-over flaps can be tapered slightly. This prevents the edges of the flap from scraping against the end walls as they are folded down into the base.

Precision lock clearances

The width of the base slots and the size of the locking tabs can be fine-tuned based on the exact board grade you choose, ensuring a tight snap-fit that won't tear the corrugated material.

Ventilation cutouts

For agricultural or cold-chain applications, ventilation holes can be added to the side and end walls. These must be placed carefully to avoid weakening the double-thick side panels.

Board and packing details

Material yield and nesting efficiency

Compared to traditional cross-folder trays, this slotted-tray design generates less corner waste during die-cutting. This improved nesting efficiency can improve material yield during large production runs.

Alternative tray profiles

Tapered Roll-Over Tray (0451_1)

Adds a specific taper angle to the inner roll-over flaps, preventing them from scraping against the end walls during manual assembly.

End-Wall Roll-Over Tray (0451_2)

Shifts the 180-degree roll-over from the long side walls to the short end walls, changing the primary axis of crush resistance.

Additional notes

Managing internal slot cutouts

The base slots required for the locking tabs create small pieces of corrugated waste (chads) during manufacturing. This stripping process is actively managed to ensure clean slots for easy manual assembly.

Related trays and display boxes

0451_1: Side Slotted Tray with Folding Wall

Close FEFCO sibling to review if a code suffix or older dieline may point to a variant. The broad shape can be similar while locks, slots, clearances, or fold sequence change the package.

0451_2: Side Slotted Tray with Folding Wall

Close FEFCO sibling to review if a code suffix or older dieline may point to a variant. The broad shape can be similar while locks, slots, clearances, or fold sequence change the package.

FAQs

Assembly and packing

Does this tray require glue or tape to assemble?

The tray locks together entirely through mechanical friction. The side walls roll over the corner flaps, and tabs on the side walls snap firmly into pre-cut slots in the base.

Can this tray be erected by automated machinery?

The 180-degree roll-over and base-slot locking mechanism requires manual two-hand assembly or highly specialized plunger equipment. It is not compatible with standard linear folder-gluers.

Shipping and route

Can I ship this tray directly through the mail?

As an open-top tray, it provides no top protection and the friction locks can pop open under heavy drop shocks. It must be placed inside a master carton or fitted with a secure lid for parcel delivery.

Board and material

Can I use heavy double-wall board for extra strength?

Thick board can be used, but it requires careful die-cut tuning. Because the side walls must fold 180 degrees, thick board can cause the hinges to crack or prevent the locking tabs from reaching the base slots. The fold clearances must be adjusted to match your specific board choice.

Print and finish

Where is the best place to print on this tray?

The outer side walls and the base present flat, unbroken surfaces for high-quality printing. The rolled-over inner walls also provide a clean canvas for interior branding, hiding the raw corrugated edges.

Comparison

Why choose this over a standard glued tray?

This tray is a strong choice when you want a premium, double-thick retail edge but do not have the volume or equipment to support adhesive application on your packing line. It also ships and stores completely flat.

Assembly and packing

How does the tray stay locked together under heavy loads?

The locking tabs on the inner side walls are cut slightly wider than the base slots. When pressed into place, the corrugated board wedges tightly, using the natural spring-back tension of the folded walls to maintain a secure friction lock.

Board and material

Does the 180-degree fold crack the corrugated board?

It can if the die-cut template is not matched to the board thickness. We use a specialized double crease and layer step allowance to ensure the board bends smoothly without tearing the outer liner.
