FEFCO 0451

Roll-Over Display Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Double-thick side walls provide high crush resistance and a clean presentation edge
Assembles manually without glue, tape, or staples
Requires an outer master carton for parcel or courier shipping

About this product

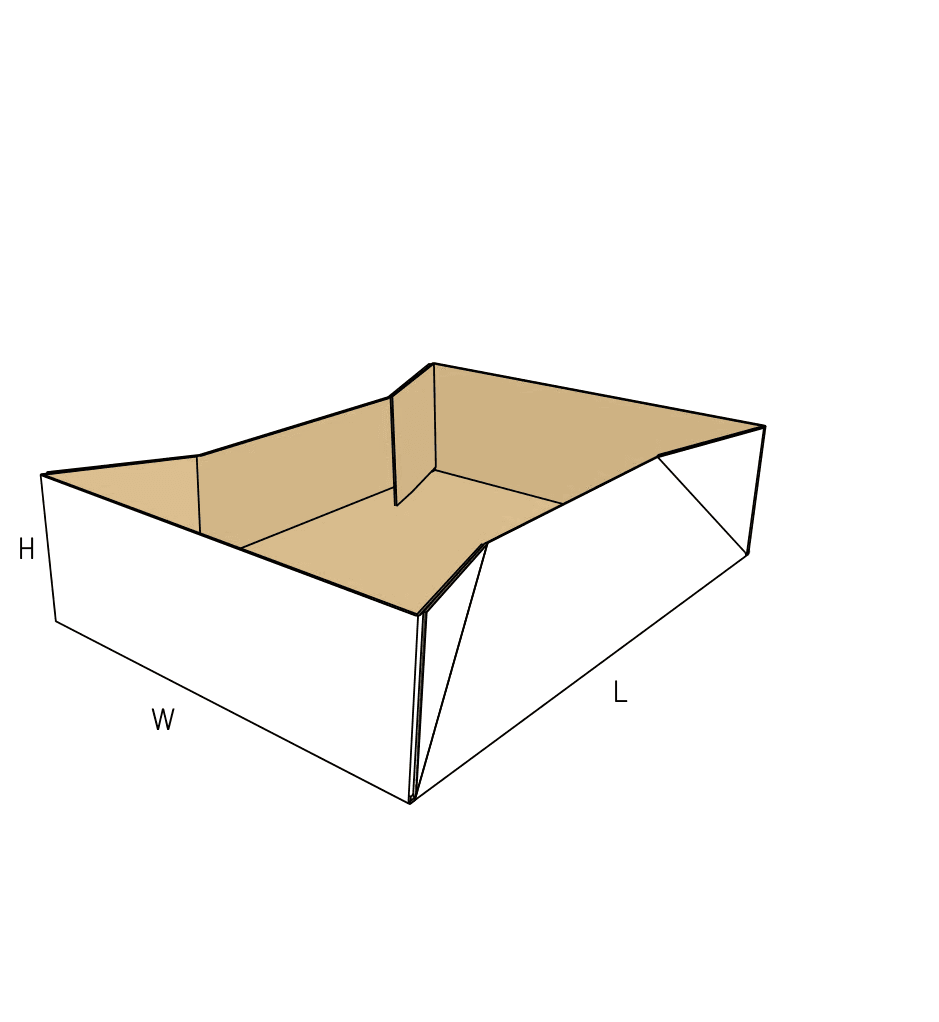

A roll-over display tray is a one-piece, unglued corrugated package that secures its shape by folding its long side walls inward. These rolled walls trap the corner flaps and lock directly into the base with friction tabs, creating a double-thick side wall with a clean, finished top edge.

Because it relies entirely on mechanical locks rather than adhesive, it ships flat and requires hand assembly. It is a strong choice for retail displays, heavy produce, and internal staging where side-crush resistance and presentation matter more than automated packing speed.

Common uses

Retail shelf-ready packaging
Heavy produce stacking
Internal staging for dense parts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these trays be shipped or moved?

Who will be assembling these trays?

Do you need a special finish or coating on the cardboard?

What is the estimated weight of the products going into each tray?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display and Heavy-Duty Stacking

Retail shelf-ready packaging

The 180-degree roll-over hides the raw corrugated flutes along the long sides, creating a smooth frame for consumer goods. The double-thick walls also prevent the tray from bowing outward under the weight of the products.

Palletized heavy goods

When stacked in columns on a pallet, the double-layer side walls provide excellent vertical crush resistance. This makes it a strong base for dense items like produce, hardware, or bottled beverages.

Internal staging and transfer

Warehouse teams can erect these trays on demand without needing tape guns or glue stations. The mechanical locks hold tight during internal transfer, keeping heavy components organized between workstations.

Dense flat goods packing

When packing dense, flat items that require rigid side boundaries to prevent shifting, the double-thick walls provide a stable perimeter that resists outward pressure.

Merchandising and Internal Logistics

Retail merchandising teams

Buyers focused on shelf appearance appreciate the clean interior. Because the dust flaps are trapped inside the rolled walls, products will not catch on exposed cardboard edges when customers lift them out.

Manual fulfillment operations

Facilities relying on pack-bench labor can use this tray to avoid hot-melt glue maintenance. However, operators must apply firm thumb pressure to seat the locking tabs, which affects assembly speed.

Agricultural and produce packing

Growers and distributors moving heavy produce need trays that will not buckle when stacked. The reinforced sides handle vertical weight well, provided the board grade matches the payload.

When to Consider Glued or Cross-Folder Trays

High-speed automated packing

If your facility uses automated tray erectors or linear folder-gluers, the manual friction locks of this tray will slow you down. Compare a glued tray or a machine-erected hot-melt tray.

Single-item parcel shipping

This is an open-top tray. If you are shipping directly to a consumer via a courier network, the friction locks can release under drop shock. You will need an outer master carton, or you should switch to a closed mailer.

Fully enclosed transit

If the product needs protection from dust or top-down impact during transit, compare a closed mailer or standard shipping box.

Close variants and lookalike dielines

The closest library neighbors include 0448, 0451.1, 0452. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness and Assembly Clearances

Board thickness and hinge cracking

The 180-degree fold is very sensitive to board thickness. If you specify a heavy double-wall board, the fold clearances and base slots must be precisely widened. Without this adjustment, the inner wall will bind, the hinge will crack, and the tabs will refuse to lock.

Surface finish and friction

The tray holds its shape because the tabs grip the base slots. High-gloss varnishes or slick coatings reduce this friction, increasing the risk that the tray springs open under its own tension.

Assembly labor capacity

Because this tray requires a two-handed fold and firm thumb pressure to seat the tabs, evaluate whether your packing team has the time for manual assembly compared to using pre-glued alternatives.

Master carton requirements

Since this is an open-top tray with friction locks, decide if your distribution route requires an outer master carton to prevent the tabs from releasing under drop shock.

Structural Adjustments for Assembly

Tapered inner flaps

To speed up manual assembly, the inner roll-over flaps can be cut with a slight inward taper. This prevents the cardboard from scraping against the end walls as the operator pushes the flap down into the base.

Locking tab clearances

The width and shape of the base slots can be adjusted to match the exact caliper of your chosen board, ensuring the tabs snap in securely without tearing the floor panel.

End-wall roll-over swap

The folding mechanism can be shifted so the short end walls roll over instead of the long side walls, moving the double-thick crush resistance to the ends of the tray.

Board and packing details

Blank sprawl and material efficiency

Because the side walls must be long enough to fold up and then completely over, the flat, unfolded cardboard blank is quite large. This extended footprint can reduce how many trays fit on a single sheet during manufacturing, which affects material efficiency.

Tray Variants

Tapered Roll-Over Walls

Adds a slight angle to the inner folding walls so they clear the end walls easily during assembly, reducing operator fatigue.

End-Wall Roll-Over

Swaps the folding mechanism so the short end walls roll over instead of the long side walls. This shifts the double-thick crush resistance to the ends of the tray.

Additional notes

Base slot clearing

The base slots that receive the locking tabs create small pieces of scrap cardboard during manufacturing. Your supplier must ensure these are cleanly stripped so the slots are clear for your packing team.

FAQs

Assembly and Production

Does this tray require glue to hold its shape?

The tray relies entirely on mechanical friction. The side walls roll over the corner flaps, and tabs on the bottom edge press into pre-cut slots in the floor.

Material and Board Choice

Can I use heavy double-wall corrugated board for this tray?

Heavy board can be used, but it requires careful template adjustment. The 180-degree fold puts immense stress on thick board. The cutting template must be recalibrated with wider fold allowances and larger base slots, or the cardboard will crack during assembly.

Shipping and Route

Is this tray safe for courier or parcel delivery?

Because it has an open top and relies on friction locks, rough handling or drop shocks can cause the tabs to release. For parcel networks, this tray must be placed inside a sealed master carton.

Comparison

What is the difference between the 0451 and the 0423 tray?

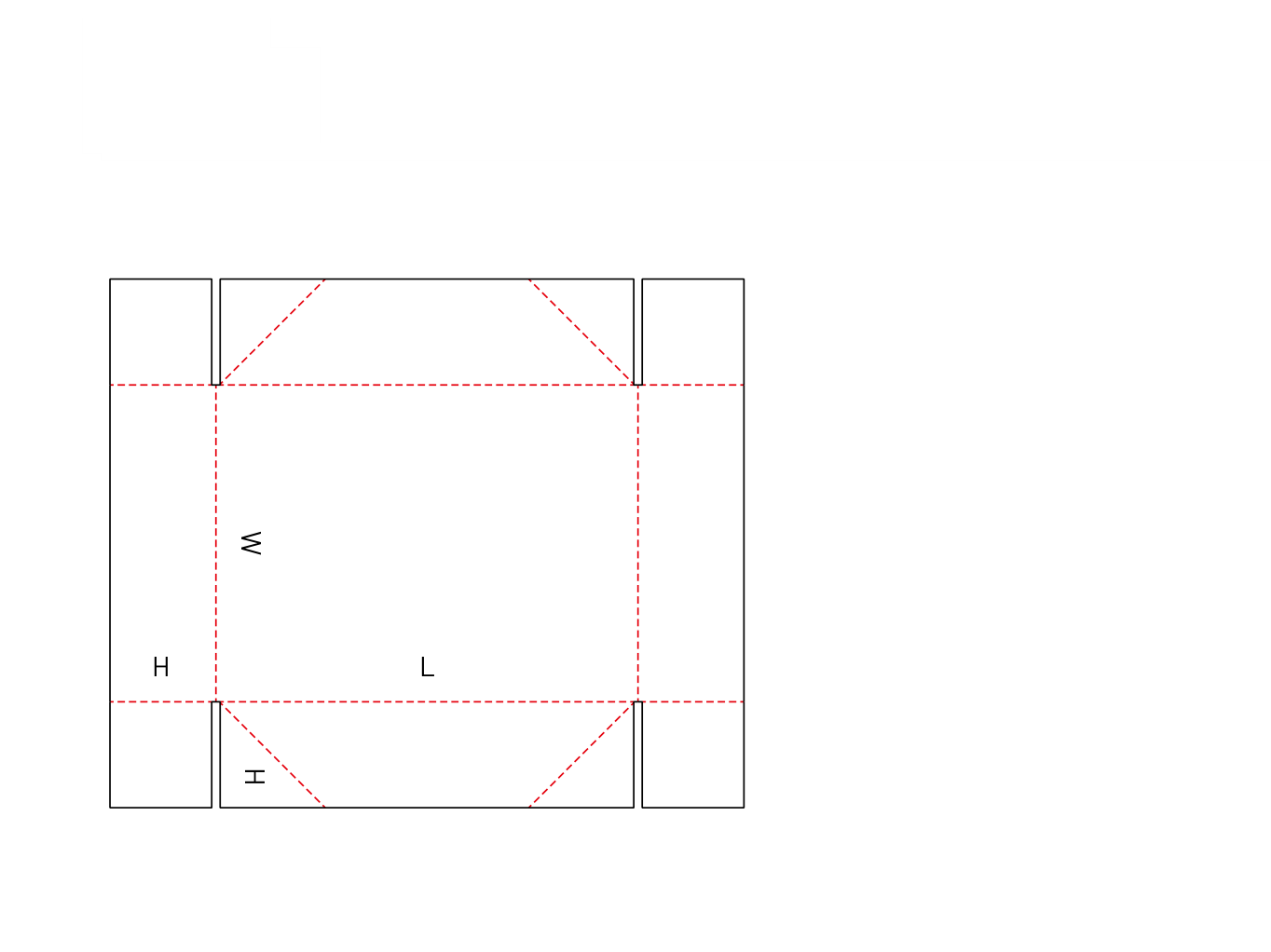

Both trays use 180-degree roll-over walls to lock into place. The difference is the flat shape before folding. The 0451 uses a slotted layout, which often wastes less cardboard in the corners during manufacturing compared to the cross-shaped layout of the 0423.

Packing Labor

How fast can this tray be assembled?

Because it requires a two-handed manual fold and firm thumb pressure to seat the locking tabs, it is slower to erect than a machine-glued tray. It makes the most sense when the clean presentation or side-crush strength outweighs the need for high-speed packing.

Print and Finish

Where is the best place to print on this tray?

The outer side walls and the base offer flat, unbroken surfaces for graphics. Because the inner side walls roll over, they also provide a clean, printable interior frame that hides the raw corrugated edges.

Performance

Can this tray support heavy top loads?

The double-thick side walls provide excellent vertical crush resistance, making it suitable for pallet stacking. However, the exact weight it can bear depends on the chosen board grade and whether the load is evenly distributed.

Terminology

Why do some catalogs call this a 4-point glued tray?

Some market sources mistakenly label this tray as a glued, auto-erecting box. In reality, the true FEFCO 0451 relies entirely on unglued mechanical friction locks and requires manual assembly.
