FEFCO 0454

Solid-Base Roll-Over Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Completely solid base panel blocks dust and moisture
Double-thick side walls provide high crush resistance
Assembles manually without glue, tape, or staples

About this product

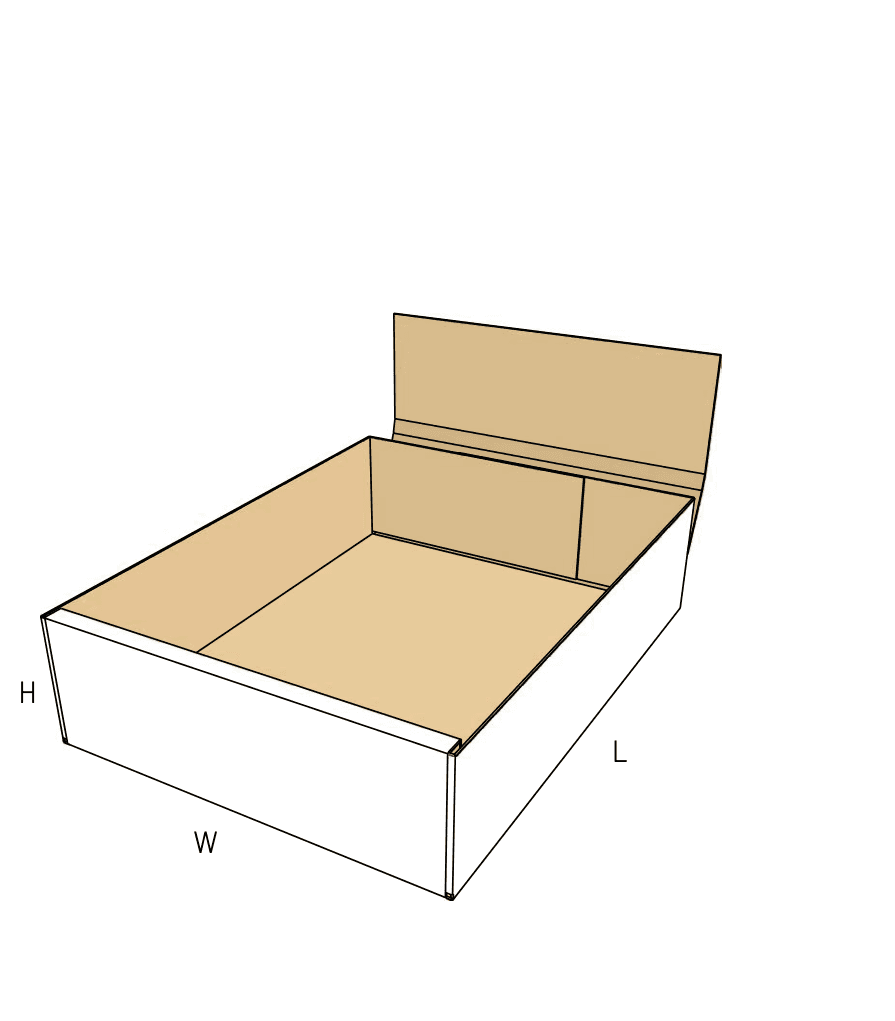

A one-piece, unglued corrugated tray that builds double-thick side walls without punching locking holes into the floor. By securing the rolled walls with corner friction tabs instead of base slots, it creates a completely solid bottom panel.

This unbroken floor makes it a strong choice for slip-on pallet lids, moisture-sensitive produce packing, and heavy-duty presentation bases where dust or liquid control matters.

Common uses

Slip-on pallet lids
Agricultural produce trays
Heavy-duty retail presentation bases
Work-in-progress parts kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this tray be used?

Will the tray be exposed to moisture or cold storage?

How many of these will your team pack per day?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Heavy-duty lids and presentation bases

Slip-on pallet lids

The solid base distributes top weight evenly across the underlying box without snagging or letting dust through. The double-thick sides resist tearing when strapped or shifted during transit.

Agricultural and produce packing

The unbroken floor keeps moisture, dirt, and small debris contained, while the reinforced side walls handle the dense weight of stacked fruit or vegetables.

Heavy-duty retail presentation

The rolled edges hide raw corrugated flutes for a clean look, and the solid base provides a smooth, uninterrupted canvas for interior printing or product staging.

Work-in-progress parts kitting

For manufacturing lines moving small components, the solid floor prevents hardware from falling through, while the double-thick walls handle frequent lifting and stacking.

Industrial and agricultural packing

Industrial logistics

Teams capping large palletized loads need a lid that will not tear at the corners or leak dust onto the products below. The corner-locking mechanism keeps the top surface completely sealed.

Food and beverage distribution

Packers handling fresh goods often need trays that assemble without chemical adhesives and keep the bottom surface sealed against leaks or field debris.

Electronics and clean-room staging

Facilities sensitive to paper dust benefit from the lack of internal base slots, which reduces the chance of cardboard scraps contaminating the tray interior.

When to consider a different tray style

High-speed automated packing

If your facility uses automated tray-erecting equipment, a glued open tray (FEFCO 0453) eliminates the manual folding labor required by friction locks.

When a sealed floor is unnecessary

If the tray does not need to block dust or moisture, a base-slotted roll-over tray (FEFCO 0423) provides a slightly more rigid bottom lock by tucking directly into the floor.

Close variants and lookalike dielines

The closest library neighbors include 0455, 0450, 0415. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Clearances, board choice, and fit

Board thickness and fold clearance

The 180-degree roll-over walls are highly sensitive to board thickness. Heavy double-wall boards require precise crease adjustments to prevent the hinges from cracking or the corner tabs from popping open.

Inside versus outside dimensions

When configuring this as a telescopic lid to slip over another box, the internal clearances must be tuned precisely so the lid slides on without bowing or tearing the corners.

Surface finish and friction

Because the tray relies entirely on mechanical friction to stay assembled, high-gloss varnishes or slick coatings on the interior can cause the corner tabs to slip and the tray to spring open.

Packing line labor

The cross-folding, unglued mechanism requires two-handed manual assembly. High-volume operations should weigh this labor time against the cost of automated gluing equipment.

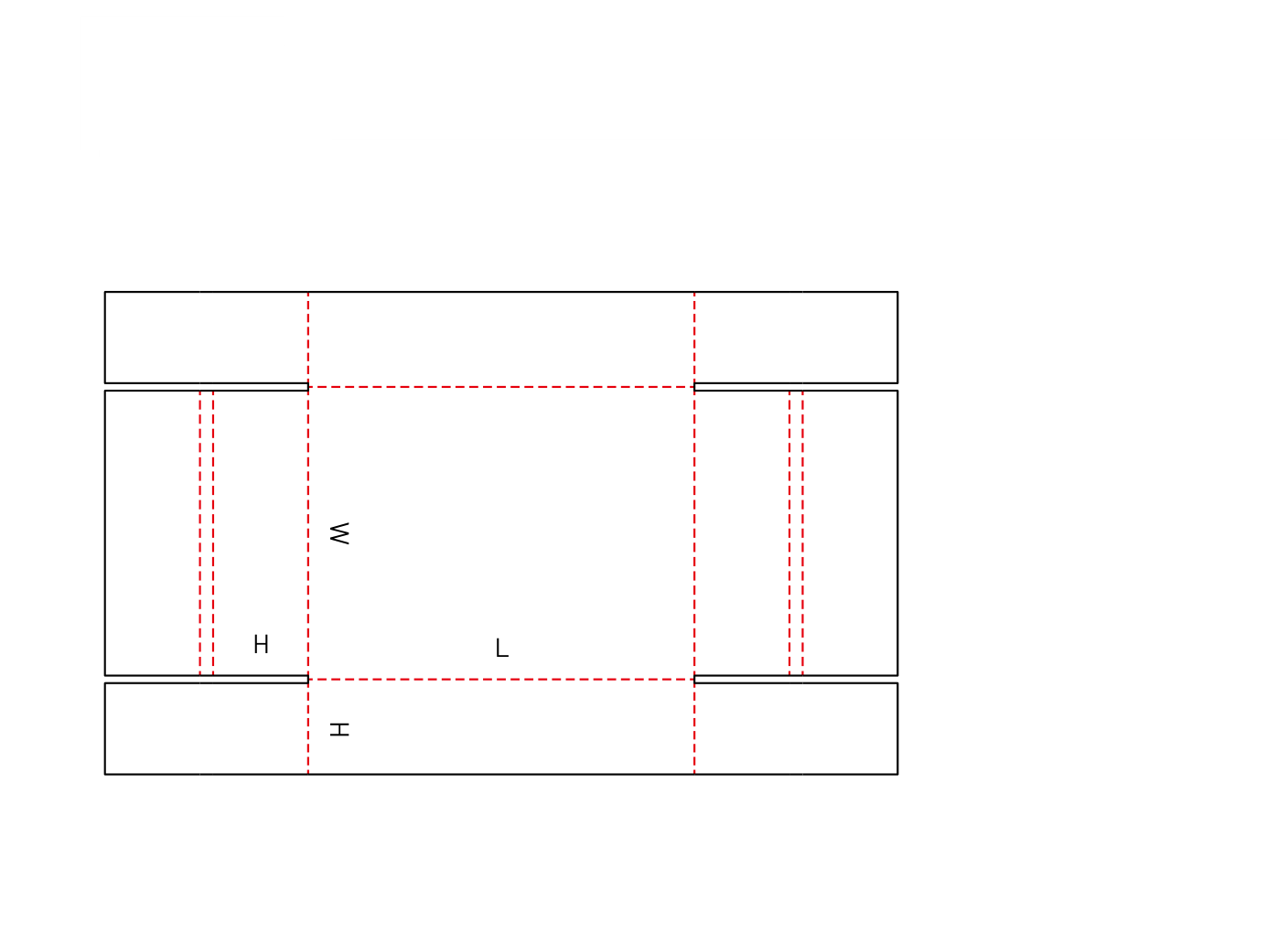

Template adjustments for thicker materials

Corner joint reliefs

The template can be adjusted with offset scores at the corners to relieve tension when folding thicker corrugated grades, preventing the board from tearing during assembly.

Dust flap slot profiles

The slots that receive the corner dust flaps can be cut straight or with a slight taper, which helps the die-cutter strip waste cleanly and prevents jams during production.

Base flap offsets

Small adjustments to the base fold geometry ensure the tray sits perfectly flat on a pallet or shelf without rocking, especially important for large-format lids.

Board and packing details

Flat delivery and storage

The trays ship completely flat and nest densely, saving warehouse space until they are manually erected at the packing station.

Clean stripping during production

Because there are no internal locking slots in the base, the die-cutting process produces less internal waste. This reduces the risk of cardboard scraps ending up in the final delivered tray.

Additional notes

Uninterrupted interior branding

Because the base lacks locking slots, the entire interior floor is available for clean printing, instructions, or product presentation.

FAQs

Shipping and route

Can this tray be shipped through parcel networks?

Not on its own. The open top and friction locks are designed for palletized transit or retail display. Rough courier handling requires the tray to be sealed inside a master carton.

Assembly and closure

Does it require glue or tape to assemble?

No. The tray relies entirely on mechanical friction. The long side walls roll over the corner flaps and lock into the vertical corners.

Comparison

Why choose this over a slotted tray?

The primary advantage is the completely solid floor. Trays that lock into the base leave holes where dust, moisture, or small parts can escape.

Board and finish

Can we use heavy double-wall board for extra strength?

Yes, but it requires careful specification. The 180-degree folds are sensitive to thick materials, so the die-cut template must be adjusted to prevent the cardboard from cracking or binding during assembly.

Packing labor

Is this suitable for automated packing lines?

Generally, no. The cross-folding, unglued mechanism requires manual assembly or highly specialized plunger-style tray erectors. High-speed lines usually prefer glued trays.

Product fit

How does it perform as a pallet lid?

Excellently. The solid base protects the goods below from dust, while the double-thick side walls provide a rigid perimeter that withstands strapping and transit shifting.

Internal cleanliness

Does it create cardboard dust?

It produces less internal dust than base-slotted trays because there are no internal cutouts in the floor. The only die-cut waste comes from the outer perimeter.

Disassembly

Can we break these down for return trips?

Yes. Operators can pull the corner tabs out and unfold the side walls, allowing the tray to return to a completely flat state for efficient reverse logistics.
