FEFCO 0460

Automated Wrap-Around Display Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Requires automated wrap-around machinery and hot-melt glue
Lowered front panel provides immediate retail shelf visibility
Primary product acts as an internal mandrel during the folding sequence

About this product

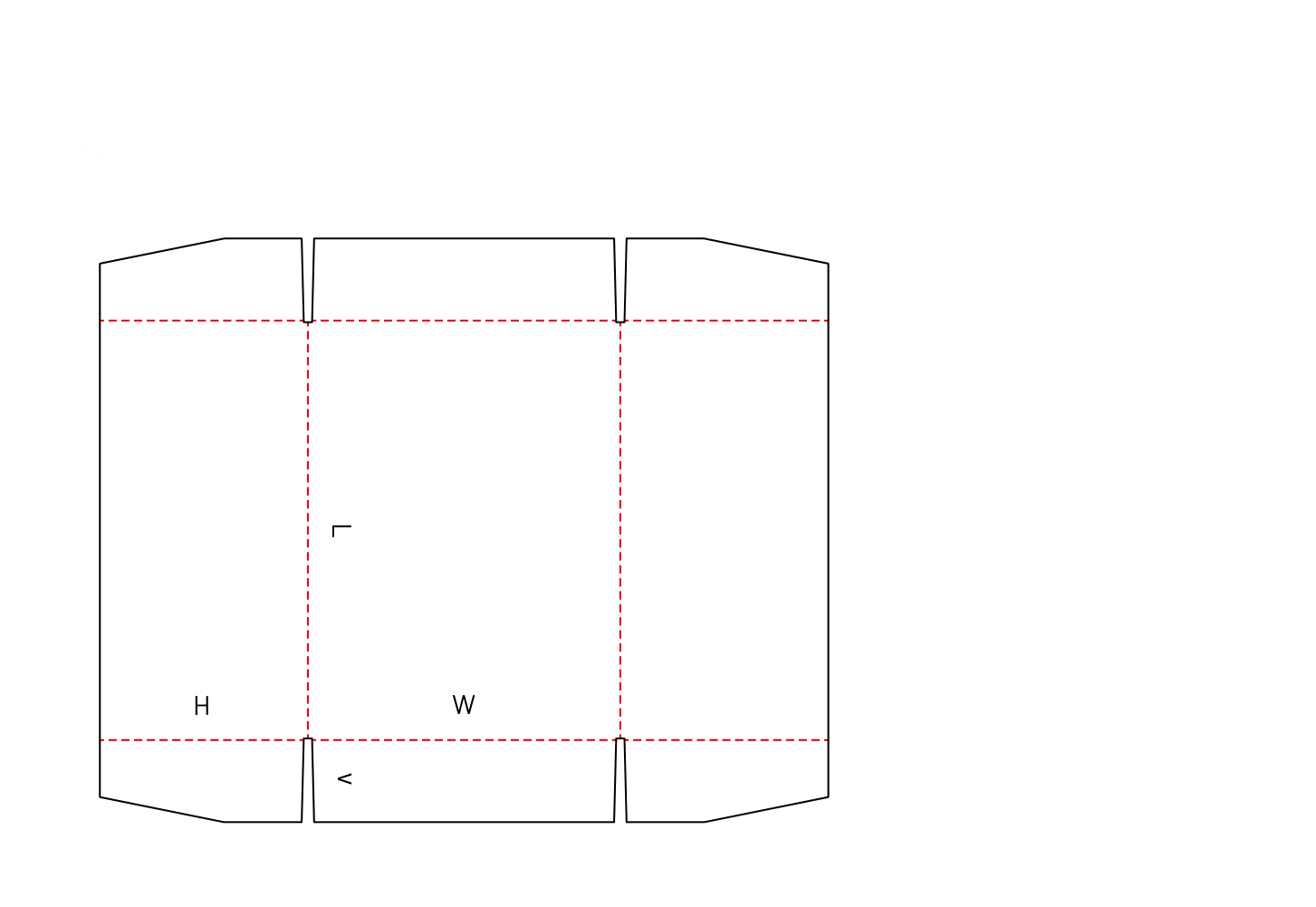

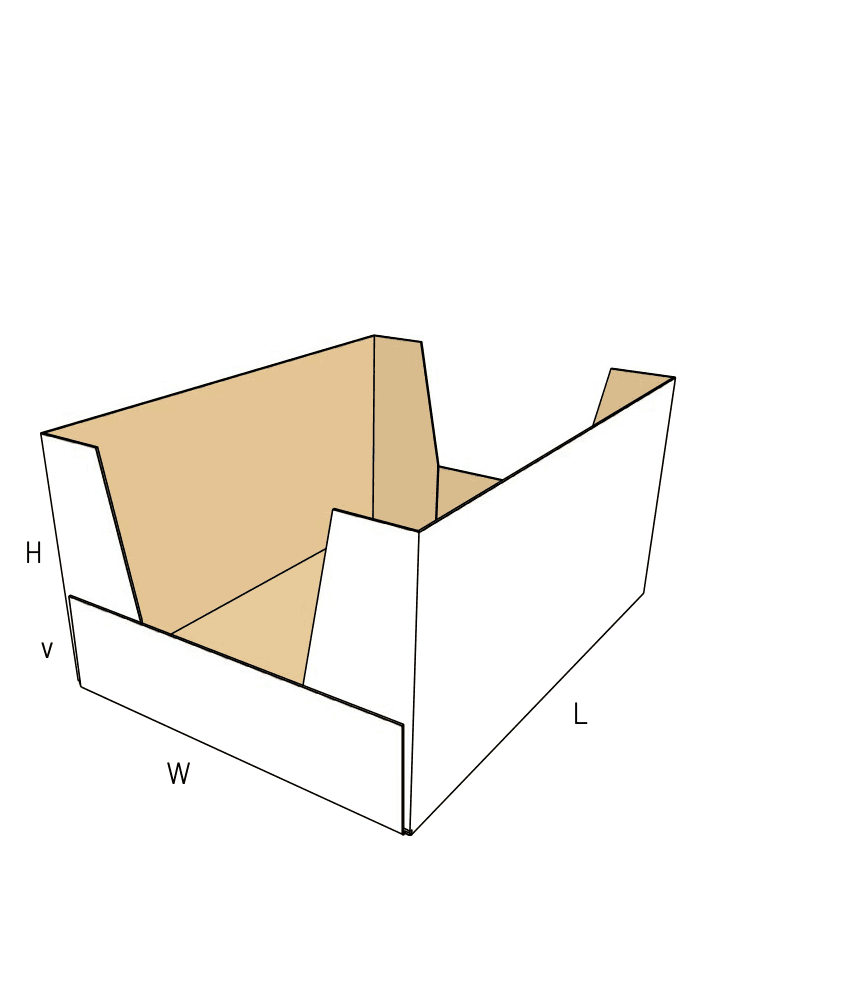

A one-piece corrugated tray designed for high-speed wrap-around case packers. It features tall rear and side walls for pallet stacking, paired with a lowered front panel that keeps primary products visible on the retail shelf.

Because it relies entirely on hot-melt glue and machine erection, it is built for high-volume beverage, dairy, and FMCG lines rather than manual pack benches.
