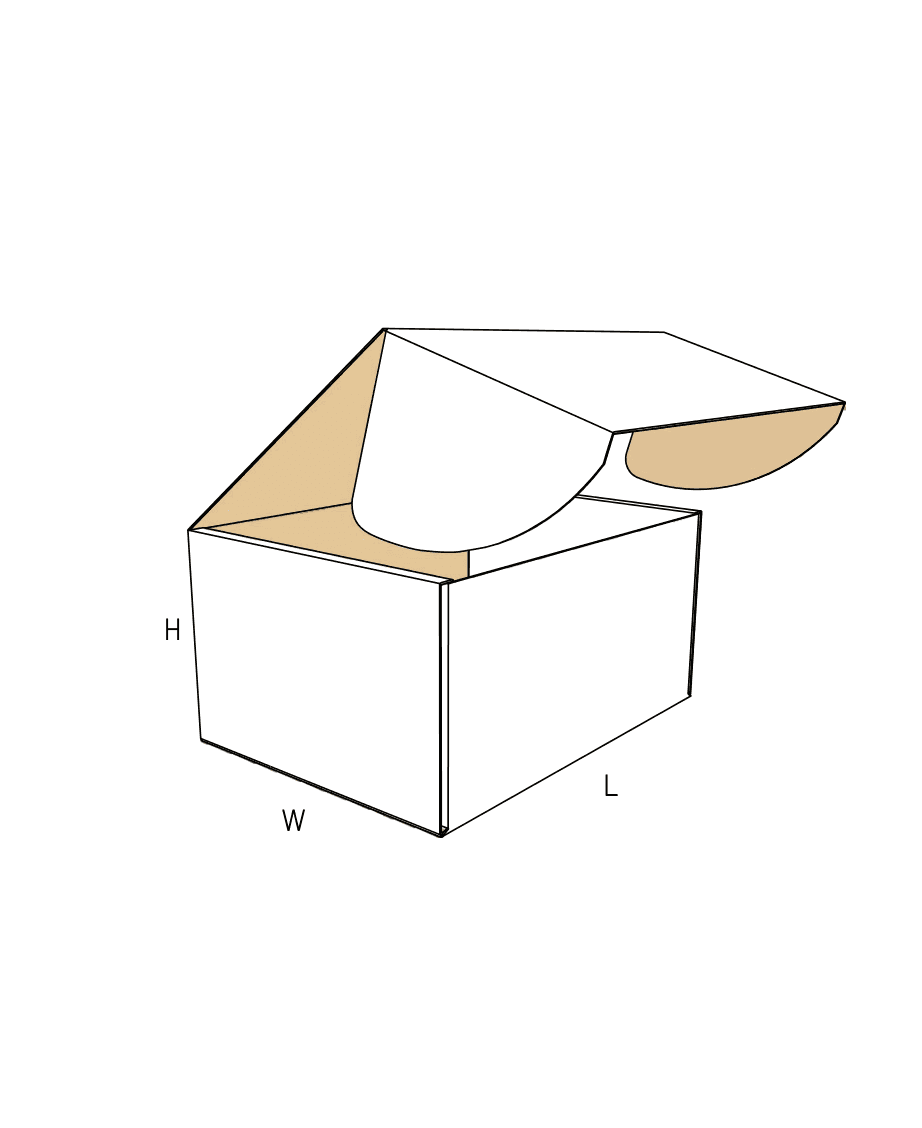

FEFCO 0471

Reinforced-Floor Mailer

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Double-layered floor absorbs bottom impacts
  • Triple-thick side walls resist lateral crushing
  • Requires more board and slower manual assembly than standard mailers

About this product

The reinforced-floor mailer is a presentation box engineered for heavy or fragile items. It builds on the standard roll-over mailer design by adding extended interior flaps that fold flat across the base, creating a double-layered floor for extra shock absorption.

Because this mailer uses more corrugated board and requires careful two-handed assembly to lock the corners, it makes the most sense when bottom cushioning and a clean unboxing reveal outweigh packing speed.

Common uses

  • Heavy industrial parts kits
  • Fragile electronics
  • Premium glass or cosmetic sets
  • Archival document storage

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Packing Heavy Components and Fragile Kits

Heavy industrial parts and hardware

The double-layered floor prevents dense metal components from punching through the bottom during transit. The rolled side walls keep the perimeter rigid, isolating the hardware from outside impacts while maintaining a clean presentation.

Fragile electronics and glass sets

When packing delicate screens, sensors, or glassware, the secondary floor acts as a built-in shock absorber. This built-in cushioning can sometimes reduce the need for excessive internal void fill.

Premium direct-to-consumer unboxing

The front tuck lid opens cleanly without tearing, and the rolled edges hide all raw corrugated flutes. This frames the product perfectly for a high-end reveal, provided the packing team has time for the manual assembly.

Archival document and print storage

The double bottom can be used to securely store and transport accompanying documents, manuals, or invoices beneath the main compartment, keeping them flat and protected from the primary payload.

Where the Reinforced Floor Makes Sense

Kitting and manual fulfillment

This box relies entirely on mechanical friction locks rather than glue. It works well for manual kitting lines where operators can pre-erect the trays, load the components, and close the lids without taping machinery.

High-value retail presentation

The tool-free assembly and hinged lid provide an excellent retail presentation. The large flat areas on the lid and base also offer uninterrupted panels for high-quality graphics and branding.

E-commerce and subscription delivery

When the unboxing experience is just as important as transit protection, the hidden flutes and clean tuck closure provide a premium feel. However, the friction lid may open during rough courier transit without an external seal.

When to Consider a Simpler Mailer

High-speed fulfillment lines

If your packing operation relies on speed, the 0471 can become a bottleneck. The operator must hold the interior bottom flaps flat while applying downward thumb force to lock the side roll-overs. A standard crash-lock base or a simpler mailer is much faster to erect.

Material-efficient shipping

The extended interior flaps and attached lid create a large, cross-shaped blank. This limits how efficiently the boxes can be nested during manufacturing, leading to higher material usage and offcut waste compared to standard slotted cartons or simpler mailers.

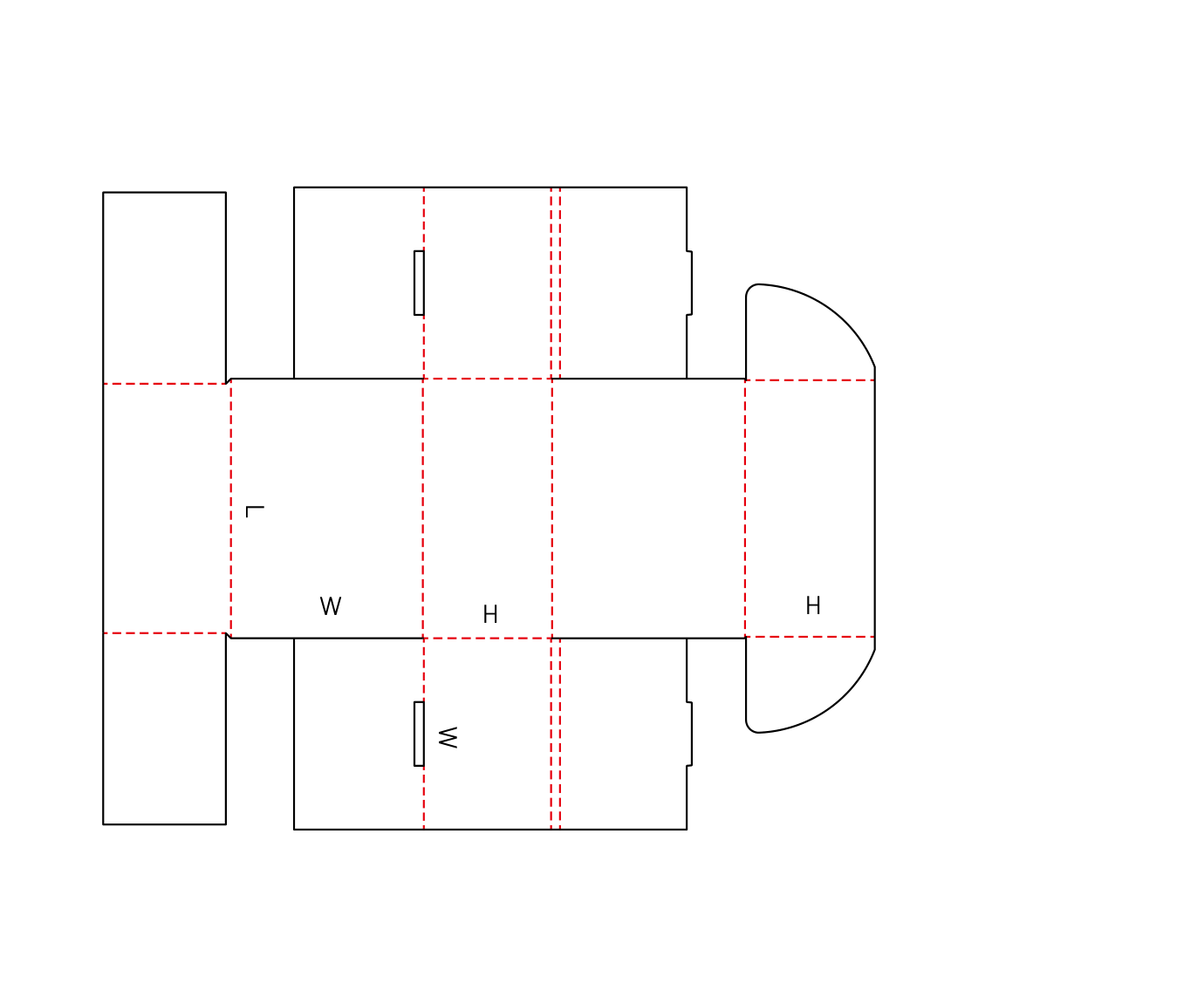

Close variants and lookalike dielines

The closest library neighbors include 0472, 0470, 0469. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Finish, and Packing Decisions

Board thickness and corner binding

This box forces three layers of board to interact at the corners. While fine flutes fold cleanly, upgrading to a thick double-wall board increases the risk of the hinges cracking or the locking tabs failing to reach the base slots. Thick boards require precise fold-clearance adjustments.

Outer sealing for parcel transit

The hinged lid relies on a friction tuck flap and side ears. While this is secure enough for palletized freight or retail handoffs, rough courier networks may force the lid open. Parcel shipments usually benefit from an external wafer seal, tape, or a master outer carton.

Surface finish and friction locks

Because the box stays closed using friction, high-gloss varnishes or slick coatings can reduce the grip on the tuck lid and side ears. If you specify a slick finish, the closure behavior should be tested with a physical sample.

Packing line speed and assembly labor

The 180-degree side roll-overs and the need to trap the interior bottom flaps require a two-handed manual assembly process. Budget extra time for pack-bench assembly compared to simpler box styles.

Clearance and Lock Adjustments

Tuning the fold clearances

If a heavier board is necessary for protection, the template's double creases and layer-step allowances must be recalibrated. This ensures the side walls can still roll over the interior flaps without bowing outward.

Adjusting the tuck flap and locking ears

The friction fit of the lid can be modified by changing the width and angle of the side ears. This helps balance closure security with ease of opening, especially when using coated boards.

Modifying the interior bottom flaps

The length of the interior bottom flaps can be adjusted to ensure they meet perfectly in the center of the base, providing a flat secondary floor without overlapping and creating uneven thickness.

Board and packing details

Die-cutting requirements

The locking tabs, base slots, and lid ears strictly require flatbed or rotary die-cutting. This box cannot be produced on a standard rotary slotter, which influences production routing and volume planning.

Clearance and Lock Variants

Clearance-adjusted corners (0471a)

A variant that uses explicit clearance parameters to manage the tight tolerances at the corners. This is often specified when using thicker boards to ensure the mechanical locks seat correctly without tearing.

Additional notes

Manual packing labor

Operators must hold the interior flaps flat while applying downward thumb pressure to seat the side roll-overs. Budget extra time for pack-bench assembly compared to simpler box styles.

Related Packaging to Compare

0427: Standard Roll-Over Mailer

Compare this when you need the premium hinged-lid presentation but do not need the double-layered floor, saving material usage and assembly time.

0470: Heavy-Duty Double-Bottom Mailer

Compare this when you need a reinforced floor, but prefer the double bottom to be formed by a single full-length front extension rather than four separate side flaps.

FAQs

Assembly and Packing

Can this box be erected by automated machinery?

No. The 180-degree side roll-overs and the need to trap the interior bottom flaps require a manual, two-handed assembly process. This design is generally incompatible with automated folder-gluer equipment.

Protection and Route

Does this mailer need an outer seal for shipping?

For palletized loads or direct retail, the friction tuck lid is usually sufficient. However, for individual parcel or courier shipping, drop shock may force the lid open. Adding an external seal, tape, or master carton helps secure the package during rough transit.

Board and Material

Can I use a heavy double-wall board for extra strength?

It is possible, but it introduces high risk. The side walls must roll over the interior bottom flaps, meaning three layers of board meet at the corners. Thick double-wall board increases the risk of hinges cracking or locking tabs binding unless the fold clearances are perfectly tuned and tested.

Cost and Production

How does the double floor affect material usage?

The interior bottom flaps and the attached lid create a large, irregular flat footprint. This 'blank sprawl' means fewer boxes can be cut from a single sheet of corrugated board, resulting in higher material usage and offcut waste compared to a standard mailer.

Comparison

What is the difference between this and a standard roll-over mailer?

A standard mailer (like the 0427) has a single-layer floor. This reinforced mailer adds extended interior flaps that fold flat across the base, creating a double-layered floor for extra shock absorption, but it requires more board and slower assembly.

Product Fit

Can the double floor hold documents or manuals?

Yes. The space beneath the interior bottom flaps can be used to securely store and transport accompanying documents, manuals, or invoices, keeping them flat and separated from the main product.

Board and Material

How does the surface finish affect the lid closure?

Because the box stays closed using friction, high-gloss varnishes or slick coatings can reduce the grip on the tuck lid and side ears. If you specify a slick finish, the closure behavior should be tested with a physical sample.

Samples and Prototyping

Are physical samples necessary before a full production run?

Yes. Because the 180-degree roll-overs and friction locks are highly sensitive to board thickness, a physical sample on the exact production board is necessary to ensure the box folds cleanly and locks securely.
