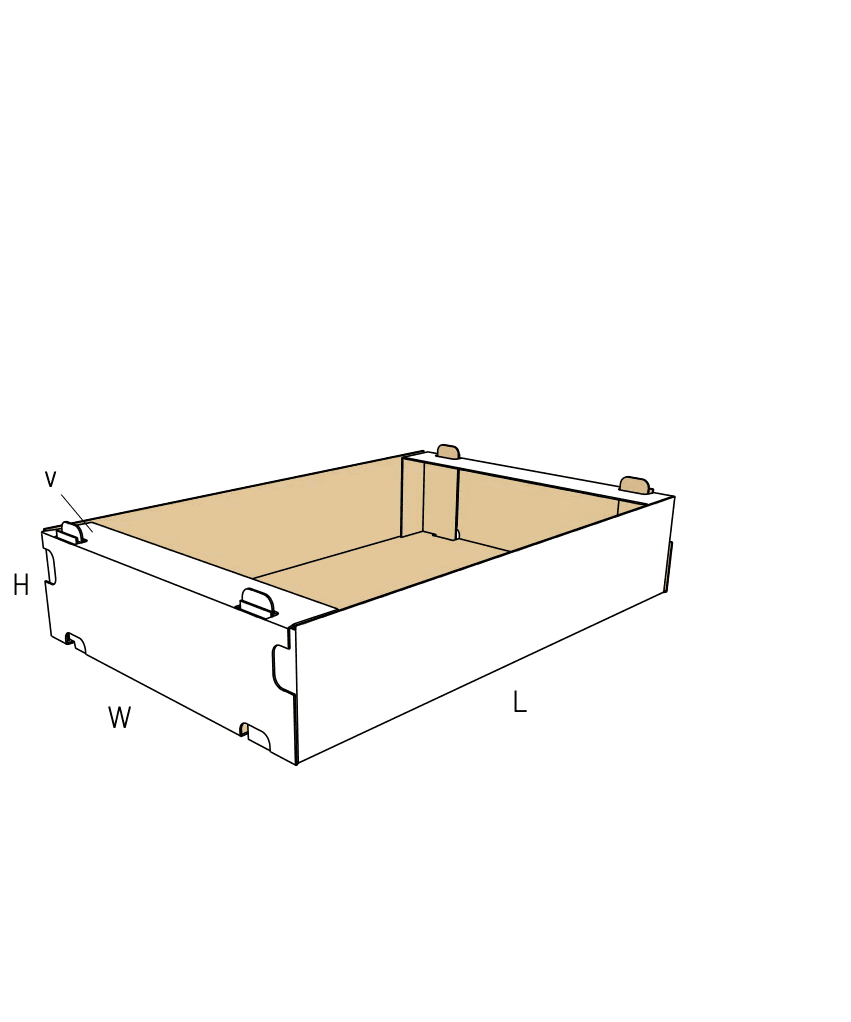

Palletized Distribution and Bulk Display
Fresh produce and agricultural transport
The open top and optional die-cut holes allow airflow for cooling and ripening. The interlocking tabs keep tall pallets of heavy fruit or vegetables aligned from the farm to the distribution center.
Retail-ready bulk displays
The tape-free roll-over walls provide a clean appearance for club stores or supermarket floors. The tray moves directly from the delivery truck to the retail shelf without unpacking individual items.
Heavy industrial components on pallets
For dense, non-fragile parts that require vertical stacking rather than individual boxing, the 180-degree end walls provide the necessary crush resistance while keeping parts accessible.
Cold chain and ventilated storage
When products must cool quickly in storage, the open top combined with side ventilation cutouts prevents moisture buildup while the stacking tabs maintain pallet alignment.
Agricultural and Wholesale Environments
Wholesale logistics
Supply chains moving dense, heavy pallet loads rely on the mechanical interlock. The tabs prevent lateral sliding, reducing reliance on external stretch wrap or corner boards.
Farm-to-market distribution
Growers packing directly in the field need a tray that sets up without tape dispensers or glue guns. The friction locks allow manual assembly on site.
Club store retail
Retailers that display products directly on pallets require clean, unbranded or neatly printed trays that do not require box cutters to open.
When to Consider a Different Tray Style
High-speed automated packing lines
If the facility uses continuous-motion folder-gluers or robotic drop-packing, the manual folds of this tray create a bottleneck. A 4-point glued tray fits automated lines better.
Single-parcel courier shipping
Because this is an open-top tray held together by friction locks, it requires an outer master carton for mixed-courier transit. For individual shipping, compare a fully sealed mailer.
Board Thickness, Assembly, and Print Choices
Board thickness and fold clearance
Produce applications often use heavy double-wall corrugated board. Because the end walls roll a full 180 degrees over the corner flaps, thick board binds if the fold allowances are not calibrated.
Manual assembly versus specialized machinery
This tray is designed for tool-free manual assembly, but the roll-over walls require two hands and firm thumb pressure to lock the tongues into the base. High-volume runs require a specialized plunger-style tray erector.
Ventilation hole placement and payload weight
Removing corrugated material for airflow reduces vertical compression strength. The board grade must match the final cutout pattern and the intended pallet height.
Print finish and locking friction
The locking tongues rely on the friction of the corrugated board. High-gloss slick coatings on the inside of the tray reduce this friction, which can cause the tongues to fail to seat securely.
Ventilation and Handling Modifications
Ventilation and hand holes
Cutouts can be added to the side and end walls for airflow or manual lifting, adjusted based on the cooling requirements of the specific produce.
Stacking tab height and profile
The vertical ears on the side walls can be extended or reshaped to match specific interlocking depths or pallet configurations.
Roll-over wall width
The inner frame created by the 180-degree roll-over walls can be widened to trap thicker corner flaps or provide a wider resting ledge for the tray above.
Board and packing details
Die-cutting and internal waste

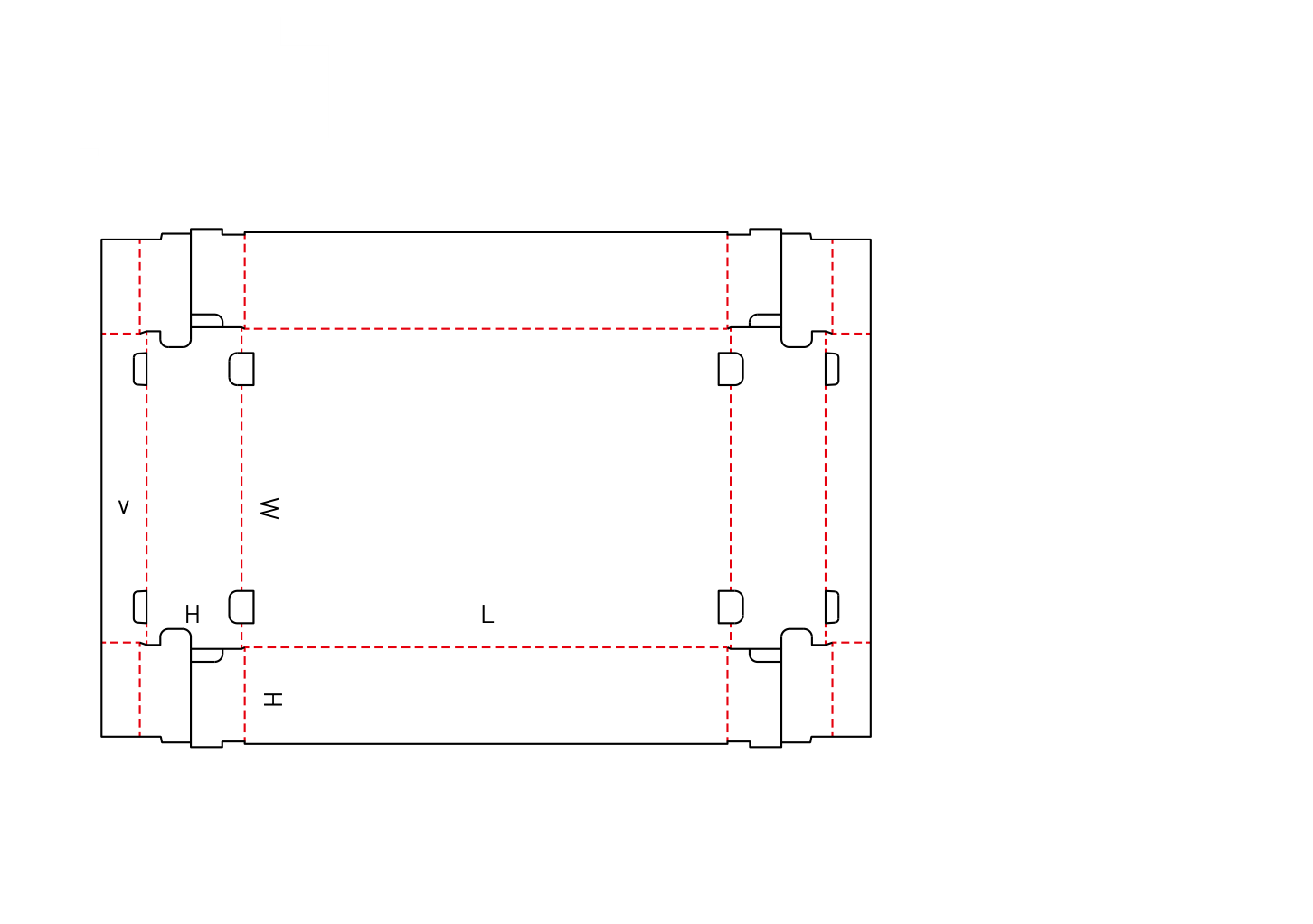

The cross-shaped flat blank, extended roll-over flaps, and internal cutouts for the locking slots require flatbed or rotary die-cutting. The internal waste from the slots and vents must be cleanly stripped to prevent machine jams.
Additional notes
Print surface and friction locks
Heavy varnishes or slick coatings on the inside of the tray can reduce the friction needed to keep the locking tongues seated. If you require high-end graphics, the locking mechanism may need tighter tolerances.
FAQs
Assembly and Packing
Does this tray require tape or glue to assemble?
No. The tray uses a mechanical friction lock. The end walls roll over the corner flaps and insert locking tongues directly into slots in the base.
Can this tray be formed on automated packaging equipment?
It cannot be formed on standard linear folder-gluers. Automated assembly requires specialized plunger-style tray erectors. Otherwise, it must be assembled manually.
Shipping and Route
Is this tray suitable for individual parcel shipping?
Not on its own. The open top and friction-based locks mean it requires an outer master carton for mixed-courier transit. It is designed for stable, stretch-wrapped pallet distribution.
Material and Fit
Can we use heavy double-wall board for extra strength?
Yes, but the template must be carefully adjusted. The 180-degree roll-over walls wrap around multiple layers of board. If the fold clearances are not widened for thick board, the hinges will crack and the tray will not lock.
Will adding ventilation holes weaken the tray?
Yes. Removing material from the load-bearing walls reduces vertical compression strength. We recommend testing a physical sample with your exact cutout pattern and product weight to ensure it supports the required pallet height.
Why might the locking tabs pop open?
The locks rely on the friction of the corrugated board. If the board is too thick and binds, or if a slick coating reduces friction, the tongues may fail to seat securely in the base slots.
Shipping and Route
How do the vertical stacking tabs work on a pallet?
The side walls feature extended tabs that protrude upward. When another tray is placed on top, these tabs fit into corresponding slots on the bottom of the upper tray, locking the stack together and preventing lateral shifting.
Assembly and Packing
What is the most common mistake when assembling this tray manually?
Operators sometimes attempt to fold the end walls before the side walls. The side walls must fold up first so the corner flaps can be trapped by the rolling end walls.
