High-volume packing and retail display setups
High-volume kitting and fulfillment
When packing speed dictates the daily output, the instant setup of a crash-lock base removes the need for bottom taping or manual flap folding.
Retail shelf displays

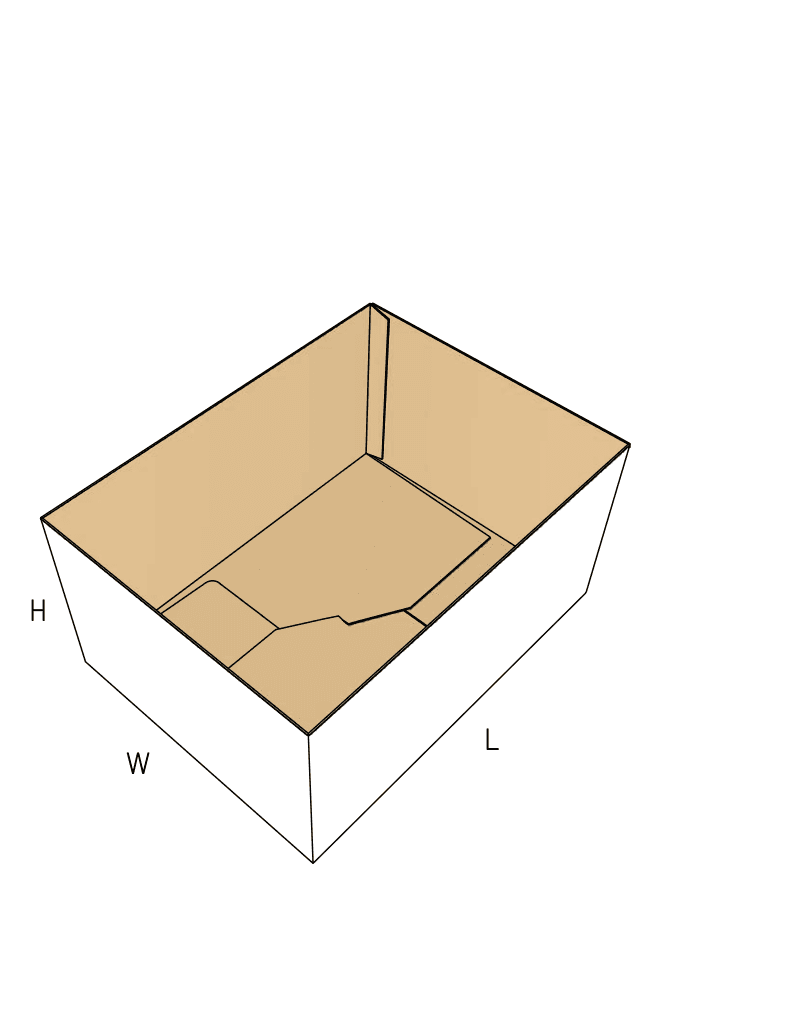

The open top allows immediate product visibility and easy access for customers. The flat, dual-layer locked bottom keeps the tray stable on store shelves.
Inner sorting trays for master shippers
Industrial suppliers use these to organize parts or components before sliding the entire loaded tray into a larger transit box.
Beverage and dairy transport
When combined with interlocking corrugated dividers, the rigid base supports heavy beverage cans or dairy containers during palletized transit.
Fulfillment, retail, and agricultural contexts
E-commerce and 3PL operations
Fulfillment centers use these trays to accelerate pick-and-pack lines. The fraction of a second saved on each tray compounds across large daily order volumes.
Parts and components kitting
Assembly lines rely on open-top trays to stage components. The instant setup keeps the staging area moving without requiring dedicated taping stations.
Agricultural and fresh produce packing
Growers use modified versions of this tray with ventilation cutouts to pack and display fruit or vegetables directly from the field to the store.
When to compare closed boxes or manual trays
Short runs and prototypes
If you are ordering a small trial batch, a manual snap-lock bottom (0711) is often a better choice. It folds by hand, avoiding the specialized factory gluing process required for a crash-lock.
Direct parcel shipping
This is an open-top tray. If you need to ship directly through a courier network without an outer mailer or master carton, compare this to a closed crash-lock box (0701) that includes top flaps.
Board, payload, and production path decisions
Board thickness and lock binding
The interlocking base relies on precise clearances. Fine to medium flutes fold crisply and lock well. Heavy double-wall board can make the automatic lock too stiff, causing it to bind or require excessive force to pop open.
Order maturity and production path
Because this tray requires a flatbed die-cutter and a specialized multi-point folder-gluer, it is built for scale. It makes the most sense for repeat programs where the reduction in hand-packing labor offsets the factory production steps.
Transit route and outer containment
The open top provides no upper protection. Decide early whether this tray will sit on a retail shelf, slide into a master shipper, or require a custom lid for transit.
Payload density and center drops
The dual-layer interlocking bottom is secure, but a concentrated, heavy point load in the exact center can sometimes force the lock to slip. Dense items should be physically drop-tested.
Ventilation, handling, and locking adjustments
Locking tab profiles
The shape of the internal locking hooks can be adjusted to ensure they strip cleanly during manufacturing and lock securely based on the specific board grade.
Ventilation and hand-hold cutouts
For agricultural or heavy retail applications, the side panels can be modified to include grip holes or airflow gaps without compromising the base.
Diagonal crease modifications

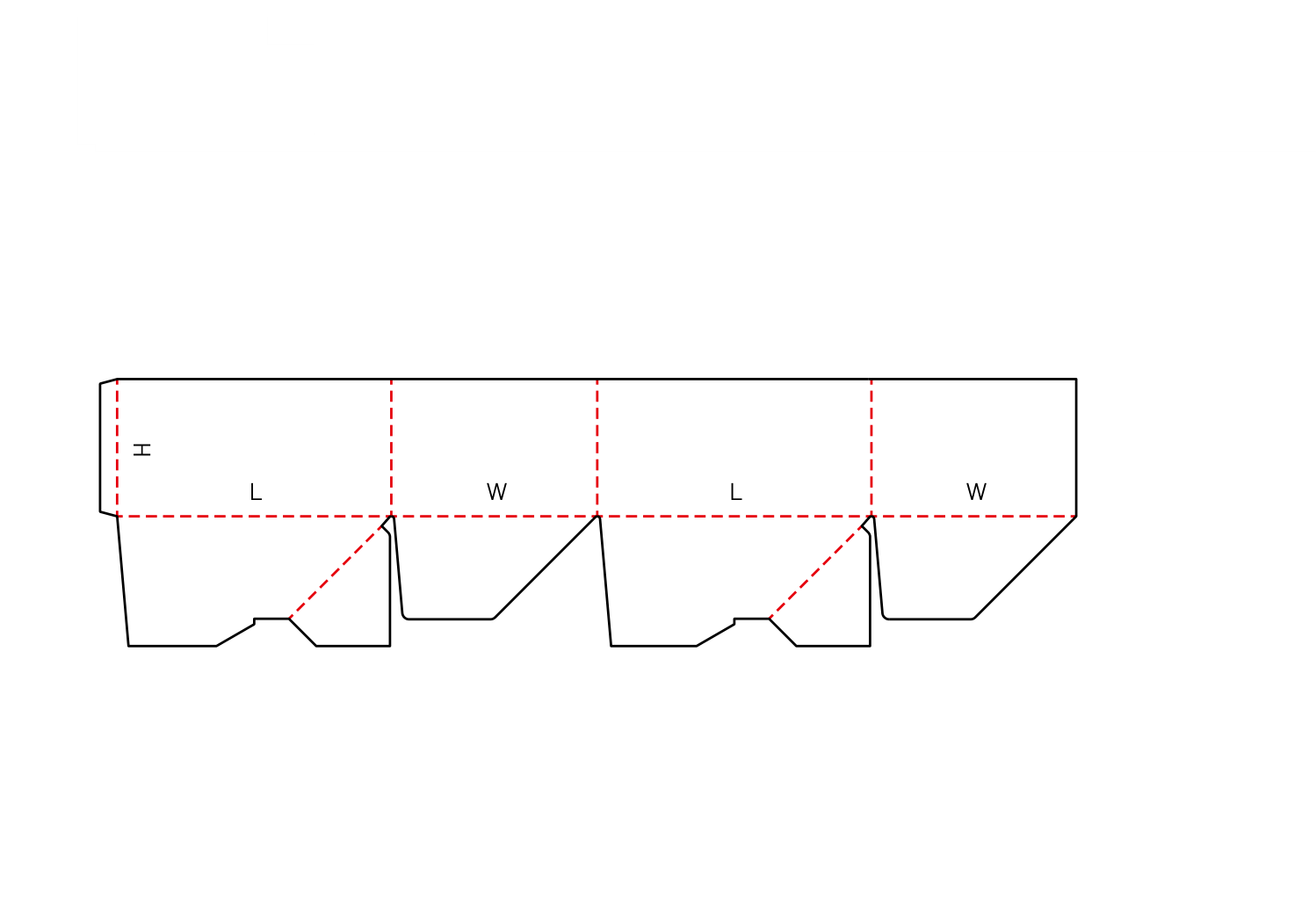

The 45-degree hinges that drive the pop-up motion can be specified as standard creases or reverse creases to control how the board behaves during rapid assembly.
Board and packing details
Flat delivery and storage space
Despite the complex glued bottom, these trays ship completely flat. The glued side seam adds a slight thickness to the bundle, but they remain highly efficient for warehouse storage before use.
