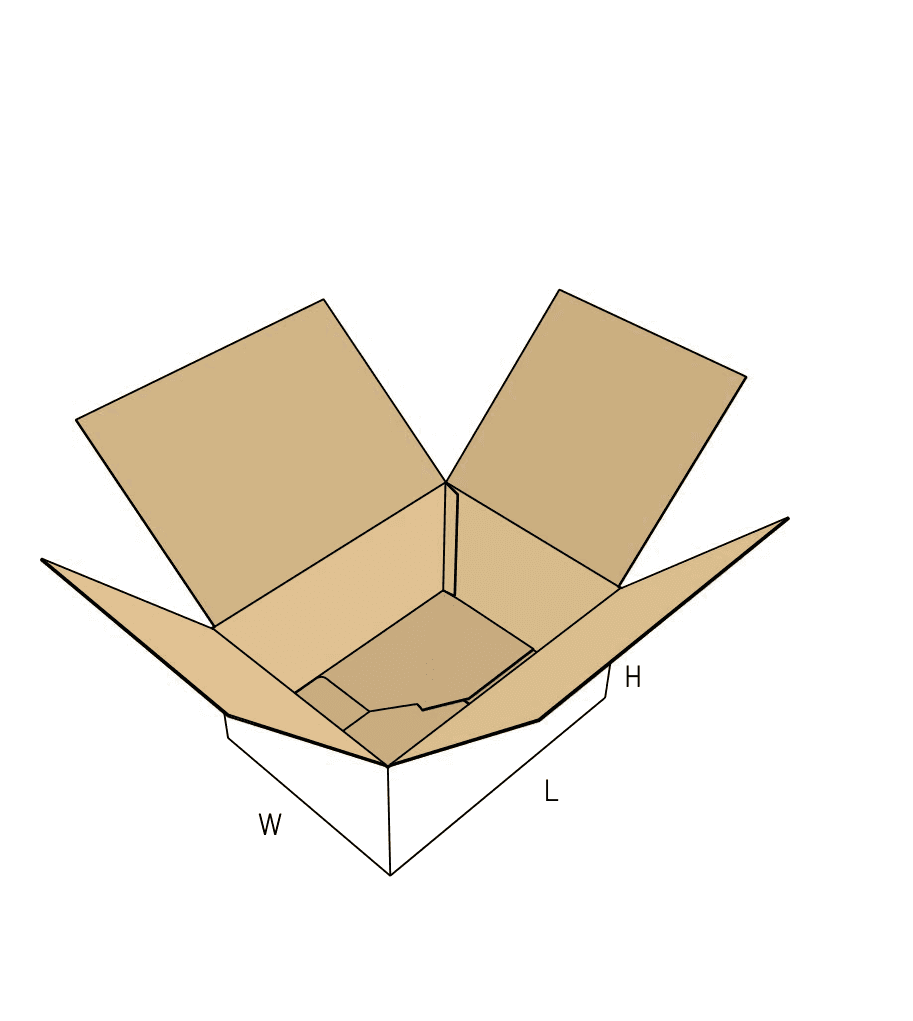

FEFCO 0710

Auto-Bottom Box with Full Overlap Top

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Base locks automatically when squared, saving pack-bench time
  • Double-layer top flaps resist crushing and punctures
  • Relies on tape or adhesive to seal the top for transit

About this product

This shipping box combines the instant-assembly speed of a crash-lock base with the heavy-duty protection of a fully overlapping top. When an operator pushes the opposite corners together, the pre-glued floor locks into place immediately, eliminating the need for bottom taping.

Unlike a standard auto-bottom box, the outer top flaps extend across the entire width of the opening. This creates a double-thick corrugated shield over your product, making it highly resistant to top-down crushing and punctures during transit. The tradeoff is material usage: the extended flaps require substantially more board than a standard shipping box.

Common uses

  • High-volume e-commerce for heavy goods
  • Mixed-pallet distribution
  • Puncture-sensitive product fulfillment
  • Dense hardware and component packing

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-volume fulfillment and dense product packing

High-volume e-commerce for heavy goods

When daily output targets are tight, the instant base assembly removes manual flap folding and bottom taping. The fully overlapping top ensures that once sealed, the package resists top-down crushing when heavier boxes are stacked on top.

Puncture-sensitive product fulfillment

The double-thick top prevents sharp external objects from piercing through the lid during rough courier transit, while the interlocking base supports concentrated weight better than a standard taped seam.

Mixed-pallet distribution

When shipping pallets with varying box sizes, the fully overlapping top provides a level, reinforced surface that helps prevent the box from buckling under uneven top loads.

Dense hardware and component packing

Heavy metal parts require a secure floor that will not drop out during lifting. The crash-lock base provides a mechanical interlock, and the overlapping top protects the parts from external impacts.

Operations relying on speed and top-down security

Third-party logistics (3PL)

When throughput dictates profitability, removing the bottom-taping step across thousands of daily orders yields measurable labor savings, while the reinforced top reduces damage claims for heavy or fragile client goods.

Subscription box fulfillment

For programs shipping heavy or fragile assortments, the fast assembly keeps fulfillment lines moving, while the double-thick top ensures the presentation handles the courier network.

Industrial supply

Distributors shipping dense components benefit from the interlocking floor, which handles concentrated weight better than a taped seam, while the top flaps protect against warehouse handling.

When to consider a standard top or manual base

When top-down puncture risk is low

If you are shipping lightweight apparel or soft goods, the extra board used for the fully overlapping top is an unnecessary expense. A standard Auto-Bottom Box with Slotted Top (FEFCO 0701) provides the same packing speed with significantly less material.

When order volumes are low

The complex base and massive blank size require specific production equipment. For short runs or prototypes, a standard Full Overlap Box (FEFCO 0204) is often more practical to manufacture and trial.

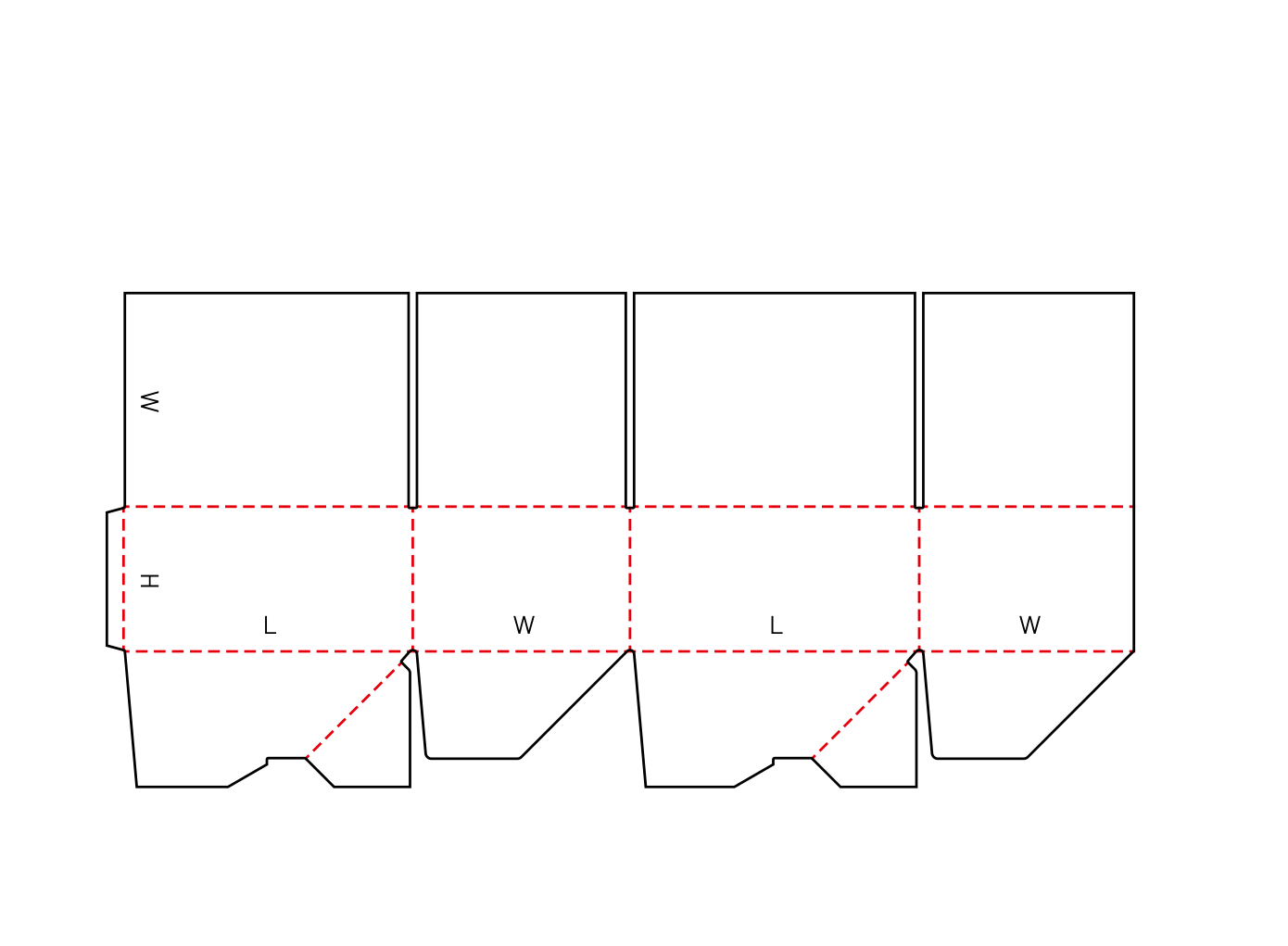

Close variants and lookalike dielines

The closest library neighbors include 0703, 0712, 0707. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, closure, and production route

Board thickness and flap stiffness

Heavy double-wall board drastically increases the protection of the box, but it also makes the fully overlapping top flaps extremely stiff. If the board is too thick, packers will struggle to fold the top flaps completely flat for taping, and the crash-lock base may bind during assembly. Fine to medium flutes are generally a safer choice.

Top sealing method

While the base sets up instantly without tape, the top requires a secondary seal. Because the outer flaps overlap completely, a single strip of tape along the edge or a strong adhesive application is necessary to secure the package for transit.

Order maturity and production path

The combination of long crash-lock bottom flaps and full-width top flaps creates a very large flat blank. This extreme length must be checked against the converter's equipment limits, making this style better suited for mature, high-volume programs rather than short trial runs.

Insert and void fill compatibility

The interlocking base creates a relatively flat interior floor, which is helpful when loading custom inserts or molded pulp trays. Ensure your insert dimensions account for the slight ridges where the bottom flaps overlap.

Template adjustments for fit and handling

Base lock clearance

The interlocking tabs on the base must be precisely calibrated to the exact thickness of the chosen corrugated board. Changing the board grade later requires updating these clearances so the base continues to snap together smoothly without jamming.

Top flap orientation

Depending on how the product is loaded, the template can be adjusted so the fully overlapping flaps fold from the long sides or the short sides, changing where the final taped edge sits.

Thumb notches or access cuts

Because the double-thick top can be difficult for the end user to open, small half-moon cutouts can be added to the overlapping flaps to give the recipient a place to grip and pull.

Board and packing details

Flat delivery and storage

The factory glues the side seam and the base tabs, delivering the box completely flat. This keeps inbound freight and warehouse storage efficient before the boxes are moved to the packing line.

Additional notes

Pallet stacking and vertical compression

The double-layered top helps distribute weight evenly, but the interlocking base can be a weak point if a heavy, concentrated load presses directly on the center. Physical drop and crush testing is recommended for dense payloads.

Related packaging choices

FEFCO 0204: Full Overlap Slotted Box

Consider this if the package needs maximum top and bottom protection for heavy items, but your order volume is too low to justify an auto-bottom.

FAQs

Board and finish behavior

Can we use heavy double-wall board for maximum protection?

It requires careful physical testing. Heavy double-wall board can cause the interlocking base tabs to bind when the box is popped open. It also makes the full-width top flaps very stiff, which can slow down your packing team when they try to fold and tape them flat.

Route and shipping

Does this box need to be taped?

Yes, the top requires tape or adhesive. The base locks automatically and does not need tape, but the fully overlapping top flaps must be sealed externally before shipping.

Quantity and production path

Why does this box use more material than a standard shipping carton?

It uses substantially more corrugated board because the top flaps extend across the entire width of the box, rather than meeting in the center. The complex interlocking base also requires more board area than standard folding flaps.

Packing labor

How much time does the crash-lock base actually save?

It eliminates the need to fold four bottom flaps and apply a strip of tape. For a few boxes, the difference is minimal. Across thousands of daily shipments, it removes a repetitive motion that measurably increases pack-line throughput.

Product fit

Is this box suitable for retail display?

No. This is a closed transit box designed for shipping security. Once the fully overlapping top is sealed, it must be cut open, which does not create a clean retail presentation.

Samples and prototypes

Can I get a short run of prototypes to test the base?

A digital cutting table can produce structural prototypes to check the fit and pop-open resistance. However, hand-gluing a prototype will not perfectly simulate the crush and fold behavior of factory equipment, so a full production trial is often recommended before a major rollout.

Product fit

Should we use this for lightweight items?

Usually not. If your product is light and not sensitive to top-down punctures, the extra board used for the fully overlapping top is unnecessary. A standard auto-bottom box is a more efficient choice.

Inserts and product fit

How does the crash-lock base affect internal inserts?

The interlocking base creates a relatively flat floor, but there are slight ridges where the flaps overlap. If you are using precise custom inserts or molded pulp trays, the insert dimensions should account for these minor internal variations.
