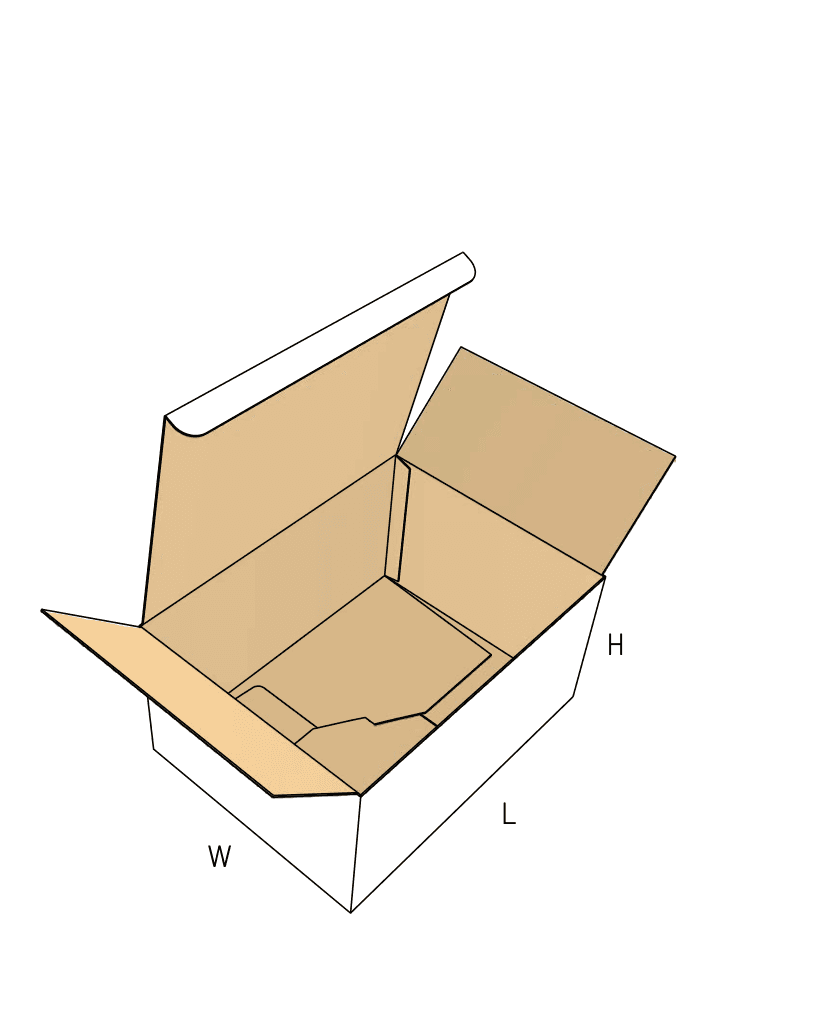

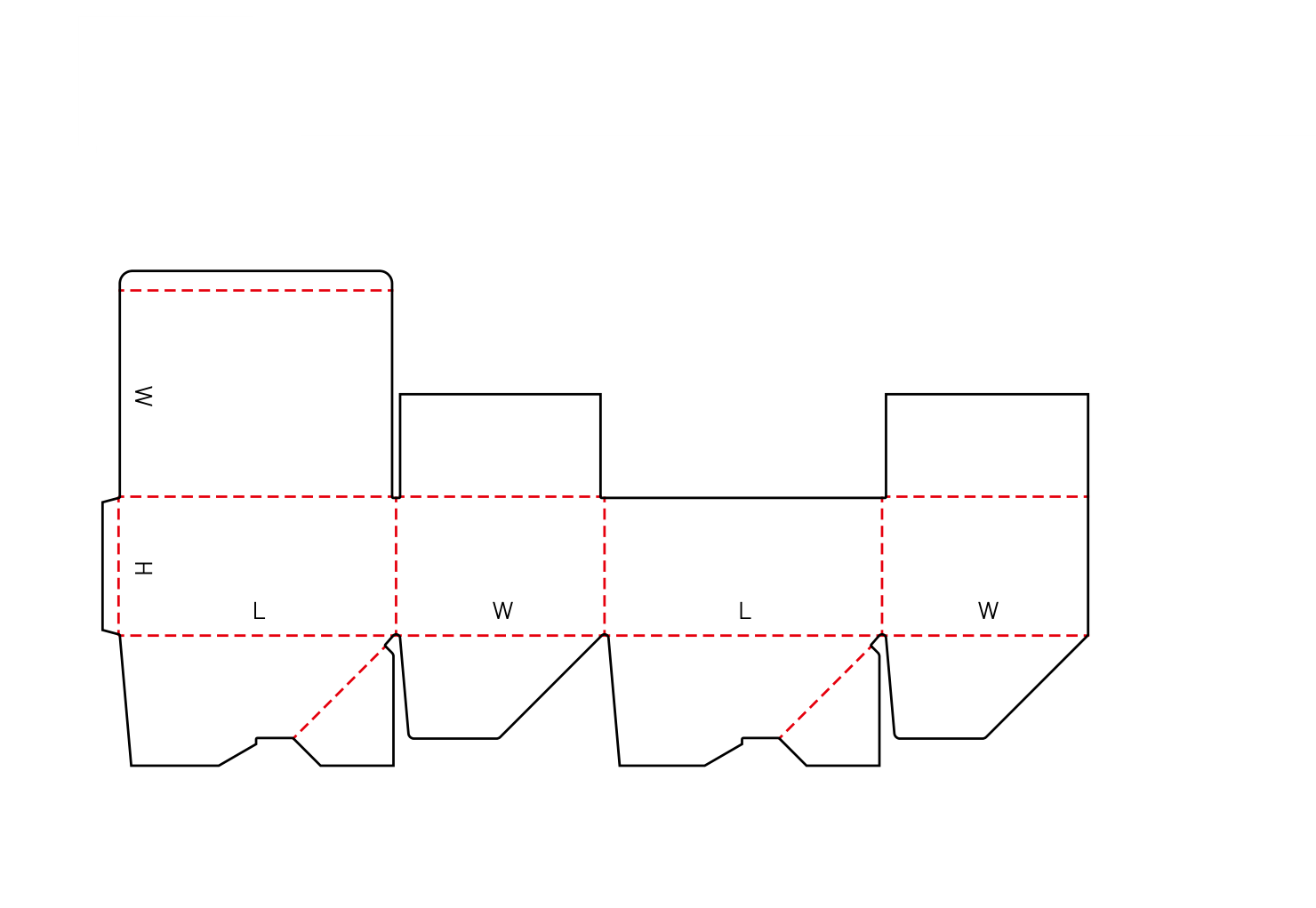

FEFCO 0713

Auto-Bottom Box with Tuck-In Top

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Base locks automatically when squared, removing bottom tape from the packing line
Hinged lid with friction tuck provides a clean, reusable closure for the end user
Requires multi-point factory gluing, making it most practical for higher volumes

About this product

This box combines the instant-setup speed of a crash-lock base with a clean, retail-ready tuck-in lid. When squared, the factory-glued floor locks into place automatically, allowing packing teams to skip bottom taping entirely.

Because the top closes with a simple friction tuck, it provides a premium unboxing experience without the raw edges of a standard shipping carton. It is a strong choice for high-volume fulfillment and retail packaging where pack-bench speed and presentation justify the initial factory preparation.

Common uses

E-commerce fulfillment with an added seal
Retail shelf display
Kitting and subscription boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Depth (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be shipped?

Will you be using custom inserts to hold items inside?

Is this box used for retail display or premium unboxing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Fulfillment and retail presentation

High-volume e-commerce fulfillment

The instant base setup cuts seconds off every order. When multiplied across thousands of shipments, the labor savings easily offset the specialized production routing. For parcel networks, the top lid usually requires a clear wafer seal, a strip of tape, or an integrated peel-and-seal strip.

Subscription boxes and kitting

The clean interior and hinged lid create an excellent presentation for multi-item kits. The friction tuck allows the recipient to easily open and reclose the box without destroying the packaging.

Retail shelf display

Without the need for bottom tape, the exterior remains clean. The top lid can be opened by consumers to inspect the product and securely tucked back into place.

Cosmetics and personal care packaging

The clean interior and friction tuck lid provide a premium presentation for health and beauty products. The flat base easily supports custom inserts to hold bottles or jars securely.

Third-party logistics and consumer brands

Third-party logistics (3PL)

When throughput dictates profitability, removing the bottom-taping step across thousands of daily shipments drastically reduces labor costs and speeds up the pack bench.

Consumer electronics brands

Brands that want a premium unboxing feel often choose this style over a standard slotted box, as the hinged lid presents the product neatly upon opening.

Direct-to-consumer subscription services

Companies shipping curated monthly kits benefit from the fast assembly and the reusable tuck lid, which allows customers to open and close the box without tearing the board.

Short runs and automated taping

Short runs or prototype testing

Because the crash-lock base requires a multi-point folder-gluer, factory preparation takes longer. For short runs, a manual snap-lock base (FEFCO 0215) or a roll-end tuck-top mailer (FEFCO 0427) avoids this preparation time while offering a similar unboxing experience.

Automated top-taping lines

If your fulfillment center uses automated case sealers, the friction tuck lid can be difficult for machinery to close. An auto-bottom box with flat-sealing top flaps (FEFCO 0712) is a better fit for automated taping equipment.

Heavy industrial payloads

While the dual-layered base is strong, concentrated heavy loads can force the center interlock to disengage during a drop. A fully overlapping base or a standard taped bottom may be safer for dense, heavy parts.

Close variants and lookalike dielines

The closest library neighbors include EVC11102, 0705, 0719. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness and production volume

Board thickness and flute profile

This mechanism relies on precise clearances. Fine to medium flutes fold crisply and allow the top tuck to slide in smoothly. Heavy double-wall board increases the risk of the base binding during setup and makes the top lid clumsy to close.

Outer sealing for parcel transit

The friction tuck lid is designed for easy opening. If the box will travel individually through a parcel network, discuss adding an inline peel-and-seal strip or plan to apply a tamper-evident label to keep the lid secure.

Production volume and setup time

Because the crash-lock base requires a multi-point folder-gluer, factory preparation takes longer than a standard box. This makes the style most practical for higher volumes where pack-bench labor savings offset the initial setup.

Insert compatibility for multi-item packs

The locked base creates a relatively flat, dual-layered floor. If your product requires a perfectly smooth floor for delicate inserts, we can review the clearance to verify it sits level across the interlocking seam.

Top flap cuts and locking tabs

Top flap cut styles

The exact shape of the top dust flaps and the tuck-in tab can be adjusted. Some profiles use straight cuts, while others use narrow slots to change how the lid engages with the front wall.

Base locking tab profiles

The internal hooks that secure the crash-lock base can be cut with standard, rounded, or oversized profiles. This choice often depends on the specific stripping capabilities of the factory's flatbed die-cutter.

Crease offsets

The fold lines around the top lid and dust flaps can be offset slightly to accommodate different board thicknesses, ensuring the lid closes cleanly without bulging.

Board and packing details

Flat delivery and bundle bulk

The boxes arrive completely flat with the side seam and base already glued. The glued overlap increases the bulk of the bundled stack slightly compared to unglued sheets, but they still store efficiently before use.

Variant flap profiles

0713a

A direct variant featuring alternative top flap cut profiles and crease offsets. The choice between them often depends on the specific stripping capabilities of the factory's flatbed die-cutter.

Additional notes

Print panel and label area

The hinged top lid provides a large, uninterrupted surface for branding or instructions, making it an excellent choice for retail display or premium unboxing.

FAQs

Assembly and Packing

Does this box require tape to assemble?

Forming the base and closing the lid does not require tape at the pack bench. The base is pre-glued at the factory and locks into place automatically when you square the walls. The top closes with a friction tuck flap.

Shipping and Route

Can I ship this through the mail without tape?

For individual parcel shipping, the friction tuck lid is not secure enough to stay closed during standard courier transit on its own. You will need to apply a piece of tape, a strong label, or specify an integrated peel-and-seal strip to keep the lid closed.

Production and Quantity

Why is this box practical for higher volumes?

The crash-lock base must be folded and glued on a specialized multi-point folder-gluer at the factory. The setup time for this machine is substantial, which makes short runs less practical. At higher volumes, the pack-bench labor savings easily outweigh the factory preparation time.

Board and Fit

Can this be made in heavy double-wall board?

Heavy board is a poor fit for this style. The automatic base and the top tuck flap rely on precise clearances to fold and lock correctly. Heavy, stiff board increases the force needed to open the box and often causes the base panels to bind or the top lid to bulge.

Inserts and Fit

Does the auto-bottom interfere with internal inserts?

The locked base creates a relatively flat, dual-layered floor. However, there is a slight seam where the panels interlock. If your product requires a perfectly smooth floor or if you are using a delicate insert, we can review the clearance to verify it sits level.

Comparison

What is the difference between a crash-lock base and a snap-lock base?

A crash-lock base is pre-glued at the factory and forms instantly when you open the box. A snap-lock base is unglued and requires the packer to manually fold and interlock four bottom flaps. Crash-locks are faster to pack but cost more to manufacture.

Load and Weight

Can I use this box for heavy industrial parts?

Delivery and Storage

How are these boxes delivered?
