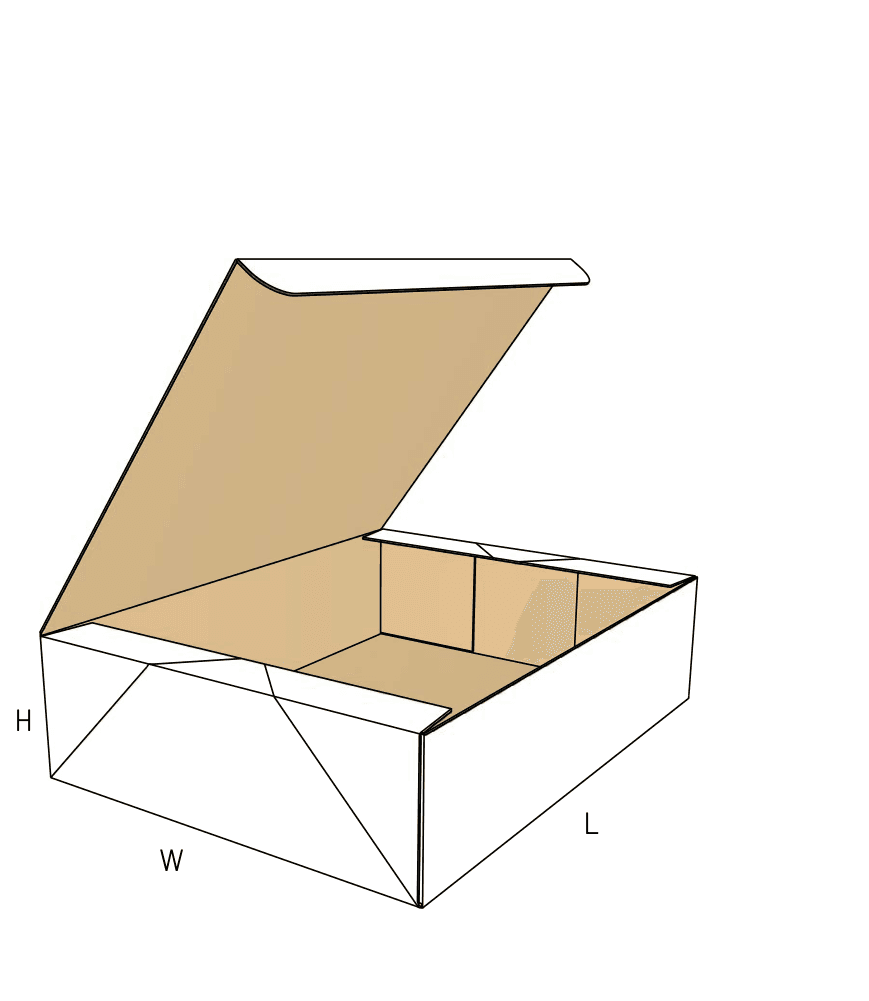

FEFCO 0748

Auto-Erecting Mailer Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Base deploys instantly to speed up manual pack benches
  • Hinged lid with dust flaps provides a clean unboxing reveal
  • Requires fine flutes or solid board to prevent the pop-up corners from binding

About this product

This single-piece mailer combines a hinged-lid presentation with an instant-setup base. Because the lower tray is glued at four points during manufacturing, it ships flat but pops open into a rigid box the moment a packer pulls the sides outward.

It looks nearly identical to a standard roll-end mailer when closed, but the pre-glued base eliminates the slow manual folding of the floor and side walls. This shifts the effort from the pack bench to the production line, saving massive labor time on high-volume fulfillment.

Common uses

  • Subscription box rollouts
  • High-volume e-commerce kitting
  • Retail shelf-ready presentation
  • Promotional influencer kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-volume fulfillment and premium presentation

Subscription box rollouts

When packing thousands of identical kits, the seconds saved on every box compound quickly. The instant base keeps the line moving, while the friction-tuck lid delivers the exact unboxing experience expected from premium subscriptions.

High-volume e-commerce kitting

For fast-moving consumer goods, cosmetics, or apparel, this box removes the bottleneck of manual tray folding. Packers simply square the base, drop the items inside, and fold the lid over.

Retail shelf presentation

The clean exterior and easy-to-open hinged lid make it an excellent choice for retail environments. Store staff or customers can open and reclose the box easily without tearing the structural panels.

Promotional influencer kits

When launching a new product, brands need a high-end presentation that can be assembled rapidly by fulfillment teams. The auto-erecting base handles the speed, while the hinged lid provides the display surface.

Industries relying on rapid pack-bench assembly

Contract packers and 3PLs

Third-party logistics providers often prefer this style for large campaigns because it dictates a faster, more predictable packing rhythm. The labor savings easily justify the specialized manufacturing route at scale.

Premium direct-to-consumer brands

Brands that want the aesthetic of a high-end mailer but have outgrown the slow assembly of unglued boxes use this to scale their operations without changing the customer's unboxing experience.

High-turnover retail distribution

Supply chains moving goods directly to retail shelves benefit from a box that packs quickly at the warehouse and opens cleanly at the store level without box cutters.

When to consider an unglued mailer

Short runs and early-stage testing

If you are ordering fewer than a few thousand units, the specialized multi-point gluing process makes this box less practical. A standard unglued mailer is much easier to trial, even with the slower manual assembly.

Heavy industrial components

If you are packing heavy, dense parts that require thick double-wall board, the glued corners of this box will likely bind and fail to pop open smoothly. A heavy-duty crash-lock box or a standard slotted carton is a safer choice.

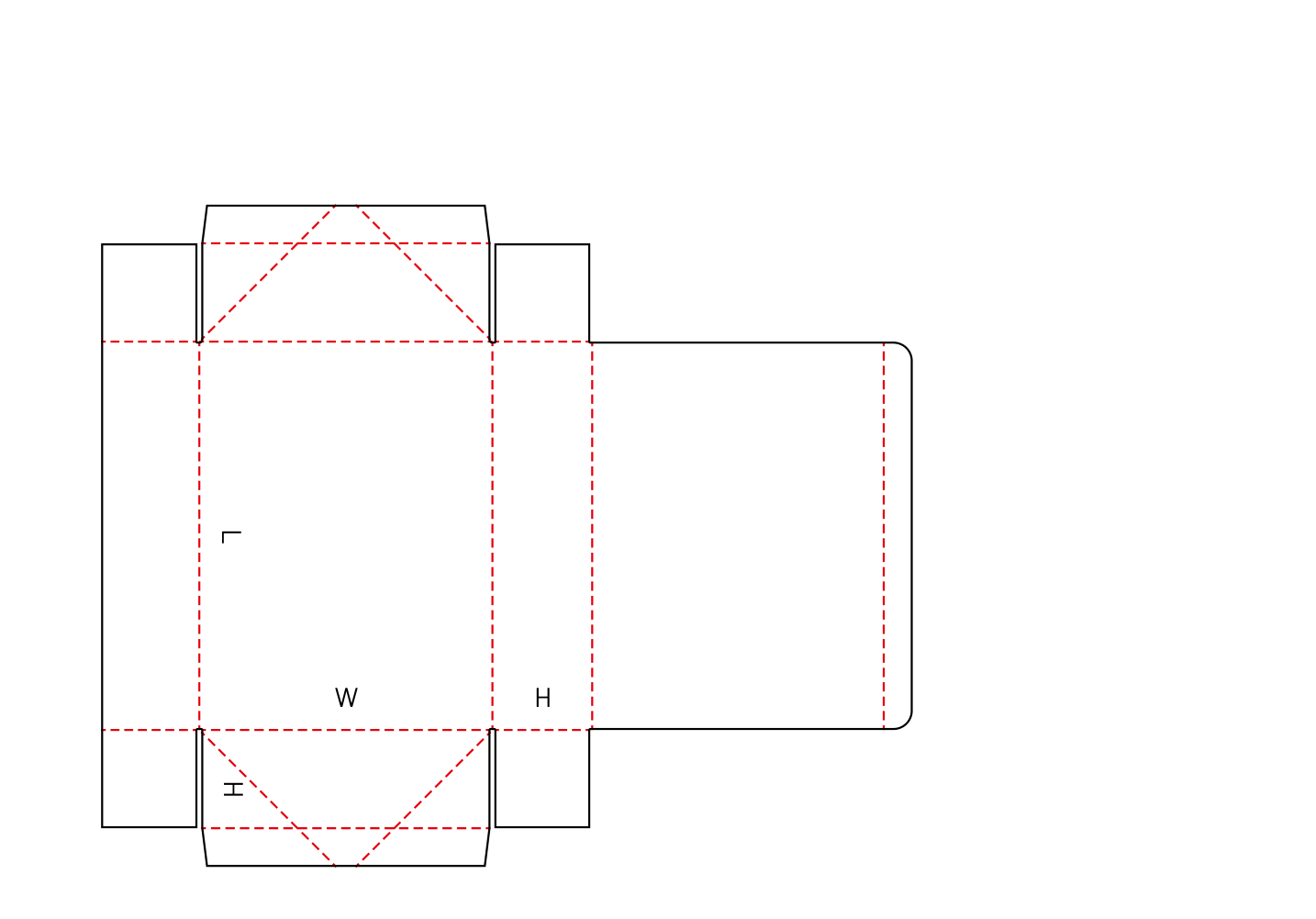

Close variants and lookalike dielines

The closest library neighbors include 0747, 0761, 0759. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, routing, and courier sealing choices

Board grade and flute size

This mechanism relies on precise folding clearances. Fine flutes like E or B flute, or solid folding carton board, work beautifully. Heavy single-wall or double-wall boards will cause the pop-up base to jam and the front tuck flap to bow outward.

Outer sealing for parcel transit

While the front tuck flap holds the lid closed for retail or palletized transport, it can pop open if tumbled in a courier network. If this box will ship individually through the mail, you should plan for an external seal.

Production routing and volume

Because this box requires a multi-point folder-gluer, it is built for scale. Buyers should weigh their expected order volume against the pack-bench labor they expect to save.

Print surface and interior graphics

The hinged lid provides a large, uninterrupted canvas for unboxing graphics. Deciding whether to print inside, outside, or both will change the board and finishing requirements.

Modifying the closure and flaps for e-commerce

Adding peel-and-seal strips

To make this box truly ready for e-commerce transit, converters can apply a peel-and-seal adhesive strip and a tear-tape opening to the lid. This secures the box for rough courier handling without slowing down the pack bench with manual taping.

Modifying the tuck flap friction

The front tuck flap can be adjusted for a tighter or looser fit by changing the tuck end clearance, ensuring the lid stays closed without frustrating the end customer.

Dust flap contouring

The side dust flaps can be angled or shortened to prevent them from catching on the front wall during rapid lid closure, smoothing out the final packing step.

Board and packing details

Factory tooling and gluer requirements

Because of the complex dust flaps and diagonal corner folds, this box requires a flatbed die-cutter and a specialized multi-point folder-gluer. Not all corrugated plants have 4-point gluing capabilities, which can affect supplier selection.

Tuck flap and lock variations

Alternate tuck locks (0748a)

The front tuck flap can be modified with friction locks, often called cherry locks, or different dust flap angles to adjust how tightly the lid secures or to accommodate specific factory stripping limits.

Additional notes

Pack-bench labor versus manufacturing complexity

The entire logic of this box is trading a more complex manufacturing route for a lower packing burden. It makes the most sense when your labor savings at the pack bench outweigh the factory's gluing requirements.

Related mailers and trays

0427: Standard Roll-End Tuck-Top Mailer

Compare this when your order volumes are lower. It looks identical when closed but requires manual folding of the unglued base, avoiding the specialized gluing process.

0747: Drop-Front Hinged Lid Box

Compare this when you need the front wall to fold down for easier retail display or picking access, though it sacrifices some vertical stacking strength.

FAQs

Assembly and Packing

Does this box require tape to assemble the base?

No. The base is glued at the factory. When you pull the flattened walls outward, the floor automatically drops into place and locks at 90 degrees.

Shipping and Route

Can I ship this through the mail without tape?

Natively, no. The friction tuck flap is great for presentation but can pop open during rough courier sorting. For parcel shipping, you will need an external seal, or you can request a peel-and-seal adhesive strip during manufacturing.

Board and Material

Can I make this out of heavy double-wall board?

It is highly discouraged. The glued corners and the lid's hinge clearances are very sensitive to material thickness. Heavy boards will cause the base to bind during assembly and the lid to bow.

Quantity and Production

Why does this box require high-volume production runs?

The box must be run through a multi-point folder-gluer at the factory. The preparation time for this machine is substantial, meaning low-volume runs are rarely practical compared to unglued alternatives.

Comparison

How is this different from a standard e-commerce mailer?

A standard mailer arrives completely flat and unglued, requiring the packer to fold the floor and roll the side walls over to lock them. This box arrives pre-glued and pops open instantly, saving significant labor time.

Samples

Will a digital prototype accurately test the assembly?

A hand-cut, hand-glued prototype is useful for checking product fit and lid friction, but it will not perfectly replicate the pop-up tension of a factory-glued box. A short production trial is often best for testing pack-bench speed.

Assembly and Packing

How does the base stay rigid once opened?

The four glued corners act as kinematic hinges. When the side walls are pulled apart, these hinges force the adjacent walls into a squared, 90-degree alignment that holds its shape while you load the product.

Adjustments

Can the front tuck flap be modified if it feels too tight?

Yes. The clearance for the tuck flap can be adjusted based on the specific board thickness you choose, ensuring the lid closes securely without buckling the front wall.
