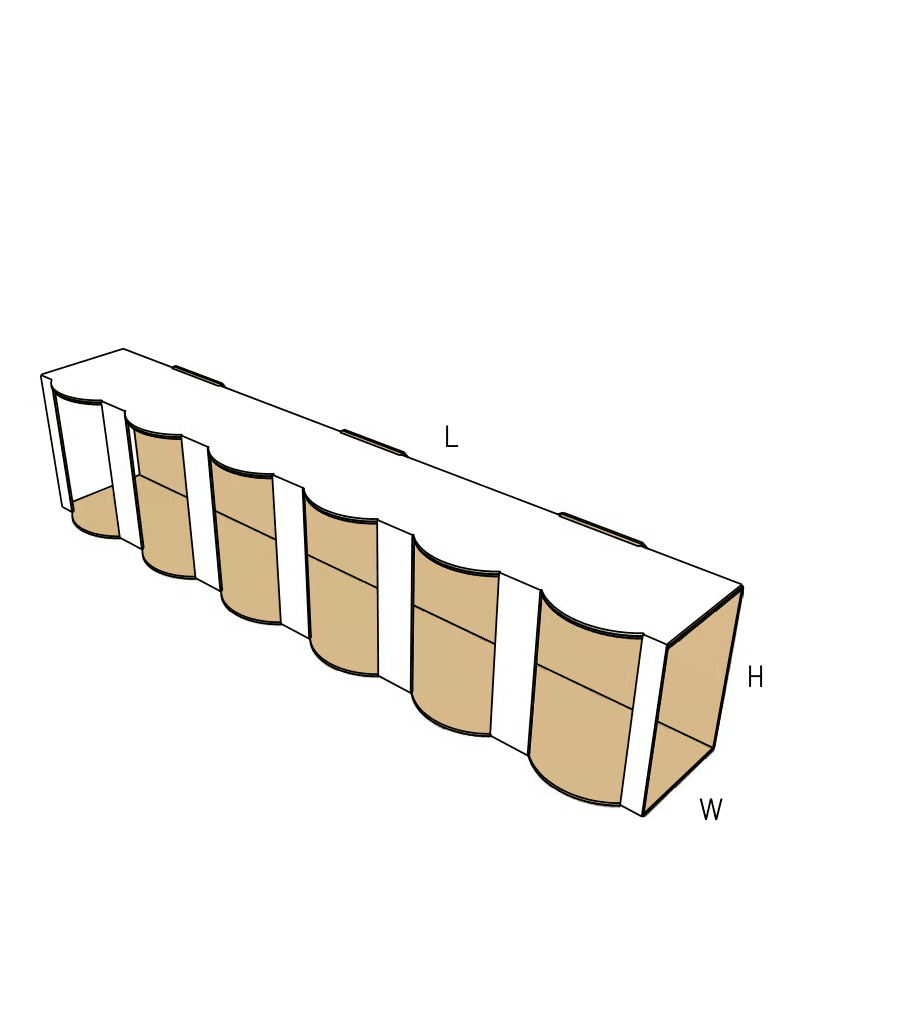

FEFCO 0752

6-Cell Bottle Carrier with Display Windows

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Integrated dividers and crash-lock base deploy rapidly by hand
Side windows display product labels while maintaining glass separation
Requires an outer master carton for parcel shipping or heavy pallet stacking

About this product

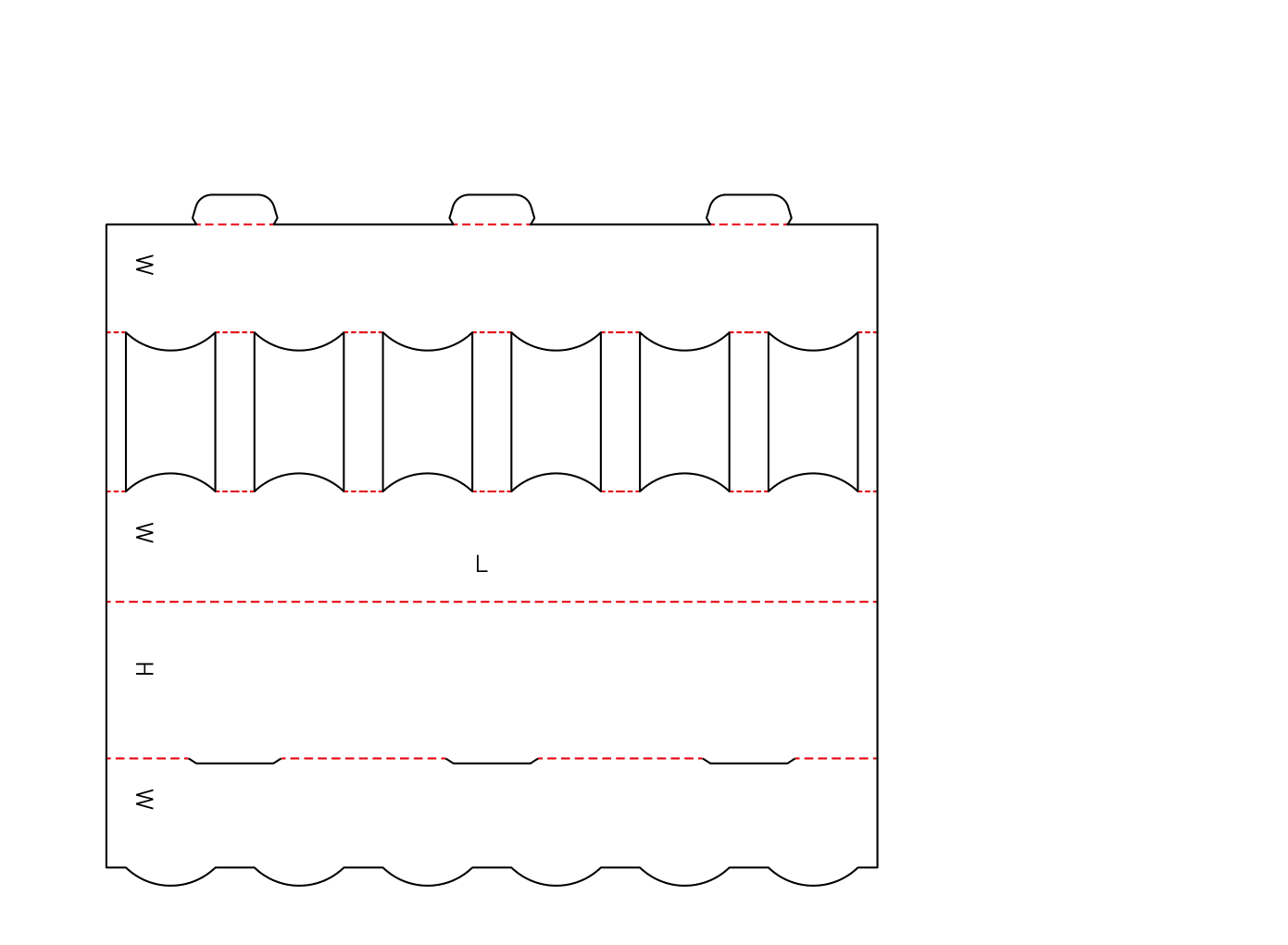

This single-piece carrier combines an auto-erecting base, an integrated central spine, and six individual compartments. Large die-cut windows on the side panels keep bottle or jar labels visible on the retail shelf.

Because the entire carrier, including the internal dividers, folds from one pre-glued blank, it eliminates the manual work of assembling and inserting separate partitions. The tradeoff is a complex manufacturing setup that requires precise board selection to ensure the internal tabs lock smoothly.

Common uses

Retail craft beer and cider sales
Promotional cosmetic or sauce jar sample kits
High-volume beverage packing lines
Point-of-sale counter displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Single bottle or jar diameter

Single bottle or jar height

Handle space

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will these carriers be stored in a refrigerator or cooler?

What type of product is going inside?

How much of the product label needs to be visible through the side windows?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail display and high-volume kitting

Retail beverage carry-out

Used for craft beer, cider, or specialty sodas. The central spine supports the weight, while the integrated dividers prevent glass-on-glass impact during the walk to the car.

Promotional kits and sample sets

Fits sauces, cosmetics, or specialty jars. The side windows frame the individual labels for a premium presentation, making it a strong choice for point-of-sale displays.

High-volume pack benches

Makes sense for operations where the labor of assembling separate 6-cell dividers slows down fulfillment. The packer simply squares the base and folds the top panels inward.

Point-of-sale counter displays

Acts as a ready-to-display unit for retail counters. The open top and side windows allow customers to view and select individual items directly from the carrier.

Beverage and specialty food applications

Craft breweries and beverage brands

These buyers need a carry-out solution that handles condensation. Wet-strength liners are usually required to keep the spine from tearing when chilled bottles sweat.

Specialty food producers

Packing heavy glass jars requires a base that will not drop the payload. The pre-glued crash-lock floor handles vertical weight securely once the box is squared.

Retail marketing and promotional teams

Marketing teams use the side windows to ensure primary product labels remain visible, turning the carrier itself into a branded display piece.

When to evaluate a different carrier style

E-commerce parcel shipping

If the primary goal is shipping directly through parcel networks, evaluate a standard roll-end tray with a separate slotted partition. This carrier is open-topped and cannot ship through the mail alone.

Maximum print area

If you want a continuous billboard rather than exposing the bottles, evaluate closed-wall carriers that omit the display windows.

Close variants and lookalike dielines

The closest library neighbors include EVC41104, EVC91003, 0435a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, moisture, and packing choices

Board thickness and flute

This carrier folds multiple layers of board into the center to create the spine and dividers. Heavy flutes will bind and refuse to lock. Stick to fine or medium flutes.

Moisture resistance

If the bottles will move from a cooler to room temperature, specify wet-strength kraft or coated boards to prevent the carrier from failing under condensation.

Packing line speed versus flat delivery

The pre-glued design speeds up manual packing considerably, but the complex folding means the flat blanks take up more space on a pallet than simple slotted boxes.

Display window sizing

Larger windows show more of the product label but remove corrugated board from the outer walls. The window size must balance visibility with the strength needed to hold the internal divider tabs.

Adjusting the display and fit

Cell count and sizing

The template scales based on the exact product diameter and depth. The number of cells can be adjusted to a 4-pack or 8-pack, though this changes the overall footprint and blank size.

Window profile

The display cutouts can be reshaped to match specific label placements, provided enough corrugated board remains to anchor the internal divider tabs securely.

Handle and spine height

The central spine can be extended to accommodate taller bottles or to provide a larger grip area, depending on the required clearance above the product.

Board and packing details

Pack-bench assembly sequence

The carrier arrives flat. Pushing the corners squares the box and drops the floor into place. The packer then folds the top panels inward to form the cells and slots the locking tabs into the outer walls.

Pallet stacking limits

Because the spine protrudes above the side walls and the windows remove vertical support, these carriers cannot bear heavy top loads on a pallet without a sturdy master shipper.

Additional notes

Condensation and cold chains

Standard corrugated board weakens quickly when chilled glass sweats. Mentioning refrigeration early ensures the right wet-strength materials are specified.

Stripping waste

The large display windows and handle cutouts create substantial scrap during manufacturing, which factors into the final material usage.

FAQs

Shipping and transit

Can this carrier ship through parcel networks?

Not on its own. The open top, exposed glass, and protruding spine mean it requires a secondary master carton for parcel transit.

Assembly and packing

Does it require tape or glue at the pack bench?

No. The factory pre-glues the side seam and the crash-lock base. Your packing team simply pops it open and folds the dividers into place.

Weight and capacity

Will the spine hold heavy glass bottles?

Yes, the vertical tension transfers from the spine down through the central dividers to the interlocking base. Physical lift testing with your exact filled bottles is always recommended to confirm the board grade.

Material limits

Can we use double-wall corrugated board for extra protection?

Usually no. Because the spine and dividers fold inward and overlap, thick board will bind and prevent the locking tabs from seating correctly.

Moisture

How does condensation affect the carrier?

Standard corrugated board weakens quickly when chilled glass sweats. If the product will be refrigerated, wet-strength materials are necessary to maintain the carrier's strength.

Display

Can the side windows be reshaped?

Yes, the window cutouts can be adjusted to frame specific parts of your label, as long as enough board remains to secure the internal divider tabs.

Storage

How is this carrier delivered and stored?

It is delivered knocked-down flat. Because of the pre-glued base and complex folds, the flat bundles are thicker than standard boxes, requiring slightly more storage space.

Production and quoting

What product details help prepare an inquiry for this carrier?

Provide the exact diameter and height of your bottles, the total filled weight, and whether the product will be refrigerated.
