FEFCO 0865

Pallet Display Sleeve and Retail Wrap

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Slides vertically over pre-loaded pallets for fast retail staging
  • Customizable display windows for shopper access
  • Relies on solid corner posts for vertical stacking strength

About this product

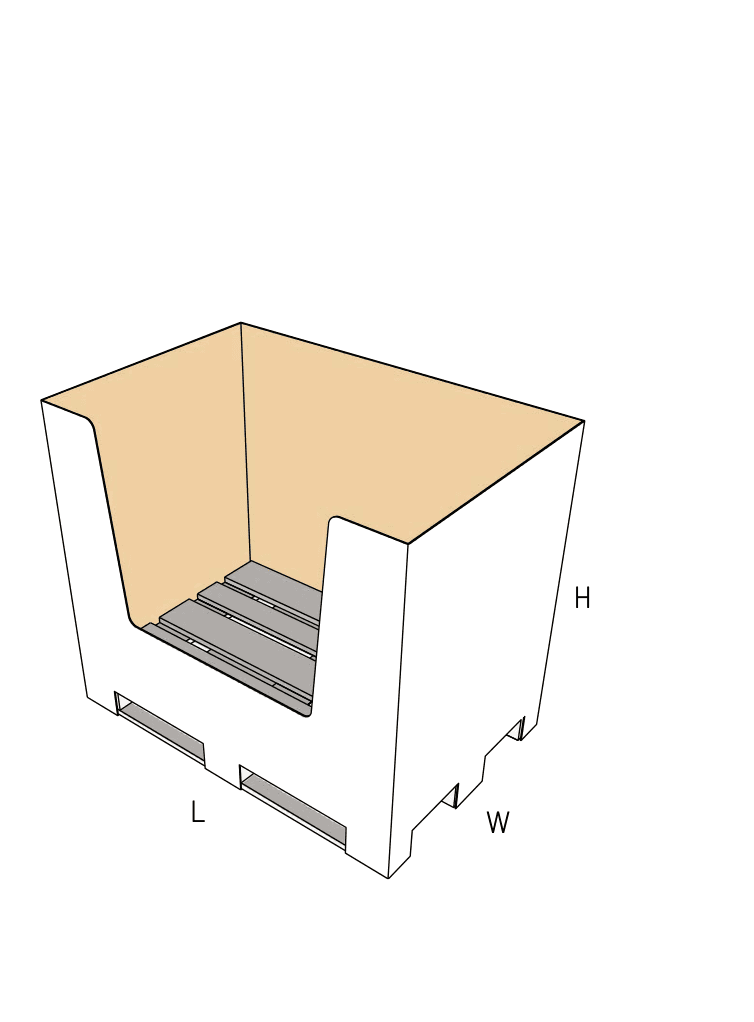

A heavy-duty corrugated tube designed to slide directly over a loaded shipping pallet, instantly converting bulk transit goods into a branded retail floor display. It features an open top, an open bottom, and large die-cut windows that give shoppers immediate access to the merchandise.

Because the side panels are cut away for visibility, the remaining solid corner posts carry the vertical load. The main decision when configuring this wrap is balancing how much product you want to show against how much weight the corners need to support if the pallets are double-stacked in transit.

Common uses

  • Beverage rollouts
  • Bulk snack displays
  • Hardware end-caps
  • Seasonal merchandise rollouts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Merchandising and Bulk Floor Presentations

Club store end-caps

For warehouse clubs, the sleeve provides continuous branding while keeping the original pallet intact. Shoppers can pull heavy items directly from the stack.

Beverage and bulk promotions

Stacked cases of liquids or heavy hardware rely on the pallet for bottom support. The sleeve acts as a containment fence and a billboard, hiding the raw pallet layers.

Seasonal merchandise rollouts

Fast-moving holiday or seasonal goods arrive ready to sell. Store staff simply slide the wrap over the pallet instead of unpacking individual units onto shelves.

Heavy hardware and home improvement

Bulky items that cannot hang on pegboards sit securely on the wood pallet while the corrugated sleeve frames the promotion and keeps loose items contained.

Store Environments and Product Categories

FMCG and Grocery

Brands moving high volumes of seasonal or promotional goods use this wrap to avoid unpacking individual units at the store level. The display arrives ready to sell.

Warehouse Clubs

Environments that require pallet-level merchandising rely on these sleeves to turn raw transit pallets into branded destinations.

Home and Garden Centers

Retailers selling heavy bags of soil, bulk fasteners, or large tools need the structural base of a real pallet combined with retail-facing graphics.

When to Consider a Different Pallet Wrap

Need for total enclosure

If the goods require top and bottom dust protection during transit, a standard slotted box provides full coverage, though it sacrifices retail visibility.

Transit without display needs

If the goal is purely lateral containment for shipping without retail presentation, a solid corrugated tube offers maximum wall strength without the extra production work for die-cut windows.

Close variants and lookalike dielines

The closest library neighbors include 0841, 0842, EVC11221. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Window Size, Board Grade, and Stacking Strength

Window width versus corner posts

Enlarging the display cutouts gives shoppers better access but narrows the solid corner posts. If your pallets will be double-stacked in a truck, those corners must remain wide enough to bear the weight of the pallet above.

Board thickness

Pallet-scale wraps span large distances. Fine flutes will buckle under their own weight. Heavy double-wall board is the standard choice to keep the side panels straight and support vertical loads.

Assembly clearance

Because the squared sleeve must be lifted and slid down over the payload, the packing facility needs enough overhead clearance and usually two operators to handle the massive size.

Transit stacking requirements

Knowing whether the pallet will ship single-stacked or double-stacked dictates how much structural board must remain intact around the display windows.

Display Cutout and Profile Adjustments

Bottom rim height

The distance from the floor to the bottom of the cutout can be raised to create a deeper containment bin for loose items, or lowered to allow easier lifting of heavy goods.

Cutout angles

The shape of the access window can be angled or beveled to match the product profile, guiding the shopper's eye toward the center of the stack.

Joint style

While a factory-glued side seam is standard, extremely heavy double-wall wraps may use a wire-stitched joint to keep the tube from bursting under severe lateral pressure.

Board and packing details

Jumbo flatbed production

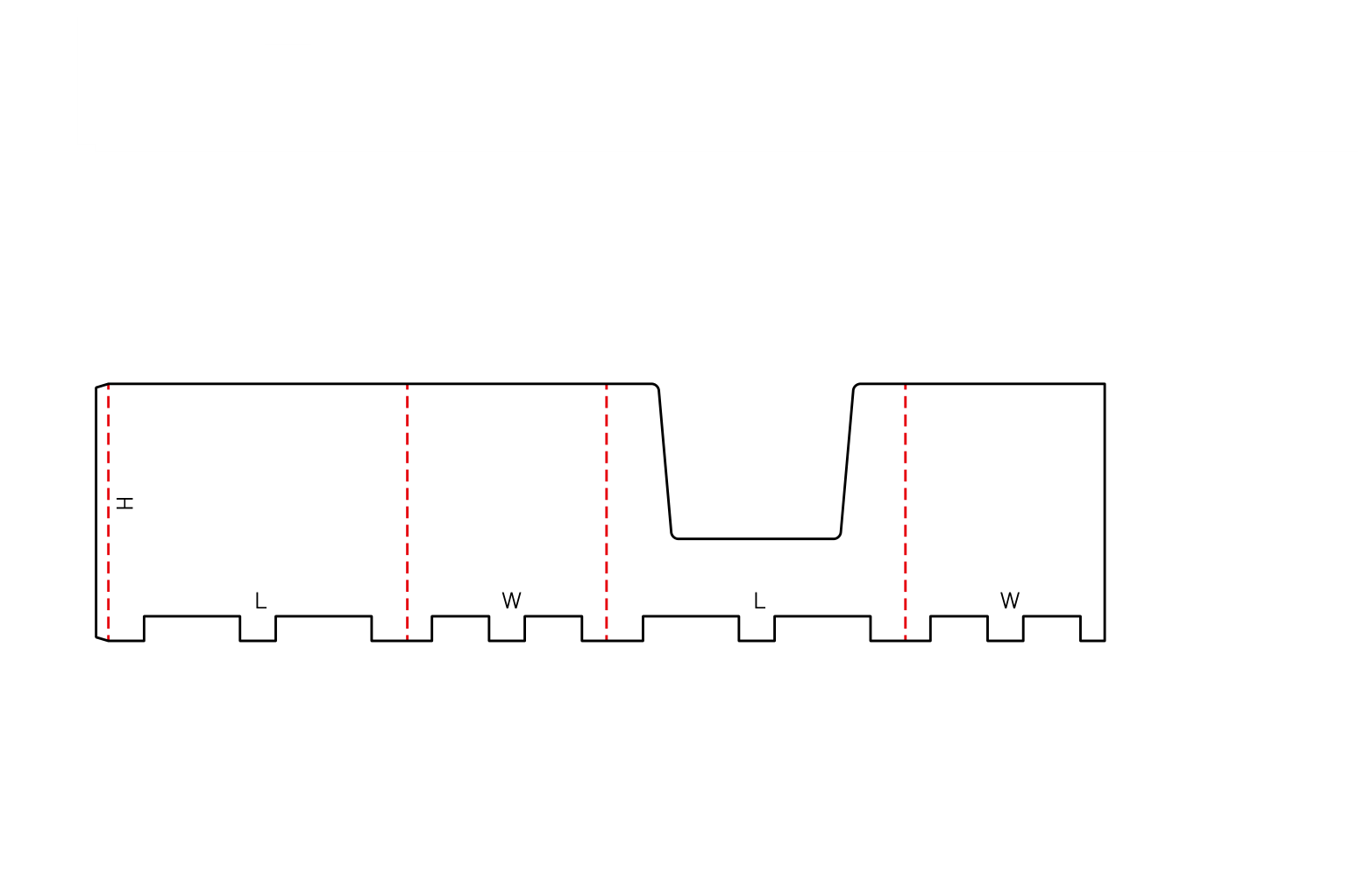

A pallet-sized wrap requires a massive corrugated blank, often exceeding 2800mm in width. This dictates specific jumbo flatbed die-cutting and folding equipment.

Internal stripping waste

The large display windows mean a large portion of the corrugated board is cut away and fiber-based during manufacturing. This material footprint is an inherent part of the display format.

Structural Options

Glued versus stitched side seams

While a factory-glued side seam is standard, extremely heavy double-wall or triple-wall wraps may use a wire-stitched joint to keep the tube from bursting under severe lateral pressure.

Additional notes

Print panel and scuff risk

The large, unbroken side panels offer excellent billboard space for retail graphics, but they are exposed to forklift and pallet-jack handling. Consider varnish or protective finishes if the wrap will face rough transit before reaching the store floor.

Related Pallet and Display Packaging

0841: Related template 0841

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0842: Related template 0842

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Route and Shipping

Can we double-stack pallets using this sleeve?

That depends entirely on the board grade and the width of the solid corner posts. If the display windows are cut too wide, the corners will buckle under a second pallet. Physical compression testing is necessary for stacked transit.

Packing Labor

How is the sleeve assembled at the packing facility?

It arrives flat. Operators push the opposite edges to square it into a rectangle, then lift it and slide it vertically over the pre-loaded pallet. Due to the size, this usually requires two people.

Product Fit

Does this wrap have a bottom floor?

No. It is a hollow tube. The products must rest directly on the wooden or plastic shipping pallet.

Board and Finish

Can we use a thin board to reduce costs?

Thin flutes perform poorly at this scale. The large side panels will bow, and the sleeve may buckle under its own weight. Heavy single-wall or double-wall corrugated is necessary for pallet-sized spans.

Route and Shipping

Will this protect the goods during parcel shipping?

No. This is an open-ended wrap designed exclusively for palletized freight and retail floor display. It cannot be shipped as a standalone parcel.

First Conversation

What information is needed to configure this wrap?

Share the exact dimensions of your loaded pallet, whether you plan to double-stack in transit, and how much of the product needs to be visible through the cutouts.

Product Fit

Can this hold loose, unboxed items?

Only if the bottom rim is cut high enough to act as a containment bin. Otherwise, loose items will spill out of the display windows.

Print and Finish

How does the print surface hold up during transit?

The large, unbroken side panels offer excellent billboard space for retail graphics, but they are exposed to forklift and pallet-jack handling. Consider varnish or protective finishes if the wrap will face rough transit before reaching the store floor.
