FEFCO 0905

Horizontal Wrap-Around Pad

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Wraps the top, bottom, and long sides of a product
  • Relies on the master carton for closure and retention
  • Uses straight parallel creases without glue joints

About this product

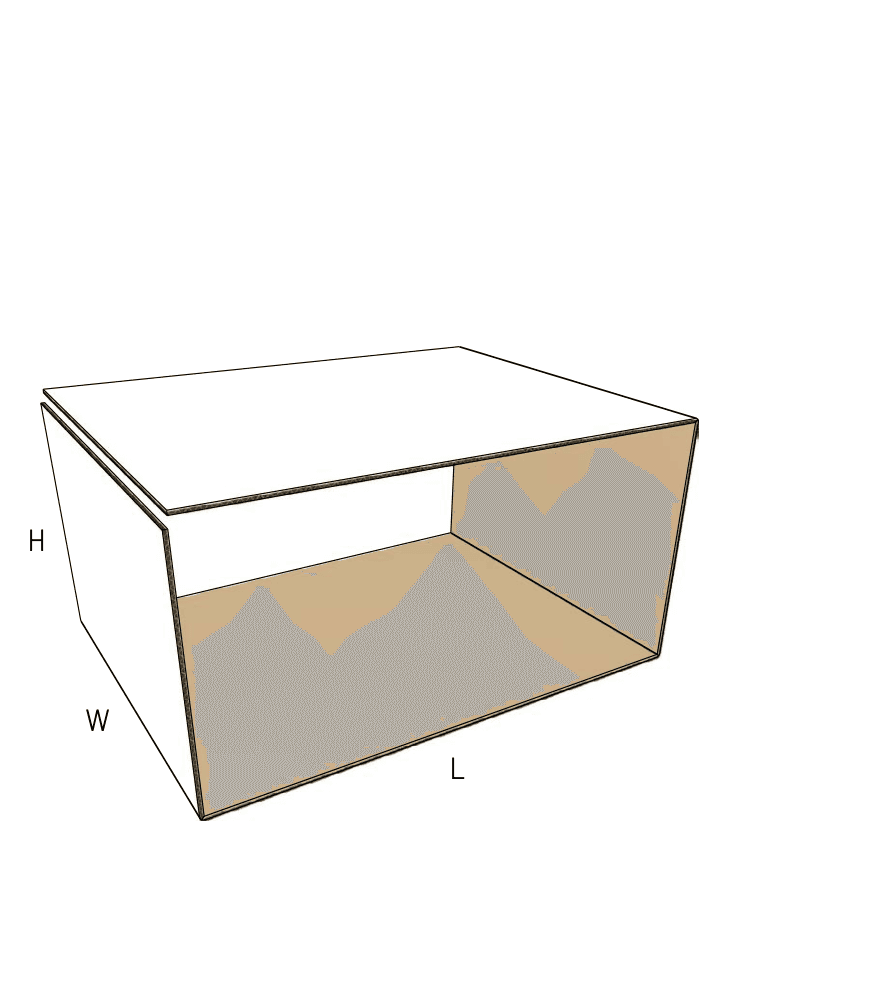

A horizontal wrap-around pad is a five-panel corrugated sheet that folds into an open-ended rectangular tube. It wraps around the long axis of a product to provide a dedicated layer of puncture and impact resistance before the item is placed into a master shipping box.

Because it uses straight parallel creases and no glue joints, it is a highly efficient insert for protecting heavy or fragile goods. The main packing consideration is the manual assembly: operators must wrap the pad around the product and hold it closed while sliding the bundle into the outer carton.

Common uses

  • Heavy industrial transit
  • Internal product separation
  • Retail sliding sleeves
  • Multi-axis puncture defense

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Common packing jobs for horizontal wraps

Heavy component cushioning

Dense metal parts or extrusions can easily punch through the side of a standard shipping box. Wrapping the component in a dedicated corrugated liner absorbs that localized force before it reaches the outer wall.

Internal product separation

For kits or mixed shipments, the wrap isolates a primary heavy item from lighter accessories. The side panels act as internal pillars, preventing the heavy item from shifting laterally.

Clean presentation sleeves

When cut from a thin printed E-flute board, the pad can act as a sliding unboxing sleeve over a primary product tray, provided it is secured with a label or shrink wrap.

Multi-axis puncture defense

When a product has sharp edges on its top and bottom faces, a five-panel wrap provides simultaneous coverage across all long surfaces, reducing the risk of the product piercing the outer shipper.

Fulfillment and industrial packing environments

Industrial B2B transit

Manufacturers shipping machined goods or heavy assemblies use these pads to add heavy-duty internal separation without upgrading the entire master carton to double-wall board.

Manual kitting lines

Because the pad requires a two-handed wrap-and-hold motion, it suits manual fulfillment environments where operators are already building custom kits or packing mixed orders.

Master carton consolidation

Fulfillment centers handling multiple product variants can use a single standardized outer box, relying on different internal wraps to secure varying product shapes and weights.

When to consider a different insert style

When vertical stacking strength is the main priority

If the master carton is buckling under heavy pallet loads, a vertical perimeter insert (FEFCO 0904) is often a better choice. It lines the inner walls of the box to act as a structural column, rather than wrapping the product itself.

When the top face does not need protection

If the product only needs a reinforced floor and side walls, a U-shaped pad (FEFCO 0902) drops into the box faster and uses less material than a full five-panel wrap.

Close variants and lookalike dielines

The closest library neighbors include 0904, 0906, 0909. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, gap sizing, and production paths

Board thickness and folding fatigue

Heavy double-wall board provides excellent shock absorption but creates significant spring-back tension. Packers will have to exert more force to hold the wrap closed during insertion.

The closing gap versus an overlap

The final panel is typically sized slightly short to leave a deliberate gap, preventing the edges from binding when folded. If complete dust protection is required, the panel can be extended to create an overlap, though this adds a slight bulge to the top face.

Simple rectangular cuts versus shaped modifications

A standard horizontal wrap uses only straight cuts and parallel creases, making it easy to trial. Adding ventilation holes or locking tabs requires a shaped cutting process, which makes it better suited for established, repeat packing programs.

Clearance inside the master carton

The wrap adds two layers of board thickness to the product's height and width. The master carton must be sized to accommodate this exact footprint, or the corner creases of the pad will bind and buckle during insertion.

Panel adjustments and structural modifications

Gap sizing on the closing face

The terminal panel can be shortened by a few millimeters to ensure the thick corrugated edges do not crash into each other when folded into a 90-degree corner.

Extended overlap panels

For applications requiring complete coverage, the final panel can be extended past the center line to overlap the opposing side, creating a fully enclosed dust barrier.

Flute direction rotation

While corrugations typically run parallel to the open ends to provide vertical pillar strength, the direction can be rotated if tighter wrapping around the product is more important than stacking support.

Board and packing details

Flute direction alignment

The corrugations must run parallel to the open ends of the tube. This allows the side panels to act as rigid vertical pillars when the master box is stacked.

Modifications for closure and handling

Locking tabs and slots

Tabs can be added to the closing panels to create a self-securing tube, though this changes the production method from simple slitting to shaped cutting.

Additional notes

Master carton coordination

When specifying a horizontal wrap, the internal dimensions of the outer shipping box must be recalculated to account for the added board thickness of the pad.

Related interior fitments

0904: Open Liner (LWH)

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0906: Open Liner (HWL)

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Shipping and route

Can this pad be shipped on its own?

The horizontal wrap has no native locks or glue joints. It relies entirely on the friction and confinement of an outer master carton to hold its shape during transit.

Packing and assembly

Can this be erected on an automated packing line?

Standard horizontal wraps are designed for manual assembly. Because the board naturally wants to spring open, an operator must physically hold the wrapped bundle closed while sliding it into the outer box.

Fit and sizing

Why is there a gap on the top face of the wrap?

The final closing panel is intentionally sized a few millimeters short. This prevents the two edges from crashing into each other when the thick corrugated board is folded into a 90-degree corner.

Material choices

Should I use a heavy double-wall board for maximum protection?

Double-wall board offers excellent puncture resistance, but it also increases the physical effort required to fold the pad. If the board is too stiff, packers may struggle to hold the wrap closed during insertion.

Fit and sizing

How does this affect the size of my outer shipping box?

The wrap adds two layers of board thickness to the product's overall height and width. The internal dimensions of the master carton must be recalculated to accommodate this larger footprint.

Modifications

Can we add locking tabs so it stays closed on its own?

Tabs and slots can be added to the design. However, this changes the production method from a simple slitting process to shaped cutting, which is typically reserved for repeat packing programs.

Protection

What keeps the product from sliding out the open ends?

The pad relies on the internal walls of the master carton to block the open ends. The product is held in place by the friction of the wrap and the physical boundaries of the outer box.

Comparison

When should I choose this over a U-shaped pad?

A five-panel horizontal wrap is the better choice when the top face of your product requires dedicated puncture protection or when you need to separate a heavy item from lighter accessories placed above it.
