Packing jobs for the 10-cell grid
Isolating fragile glass and machined parts

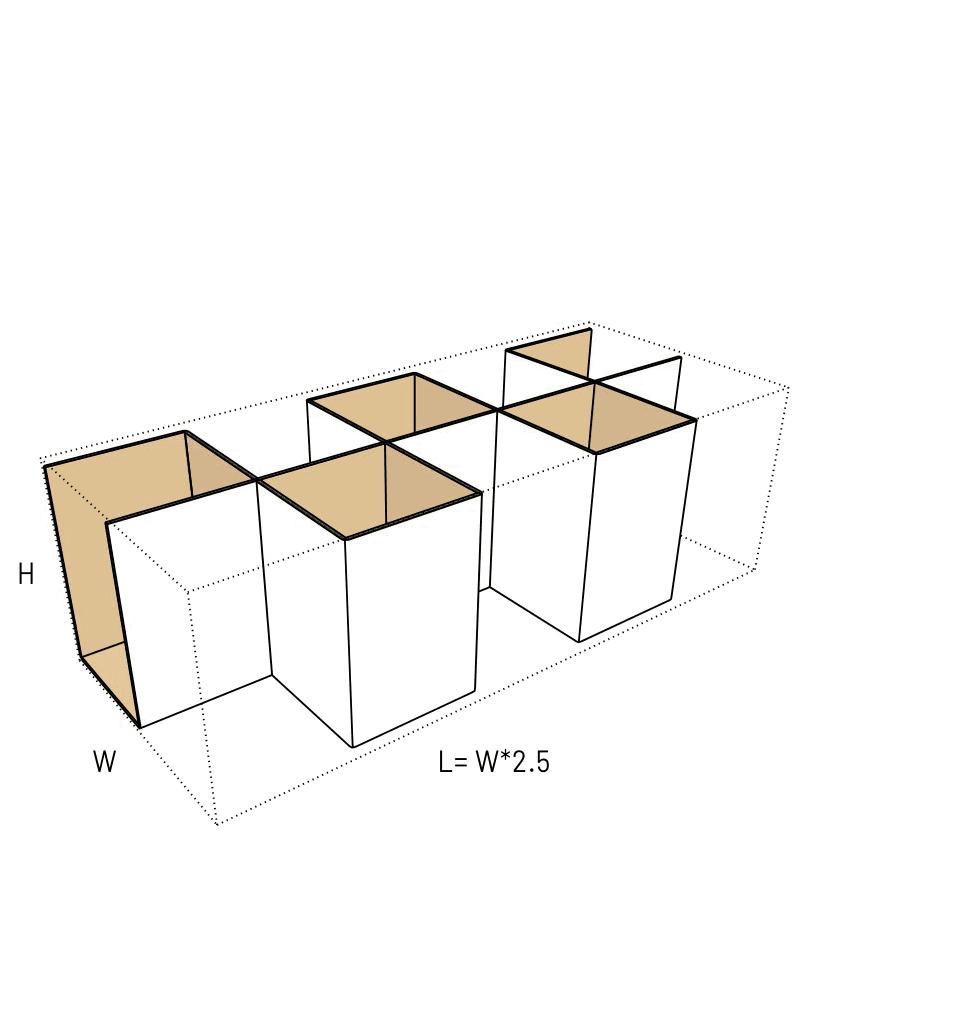

This grid separates individual items so they do not touch during transit. The intersecting walls create a rigid buffer between each compartment.
Reducing packaging inventory
Operations that want to avoid stocking and picking separate longitudinal and transverse divider strips use this insert to keep their bill of materials simple.
Adding vertical stacking strength
When the corrugated flutes run vertically, the intersecting walls act as columns that help the master carton resist top-down compression.
Preventing heavy items from shifting
The locked grid matrix resists diagonal racking, keeping dense or heavy components securely in place inside the outer box.
Product and channel contexts
Direct-to-consumer beverage shipping
Brands shipping multiple bottles or jars in a single box rely on rigid cellular isolation to prevent scuffing and breakage.
Machined parts and hardware distribution
Heavy or easily scratched components stay separated, and the vertical walls of the grid add stacking strength to the outer box.
Multi-product subscription kitting
Fulfillment centers packing complex boxes often prefer managing one insert SKU per box rather than sorting through bundles of loose divider strips.
When to evaluate multi-piece grids
Multi-piece grids for faster assembly
If manual assembly time slows down the packing bench, or if the massive single blank limits production route options, a multi-piece slotted grid is often faster to assemble and easier to source.
Open serpentine dividers for simple separation
If you need quick separation but do not need the cells to lock rigidly into place, an open accordion fold skips the slot-alignment step entirely.
Close variants and lookalike dielines
The closest library neighbors include EVF15022, EVF15021, 0912. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.
Board, fit, and packing line decisions
Board thickness and folding friction
Thicker board increases vertical strength but makes the accordion folds harder to bend and the slots tighter to engage. Single-wall board is usually the practical limit for manual folding.
Clearance inside the outer box
The grid must be sized to drop cleanly into the outer box. If the fit is too tight, the grid will bow or bind against the walls during insertion.
Die-cutting versus partition slotting

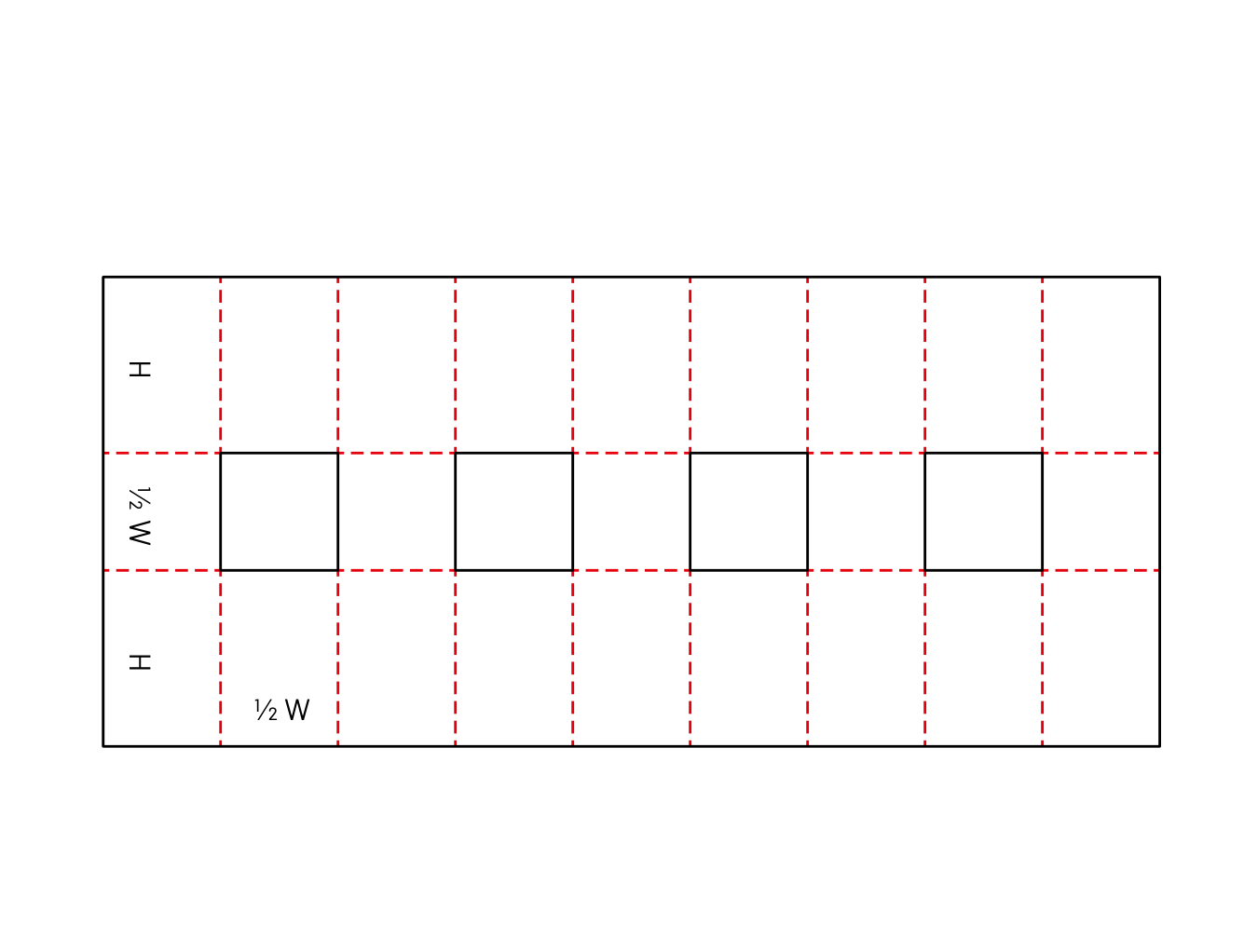

Because the entire 10-cell grid is cut from one long strip, the unfolded blank is massive. This requires large flatbed die-cutting equipment, which shifts the production route compared to simple straight-cut partitions.
Manual packing line labor
Operators must fold the board back on itself and align multiple slots simultaneously. This requires two hands, a dedicated packing bench, and careful handling to avoid crushing the board at the intersections.
Grid sizing and flute adjustments
Individual compartment sizing
The width and length of the individual compartments can be adjusted to fit specific product profiles, which automatically recalculates the spacing of the folds and slots.
Expanding or reducing the grid array
While 10 cells is standard for this specific layout, the parametric pattern can be expanded or reduced. Larger arrays quickly hit manufacturing size limits due to the length of the unfolded blank.
Fine flute versus standard single-wall
Switching to an E or F flute reduces the vertical stacking strength but makes the 180-degree accordion folds much easier for operators to manage on the packing bench.
Board and packing details
Assembly ergonomics
Operators must fold the board back on itself and align multiple slots simultaneously. This requires two hands, a dedicated packing bench, and careful handling to avoid crushing the board at the intersections.
Flat delivery and storage
The inserts ship flat on pallets. Because the unfolded blank is extremely long, it may require oversized pallets depending on the final cell dimensions.
