FEFCO 0123

Corrugated 4-Sided Widthwise Wrap

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

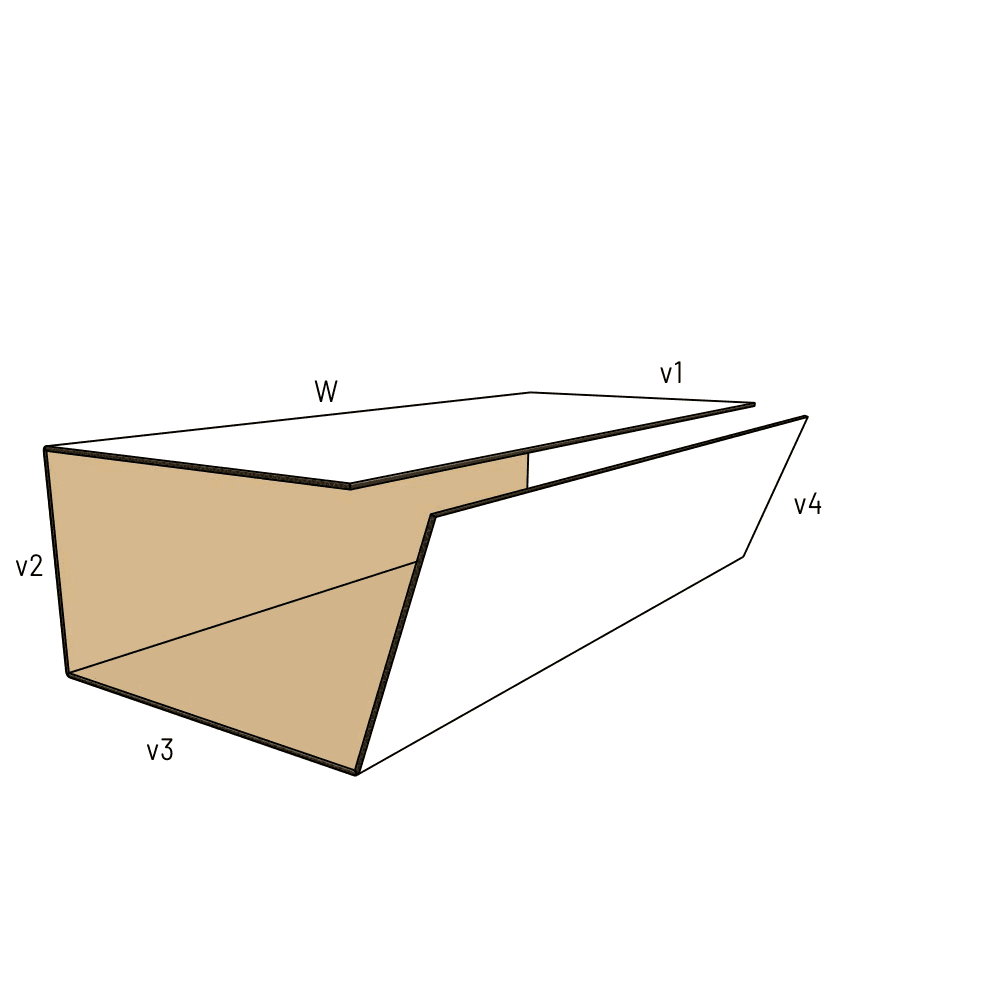

Folds into a four-sided open sleeve or internal wrap
Relies on adhesive, strapping, or a master carton to stay closed
Widthwise creases change flute direction compared to standard lengthwise wraps

About this product

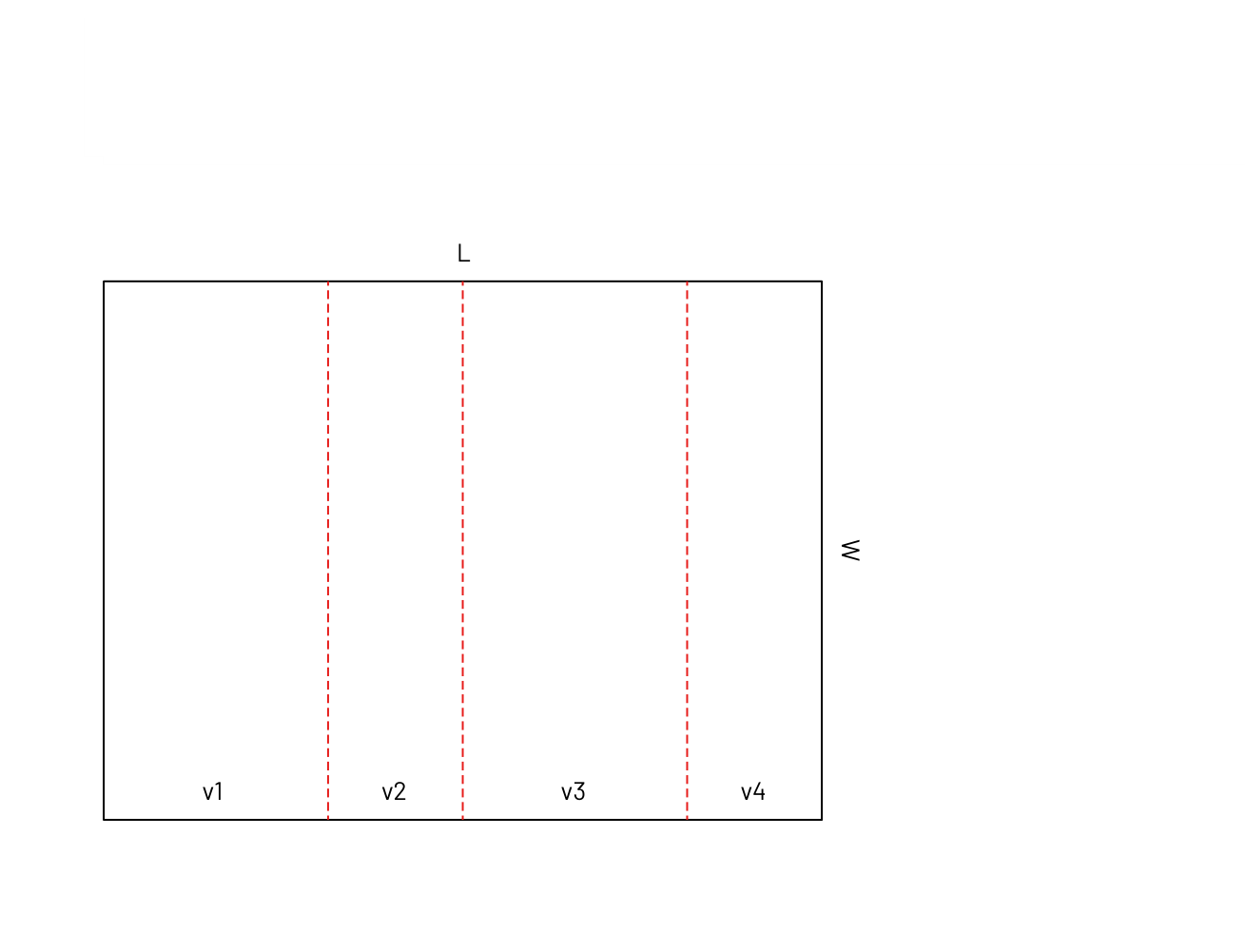

The 0123 is a flat corrugated sheet with three parallel creases running across its width. It folds manually into an open-ended, four-sided tube, offering a simple way to wrap products or create a continuous protective liner inside a larger box.

Because it has no interlocking tabs or glue seams, this wrap relies on external tension like strapping, adhesive, or the walls of a master carton to hold its shape. It is the exact widthwise counterpart to the 0113 wrap, providing a different flute orientation for specific bending or load-bearing needs.

Common uses

Master carton void fill and lining
In-plant part separation
Palletized bulk protection before final packing
Continuous U-shaped liner

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Product length

Product width

Product height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this wrap be held closed?

Does the wrap need to cover an irregular shape?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Internal protection and separation roles

Master carton void fill and lining

Wraps around a product to create a four-sided protective buffer against the inner walls of a primary shipping box. The corrugated layer absorbs side impacts and prevents the product from shifting.

In-plant part separation

Provides a quick manual wrap to keep industrial components or extruded parts from scratching each other during internal transit or kitting.

Palletized bulk protection

Ships completely flat for maximum pallet density, then folds quickly on the packing line to shield vulnerable product faces before the load is stretch-wrapped or banded.

Continuous internal bracing

Folds into a rectangular tube that slides into a larger container, adding a secondary layer of corrugated board to reinforce the side walls against crushing.

Who uses widthwise corrugated wraps

Industrial manufacturing

Teams packing heavy or oddly shaped metal parts use these wraps to add targeted abrasion resistance without buying fully enclosed custom boxes.

Fulfillment and kitting

Operations that pack multiple items into a single master shipper use these simple sleeves to isolate individual components and prevent them from striking each other.

Furniture and extrusion shipping

Shippers handling long, narrow products use widthwise wraps to protect the main faces of the item before sliding it into a master outer sleeve.

When to consider a different wrap or channel

When the flute direction must run the other way

Consider the 0113. It is the exact same four-panel wrap, but the creases run lengthwise. The choice between them usually comes down to which way the board needs to bend without cracking.

When the product only requires three sides covered

Consider the 0122 U-channel. Dropping the fourth panel saves material and reduces packing time for items that do not need full perimeter coverage.

When the packing line requires a fully flush closure

Consider the 0119. It adds a fifth panel so the ends meet flush, which can be easier to secure than a four-panel wrap where the edges might gap.

Close variants and lookalike dielines

The closest library neighbors include 0122, 0129, 0121. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, fit, and folding choices

Flute direction and bending

Because the creases run across the width, the flute direction must be specified correctly so the board folds 90 degrees without cracking the liner.

Board grade and spring-back memory

Heavy double-wall board has strong memory and will try to spring back to a flat state, making it difficult for packers to hold closed. Single-wall board usually wraps tighter and stays in place easier during packing.

Master carton clearance

If this wrap goes inside another box, the external dimensions of the folded wrap must be calculated to ensure it slides in without buckling the side walls.

Closure method

Packers must decide whether the wrap will be secured by adhesive tape, plastic strapping, or simply wedged tightly inside a secondary container.

Template adjustments for irregular products

Asymmetric panel depths

The top and bottom panels do not have to match the side panels. The template can be adjusted to wrap tall, narrow items or wide, flat products.

Uneven face coverage

The two major faces can be sized differently if the product has an irregular shape that requires an offset wrap.

Extended overlap panels

One of the side panels can be extended slightly to create a small overlap, giving packers a better surface for applying adhesive.

Board and packing details

Production routing

Because it is a perfect rectangle with straight creases, it can often be produced directly on a corrugator or slitter-scorer, which changes the production path compared to shaped die-cut pads.

Flat delivery and storage

The blanks ship completely flat, meaning they take up minimal warehouse space but require manual folding labor on the packing floor.

Additional notes

Hand assembly and taping

Because this wrap lacks an overlap glue flap, it cannot be run through standard automated folder-gluers. Packers must manually fold the sheet around the product and secure it.

FAQs

Shipping and route

Can this be used as a standalone shipping box?

No. The ends remain completely open, and there are no native locks. Parcel shipment requires adhesive, strapping, or an outer master carton to survive the route.

Comparison and choice

Why choose widthwise creases (0123) over lengthwise creases (0113)?

The orientation changes the flute direction relative to the fold. This matters for preventing the board from cracking when bent and for maximizing how many blanks fit efficiently on the manufacturer's corrugator web.

Packing and closure

Will the wrap stay closed on its own?

No. Corrugated board has natural spring-back memory. The four panels will try to unfold unless they are physically restrained by adhesive, banding, or the tight fit of an outer box.

Board and finish

What board grade is appropriate for this wrap?

Single-wall B-flute or C-flute is usually sufficient and folds easily. Heavy double-wall board provides more cushioning but creates severe spring-back tension at the corners, making it harder for packers to hold closed.

Product fit

Can the side panels be different heights?

Yes. The template can be adjusted to wrap asymmetric products, though symmetric panels are the most common starting point.

Protection

Does this wrap protect the corners and edges of the product?

It protects the four long faces it covers, but the two ends remain completely open. It offers no native protection against edge drops on those open sides.

Packing labor

Can this be folded by automated machinery?

Because this wrap lacks an overlap glue flap, it cannot be run through standard automated folder-gluers. Packers must manually fold the sheet around the product.

Master carton integration

How do I size this to fit inside another box?

You must account for the thickness of the corrugated board itself. The external dimensions of the folded wrap must be slightly smaller than the internal dimensions of the master carton to prevent binding.
