FEFCO 0130

Continuous Z-Fold Corrugated Fanfold

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Continuous cut-to-length corrugated supply
  • Feeds automated box-making machinery
  • Folds flat into dense, palletized Z-stacks

About this product

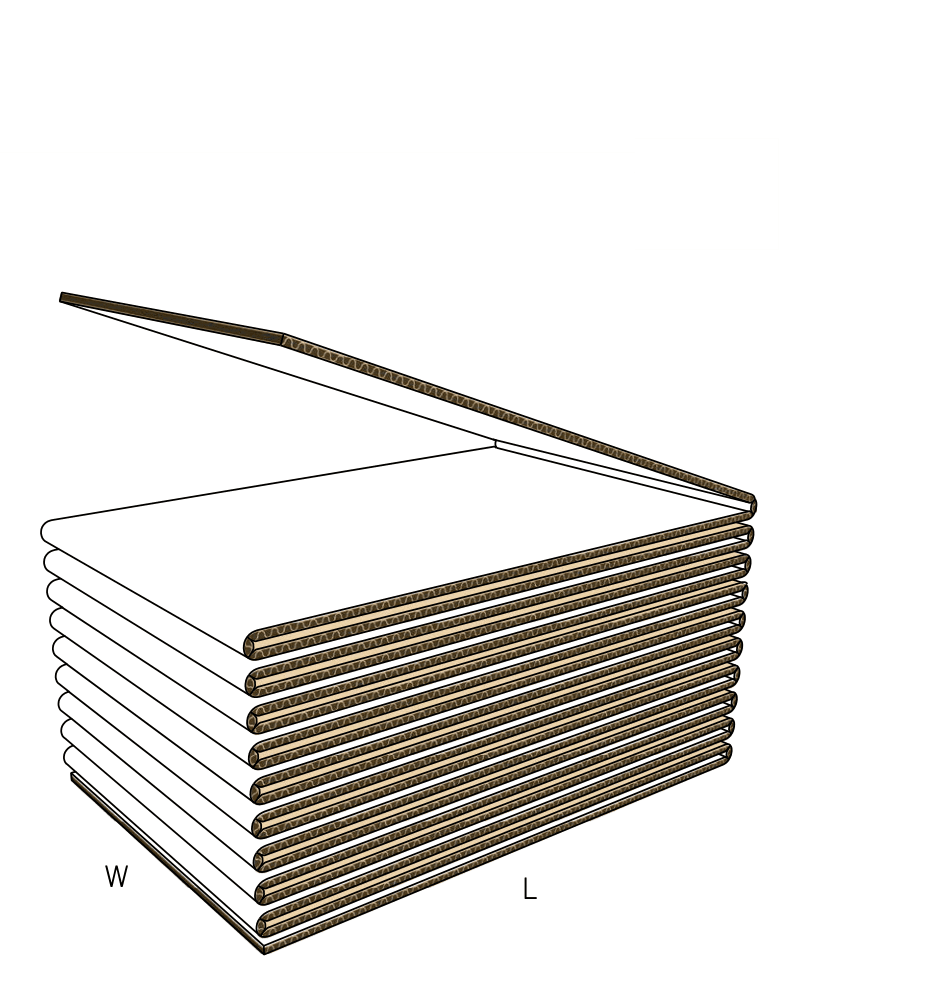

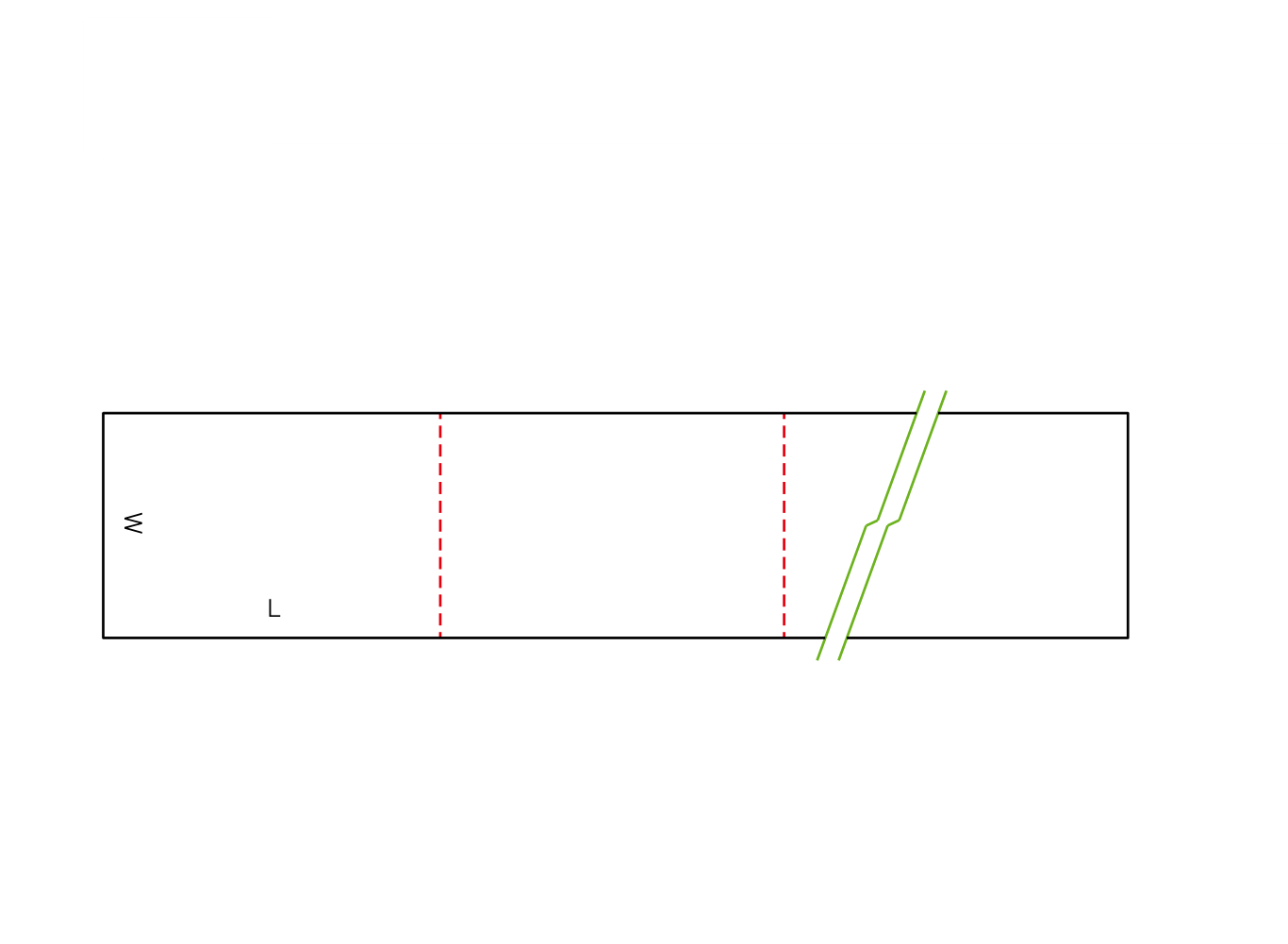

The 0130 is a continuous web of corrugated board with alternating transverse creases, allowing it to collapse into a dense, accordion-style stack. Rather than functioning as a single discrete box, it serves as a raw material supply for automated right-size packaging machines or manual cut-to-length wrapping stations.

Because it is an endless sheet, it eliminates the burden of stocking dozens of different box sizes. This makes it a practical choice for high-mix fulfillment centers and manufacturers shipping exceptionally long or variable products.

Common uses

  • Box-on-demand machine feed
  • Manual wrapping of long extrusions and pipes
  • High-mix e-commerce fulfillment

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Cut-to-Length and Automated Packaging Roles

Automated box-on-demand feeding

Feeds directly into right-size packaging machines. The continuous web allows the equipment to cut and score custom box dimensions on the fly for high-mix e-commerce orders.

Wrapping long extrusions and profiles

Provides a continuous protective wrap for metal pipes, window blinds, or timber lengths. Packers pull the required length from the stack, cut it manually, and secure it with tape or strapping.

Variable-length furniture packing

Allows shipping teams to wrap different sizes of flat-pack furniture or large panels without stocking a separate carton size for every specific item.

Continuous void fill and blocking

Acts as heavy-duty dunnage for industrial shipments. Packers can fold or crumple lengths of the endless board to brace heavy machine parts inside master outer shippers.

Fulfillment and Industrial Environments

High-mix e-commerce fulfillment

Operations shipping thousands of different product combinations use fanfold to create exact-fit boxes, reducing void fill and dimensional weight charges.

Industrial extrusion manufacturing

Facilities producing long, uniform parts rely on endless board to wrap products that exceed standard cutting machine limits.

Third-party logistics and contract packing

Warehouses handling unpredictable client product sizes keep fanfold on hand to build custom shippers without forecasting exact box dimensions in advance.

When to Choose Discrete Sheets or Rails

Standard unitized product runs

If the packing line handles thousands of identical items, a dedicated die-cut box is faster to pack and more material-efficient than cutting fanfold on demand.

Simple layer separation

If the job requires flat dividers for palletizing, standard discrete sheets are simpler to source and do not require specialized fanfold production machinery.

Close variants and lookalike dielines

The closest library neighbors include 0123, 0113, 0129. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Machine Feed and Board Specifications

Web width and machine limits

The total width of the sheet must match the intake limits of the automated packaging machine or manual cutting station.

Board grade and crease cracking

Single-wall B or C flute handles the 180-degree alternating folds well. Heavy double-wall board requires careful scoring to prevent the inner liner from cracking at the folds.

Flute direction

To allow the board to fold back on itself and wrap tightly around products, the flutes must run perpendicular to the transverse creases.

Double-crease profiles for heavy board

When the product weight demands double-wall corrugated, the production run must include a double-crease profile to manage the extra thickness during the Z-fold process.

Stack, Segment, and Print Adjustments

Segment length between folds

The distance between each crease dictates the footprint of the final palletized stack. This dimension must align with the swing arm limits of the production machinery.

Total stack height

The number of panels per bundle determines how high the pallet stacks, which affects warehouse storage density and forklift handling.

Continuous repeating print

Because the web is endless, registered graphics are extremely difficult to maintain. Print is usually limited to continuous, repeating one-color flexo patterns, such as a repeating logo.

Board and packing details

Production scale and setup

Fanfold bypasses standard flatbed die-cutting entirely. It runs directly from the corrugator into a specialized fanfolder, making it highly efficient for large-scale continuous supply but impractical for short prototype runs.

Additional notes

High-volume corrugator runs

Fanfold bypasses standard flatbed die-cutting entirely. It runs directly from the corrugator into a specialized fanfolder, making it highly efficient at scale but impractical for short prototype runs.

Related Flat and Folded Components

0122: Corrugated U-Channels

Look at this if the packing demands pre-cut, fixed-dimension edge protectors instead of wrapping the entire product.

0123: Commercial Sheet

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0113: Commercial Sheet

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Print and finish

Can we print our logo on fanfold board?

Yes, but it is typically limited to a continuous, repeating wallpaper pattern. Precise registered print is difficult to maintain over an endless web.

Board and material

Does fanfold work with double-wall corrugated board?

It can, but the heavier board requires a specialized double-crease to prevent the liner from cracking when folded 180 degrees.

How do we specify the flute direction?

The flutes must run perpendicular to the transverse creases. This ensures the board can fold flat into the stack and wrap smoothly around your products later.

Quantity and production

What determines the size of the folded stack?

The segment length (the distance between creases) and the total number of panels dictate the footprint and height of the palletized bundle.

Is fanfold suitable for short prototype runs?

Generally, no. Fanfold is produced directly off the corrugator using specialized stacking equipment, making it a format built for large-scale continuous supply rather than small trials.

Shipping and route

Is this ready to ship as a parcel?

Not on its own. Fanfold is a raw material supply. Once cut and wrapped around a product, it requires external tape, strapping, or adhesive to secure the final shape for shipping.

Storage and handling

How is fanfold delivered to the warehouse?

It arrives as dense, accordion-folded stacks on pallets. The continuous web is folded back on itself, allowing it to be pulled directly from the pallet into a cutting machine.

Packing labor

Does fanfold lock together without tape?

No. Because it is a continuous flat sheet with transverse creases, it has no native tabs or locks. It relies entirely on external sealing methods once cut to length.
