Pallet separation, carton lining, and wrapping jobs
Pallet layer pads
A flat sheet placed between tiers of product distributes weight evenly across the stack. It provides a clean barrier, preventing dust, splinters, or moisture from a wooden pallet base from reaching the bottom layer of goods.
Internal carton dividers
When packing multiple heavy or fragile items inside a larger master shipper, a flat pad placed between the items prevents friction and impact damage during transit.
Manual wrapping and void fill
Flexible, lower-flute sheets can be manually bent around irregular objects or crumpled to fill empty space in a parcel, absorbing local impacts.
Pallet base dust covers
Placed directly on the wooden pallet before the first tier of product, a heavy-duty sheet prevents splinters and nail heads from puncturing the primary packaging.
Fulfillment, kitting, and transit environments
Industrial kitting and assembly
Flat sheets drop easily into totes or bins, separating parts during work-in-progress stages without requiring any folding or setup labor.
High-volume fulfillment
Automated pick-and-place vacuum systems handle flat sheets predictably, dropping them into outbound shipping cartons as a base layer before products are loaded.
Furniture and large-item transit
Wide sheets provide surface protection against strapping tension and abrasion when wrapping large, irregularly shaped goods for freight transport.
When to consider scored or shaped pads
When the packing process requires a repeatable bend
If the packing line must fold the board around a product or into a corner, review a pre-scored sheet (0110). Adding a factory crease prevents the board from cracking and speeds up manual assembly.
When the pad must clear internal obstacles
If the sheet must fit around corner posts, lock into a specific tray, or hold a cylindrical part in place, a custom die-cut pad with specific notches or cutouts is necessary.
Board, flute, and delivery decisions
Flute direction and span strength
If the sheet will sit on a shelf or span a gap, the internal flutes must run perpendicular to that gap to resist bending. If the pad sits entirely flat on a solid pallet, flute direction matters less.
Board grade and load distribution
Heavy pallet loads require rigid double-wall board to distribute weight and prevent the flutes from crushing. Manual wrapping jobs benefit from thinner, flexible single-face or E-flute board.

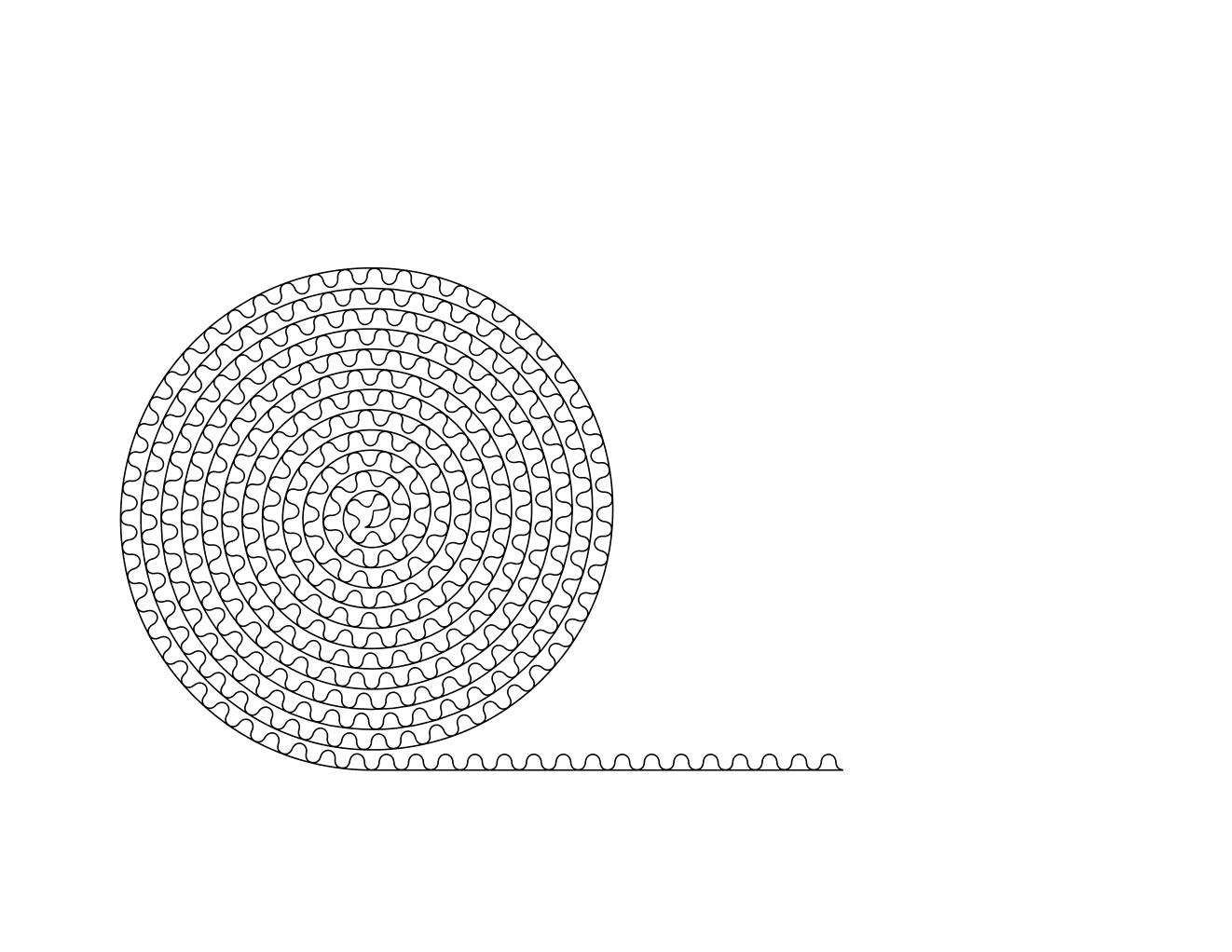

Cut sheets versus continuous rolls
High-volume, consistent packing lines usually take pre-cut flat sheets stacked on a pallet. Variable-length fulfillment operations might use continuous rolls, cutting the exact length required on the packing floor.
Surface coatings and moisture resistance
If the sheet sits on a damp warehouse floor or ships through humid environments, coated board prevents the corrugated material from absorbing moisture and losing rigidity.
Sizing, flute profiles, and edge adjustments
Exact perimeter sizing
Length and width can be specified to match the exact internal dimensions of a master carton or the footprint of a standard pallet, preventing the pad from shifting during transit.
Corner rounding
For sheets used as external layer pads on stretch-wrapped pallets, rounded corners prevent the sharp corrugated edges from puncturing the plastic film.
Flute profile selection
Buyers can specify micro-flutes (E or F) for tight interleaving with high print quality, or larger flutes (B or C) for standard padding and separation.
Board and packing details
Storage density and handling
Because they have no folds, flaps, or glue seams, flat sheets offer the highest possible shipping and warehouse storage density of any corrugated component.
Vacuum handling limits
If automated pick-and-place robots will handle the sheets, the board porosity and flute profile must align with the suction cup specifications to ensure reliable lifting.
Additional notes
Edge crush and undersized pads
If a layer pad is cut too small for the master carton, it can shift during transit, leaving product edges exposed to impact against the outer walls.
Related internal packaging
FAQs
Product fit and use
Can a flat sheet function as a standalone shipping box?
A flat sheet cannot function as a standalone shipping box. It has no walls or closures. It must be used inside a master carton, strapped to a pallet, or manually wrapped and taped around a product.
Board and finish
How does flute direction affect the pad?
If the sheet bridges a gap or shelf, the internal flutes should run across the shortest span to provide maximum stiffness. If the sheet is placed flat on a solid surface, the direction has less impact on performance.
Does board thickness matter for layer pads?
Board thickness changes how the pad behaves under weight. Heavier products stacked on a pallet require thicker board to prevent the load from crushing the flutes and compromising the separation.
Quantity and production path
Are these delivered flat or on a roll?
Suppliers can provide these as pre-cut flat sheets stacked on a pallet or as a continuous roll for manual cutting on the packing floor, depending on the material and order volume.
Do flat sheets require a custom cutting die?
Generally, no. Standard rectangular sheets are cut directly on a slitter-scorer or corrugator. A cutting die is only introduced if the design requires rounded corners, specific notches, or non-rectangular shapes.
Print and finish
Can flat sheets be printed?
Flat sheets accept print easily through flexographic or digital methods. This is often used for branded base pads in retail displays or unboxing experiences.
Product fit and use
How do I size a layer pad for a master carton?
The pad should be sized slightly smaller than the internal length and width of the master carton. This allows it to drop in easily without binding against the walls, while remaining tight enough to prevent shifting.
Board and finish
What flute profile works for manual wrapping?
Single-face corrugated or thin E-flute board works well for manual wrapping. These profiles bend easily around irregular shapes without cracking, absorbing local impacts inside a parcel.
