Heavy-duty transit and export applications
Heavy and dense industrial parts
The flat inner floor prevents metal components from snagging or wedging into gaps, while the double-thick outer layer absorbs forklift impacts and rough handling.
Export and extended transit
When shipments face unpredictable handling across multiple transfer points, the fully overlapping top and bottom flaps provide a reinforced shield against punctures and crushing.
High-security shipments
The complete overlap of the outer flaps eliminates the central seam. When secured with heavy-duty tape or metal stitching, the box becomes highly resistant to tampering.
Hazardous or sensitive material transport
For goods that cannot risk exposure or bottom dropout, the double-thick exterior and gapless interior provide an extra margin of safety during rough transit.
Industries relying on the flat-floor overlap
Industrial manufacturing
Teams shipping machined parts or heavy assemblies rely on the flat floor to distribute weight evenly, preventing the localized stress that causes simpler boxes to fail.
Appliance and equipment distribution
Large, heavy units demand a rigid base that resists buckling when lifted. The double-layer floor provides a stable foundation for extreme payloads.
Automotive and aerospace components
Dense metal parts require a snag-free base so they do not wedge into seams during transit and tear the bottom panel.
When to consider a different heavy-duty box
If the flat interior floor is not strictly necessary
Evaluate the Full Overlap Box (FEFCO 0203). It provides the same double-thick exterior barrier but uses a simpler rectangular blank, which can simplify production routing if a floor gap is acceptable.
If top and bottom puncture risk is lower
Consider the Center Special Box (FEFCO 0204). It maintains the flat interior floor, but the outer flaps only have to meet in the center, significantly reducing the amount of corrugated board required.
If a rectangular blank profile is preferred
Look at the Center Special Overlap (FEFCO 0205). The outer flaps only partially overlap, allowing the box to be cut without the stepped profile that requires specialized shaped cutting.
Board, sealing, and production choices
Board grade and fold clearances
This box is frequently produced in heavy double-wall or triple-wall board. Thick board requires precise slot tuning to ensure the massive overlapping flaps fold squarely without binding or tearing the hinges.
Base sealing method
The thick, fully overlapping outer flaps have strong spring-back memory. Decide whether the packing line will use heavy-duty tape, adhesive, or metal stitching to secure the base before loading.
Production routing and profile shape

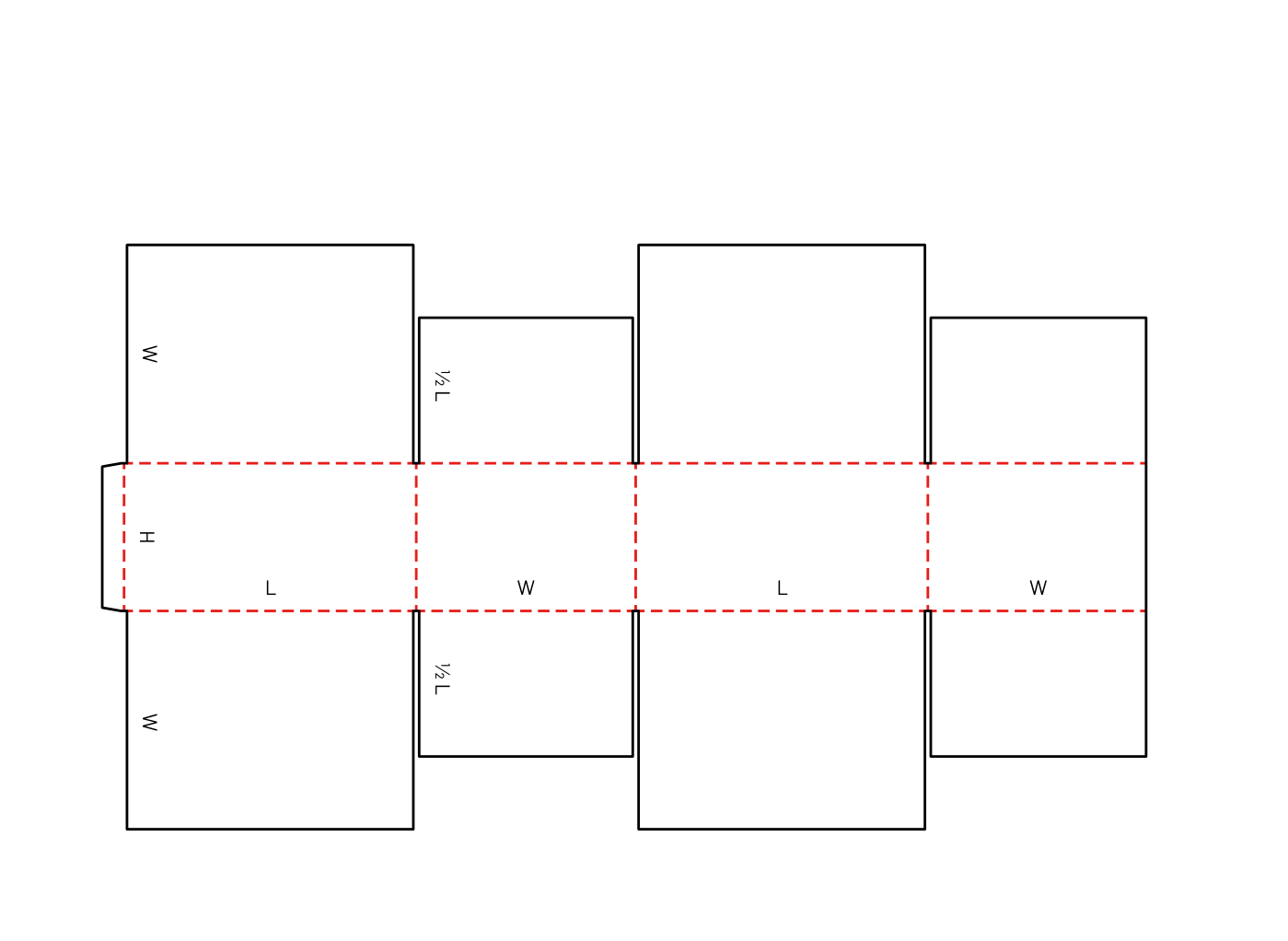

Because the inner and outer flaps are different lengths, the flat blank has a stepped profile. This requires shaped cutting rather than straight slotting, making it better suited for established repeat programs rather than quick prototypes.
Packing station ergonomics
Folding and sealing the massive double-thick flaps requires more physical effort than a simpler box. Packing stations may require fixtures to hold the flaps square while the seal is applied.
Structural tuning for thick board
Slot and clearance tuning
For heavy-duty board grades, the slots between the flaps can be widened and offset to prevent the triple-thick corners from binding during assembly.
Manufacturer joint placement
The side glue flap can be attached to either the length or width panel to better align with specific factory folding equipment.
Joint closure method
For extreme export weights, the manufacturer joint can be specified as stitched rather than glued to prevent shear failure under high load.
Board and packing details
Pallet density for flat delivery
The extended flaps make the unassembled boxes thicker and wider than standard shipping cartons, which reduces the number of empty boxes that fit on an inbound pallet.
Heavy-board variants
Heavy-board slot tuning
A structural adjustment that widens the flap slots and adjusts crease offsets, mandatory when using thick double-wall or triple-wall board to ensure the box folds cleanly.
Additional notes
Base sealing for heavy payloads
For export or extreme-weight applications, the base overlap is frequently secured with metal stitching rather than tape to prevent shear failure when the box is lifted.
Related heavy-duty packaging
FAQs
Packing and assembly
Can this box be run on standard mechanized erecting equipment?
Usually not without specialized equipment. The combination of inner flaps that close without a gap and outer flaps that fully overlap can cause standard folding arms to jam. It is typically erected manually or with heavy-duty, purpose-built machinery.
Production profile
Why does this box require shaped cutting?
The inner flaps are shorter than the outer flaps, creating a stepped shape when the box is laid flat. Standard straight-knife slotters cannot cut this uneven profile, so a shaped cutting process is required.
Closure and sealing
Does the full overlap mean the box can ship without tape?
No. The overlapping flaps provide a thick physical barrier, but they do not lock together. The top and bottom must still be secured with heavy-duty tape, glue, or metal stitching.
Board and material
What board grades work best for this style?
Because it is engineered for extreme protection, it is most commonly specified in heavy single-wall or double-wall corrugated board. If double-wall is used, the factory must adjust the fold allowances so the thick flaps do not bind.
Product fit
How does the flat floor help with heavy parts?
In a simpler box, the inner flaps leave a gap down the center. Heavy metal parts can wedge into this gap, causing the bottom to sag or tear. The flat floor distributes the weight evenly across the entire base.
Comparison
Does this box use more material than a standard shipping carton?
Yes. It consumes significantly more corrugated board to create the full overlaps, and the stepped shape requires a specialized production route. It should be specified when the payload's weight or value justifies the extra protection.
Closure and sealing
Should the bottom be taped or stitched?
For export or extreme-weight applications, the base overlap is frequently secured with metal stitching rather than tape to prevent shear failure when the box is lifted. Tape is sufficient for lighter, bulky items.
Storage and logistics
Do these boxes take up more space on an inbound pallet?
Yes. The extended outer flaps make the unassembled boxes wider and thicker than simpler cartons. This reduces the number of empty boxes that fit on a single pallet, which affects inbound freight planning.
