Product isolation and pallet stacking
Glass bottles and fragile cylinders

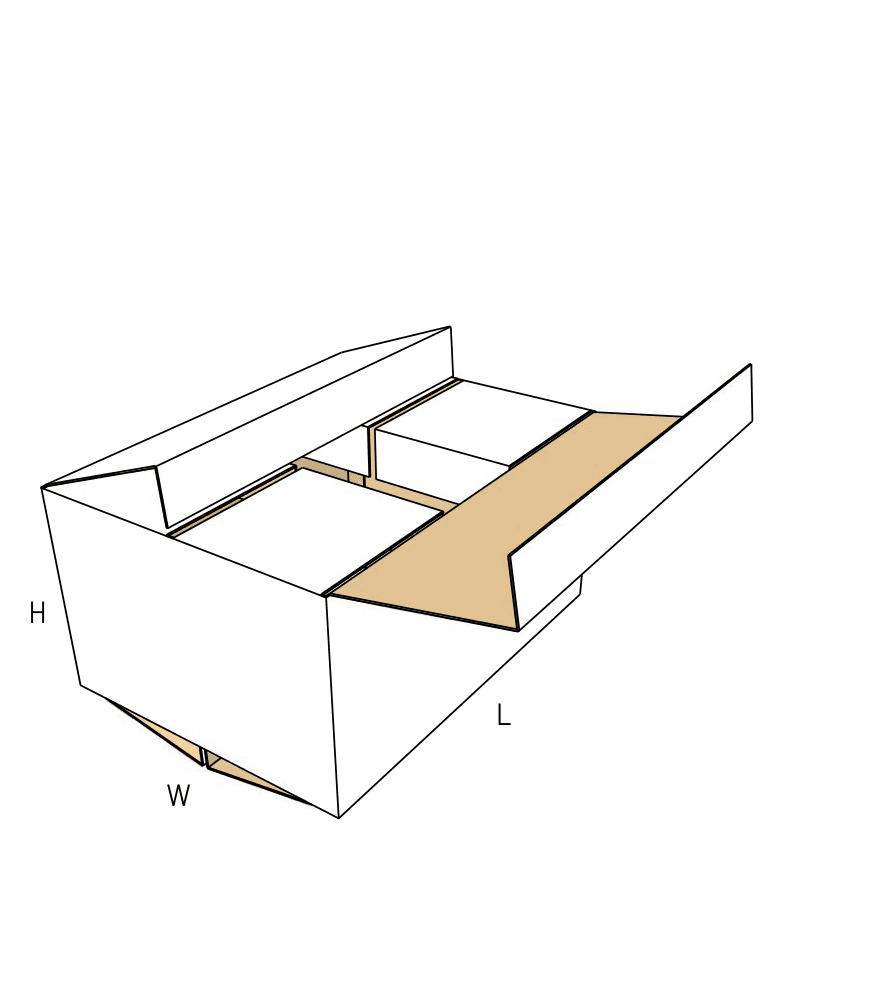

The full-height internal grid prevents fragile items from striking each other during transit. Because the dividers are anchored to the outer walls, the separation remains rigid even if the box is tilted or dropped.
Heavy industrial parts
Metal components and machined parts can damage each other if they shift. The integrated cells keep heavy items immobilized and separated throughout the shipping route.
Pallet stacking for heavy goods
The interlocking top and bottom flaps create a continuous corrugated column through the center of the box. This transfers weight directly through the grid, allowing the container to resist crushing under heavy pallets.
Kitting and multi-part sets
When shipping a set of six distinct items, the built-in grid ensures packers place one item in each cell, reducing packing errors and keeping the presentation organized.
Fulfillment and inventory situations
Single-SKU inventory management
Operations that want to simplify procurement often choose this package to avoid matching outer boxes with separate partition grids. It reduces the number of components stored on the warehouse floor.
Beverage and cosmetics shipping
Brands shipping glass jars or bottles use this package to ensure reliable separation without the risk of packers running out of inserts before they run out of boxes.
Industrial component distribution
Distributors shipping heavy, separated parts benefit from the extreme crush resistance provided by the internal corrugated column.
When to separate the box and the insert
High-speed packing lines
If your fulfillment relies on rapid manual packing or standard machinery, the integrated grid will create a bottleneck. Pushing the slotted flaps together inside the box cavity takes time and two hands. A standard slotted box with a pre-assembled drop-in partition is usually faster for high-volume lines.
Shallow product profiles
For shorter items, extending both top and bottom flaps may be unnecessary. A bottom-only partitioned box (FEFCO 0207) uses less board and is easier to assemble, though it lacks the extreme crush resistance of a fully interlocked grid.
Board thickness, slot friction, and assembly labor
Board thickness and slot binding
This package is highly sensitive to board caliper. Fine flutes fold sharply and allow the internal slots to slide together easily. Heavy double-wall board multiplies the friction, often causing the grid to seize or tear during manual assembly unless the cutting die is explicitly tuned to widen the slots.
Production route and board footprint

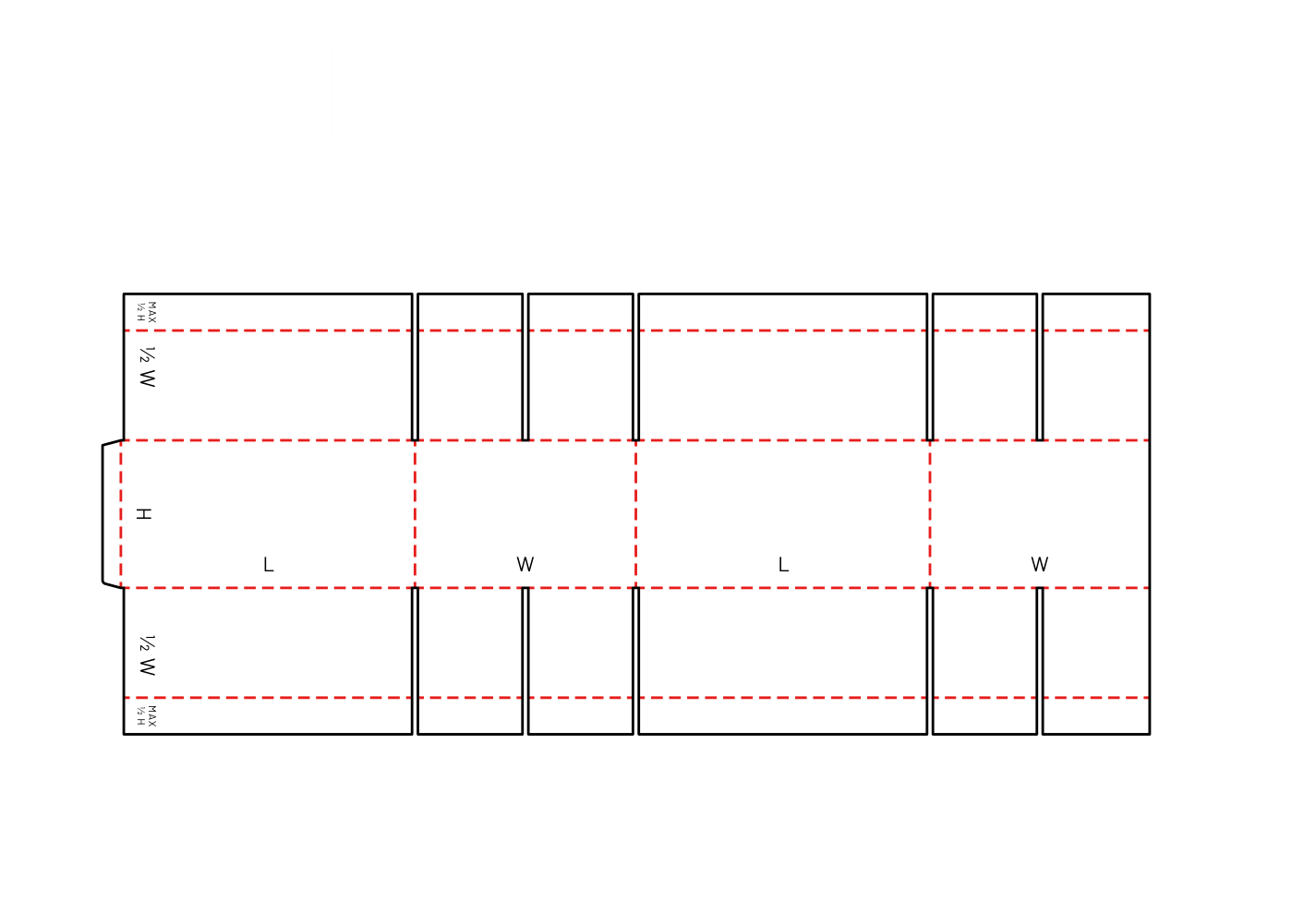

The extended flaps create a massive flat blank that requires custom flatbed or rotary die-cutting. This generates more corrugated waste than a standard straight-line box. The decision usually comes down to whether the operational savings of a single SKU offset the larger material footprint.
Assembly time tolerance
Because the operator must reach inside the formed tube to align and push the slotted flaps together, assembly requires deliberate focus. Factor this slower rhythm into your fulfillment planning.
Closure method
While the internal dividers lock together to form the cells, the outer top and bottom flaps have no native locks. The box requires external tape, glue, or stitching to stay closed during transit.
Cell dimensions and slot clearances
Internal clearances and product fit
While the standard template creates six equal cells in a 2x3 grid, the internal clearances can be adjusted for specific product diameters. Changing the cell size alters the depth of the interlocking slots and the overall footprint of the blank.
Explicit slot widening
When using thicker board grades, the slots on the extended flaps must be widened beyond standard allowances. This prevents the corrugated flutes from crushing when the grid is forced together.
Panel sequence shifts
The standard layout places the glue joint on a length panel, while a variant (0208a) shifts it to a width panel. The choice depends entirely on which layout fits better through the converter's specific folder-gluer machinery.
Board and packing details
Pre-breaking the transverse creases
To ensure the extended flaps drop into the cavity at a clean 90-degree angle, packers usually need to pre-break the secondary creases by hand. Skipping this step can cause the corrugated flutes to buckle.
Prototype testing for assembly friction
Always request a physical prototype in the exact board grade you plan to use. Have your packing team assemble it to verify that the slot friction is manageable.
Panel sequence variants
Factory layout optimization (0208a)
Shifts the glue joint to a width panel to accommodate specific folder-gluer machine limits, producing the exact same 6-cell box.
Additional notes
Pack-bench rhythm and labor
Because the operator must reach inside the formed tube to align and push the slotted flaps together, assembly requires two hands and deliberate focus. Factor this slower rhythm into your fulfillment planning when comparing this style against drop-in inserts.
Alternative partitioned boxes and inserts
FAQs
Assembly and Packing
Can this box be erected by standard machinery?
Standard packing machinery cannot navigate the complex sequence of dropping and interlocking the internal grid. This package requires manual assembly, and the friction of engaging the slots makes it slower to pack than a standard box.
Closure and Shipping
Does the internal grid lock the outer box closed?
No. While the internal dividers lock together to form the cells, the outer top and bottom flaps have no native locks. The box requires external tape, glue, or stitching to stay closed during transit.
Board and Fit
Can this be made in heavy double-wall board for extra protection?
It can, but it requires careful engineering. Thick board makes the internal slots bind tightly against each other. If the cutting die is not explicitly adjusted to relieve that friction, packers will struggle to force the grid together without crushing the board.
Design Limits
Can the grid be configured for four or eight cells instead of six?
The base template is mathematically designed for a 2x3 six-cell layout. Changing the cell count requires a fundamental redesign of the slotting matrix and fold allowances, which moves it into fully custom structural engineering.
Production Route
Why does this require custom die-cutting?
The extended top and bottom flaps feature deep intersecting slots and secondary transverse creases. These complex shapes cannot be produced on a standard straight-knife rotary slotter, requiring a dedicated cutting die.
Samples and Prototypes
What should we test before committing to a production run?
Always request a physical prototype in the exact board grade you plan to use. Have your packing team assemble it to verify that the slot friction is manageable and the assembly time fits your fulfillment schedule.
Comparison
When should we use a separate insert instead?
A separate insert is usually better when packing speed is the top priority, or when you want to reduce the overall corrugated board footprint. The integrated grid is chosen primarily to simplify inventory to a single SKU.
Packing Labor
How does the assembly rhythm compare to a standard box?
It is significantly slower. The operator must reach inside the formed tube to align and push the slotted flaps together, which requires two hands and deliberate focus. Factor this slower rhythm into your fulfillment planning.
