Main packing applications
Glass bottles and jars
Keeps fragile liquids separated during transit. The internal corrugated walls prevent glass-to-glass contact and add massive crush resistance to the overall package.
Industrial parts kitting
Isolates machined components, motors, or heavy hardware that might scratch or damage each other if packed loose in a single void.
Fulfillment SKU consolidation
Replaces a two-piece packaging system (a box plus a separate insert) with a single flat blank, saving warehouse storage space and simplifying the picking process.
Fragile cosmetics and lotions
Keeps heavy glass or rigid plastic containers isolated during transit, preventing scuffs and breakage without requiring packers to handle loose dividers.
Industry and fulfillment contexts
Beverage and cosmetics
Operations shipping 6-packs of wine, sauces, or lotions often use this style to ensure reliable separation without the clutter of loose dividers on the packing floor.
E-commerce fulfillment
Facilities looking to streamline inventory management may trade a higher per-box assembly time for a simpler picking process where packers only grab one item from the rack.
Automotive and mechanical parts
Facilities shipping heavy, machined components use the integrated grid to prevent metal-on-metal contact during rough transit.
When to consider a two-piece alternative
Standard Box with Separate Insert (FEFCO 0201 + 0933)
Compare this combination when manual assembly speed is your biggest bottleneck. Dropping a pre-assembled grid into a standard taped box is often faster for a packer than wrestling with the interlocking bottom flaps of the 0207.
Top and Bottom Partition Box (FEFCO 0208)
consider this when packing very short items where forming the grid from both the top and bottom flaps provides better stability than relying solely on the base.
Board, fit, and production choices
Board thickness and assembly friction
Heavy double-wall board provides incredible protection but makes the internal grid extremely difficult to fold and lock by hand. If the packing line requires thick board, the slot clearances must be explicitly widened so the corrugated material does not bind.
Cell dimensions vs. overall size
The internal compartments are mathematically tied to the box's length and width. Buyers must share the exact diameter of the items being packed, not just the outer box dimensions, to ensure a proper fit.
Production routing and die-cutting
Because of the complex interlocking slots on the bottom flaps, this box must be die-cut. It cannot be run on standard high-speed slotting equipment, which means the production run will require die-cutting preparation.
Manual packing line speed
Because the bottom flaps must be folded inward and upward to interlock, this box takes longer to assemble by hand than a standard carton. Packers must be comfortable with the folding sequence.
Template adjustments beyond length, width, and height
Partition height
The internal dividers do not have to reach the very top of the box. The height of the grid can be adjusted to match the shoulder of a bottle or the top of a specific part, which helps reduce the overall size of the flat blank.
Cell dimension tuning
While the internal compartments are mathematically tied to the box's length and width, the exact fit can be tuned based on the diameter of the items being packed to ensure they do not shift.
Slot clearance adjustments
For thicker board grades, the die-cut slots must be explicitly widened so the corrugated material does not bind when the grid is folded together.
Board and packing details
Base sealing for heavy liquids
The interlocking grid holds the floor together mechanically, but heavy payloads usually still require a strip of bottom tape to prevent the base from sagging during a drop.
Blank sprawl and material waste

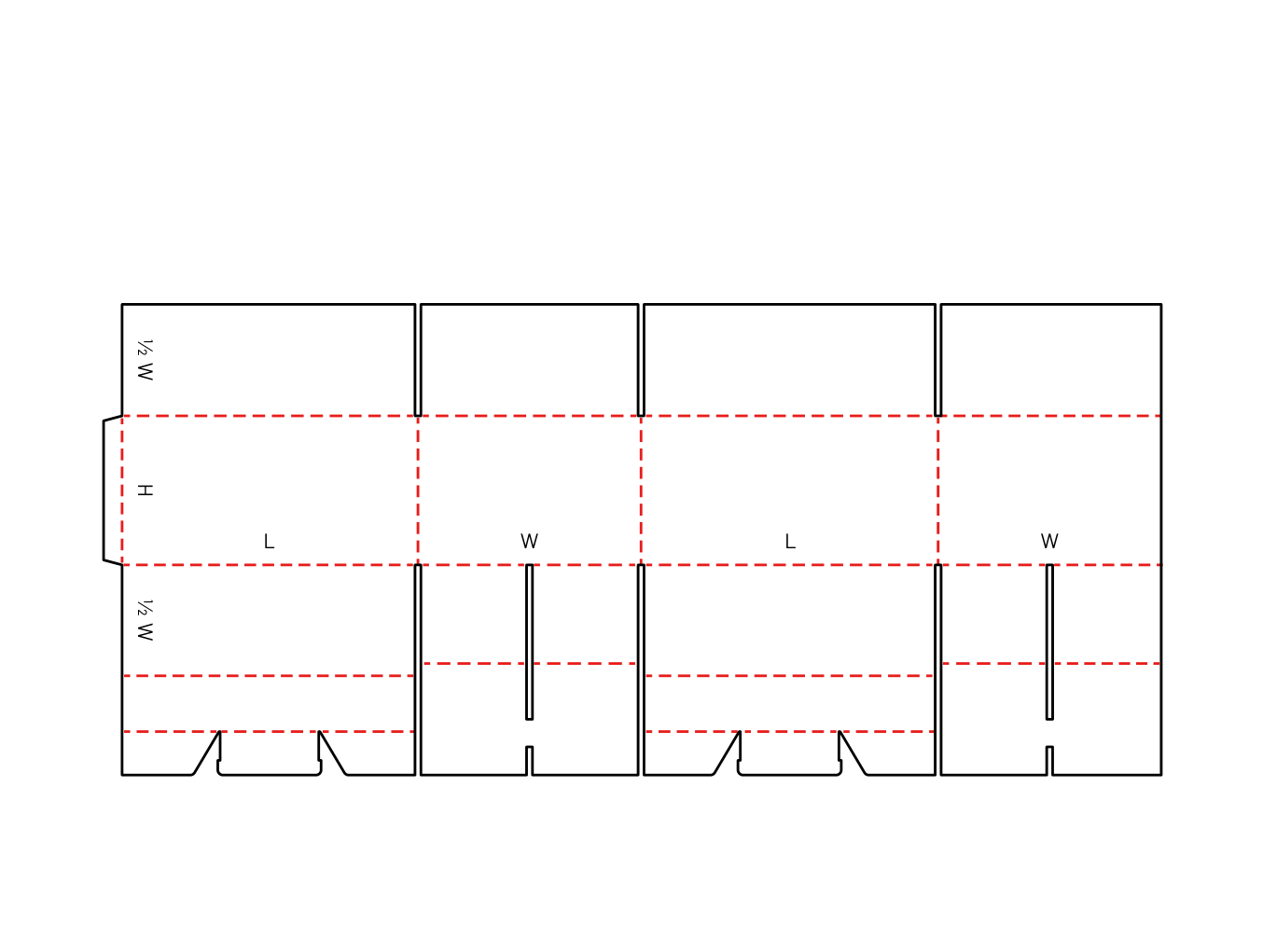

The flat, uncreased blank is exceptionally tall because the partition height is added directly to the bottom flaps. This consumes more raw material than a standard box of the same volume.
Factory and board-specific variants
Heavy-board slot tuning (0207b)
A production adjustment that explicitly widens the die-cut slots so thick double-wall board can be folded without seizing up during manual assembly.
Panel sequence shifts (0207a)
A factory-level layout change (Width-Length-Width-Length) that optimizes the flat blank for specific folding and gluing machines without changing the final 3D shape.
