FEFCO 0212

Tuck Top Slotted Bottom Box

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Taped bottom provides high weight capacity for heavy or bulk items
Friction-tuck lid creates a clean, tool-free unboxing experience
Requires die-cutting production, making it a premium upgrade over standard slotted boxes

About this product

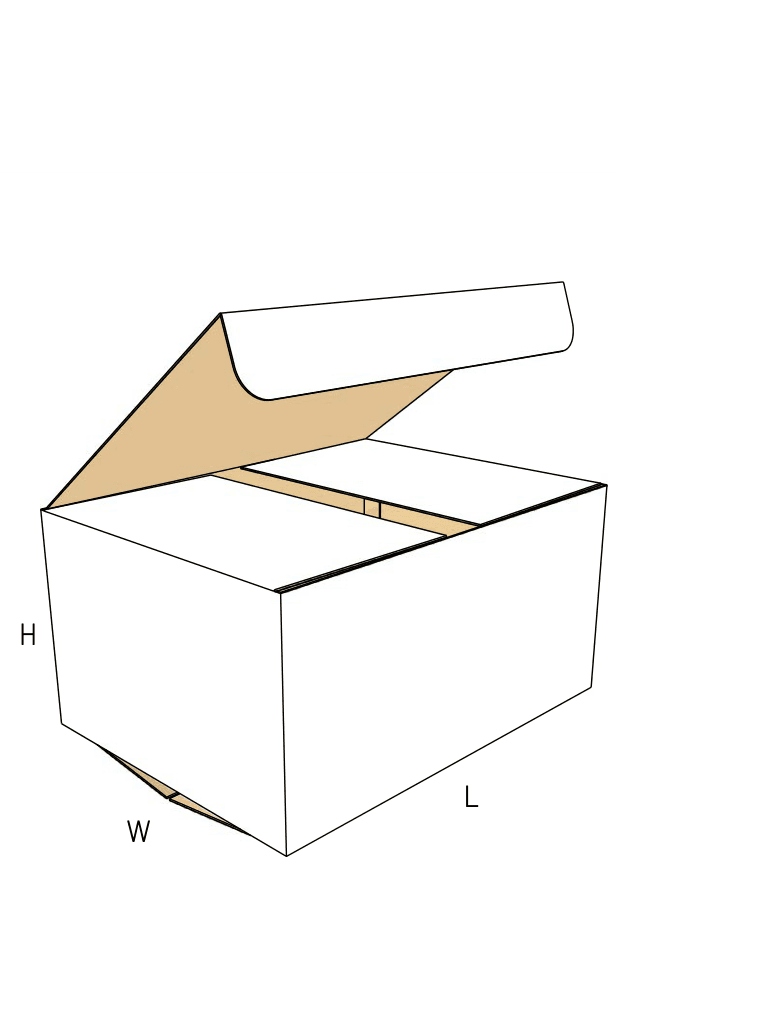

The tuck top slotted bottom box combines the heavy-duty base of a standard shipping carton with the clean presentation of a retail mailer. The bottom flaps meet in the center and require tape to hold heavy payloads, while the top features a hinged lid that tucks neatly into the front panel.

This hybrid design solves a common e-commerce problem: getting dense products safely through transit while avoiding the need for customers to slice through top tape to open their order.

Common uses

E-commerce shipments of heavy cosmetics or liquids.
Subscription boxes requiring high base strength.
Internal kitting where parts are loaded and accessed repeatedly.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Depth (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the product going into this box?

Will you use foam, molded pulp, or cardboard inserts inside?

How will this box be shipped to the final customer?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

E-commerce fulfillment and retail-ready transit

Premium e-commerce shippers

Brands shipping heavy items like jarred cosmetics, bottled liquids, or dense apparel rely on a taped base to prevent blowouts. The tuck lid keeps the unboxing moment clean and allows the customer to easily reclose the box for returns.

Retail-ready shelf storage

For products that move from a warehouse directly to a stockroom or retail shelf, the hinged lid allows staff to access inventory repeatedly without destroying the outer carton.

Internal kitting and parts routing

Assembly teams can tape the base, load heavy components, and use the tuck lid to keep dust out while the kit moves between workstations.

High-weight subscription boxes

When curating heavy collections of books, beverages, or fitness gear, the taped bottom handles the payload while the hinged lid delivers the presentation expected from a subscription brand.

Subscription brands, electronics, and parts distribution

Subscription box operators

When the payload is too heavy for a standard mailer, this structure provides the necessary transit strength while maintaining the expected presentation standard.

Electronics and hardware distributors

Dense metal parts or heavy electronics require a secure base. The tuck top allows for easy insertion of manuals, cables, and final inspection before shipping.

Cosmetics and liquid goods fulfillment

Glass jars and liquid containers add significant weight. The slotted bottom supports the load, while the clean top opening aligns with premium beauty branding.

Choosing between taped tops and friction bases

Standard Regular Slotted Container

Evaluate the 0201 if unboxing presentation does not matter and avoiding die-cut production routes is a priority. A standard RSC uses less board and seals with tape on both the top and bottom.

Straight Tuck Carton

Look at the 0210 if the product is very light and eliminating bottom tape entirely would speed up the packing line. It speeds up fulfillment but sacrifices base strength.

Close variants and lookalike dielines

The closest library neighbors include 0211a, 0210a, 0215a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, insert clearance, and route security

Board thickness and friction binding

The top lid relies on a friction fit. If the job requires heavy double-wall board, the tuck flap might bind, crush, or tear during assembly. Fine flutes work smoothly. If thick board is necessary, the cutting die must be explicitly tuned to widen the clearances.

Parcel network security

While the tuck lid stays closed on a pallet, rough courier networks might cause the lid to open on drop impact. Parcel shipments usually require a clear wafer seal or tamper-evident label over the front tuck.

Insert clearance

The tuck flap needs physical space to slide behind the front panel. Internal dividers or foam inserts must sit slightly below the top edge or leave a gap at the front wall.

Base sealing method

The bottom flaps meet in the center and must be secured. Operations teams must decide between manual taping, automated case taping, or gluing for the base closure before loading.

Lid locks, dust flap angles, and front cutouts

Tuck flap locks and slits

The front tuck flap can be cut with straight edges, rounded corners, or hooked slits. Rounded corners speed up manual insertion, while hooked slits increase retention friction for heavier lids.

Dust flap profiles

The side dust flaps can be cut straight or angled. Angled dust flaps reduce the chance of the lid catching on them during closure.

Front panel cutouts

Adding a small thumb notch to the front panel makes it easier for the end-user to grip and lift the tuck flap, improving the unboxing experience.

Board and packing details

Print panel and label placement

The unbroken front panel and the inside of the hinged lid provide excellent surfaces for primary branding, unboxing instructions, or regulatory labels.

Die-cutting and production route

Unlike a standard shipping box cut on a rotary slotter, the rounded tuck flap and angled dust flaps require flatbed or rotary die-cutting. This introduces a different production path and slightly higher less flexibility for early testing.

Blank layout and folder-gluer routing

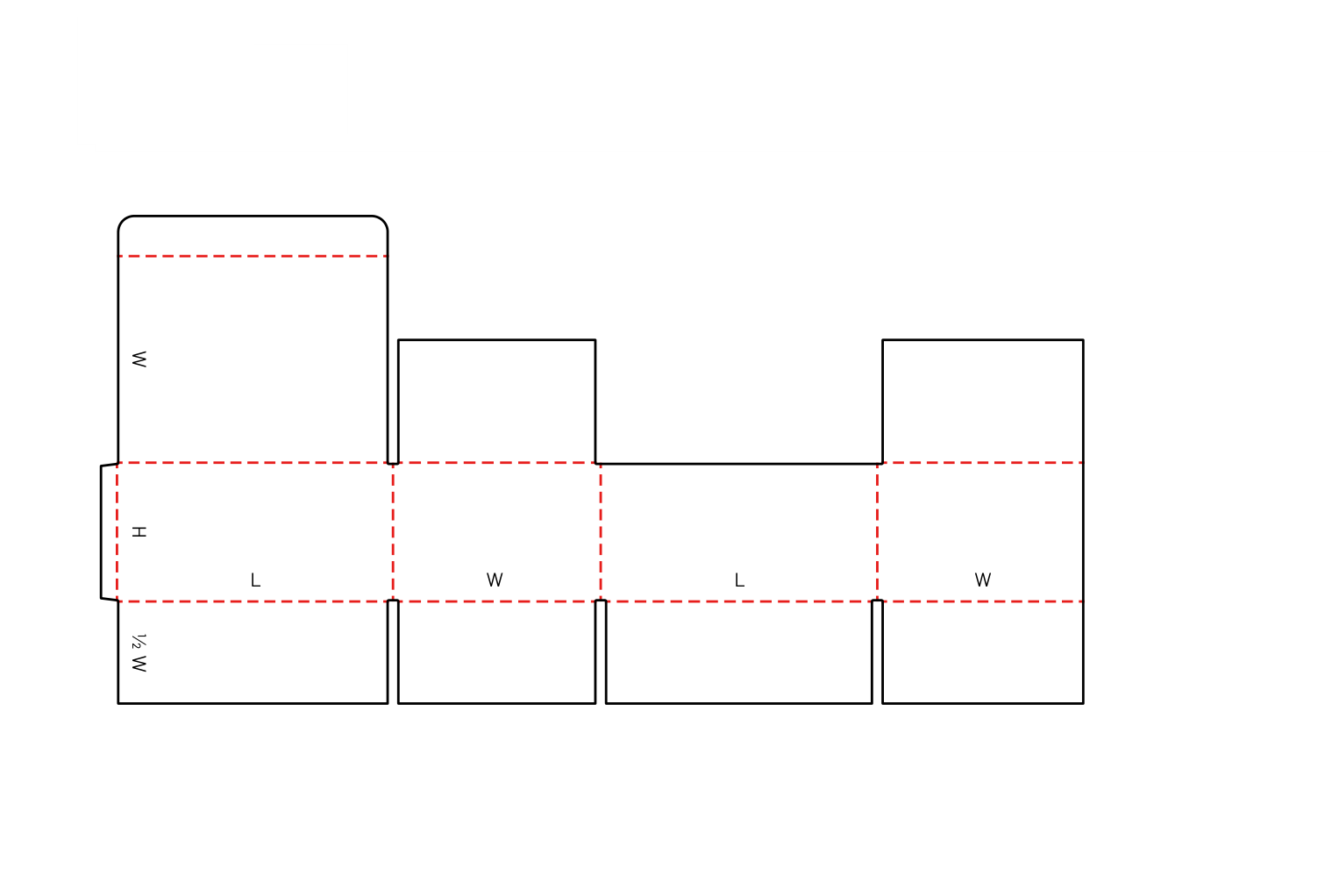

Blank layout sequence (0212 vs 0212a)

The standard 0212 template places the glue flap on the long panel, while the 0212a variant shifts the sequence to start with the short panel. This is a factory-level adjustment to fit specific folder-gluer machine widths and does not change the final assembled box.

Additional notes

Insert clearance for small parts

If planning to use internal dividers or foam inserts, ensure they sit slightly below the top edge. The tuck flap needs unobstructed space behind the front panel to slide in securely.

FAQs

Shipping and route

Can this box ship through parcel networks using only the friction tuck?

The friction tuck lid might open if the box is dropped during rough courier handling. For individual parcel shipping, applying a clear security seal or tamper-evident label across the front tuck is highly recommended.

Board and finish

Does this style work well with heavy double-wall corrugated?

Heavy board makes the top tuck flap difficult to fold and insert. If the product weight requires double-wall board, the factory must adjust the template clearances so the lid does not bind or tear during packing.

Packing labor

Is this faster to pack than a standard shipping box?

It takes roughly the same amount of time. Packers still have to square the box and tape the bottom, but they save the step of taping the top, replacing it with a quick manual tuck.

Print and presentation

Where is the best place to print graphics on this box?

Because the top lid and front panel do not require tape, they are ideal for primary branding. Many brands also print on the inside of the hinged lid for an unboxing reveal.

Production path

Why does this box require die-cutting when a standard shipping box does not?

Standard shipping boxes have straight cuts that can be made with basic slotting knives. The rounded corners on the tuck flap and the angled cuts on the dust flaps require a shaped cutting die to stamp out the exact profile.

Product fit

What makes this better than a standard mailer box?

Mailer boxes use complex folding sequences that consume a lot of board and time to assemble. This hybrid box gives a similar hinged-lid presentation but uses a simple taped bottom, which holds more weight and uses less material.

Closure

Will the top lid stay closed on a pallet?

Yes, the friction fit is generally secure enough for unitized pallet transit or internal warehouse routing where the boxes remain upright and stable.

Inserts

Can I use custom foam inserts with this box style?

Yes, but the insert design must account for the top closure. The tuck flap requires unobstructed space behind the front panel to slide in securely, so inserts cannot sit completely flush against that wall.
