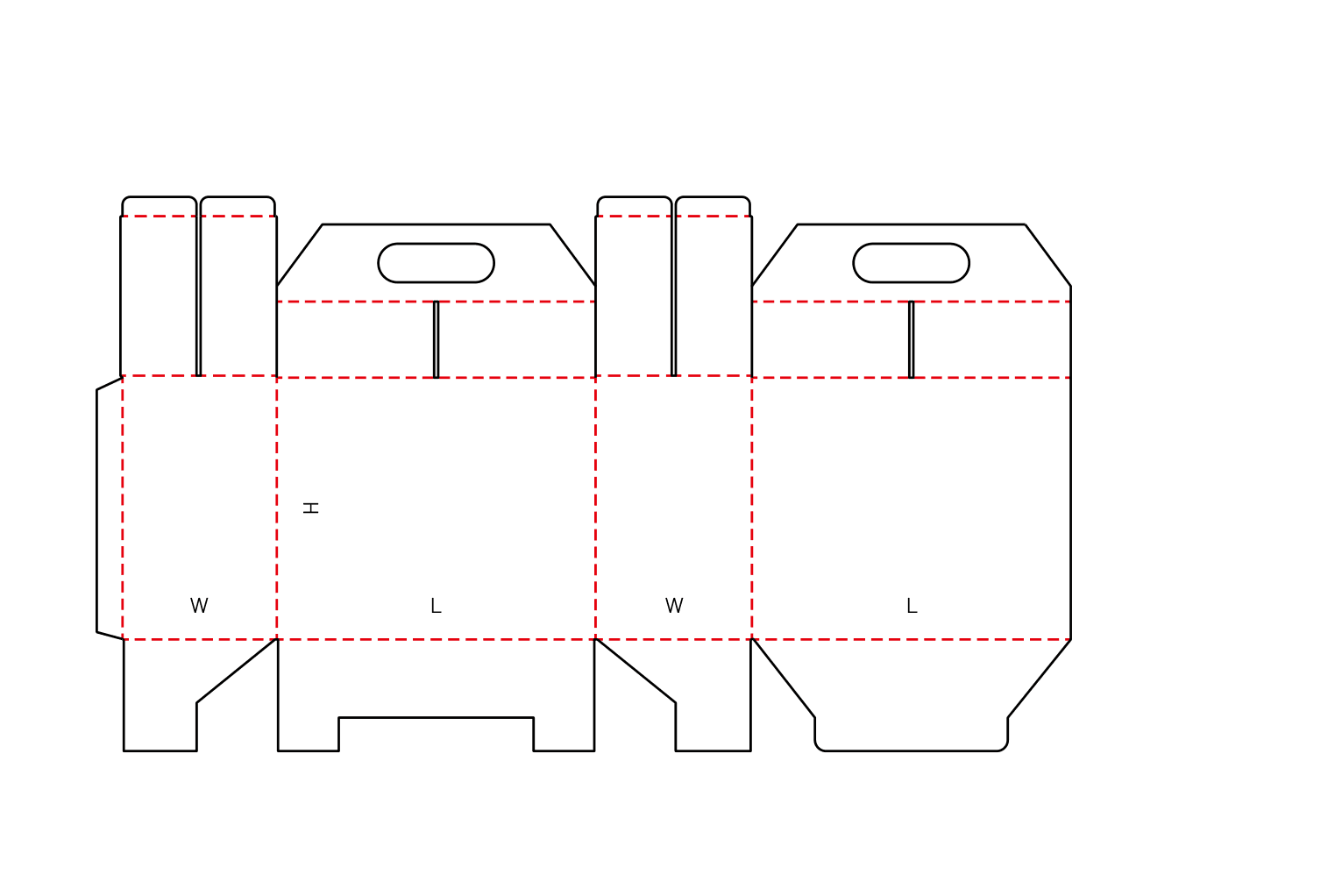

FEFCO 0222

Carrying Handle Box with Snap Bottom

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Overlapping top flaps form a double-thick carrying handle
  • 1-2-3 snap-lock floor secures the payload without packing tape
  • Upright handle profile requires an outer master carton for palletized transit

About this product

This retail-facing carton features a 1-2-3 snap-lock floor and an integrated carrying handle, allowing operators to pack and close the box entirely without tape. The major top flaps overlap and interlock to form a double-thick grip, giving consumers an easy way to carry heavy or awkward items directly from the store.

Trading a flat lid for an upright handle changes how the package travels. The peaked top prevents direct pallet stacking, and the friction-based closures introduce risk during rough courier transit. It serves best as a presentation piece, a takeaway container, or an inner kit packed inside a larger master shipper.

Common uses

  • Retail carry-out for small appliances or heavy goods
  • Beverage and specialty food multipacks
  • Promotional onboarding kits
  • In-plant kitting for parts moving between stations

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail carry-out, multipacks, and promotional kitting

Retail carry-out and multipacks

The built-in handle allows consumers to grab items directly from the shelf. It works well for small appliances, beverage multipacks, and retail goods where a standard paper bag might tear under the weight.

Promotional and sales kits

For events or onboarding kits, the tape-free closure keeps the exterior branding clean. The recipient can open the handle locks and reclose the box without destroying the presentation.

In-plant kitting and assembly

For internal workflows where parts move between stations, the tool-free base speeds up the packing bench. The handle makes it easy for operators to move the kit across the facility.

Trade show sample packs

Distributing heavy catalogs or product samples on a show floor requires a durable grip. The double-thick handle withstands hours of carrying, while the flat side panels offer uninterrupted space for event branding.

Consumer electronics, food, and corporate gifting

Consumer electronics and appliances

Heavy retail items benefit from the double-thick corrugated handle, giving buyers a secure grip from the store to their car while keeping the primary product packaging intact.

Specialty food and beverage

Craft breweries and specialty food brands use this structure for takeaway multipacks, relying on the snap base to hold the payload without bottom tape interrupting the graphics.

Hardware and heavy parts

Selling dense items like fasteners, small tools, or automotive parts directly to consumers requires a base that will not drop out. The interlocking bottom flaps distribute the weight, while the handle makes the dense package manageable.

When to evaluate flat-top or taped alternatives

When the box will travel through a parcel network

Evaluate the standard RSC (FEFCO 0201) or a dedicated mailer. The snap base and handle tabs rely on friction, which introduces risk under courier drop impacts. An outer master carton is usually necessary for parcel shipping.

When you need a flat top for pallet stacking

Evaluate the Snap-Lock Box with Tuck Top (FEFCO 0215). It keeps the tool-free base but trades the handle for a flat lid, allowing direct vertical palletization without a master shipper.

When you want a different retail silhouette

Evaluate the Gable Box (FEFCO 0217). Both offer a handle and snap base, but the gable style slopes the side walls inward, which changes the internal clearance and the visual profile on the shelf.

When packing speed is the only priority

Evaluate a crash-lock base (FEFCO 0211) if the manual 1-2-3 folding sequence slows down your fulfillment line too much. Crash-lock bottoms pop into place instantly, though they require factory gluing.

Close variants and lookalike dielines

The closest library neighbors include 0217a, 0217, EVC11242. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, master cartons, and payload limits

Board thickness and lock binding

This template relies on precise die-cut tabs to secure the handle and base. Standard single-wall or fine flutes fold cleanly. Heavy double-wall board will bind the locks and tear the handle tabs unless the cutting die is explicitly tuned for the extra thickness.

Master carton planning

Since the upright handles prevent stable vertical stacking, you must plan for an outer master shipper if these boxes will travel on pallets from the packing facility to the retail destination.

Payload weight limits

While the handle is double-thick, the base relies on interlocking flaps. Heavy products should undergo physical drop testing to confirm the bottom holds during transit without the aid of packing tape.

Assembly labor time

The 1-2-3 snap bottom requires operators to fold four separate flaps in sequence. While it eliminates tape, this manual process takes longer than erecting a pre-glued auto-bottom or running a box through an automated case taper.

Handle aperture and locking tab adjustments

Handle aperture sizing

The die-cut grip can be widened or heightened to accommodate different hand sizes, or adjusted to clear specific internal product components that sit near the top of the box.

Locking tab depth

The mechanical tabs that secure the top closure can be adjusted for a tighter friction fit or an easier release, depending on whether the box is meant for a single retail trip or repeated opening and closing.

Dust flap extensions

The minor top flaps can be extended to meet in the center, providing a complete secondary ceiling beneath the handle. This adds dust protection and prevents small items from slipping out near the grip.

Board and packing details

Shaped die-cutting and production routing

Unlike a standard slotted box, the handle cutouts and diagonal base flaps require shaped die-cutting. This production route makes it a specialized choice for retail presentation rather than a high-volume transit commodity.

Additional notes

Print surface and tape-free exterior

Because the top and bottom close mechanically, no packing tape crosses the main panels. This leaves the front, back, and sides completely clear for retail graphics or labels.

Related retail and transit boxes

0201: Standard RSC

Switch to this standard format if the box must travel through a parcel network or requires maximum manufacturing efficiency.

EVC11242: Carrying Handle - Glued Bottom

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

FAQs

Route and shipping

Can I ship this box through the mail?

The interlocking base and handle tabs rely on friction and mechanical folds. Parcel transit introduces drop risks that often require an outer master carton to keep the primary package intact.

Closure and assembly

Does the bottom need packing tape?

The 1-2-3 snap base interlocks mechanically to hold the product without tape. However, heavy payloads should be tested to ensure the flaps do not push through under weight.

Route and shipping

Can I stack these on a pallet?

Only if you pack them inside a larger master shipper. The upright handle prevents stable vertical stacking of the individual boxes.

Board and finish

What board types work best for the handle?

Fine flutes and standard single-wall boards fold cleanly and lock securely. Double-wall corrugated is often too thick and will bind or tear the locking tabs unless the cutting die is specifically adjusted.

Quantity and production path

Does this run like a standard shipping box?

The handle cutouts and diagonal base flaps require shaped die-cutting rather than straight-knife slotting. This production route involves different setup requirements and is geared toward retail presentation rather than basic transit.

Closure and assembly

Do I need special equipment to assemble the base?

No. The 1-2-3 snap bottom is designed entirely for manual assembly. Operators fold the bottom flaps in a specific sequence to lock them together without tape, glue, or machinery.

Inserts and product fit

How does the handle affect the interior space?

The major top flaps fold upward to create the handle rather than folding flat across the top. This means your product must clear the top edge of the side walls, as there is no flat ceiling directly above the payload.

Route and shipping

Can the handle tear if the box is too heavy?

Yes. Because the handle carries the entire weight of the package, heavy items can cause the die-cut tabs to tear out. Always test your specific product weight with a physical sample before committing to a large run.
