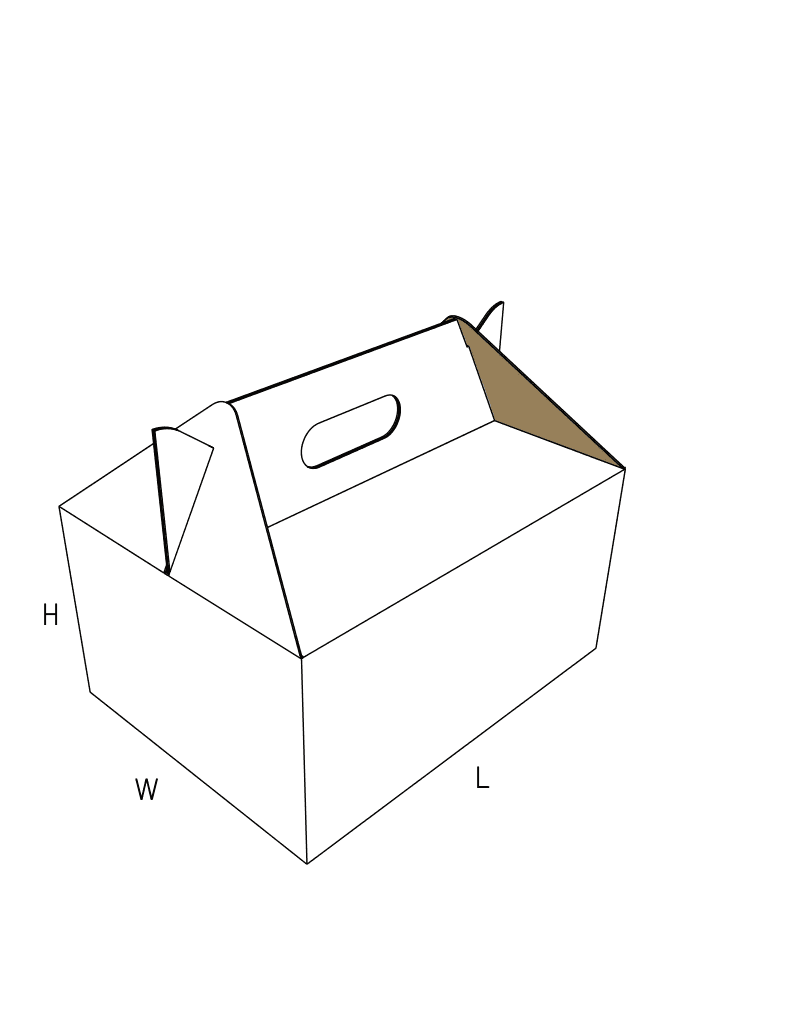

FEFCO 0217

Gable Box with Snap-Lock Base

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Integrated double-thick carrying handle replaces secondary bags
  • 1-2-3 snap-lock bottom closes without packing tape
  • Peaked top requires a master carton for pallet stacking

About this product

The gable box combines a tool-free interlocking base with an integrated carrying handle. Delivered flat, it pops open and locks together manually, creating a retail or promotional package that consumers can carry away without needing a separate shopping bag.

Because the top flaps converge to form the handle, this carton lacks a flat top surface. It cannot be stacked directly on a pallet without an outer master shipper, making it a specialized choice for presentation and carry-out rather than high-density warehouse storage.

Common uses

  • Beverage multipacks (glass jars, bottles)
  • Promotional onboarding kits
  • Takeaway food and catering
  • Live animal transport carriers

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail carry-out, multipacks, and promotional kitting

Retail carry-out and multipacks

The built-in handle allows consumers to grab heavy or awkward items directly from the shelf. It works well for glass jar multipacks, craft kits, and retail goods where a standard paper bag might tear.

Promotional and sales kits

For events, onboarding kits, or sales presentations, the gable shape provides a distinctive unboxing experience. The tape-free closure keeps the exterior branding clean and allows the recipient to open and reclose the box without destroying it.

Takeaway food and catering

The enclosed shape and sturdy handle make this carton useful for catering deliveries or premium takeaway meals. The corrugated board provides some insulation, while the handle keeps the base flat during transport.

Live animal transport

Pet stores frequently use this style for the safe transport of small pets. The sturdy handle keeps the carrier stable, and the die-cut design allows for easy addition of ventilation gaps.

Beverage, specialty food, and boutique retail

Beverage and specialty food

Breweries and specialty food brands use this carton for sample packs and gift sets. The snap-lock base holds the weight of glass bottles, while the handle encourages immediate grab-and-go purchases.

Industrial parts and hardware

Distributors use gable boxes to kit heavy automotive or industrial components. The corrugated handle provides a reliable grip for heavy metal parts that would otherwise be difficult to carry across a shop floor.

Boutique retail and cosmetics

High-end retail shops use the gable box as an all-in-one gift package. The large, unbroken side panels offer excellent space for high-quality print and branding, eliminating the need for separate gift bags.

When to compare flat-top or taped-base alternatives

Standalone pallet shipping

If the boxes need to be stacked directly on top of each other for freight or warehouse storage, the peaked handle will crush. Compare the Tuck Top Snap-Lock Box (FEFCO 0215), which uses the same fast-assembly base but finishes with a flat, stackable lid.

High-speed automated packing

Automated fulfillment lines cannot fold a 1-2-3 snap base or thread the top handle tabs. If your packing line relies on automation, a Regular Slotted Container (FEFCO 0201) sealed with tape or glue is a safer choice.

Close variants and lookalike dielines

The closest library neighbors include 0220, EVC11201, 0222. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, master shippers, and assembly planning

Board thickness and lock friction

The die-cut handle tabs and bottom hooks are highly sensitive to board caliper. Fine flutes fold crisply and thread easily. Heavy double-wall board can cause the handle tabs to bind or tear during manual assembly unless the cut clearances are explicitly widened.

Master shipper planning

Because these boxes cannot support vertical weight on their handles, you must plan for an outer master carton if they will travel through LTL freight or parcel networks.

Manual assembly time allocation

While the base locks together without tape, the sequential folding of the bottom and the threading of the top handle tabs require manual dexterity. Factor this assembly time into your fulfillment planning.

Print surface and branding coverage

The handle is formed from the main corrugated blank, meaning it can carry the same print, coating, or branding as the side panels. Decide whether you need inside printing for the unboxing experience.

Handle sizing, base reinforcement, and display windows

Handle hole dimensions

The die-cut hand holes can be widened or heightened to accommodate different hand sizes or work gloves, provided the remaining corrugated board above the hole retains enough strength to support the payload.

Base lock reinforcement

For exceptionally heavy items, the bottom dovetail hooks can be extended or reinforced to prevent the floor from dropping out under concentrated point loads.

Display window cutouts

The large side panels can be modified with die-cut, tuck-in windows to expose internal contents, such as glass jars or cosmetic bottles, without compromising the structural integrity of the handle.

Board and packing details

Tooling requirements

The complex curves of the handle and the angled bottom hooks require a flatbed or rotary cutting die. It cannot be produced on conventional straight-knife slotting equipment.

Factory layout variations

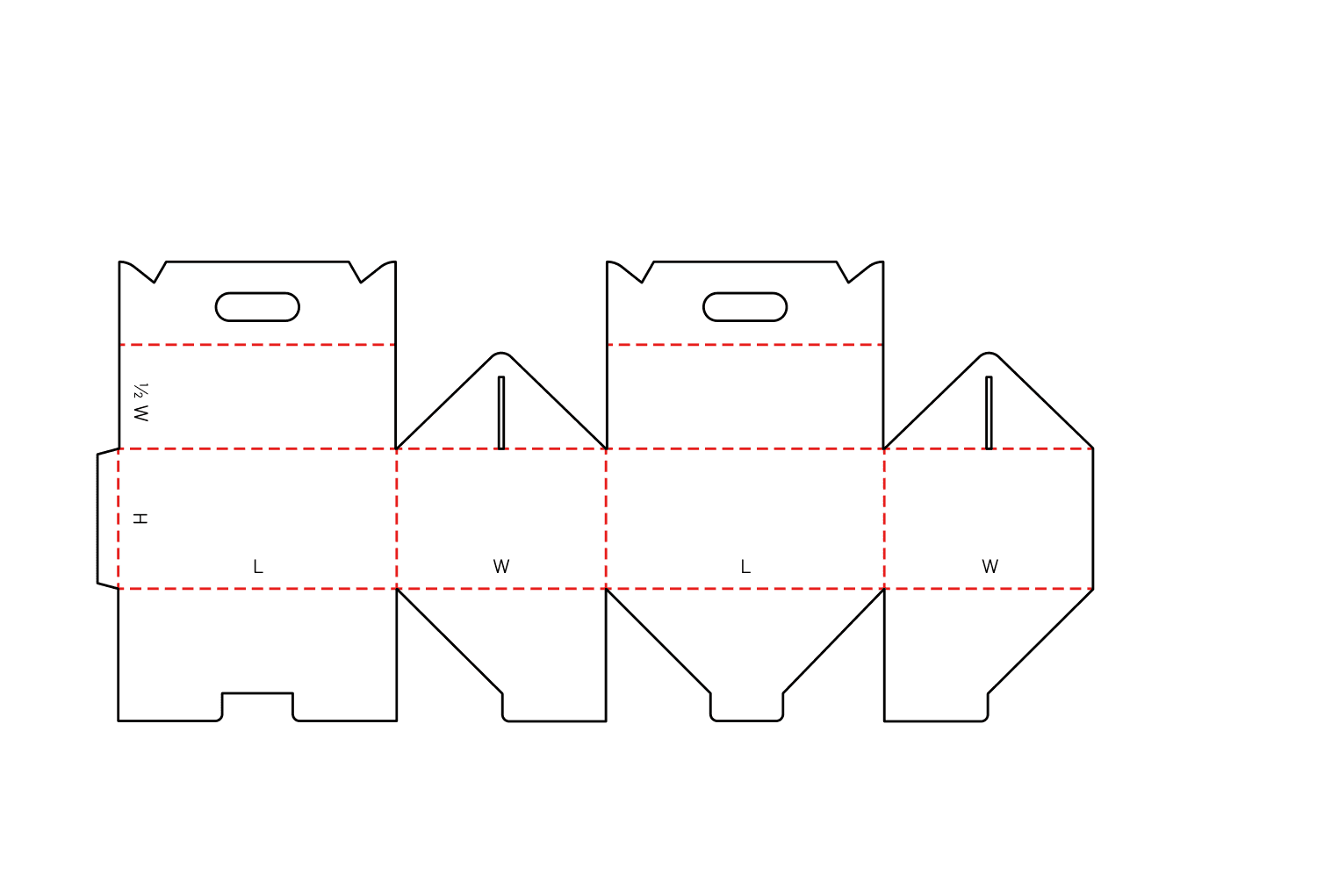

Factory layout sequence (0217 vs 0217a)

You may see variations in how the flat blank is laid out, such as starting with a length panel versus a width panel. This is a factory-level adjustment to fit specific folder-gluer machines and does not change the final 3D box you receive.

Additional notes

Outer carton requirements

Plan your master shipper dimensions carefully. The assembled gable box is taller than its internal volume suggests because of the vertical handle.

Related retail and display packaging

EVC11201: Carrying Handle - Snap Lock

EngView neighbor that can look close in CAD. Review it if a sample or dieline seems similar, then verify closure style, slots, wall build, and assembly before treating it as a substitute.

FAQs

Shipping and route

Can I ship this box through a parcel courier?

Sending a gable box alone through a mixed parcel network is risky. The handle can catch on sorting belts, and drop impacts can pop the mechanical locks open. They usually require an outer shipping box for courier transit.

Inserts and product fit

Does the peaked top reduce internal space?

Yes. The angled top flaps reduce the usable headroom near the center of the box. Tall items must be placed carefully so they do not interfere with the handle tabs folding inward.

Print and finish

Can the handle be printed?

Yes. The handle is formed from the main corrugated blank, meaning it can carry the same print, coating, or branding as the side panels.

Packing labor

Do I need tape to seal the bottom?

No. The four bottom flaps interlock mechanically to form a secure floor. The weight of your product helps keep the base locked in place.

Samples and prototypes

Why is a physical sample important for this style?

A sample proves two things: that the handle will not tear under the actual weight of your product, and that the board thickness allows your packing team to thread the locks without excessive effort.

Inserts and product fit

Do I need a separate insert for multiple items?

If you are packing fragile items like glass jars, a corrugated partition or insert prevents them from clinking together. The gable box itself does not have internal dividers.

Production path

How is this box delivered?

The factory glues the side seam and delivers the box flat. Your packing team pops it open, folds the bottom locks, loads the product, and threads the top handle.

Board and finish

Is double-wall board a good choice for this box?

Heavy double-wall board makes the manual folding process difficult. The thick board can cause the handle tabs to bind or tear during assembly unless the factory explicitly widens the cut clearances.
