Heavy payloads, flat goods, and variable-height packing
Heavy palletized transport
The double-wall perimeter supports significant vertical weight. This helps dense industrial components stacked high on a pallet resist compression without buckling the bottom tiers.
Large flat products
The fully removable lid allows operators to drop wide or awkward items directly into the base without fighting top flaps during the packing process.
Reusable internal kitting
The friction-fit lid can be removed and replaced repeatedly without degrading the box, serving well as an in-plant storage or parts bin.
Variable-height packing
Because the lid slides over the base, the final closed height can adjust slightly to accommodate different product depths without leaving a structural void.
Manufacturing, kitting, and textile distribution
Industrial equipment manufacturers
Teams shipping heavy metal parts or motors rely on the vertical crush resistance to prevent lower-tier boxes from buckling under pallet weight.
Archival and document storage
The clean top-loading access and long-term stacking stability make this a practical choice for heavy paper storage.
Textile and garment distribution
The wide, flat format and removable lid allow for neat stacking of apparel, making it easier to pack and unpack without wrinkling the contents.
When to consider offset slots or pre-glued trays
High-speed packing lines
If erecting and taping two separate trays slows down fulfillment, compare the FEFCO 0303 pop-up box. It uses factory-glued corners for instant assembly.
Thick double-wall boards
If you are specifying very heavy board grades, the corner flaps on this box can stack up and cause the lid to bind. Compare the FEFCO 0301, which offsets the slots to distribute that corner bulk.
Lighter payloads
If you do not need full double-wall strength, a partial telescope box like the FEFCO 0306 uses less material and a shorter lid.
Board thickness, corner fastening, and closure methods
Corner fastening method
Decide whether your packing team will secure the eight corners with tape, industrial adhesive, or heavy-duty stitches. Stitches are common for extreme industrial loads but require specialized equipment on the packing floor.
Board thickness and lid clearance
The lid is parametrically scaled to slide over the base. If you change the board flute, the lid dimensions must be recalculated, or it will bind and tear.
Outer sealing for mixed transit
The lid relies on a friction fit. If this box will travel through a mixed courier network rather than on a wrapped pallet, it usually requires outer strapping or tape to prevent the lid from separating during handling.
Print surface allocation
The uninterrupted lid provides a large, flat surface for printing. Decide whether branding or handling instructions should go on the top panel or the double-wall sides.
Adjusting the telescopic fit and handling features
Friction fit tolerance
The clearance between the base and lid can be adjusted in the template. A tighter gap creates a vacuum-like seal for secure handling, while a looser gap allows faster, one-handed lid removal for retail or display use.
Hand hole additions
Adding die-cut hand holes to the side panels makes lifting heavy loads easier, though this requires flatbed die-cutting and slightly reduces vertical compression strength.
Offset corner slots
Shifting the flap positions (as seen in FEFCO 0301) helps the lid slide over the base more smoothly when using thick corrugated board.
Board and packing details

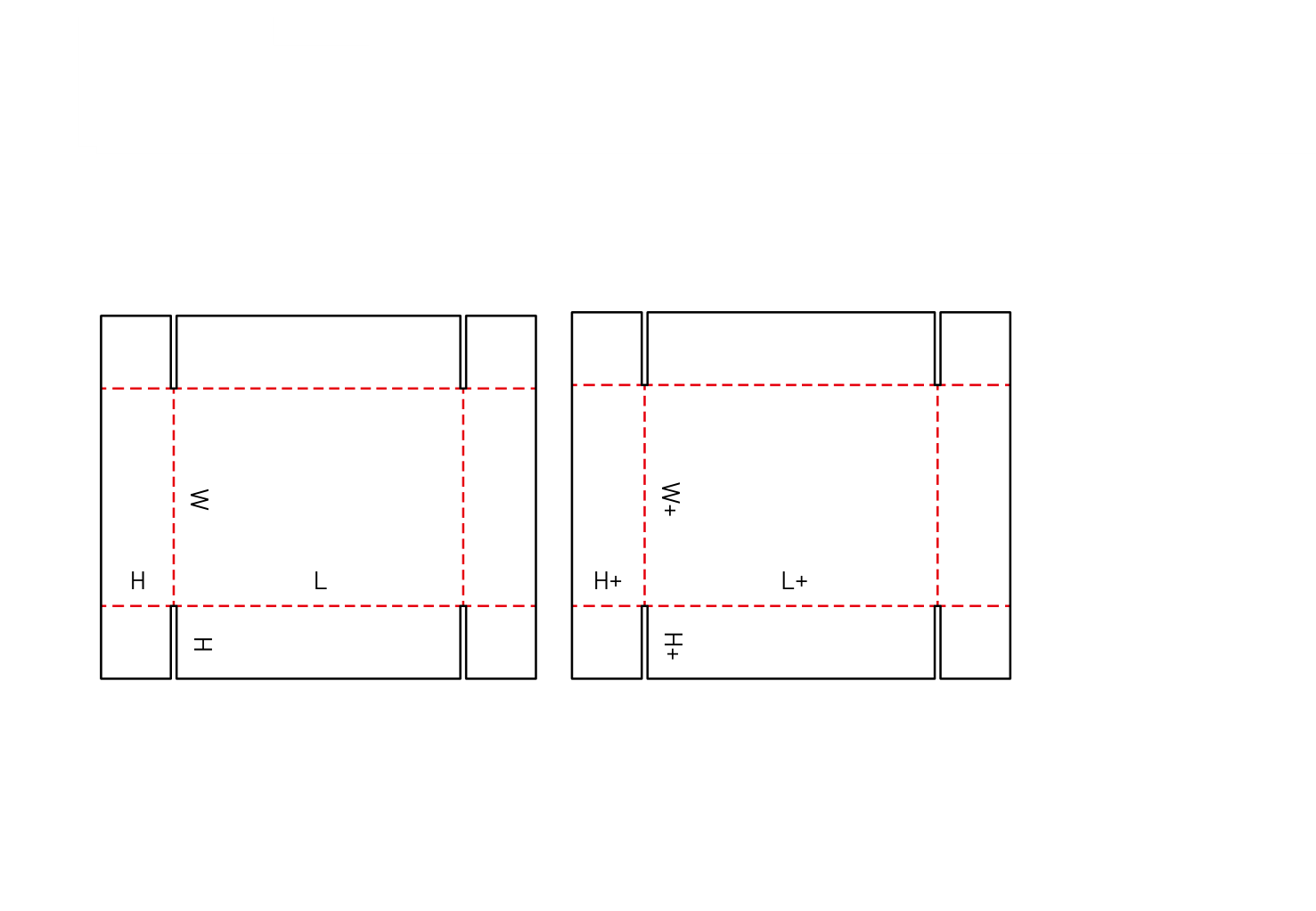

Two-blank production routing
Because this box requires two separate blanks, it often doubles the press passes or machine setups compared to a standard slotted container. This makes it highly durable but more material- and labor-intensive to produce.
