FEFCO 0306

Short-Lid Telescopic Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

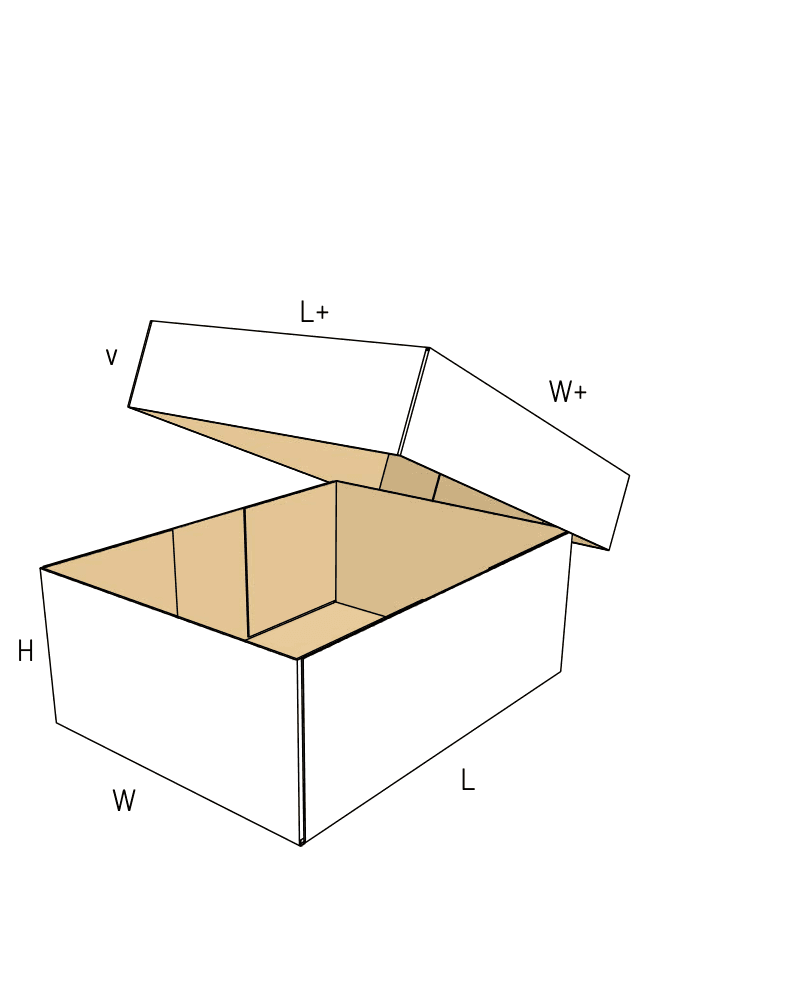

  • Two-piece design with a removable friction-fit lid
  • Requires taping or gluing on both the base and the lid
  • Provides a clean retail reveal without complex locking tabs

About this product

The short-lid telescopic box delivers a classic two-piece unboxing experience using standard corrugated board. It consists of a base tray and a separate, shorter lid that slides over the top to create a clean presentation.

Because the lid does not cover the full depth of the base, this package uses less material than a fully overlapping telescopic box. The trade-off is assembly time: packers must manually square and tape the flaps for both the base and the lid before loading the product.

Common uses

  • Footwear and apparel retail packaging
  • Premium industrial component kitting
  • Reusable document or parts storage

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail presentation and reusable storage

Retail and presentation packaging

The separate lid creates a deliberate unboxing moment. The smooth top surface serves as an uninterrupted billboard for branding, while the base holds the product securely without interfering flaps.

Internal kitting and reusable storage

Because the lid lifts off entirely, the box can be opened and closed repeatedly without wearing out hinge creases or tearing tuck tabs. This makes it highly durable for parts bins or document archiving.

Footwear and apparel packing

This is the structural foundation for corrugated shoeboxes. It allows customers to remove the lid completely to inspect the product, then replace it without damaging the packaging.

Heavy component extraction

When shipping heavy or expensive parts that require careful handling, a removable lid prevents the user from having to reach deep into a flapped box and wrestle the product out.

Footwear, apparel, and premium kitting

Footwear and apparel brands

Brands use this style to replicate the traditional shoebox experience while utilizing stronger corrugated board for heavier items like boots or bulk apparel.

Industrial component manufacturers

Facilities packing heavy gears or motors use the removable lid so end-users can lift the product straight up rather than pulling it through top flaps.

E-commerce fulfillment

Fulfillment centers using this box must plan for secondary packaging, as the friction-fit lid requires an outer mailer or heavy strapping to handle courier sorting.

When to evaluate full-depth lids or pop-up trays

High-volume packing lines

Erecting and taping two separate boxes takes twice as long as a standard slotted carton. If packing speed is the bottleneck, evaluate a pre-glued pop-up tray, which snaps into shape instantly without tape.

Heavy palletized stacking

The short lid means the lower portion of the box relies on a single wall of corrugated board for vertical strength. If you are stacking heavy goods, a full-telescope box provides a double-wall perimeter for much higher crush resistance.

Standard parcel shipping

A friction-fit lid can easily separate during rough courier transit. If this box ships individually, it will need external strapping or security tape. For simpler parcel shipping, a standard slotted carton or a roll-end mailer may be more secure.

Close variants and lookalike dielines

The closest library neighbors include 0312a, 0312, 0300. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, closure, and print choices

Board thickness and friction fit

The lid must be scaled precisely to slide over the base without binding or falling off. If you change the flute profile, moving from a thin E-flute to a thicker C-flute, the lid dimensions must be recalculated to maintain the correct clearance.

Flap fastening method

Both the base and the lid have flaps that must be secured. the package may call for to decide whether your pack station will use tape, hot-melt glue, or stitches to close these flaps before loading.

Print separation for base and lid

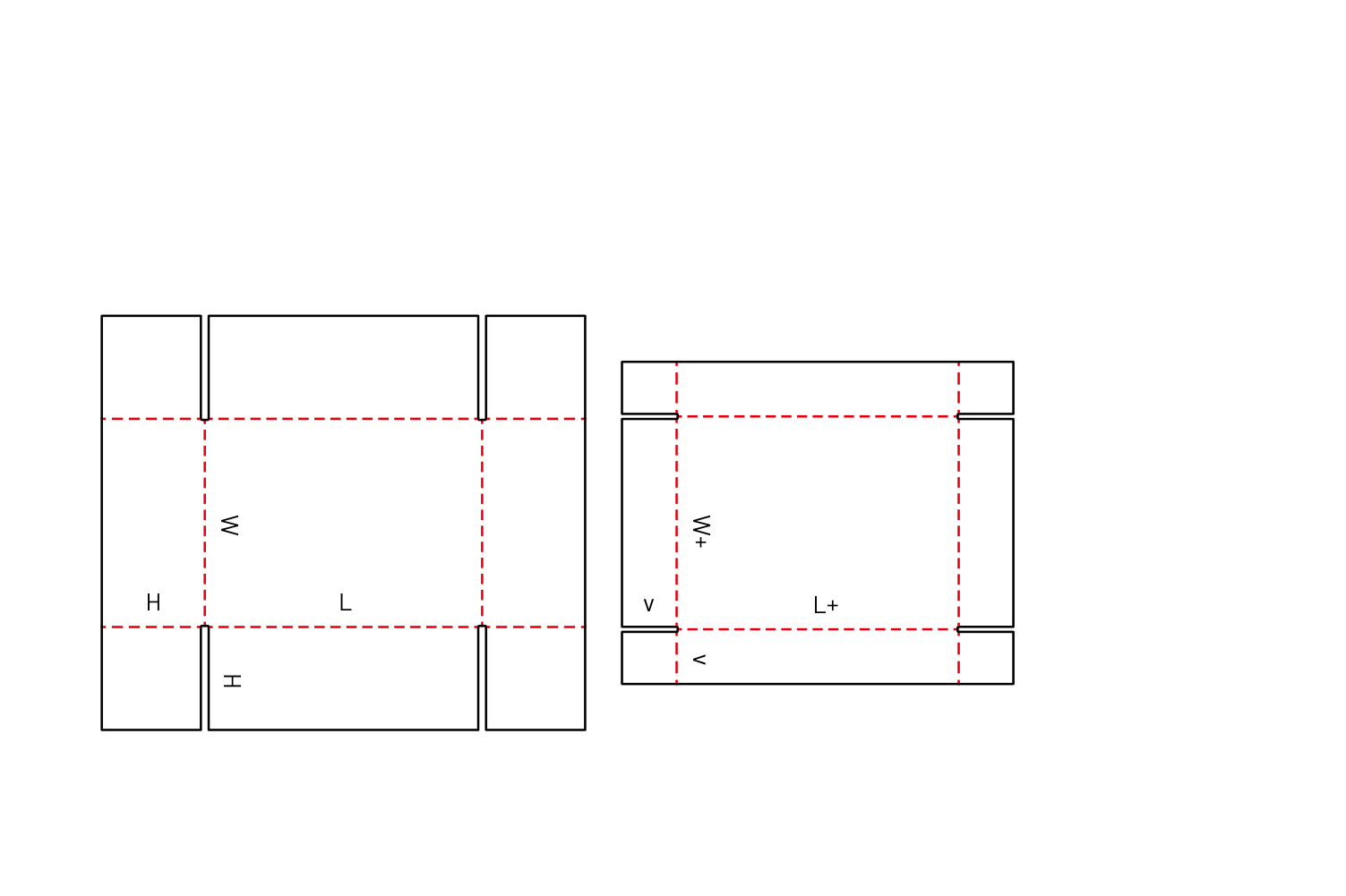

Because the base and lid are manufactured as two separate flat blanks, they can be printed differently. You might choose a high-color graphic for the lid while leaving the base as plain kraft board to manage costs.

Outer shipping strategy

Since the lid relies on friction, you must decide how to secure it for transit. Options include heavy-duty strapping, security tape, or placing the entire unit inside a master shipping carton.

Adjusting lid depth and flap profiles

Lid skirt depth

The height of the lid can be adjusted. A very shallow lid uses less material and is easier to remove, while a deeper lid provides more branding space and better friction retention during handling.

Flap slot profiles

The slots between the flaps can be cut square or with rounded tapers. Rounded tapers can make manual folding slightly faster at the pack bench by preventing the flaps from catching on each other.

Base depth vs lid overlap

The ratio of the lid height to the base depth changes the visual presentation. A lid that covers exactly half the base creates a different retail look than a lid that only covers the top inch.

Board and packing details

Testing the friction fit

Always request a physical sample in your exact chosen board grade. The mathematical clearance between the base and lid must be tested by hand to ensure it slides smoothly without being too loose.

Additional notes

Friction fit testing

Always request a physical sample in your exact chosen board grade. The mathematical clearance between the base and lid must be tested by hand to ensure it slides smoothly without being too loose.

Related two-piece and presentation boxes

0300: Full Telescope Box

Review the Full Telescope Box if the package needs maximum vertical stacking strength and double-wall protection.

FAQs

Shipping and route

Can this box ship through the mail without an outer carton?

It requires secure external taping or strapping. The friction-fit lid can easily pop off during courier sorting if it is not physically bound to the base.

Assembly and packing

Does this box require tape to assemble?

Both the base and the lid arrive as flat tubes that require external fastening. You must manually fold and tape, glue, or stitch the flaps on both pieces before you can use them.

Material and structure

Why choose a short lid instead of a full-depth lid?

A short lid uses less corrugated board, making it lighter and less expensive to produce. It is the better choice when you want a removable lid but do not need extreme vertical stacking strength.

Can we use thick double-wall board for this style?

Thick board works well, but the dimensional clearance between the base and the lid becomes critical. Heavy corrugated grades require a larger offset so the lid does not bind against the base corners during assembly.

Assembly and packing

How does this compare to a standard shipping box for packing labor?

It requires roughly twice the labor. A standard box requires erecting and taping one unit. This style requires erecting and taping two separate units before sliding them together.

Print and finish

Can the lid and base be printed with different designs?

Since the base and lid are cut from two separate blanks, they can run through the press independently. This allows you to pair a highly graphic premium lid with a plain kraft base.

Assembly and packing

Can this box be assembled by automated machinery?

Standard single-case erectors cannot assemble this style because it requires erecting two separate pieces and telescoping them. It is typically assembled by hand or with specialized two-part lidding equipment.

Material and structure

Does the lid lock into place?

No, the lid relies entirely on a friction fit against the base walls. It does not have structural ear locks or tuck tabs, which is why it requires external strapping for rough transit.
