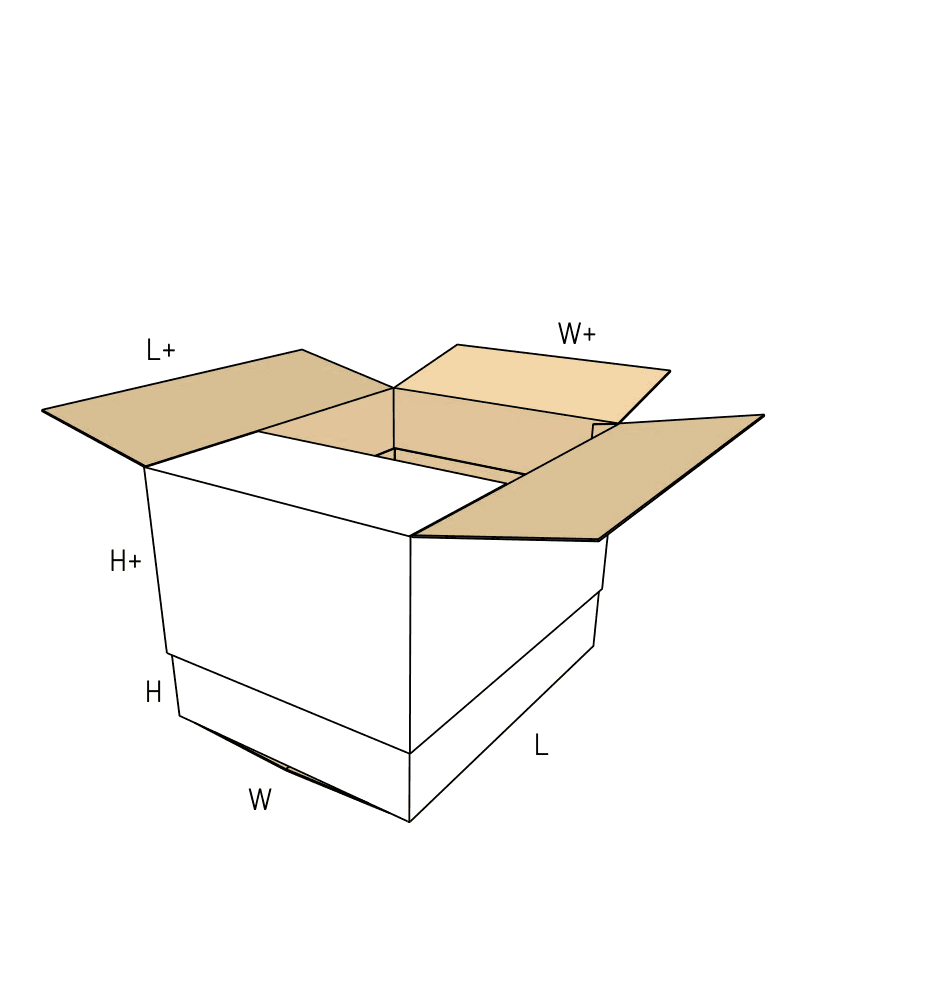

FEFCO 0320

Two-Piece Telescopic Box

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Full-depth lid creates double-wall vertical stacking strength
  • Sliding fit accommodates variable-height payloads like printed matter
  • Requires erecting and taping two separate pieces per package

About this product

This heavy-duty, two-piece package consists of a base tube and a matching lid that slides completely over it. By overlapping the inner and outer walls, it creates a continuous double-thick perimeter that delivers exceptional vertical compression resistance for heavy or dense payloads.

You trade material efficiency and packing speed for extreme crush resistance. Because your team must erect and seal two separate pieces before sliding them together, this box is reserved for jobs where a standard shipping carton would buckle under the weight of a fully loaded pallet.

Common uses

  • Heavy industrial parts
  • Citrus and agricultural bulk
  • Printed catalogs with variable stack heights
  • Long or awkward items requiring drop-over loading

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Heavy-duty transit and variable-height packing

Heavy industrial and dense pallet loads

Dense metal parts, motors, or bulk liquids place immense stress on the bottom boxes of a pallet. The double-wall perimeter prevents the side panels from bowing or buckling under sustained vertical pressure.

Variable-height product stacks

For printed matter, catalogs, or stacked sheet goods, the exact height of the payload can vary from order to order. The telescopic lid simply slides down until it meets the product, eliminating the need for custom box heights or excessive void fill.

Agricultural and cold-chain bulk

Boxes that sit in high-humidity environments or cold storage often lose their rigidity. The overlapping walls provide a structural buffer, ensuring the stack remains stable even if the outer board begins to soften.

Long or awkward items requiring drop-over loading

Instead of sliding a heavy or awkward item into a long tube, packers can place the item directly into the open base tray and drop the lid over it, reducing handling strain.

Industries relying on telescopic strength

Industrial manufacturing

Teams shipping heavy components use this style to avoid upgrading to expensive wooden crates, relying on the double-wall corrugated strength to survive demanding freight networks.

Commercial printing and publishing

Printers use the sliding lid to tightly pack reams of paper or catalogs, ensuring the goods cannot shift and scuff during transit, regardless of the exact page count.

Agricultural packing

Growers packing citrus or heavy produce rely on the double-wall perimeter to maintain stack stability in cold storage, where moisture often weakens single-wall cartons.

When to consider a different box style

When the payload is lightweight

If your product supports its own weight on a pallet, the double-wall overlap of a telescopic box adds cost without benefit. A standard shipping box uses half the material and requires half the assembly labor.

When flat storage is prioritized over factory gluing

If you prefer to store your boxes as completely flat cross-shapes rather than factory-glued tubes, compare this to the 0300 style. The 0300 requires manual corner taping but avoids the factory side-seam.

Close variants and lookalike dielines

The closest library neighbors include 0319, 0319a, 0512. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Clearance, closure, and board decisions

Board thickness and lid clearance

The friction fit between the base and the lid is highly sensitive to board thickness. If you upgrade from a single-wall to a double-wall board, the lid's dimensions must be mathematically recalculated, or it will bind and tear when your team tries to slide it on.

Pack-bench fastening methods

Both the base and the lid arrive as flat tubes. Your team must fold and secure the top and bottom flaps using heavy-duty tape, hot-melt glue, or industrial stitching before the box can be loaded.

Outer sealing for parcel transit

The lid is held in place by friction. If this box will travel as an individual parcel rather than sitting on a wrapped pallet, you must plan for external strapping or security tape to prevent the lid from separating during a drop.

Flap overlap style

You must decide whether the top and bottom flaps should meet in the center or fully overlap. Fully overlapping flaps provide double-thick floor and ceiling protection but require more material and reduce the internal height.

Modifying the telescopic fit

Adjusting the friction fit

The clearance gap can be tightened for a secure grip that resists lifting, or loosened to allow faster, easier lidding on a high-volume packing line.

Adding hand holes for lifting

Because the friction fit can create a vacuum seal, adding die-cut hand holes to the lid makes it easier for end-users to grip and remove the top section without tearing the board.

Extending the major flaps

The major flaps can be extended to fully overlap across the width of the box, creating a double-layer floor and ceiling for extreme drop protection.

Board and packing details

Print surface and branding

Because the lid slides completely over the base, its four outer panels provide a large, uninterrupted surface for branding, handling instructions, or high-visibility labeling.

Flap extensions and base styles

Fully overlapping flaps (FEFCO 0320a)

The standard 0320 uses flaps that meet in the center. The 0320a variant extends those flaps so they fully overlap, creating a double-thick floor and ceiling. This increases drop protection but requires more material and reduces the internal height.

Additional notes

Variable height packing

If your payload height varies slightly between orders, the lid does not have to be pushed down flush to the base floor. It can stop exactly where the product ends, keeping the contents tightly secured without void fill.

Related packaging options

FAQs

Assembly and Packing

Does this box require tape or glue to assemble?

Yes. While the factory glues the side seams to create flat tubes, your packing team must fold and tape (or stitch) the top and bottom flaps of both pieces before sliding them together.

Can a single automated case erector build this box?

Generally, no. Because it consists of two separate tubes that must be erected independently and then telescoped together, it requires either manual assembly or a specialized twin-line erecting and lidding system.

Fit and Clearance

What happens if we change the board grade later?

The lid's internal dimensions are precisely scaled to clear the base's external dimensions. If you change the board thickness, the lid template must be recalculated, or it will either fall off loosely or bind and crush during assembly.

Shipping and Route

Will the lid stay on during shipping?

For palletized freight wrapped in stretch film, the friction fit and downward pressure usually keep the lid secure. For individual parcel shipping, the box must be strapped or taped shut to prevent the lid from separating during tumbling or drops.

Cost and Material

Why is this more expensive than a standard shipping box?

A full telescopic box uses nearly twice as much corrugated board for its vertical walls compared to a standard box. It also requires the factory to run two separate pieces through their equipment, doubling the production steps.

Print and Branding

Can we print on the inside of the base?

The inside of the base is hidden once the box is closed, making it a poor choice for interior printing. However, the lid provides a large, continuous outer surface that works well for branding and handling instructions.

Shipping and Route

Is this suitable for individual courier shipping?

It can be, but only if you apply external strapping or heavy-duty security tape. Without secondary sealing, the friction lid can separate if the box tumbles through a courier network.

Assembly and Packing

Can we add hand holes to make lifting the lid easier?

Yes. Adding die-cut hand holes to the lid helps end-users grip and remove the top section, which is especially useful if the friction fit creates a tight vacuum seal.
