FEFCO 0350

Heavy-Duty Octabin Bulk Container

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Eight-sided geometry resists outward bulging from bulk powders and granules
Three-piece design requires manual fastening for the sleeve and both caps
Top cap removes easily for scoop access or drop-over loading

About this product

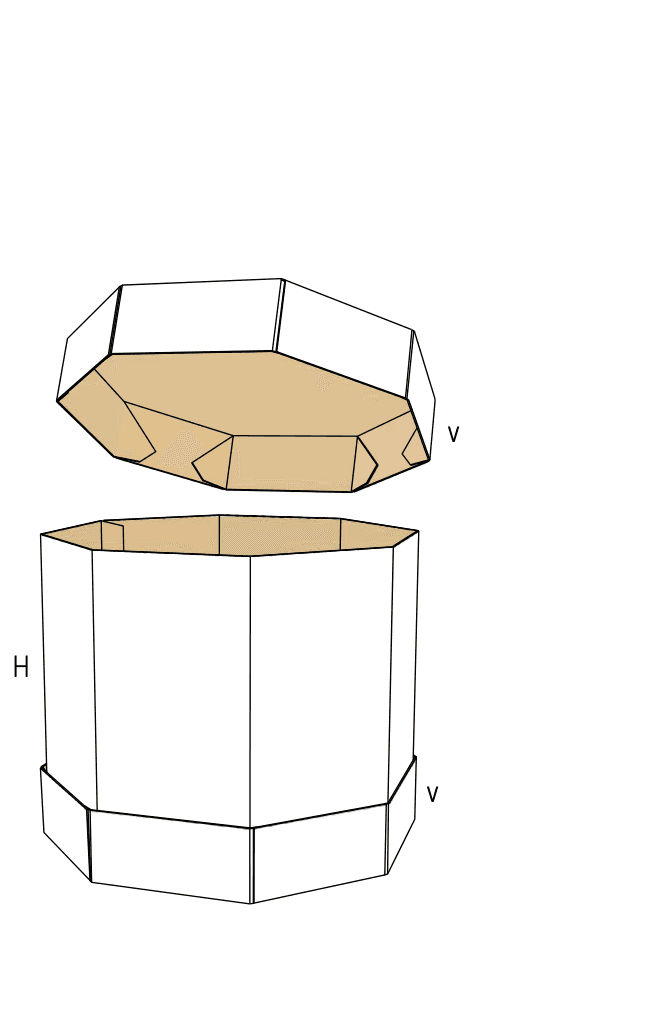

This heavy-duty, three-piece bulk container replaces standard 90-degree corners with an eight-sided geometry to contain heavy outward pressure. Consisting of a central tubular sleeve and two matching octagonal caps, the octabin is engineered specifically for flowable goods like plastic resins, powders, and heavy agricultural yields that would cause a rectangular box to bulge or burst.

You trade substantial manual assembly time (fastening the sleeve joint and all sixteen cap corners) for high hoop strength. When loaded with dense, shifting materials, the 135-degree corners distribute the internal weight evenly, keeping the pallet footprint stable and secure.

Common uses

Plastic resins and polymers
Agricultural bulk like potatoes or watermelons
Heavy industrial components

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Footprint length

Footprint width

Internal height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of material will be packed inside?

Will this bin need to match a specific pallet size?

Will the bin be exposed to high humidity or long-term storage?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Bulk containment and heavy-duty staging

Plastic resins, polymers, and powders

Flowable materials exert constant outward pressure that forces flat corrugated walls to bow. The octagonal sleeve distributes this pressure across eight shorter panels, reducing the risk of the container bulging beyond the pallet edge during transit.

Agricultural bulk and heavy produce

For dense, shifting loads like potatoes or watermelons, the three-piece design allows workers to stage the bottom cap on a pallet, erect the sleeve, and fill the bin completely before dropping the top cap over the load.

PET preforms and plastic closures

High-volume lightweight plastic parts require large internal capacity without the walls buckling under settling weight. The octabin provides a stable vertical column that maximizes pallet cube efficiency.

Heavy industrial components

When shipping loose metal parts or hardware, the 135-degree corners resist the point-load impacts that typically split the 90-degree corners of standard rectangular bins.

Industrial processing and agricultural transport

Chemical and industrial processing

Facilities handling raw granular materials rely on octabins as a stackable, fiber-based alternative to woven plastic big bags. The rigid corrugated walls allow for stable warehouse stacking, while the top cap protects against dust during staging.

Food and pharmaceutical manufacturing

When paired with an internal poly-liner, the octabin holds food-grade powders or frozen vegetables. In these environments, the joints must be glued rather than stitched to eliminate the risk of metal contamination.

Agricultural harvesting and storage

Farms and processing plants use large-format octabins to move bulk yields directly from the field to the sorting line. The open-top sleeve allows for rapid silo filling or conveyor loading.

When to consider rectangular or pre-glued alternatives

When packing rigid, square components

If your payload consists of boxed goods, server racks, or square appliances, the 135-degree corners of an octabin waste valuable internal space. A rectangular three-piece pallet box provides a better fit for right-angled payloads.

When assembly labor is a bottleneck

Erecting a standard 0350 requires manually fastening 16 cap corners and the main sleeve joint. If your packing line cannot support this labor, consider an octabin variant with a factory-glued pop-up bottom to drastically reduce setup time.

Close variants and lookalike dielines

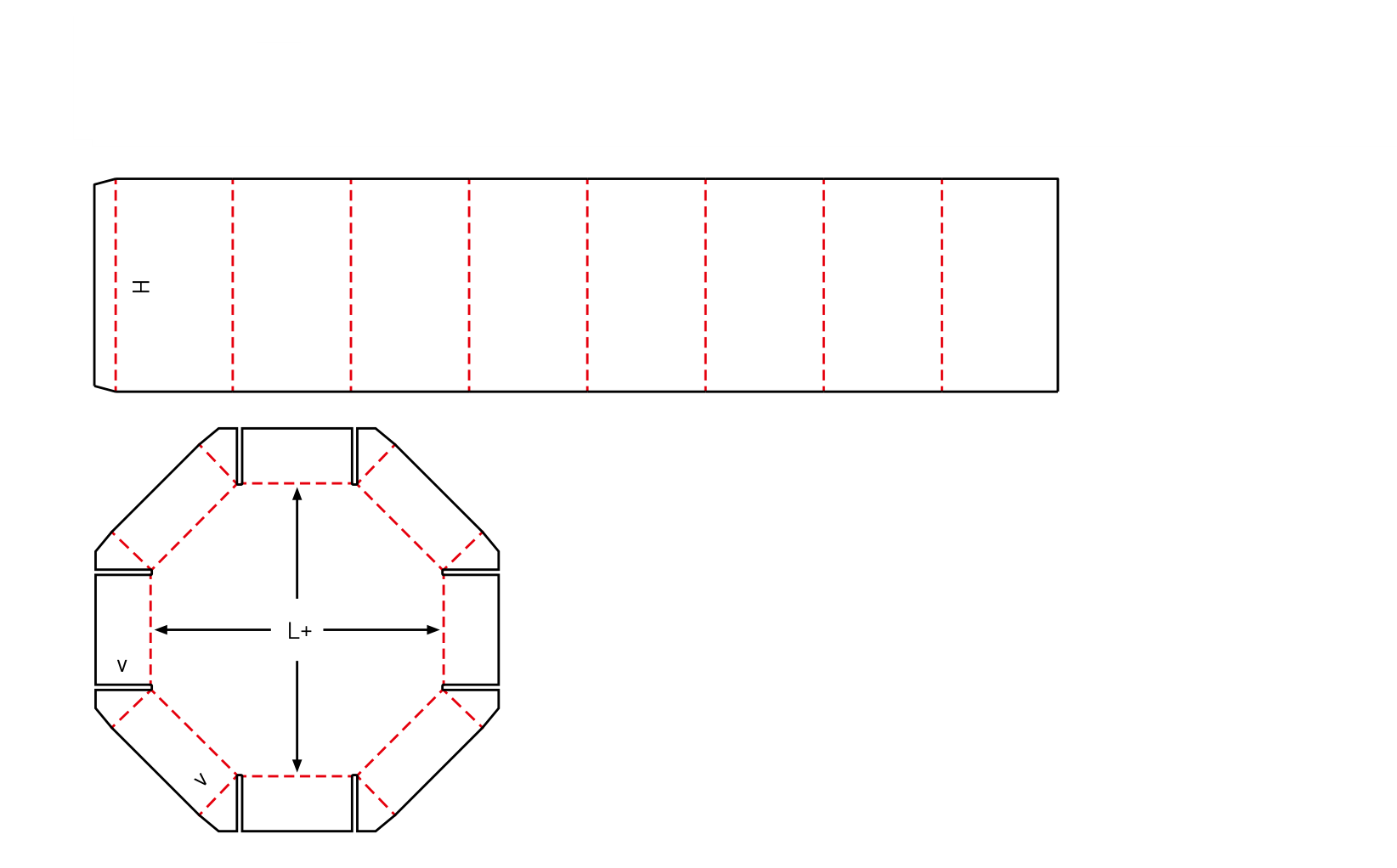

The closest library neighbors include 0351, 0352, 0310. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Joint fastening and board clearance decisions

Stitching versus gluing the joints

Because the caps and sleeve arrive flat, your team must secure the corners before filling. Heavy-duty metal stitching provides high mechanical strength for industrial parts, while cold or hot melt gluing is required for food-safe environments.

Board thickness and telescopic clearance

Octabins are typically cut from heavy double-wall or triple-wall corrugated board. If you change the board grade to increase stacking strength, the internal clearance of the top and bottom caps must be precisely recalculated so the caps slide over the sleeve without binding.

Internal liners for fine powders

The corrugated shell provides structural strength to contain outward pressure, but it is not inherently sift-proof. Fine powders and resins require a large gusseted poly-liner bag placed inside the sleeve before filling.

Pallet footprint matching

The octagonal footprint must be scaled to match your specific industrial pallets (such as CP3, CP9, or EUR). The walls need to sit flush with the deck to maximize vertical stacking strength and prevent overhang.

Adjusting the octagonal footprint and board

Moisture-resistant kraftliners

For maritime transport or long-term warehouse storage, the board can be specified with wet-strength kraft paper and water-resistant adhesives to maintain rigidity in humid environments.

Unequal-sided panel widths

While the standard octabin uses eight equal panels, the template can be adjusted with alternating panel widths to fit asymmetrical pallets, such as standard 1200x800mm Europallets.

Telescopic lid depth

The depth of the top and bottom caps can be extended to provide more overlap on the central sleeve, which increases the double-wall friction area and adds vertical stacking support.

Board and packing details

Vibration and headspace during filling

When filling an octabin with powders or granules directly from a silo, the material will settle during transit. Managing this headspace is critical. Excessive empty space at the top of the sleeve can compromise the container's ability to support a second stacked pallet.

Octabin variants

Pre-glued bottom octabins

Variants like the 0351 integrate the bottom cap into the sleeve via complex factory folding, reducing manual assembly labor on site.

Additional notes

Pallet deck requirements

Because of the high weight of a filled octabin, it should be staged on pallets with continuous bottom decks to ensure even weight distribution and prevent the corrugated base from sagging between pallet boards.

FAQs

Assembly and packing labor

How is the octabin assembled on the packing floor?

The container arrives as three flat pieces. Your team must fold the central sleeve into an eight-sided tube and secure the main joint. Then, the eight flange corners on both the top and bottom caps must be folded and fastened using tape, glue, or heavy-duty stitches before the caps fit over the sleeve.

Product fit and inserts

Can this container hold liquids or fine powders?

The corrugated shell contains the outward pressure, but it is not watertight or sift-proof on its own. Fine powders, resins, and frozen goods require a large gusseted poly-liner bag placed inside the sleeve before filling.

Route and shipping

Can octabins be shipped through standard parcel networks?

No. This is a heavy-duty industrial container designed exclusively for palletized freight. The friction-fit caps and large size require external strapping to secure the load to a pallet for LTL or full-truckload transit.

Board and finish behavior

Why is the fit between the caps and the sleeve so tight?

The caps must grip the sleeve securely to maintain the container shape under load. Because octabins use very thick double-wall or triple-wall board, even a millimeter change in material thickness requires recalculating the cap dimensions to prevent binding.

Quantity and production path

Are these boxes run on standard folder-gluers?

Rarely. The large flat footprint of the eight-panel sleeve and the specialized octagonal caps usually require jumbo rotary slotters and flatbed die-cutters. Because of this, the joints are typically left unglued by the factory and fastened manually at your facility.

Related package choice

Why choose an octabin over a standard rectangular pallet box?

When filled with loose, flowable goods, the material pushes outward against the walls. A rectangular box concentrates this stress on the long flat panels, causing them to bulge. The eight-sided octabin distributes this pressure evenly, reducing wall bowing and keeping the pallet stable.

Stacking and storage

How high can filled octabins be stacked in a warehouse?

Stacking limits depend entirely on the board grade, the density of your product, and the humidity of your facility. Heavy-duty triple-wall octabins can often support a second filled pallet, provided the bottom container is completely full with minimal empty headspace.

Reusability and lifecycle

Can the octabin be collapsed and reused?

Yes, if the joints are taped or stitched in a way that allows careful removal. However, the heavy multi-wall board develops fold memory, and repeated assembly cycles will eventually weaken the corner integrity and the friction fit of the caps.
