Packing Flat Goods and Shallow Components
Books, media, and framed artwork
The tight wrap prevents shifting and protects corners during transit. The product acts as the internal support for the box.
Shallow industrial parts and kits
Keeps flat components secure without requiring custom inserts or excessive bubble wrap. The low profile reduces dimensional weight.
Calendars and flat documents
Provides a rigid outer layer that prevents bending. The flat base supports the entire surface area of the document.
Low-profile electronics and circuit boards
Offers a snug fit for delicate flat items. When paired with anti-static materials, the tight enclosure minimizes internal movement.
Publishing, Print, and Flat-Item Fulfillment
E-commerce and catalog fulfillment
Reduces shipping volume by matching the exact height of the product. The flat delivery format also saves warehouse storage space before use.
Manual pack stations
Operators can quickly fold the blank around the item. Because there are no friction locks, the packer must hold the flaps down while applying the final tape seal.
Print shops and binderies
Allows quick packing of short-run print jobs. The wrap-around style accommodates slight variations in book or catalog thickness.
When to Consider Tuck-Lids or Full Overlaps
If the packing line prefers a self-locking closure
Compare with a roll-end tuck-top mailer. That style uses friction locks and tuck tabs to stay closed without external sealing, which can speed up high-volume manual packing.
If the product needs maximum top protection
Compare with a full-overlap cross-folder. The top flaps on a full-overlap version completely cover each other, providing double-layered security against punctures and a wider surface for tape.
Closure Methods, Board Thickness, and Fit
Closure method and flap length
Decide whether the packing line will use a single strip of tape, an H-tape seal, or strapping. This determines whether the top flaps should leave a gap, meet exactly in the center, or overlap slightly.
Board thickness and fold clearance
Because the blank folds around the product in multiple layers, thick double-wall board can cause the corners to bind. Fine flutes or standard single-wall board usually fold much cleaner.
Internal clearance for product thickness
The depth of the box must closely match the product. If the box is too deep, the item will shift; if it is too shallow, the top flaps will not close properly.
Delivery format and storage space

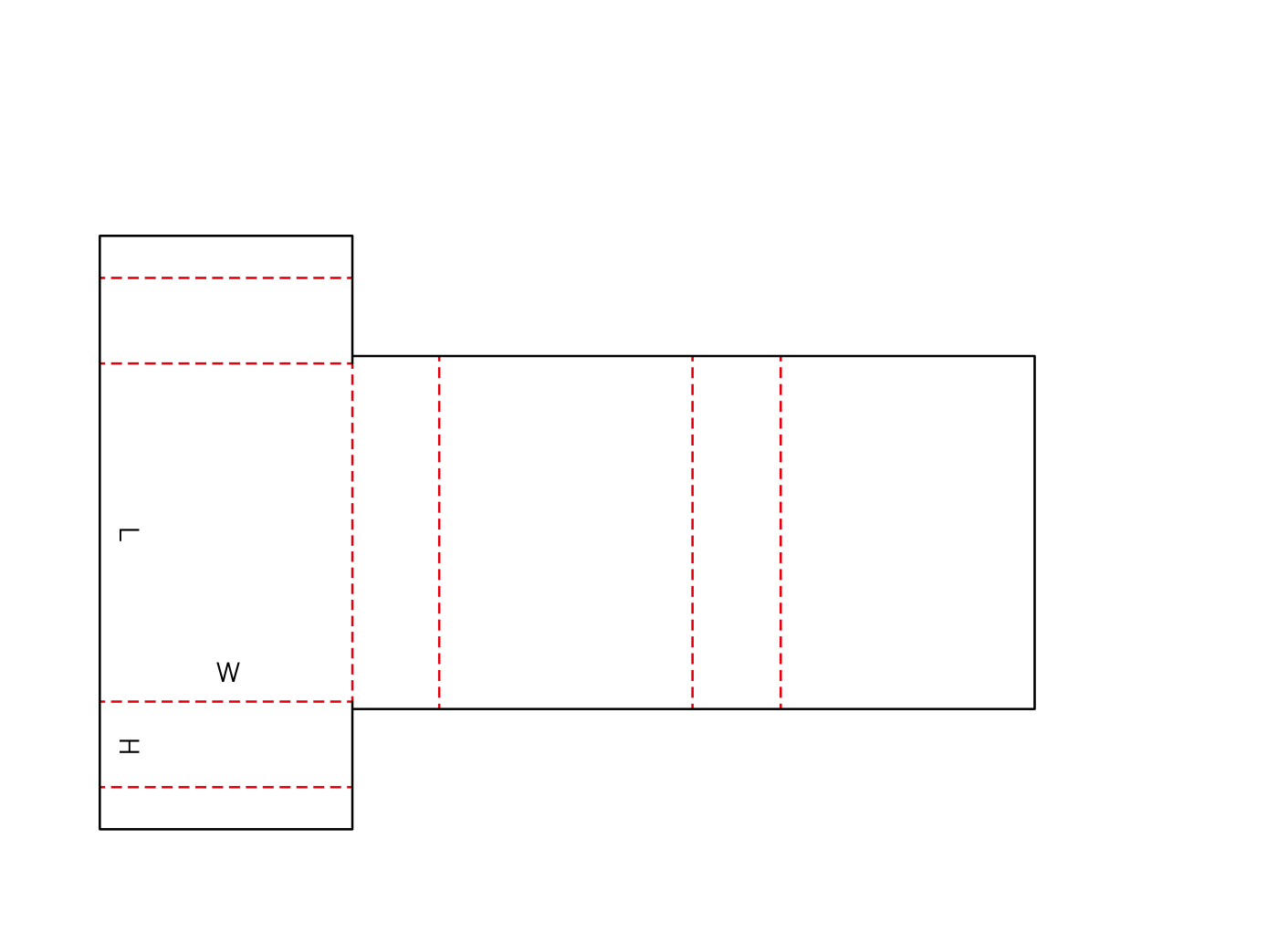

The cross-shaped blanks ship flat and take up specific pallet dimensions. Plan warehouse space accordingly, as the extended flaps create a larger footprint than a folded slotted box.
Adjusting Flap Overlap and Clearances
Top flap overlap
The length of the top closing flaps can be adjusted. They can meet in the middle for a simple tape seam or overlap to create a stronger seal against dust and tampering.
Dust flap length
The inner dust flaps can be shortened or lengthened to change how they meet inside the box. This affects corner rigidity and internal clearance.
Tear strips and perforations
Perforations and tear strips can be added to the top flaps for easier opening, though this may require an internal adhesive strip to maintain closure strength during transit.
Board and packing details
Two-hand manual assembly
Because the side walls and dust flaps do not lock into place, operators must hold the folded sections square while bringing the end walls over. This two-hand requirement affects packing speed on manual fulfillment lines.
Flap Variations
Meeting vs. Overlapping Flaps
The standard design can be cut so the top flaps meet in the middle for a single tape seam, or overlap for a wider adhesive area.
Additional notes
Flatbed die-cutting and nesting
The extended cross shape means these blanks take up a large footprint on a corrugated sheet. They are typically run on flatbed die-cutters, and the nesting layout will affect the production run.
Related Wrap-Around and Mailer Boxes
FAQs
Closure and Assembly
Can this box be assembled using only its own flaps?
No. The side walls and top flaps do not have locking tabs. The packer must hold the package closed and apply tape, glue, or strapping.
Shipping and Route
Does it work well for parcel shipping?
Yes, but it relies on thorough sealing. An H-tape method is often used so the flaps do not catch on courier sorting belts.
Product Fit
Is this a good choice for deep or bulky items?
No. The cross-folder is specifically designed for flat, shallow goods. Deep items are usually better served by a standard slotted box.
Board and Finish
Why is board thickness so important for this style?
The blank wraps around the product, meaning the outer folds must clear the inner dust flaps. Thick board can cause the corners to bulge or bind, making fine flutes a safer choice.
Modifications
Can we add a tear strip for easy opening?
Yes, perforations and tear strips can be added to the top flaps, though this may require an internal adhesive strip to maintain closure strength.
Comparisons
How is this different from a standard mailer box?
A standard mailer has a hinged lid that tucks into the front wall. This cross-folder wraps from both ends and meets in the middle, relying on an applied seal.
Product Fit
Can I use this for heavy items?
It depends on the board grade and the closure method. While the wrap-around design is sturdy, heavy items may require strapping or a heavier flute to prevent the tape seal from breaking under stress.
How does the product stay in place?
The box is sized to match the exact dimensions of the flat item. The tight wrap-around fold prevents lateral movement, eliminating the need for extra void fill.
