Flat goods and shallow-depth packing
Books, frames, and shallow electronics
Wraps tightly around rigid, flat items, providing thick edge protection and a double-layered top that resists crushing under heavy pallets.
Industrial panels and dismantled parts
Scales up well for heavy, wide items like door frames or furniture components, where a standard slotted box leaves too much empty space.
Calendars, binders, and flat print media
Secures wide, thin items that are prone to bending, using the overlapping flaps to maintain rigidity during transit.
Multi-component flat kits
Keeps hardware, manuals, and flat parts tightly bound together, preventing internal shifting without requiring custom inserts.
Publishing, framing, and industrial distribution
Publishing and art distribution
The tight wrap prevents books or framed prints from shifting during transit, reducing the need for bubble wrap or foam inserts.
B2B component shipping
Operations shipping flat metal or wood panels rely on the double-layered top to prevent puncture damage when items are stacked flat on a pallet.
E-commerce fulfillment for rigid media
Balancing the need for thick edge protection against the manual labor required to tape the final closure on the packing line.
When to consider a different wrap or mailer
Reducing material footprint
The FEFCO 0400 uses shorter inner flaps, reducing the overall blank size, though it sacrifices the double-layered top protection.
Self-locking presentation
A roll-end tuck-front mailer (FEFCO 0427) provides a cleaner unboxing experience and locks without tape, making it better for retail ecommerce.
Packing bulky or loose items
A standard slotted container (FEFCO 0201) uses board more efficiently for cubic or free-flowing goods.
Board thickness, closure, and material footprint
Board thickness and fold clearance
Because the outer flaps must fold completely over the inner flaps, thick double-wall board can cause the hinges to bind. Fine flutes yield crisp folds, while thicker boards require precise crease adjustments.
Closure method
This wrap does not lock itself. You must plan for heavy-duty packaging tape or strapping across the center seam where the flaps meet.
Material footprint and sheet yield

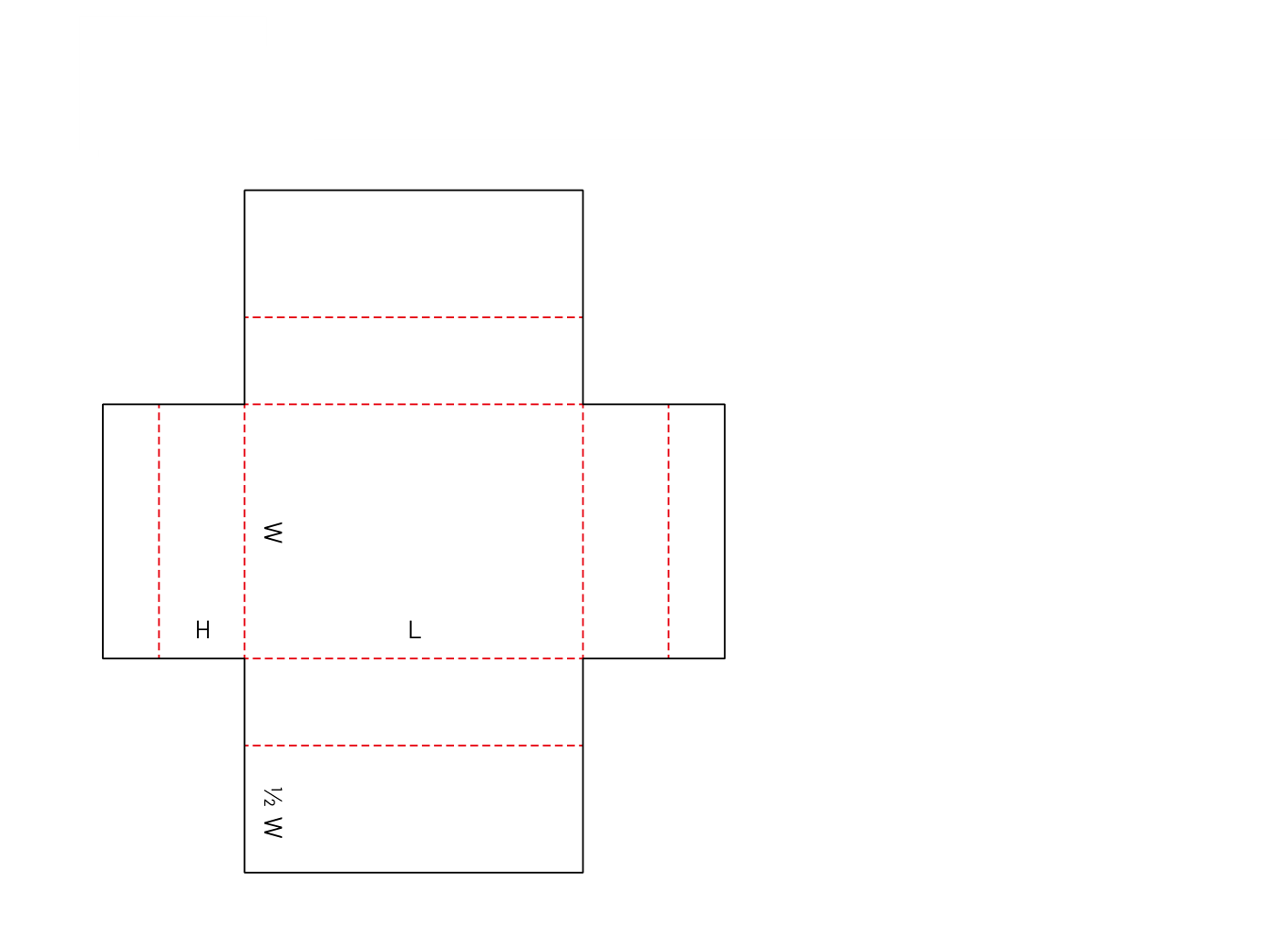

The cross shape creates large empty corners on the flat blank. This larger footprint should be weighed against the savings of eliminating void fill.
Packing line setup
Assembly requires holding the inner flaps down while folding the outer walls over, then taping. This two-handed manual process differs significantly from erecting a standard taped box.
Corner slots, depth scoring, and flute profiles
Corner slot styles
The slots separating the flaps can be cut straight or offset. Offset slots often provide a tighter corner wrap around the product, while straight slots simplify the cutting profile.
Variable depth scoring
Extra crease lines can be added to the side walls, allowing the packer to fold the box at different heights to accommodate slightly varying product thicknesses.
Flute profile selection
Choosing a fine E-flute or F-flute keeps the overlapping corners crisp and flat, while a thicker B-flute or C-flute adds puncture resistance at the cost of a bulkier fold.
Board and packing details
Manual packing rhythm
Assembly requires the operator to hold the inner flaps down while folding the outer walls over, then holding the entire package closed while applying tape. This two-handed process should be factored into fulfillment time.
Additional notes
Insert clearance for small parts
If you are packing multiple small items inside the wrap, consider adding a flat corrugated pad or tray to keep them from shifting before the flaps are folded over.
Short digital trial versus repeat run
Because the fold clearances are sensitive to board thickness, running a short digital prototype is highly recommended before committing to a large die-cut order.
Related flat mailers and trays
FAQs
Closure and Sealing
Does this box lock without tape?
No. The inner and outer flaps meet at the center, but they do not interlock. You must secure the center seam with packaging tape or strapping.
Product Fit
Can I use this for deep or bulky products?
It is highly inefficient for deep items. The cross-shaped blank becomes massive as the depth increases, driving up the material footprint. It is intended for flat, shallow goods.
Board and Material
Does board thickness affect how the box folds?
Yes. Because the outer flaps must fold over the inner flaps, thick double-wall corrugated board can cause the folds to bind. If you need heavy board, the cutting template requires precise crease adjustments to ensure the outer layer clears the inner layer.
Packing Labor
Is this faster to pack than a standard box?
It depends on your setup. It wraps quickly around the product, eliminating the time spent stuffing void fill. However, it requires two hands to hold the flaps closed while taping, which can slow down a manual packing line compared to a self-locking mailer.
Shipping Route
Can this ship through parcel networks without an outer carton?
Yes, provided the center seam is heavily taped. The double-layered top provides excellent crush resistance for courier networks, but the unsealed edges can catch on sorting equipment if the tape fails.
Cost and Production
Why does the cross shape use more material than a standard box?
The flat layout generates large empty corners on the corrugated sheet. This offcut waste reduces how many boxes can be cut from a single sheet, which changes the material economics compared to a standard slotted box.
Structure
How does the double-layered top work?
The two inner side flaps fold in to meet exactly at the center. Then, the two outer end flaps fold over them, also meeting at the center. This creates two full layers of corrugated board over the main face of the product.
Product Fit
What happens if the product is thinner than the box depth?
The product will shift up and down during transit, and the top flaps may bow inward if heavy weight is applied. The box depth must closely match the product thickness for the wrap to function properly.
