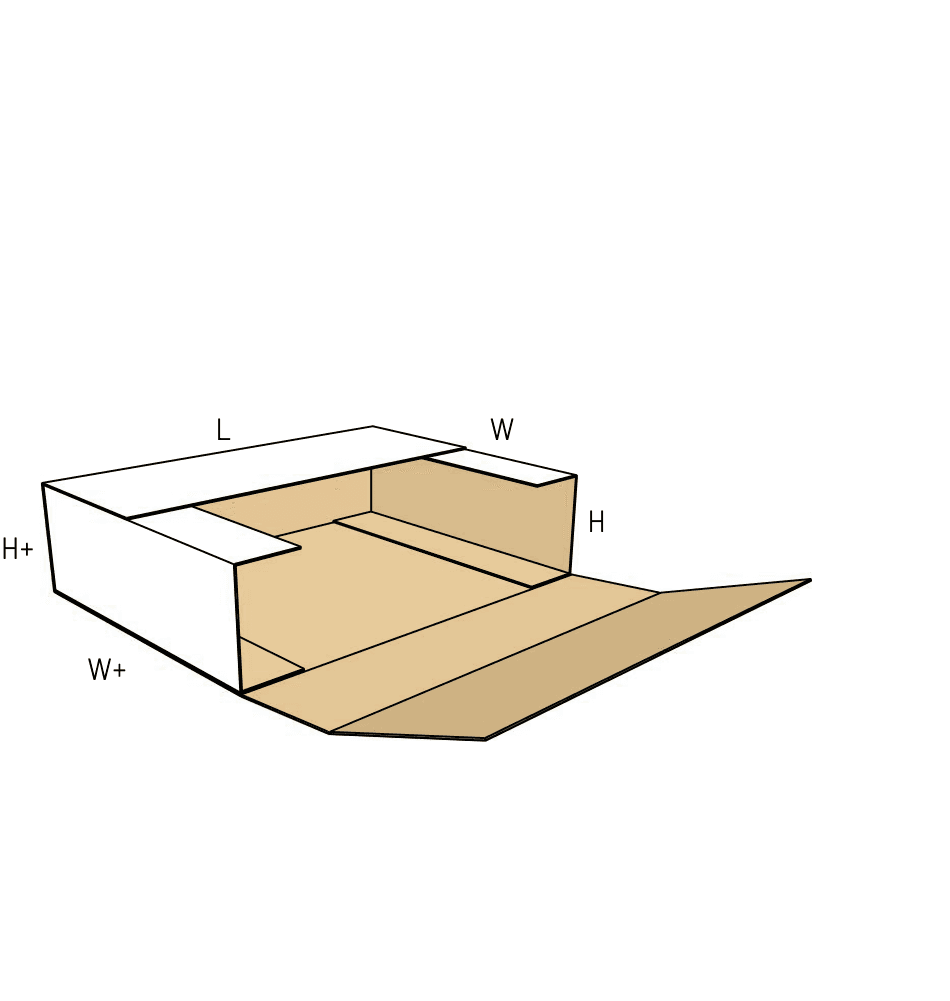

FEFCO 0405

3-Piece Bliss Container

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

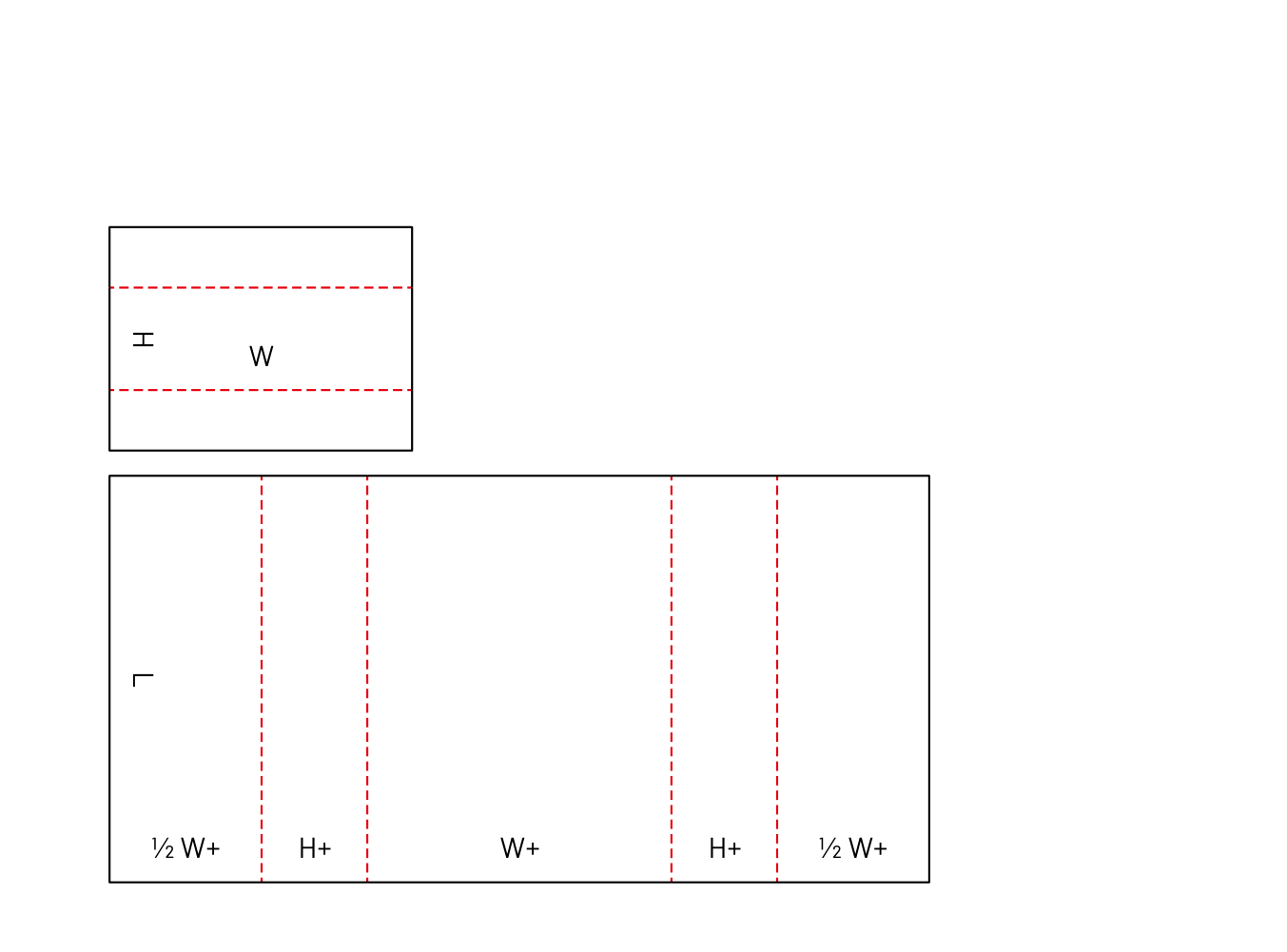

Arrives as three separate flat pieces to maximize board yield
Requires automated Bliss forming machinery to assemble
Separate end panels provide high top-crush resistance

About this product

The 3-piece Bliss container is a wrap-around box designed for automated packing lines. Instead of folding a single large sheet, it uses one main body wrap and two separate rigid end panels that are glued or stitched together during assembly.

By separating the end walls from the main body, this design eliminates the large corner offcuts typical of one-piece folders. It delivers high vertical stacking strength and maximizes board yield, provided the packing facility has the automated Bliss forming equipment required to assemble it.

Common uses

High-volume beverage and liquid carton packing
Heavy industrial components
Agricultural produce requiring high top-crush resistance
Flat furniture and shelving kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Height (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What is the approximate weight of the packed box?

How will the top be sealed after packing?

Will the boxes be exposed to moisture or cold storage?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Heavy Payloads and Automated Packing

Beverage and liquid carton grouping

The tight wrap-around fit prevents heavy liquid containers from shifting during transit. The separate end panels provide the vertical strength needed to stack heavy pallets without crushing the primary packaging.

Heavy industrial components and hardware

Dense metal parts and hardware kits benefit from the rigid end walls. Because the end panels are separate pieces, they can be specified in a heavier board grade than the main wrap to target stacking strength exactly where it is needed.

Automated retail packing

For fast-moving consumer goods, the three-piece design runs efficiently through dedicated Bliss formers, creating a tight, square box around the product at high speeds.

Flat furniture and shelving kits

Long, flat items like furniture doors and shelving boards fit well in the wrap-around body, while the rigid end panels protect the vulnerable corners of the wood from drop impacts.

Fulfillment and Industrial Distribution

High-volume manufacturing facilities

Operations running thousands of boxes per shift benefit from the high board yield. The near-zero offcut waste of the three rectangular blanks makes this efficient for continuous runs.

Agricultural and produce packing

When shipping heavy, moisture-sensitive produce, the rigid end panels resist buckling under heavy top loads. The three-piece construction allows for precise ventilation cutouts without compromising the main structural corners.

E-commerce and large letter mailers

When scaled down, the flat profile of the 0405 can be used as a rigid courier pack for documents or flat goods, keeping the overall package thin enough to qualify for large-letter postal rates.

When to Consider a One-Piece Alternative

Manual pack stations and low-volume runs

Holding three independent pieces in perfect alignment while applying glue is physically impractical by hand. If the packing line does not have automated Bliss forming equipment, compare this to a one-piece cross folder (FEFCO 0400) or a standard slotted box (FEFCO 0201).

Operations avoiding multi-SKU logistics

This container requires managing three separate flat pieces, or collated sets, on the packing floor. If tracking and loading multiple components slows down the line, a one-piece wrap-around may be a better operational fit despite the higher board usage.

Close variants and lookalike dielines

The closest library neighbors include 0605, 0608, 0606. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Assembly, Board, and Closure Decisions

Board thickness and corner mating

The main wrap must fold perfectly around the rigid end panels. If specifying a thick double-wall board, the fold clearances must be precisely adjusted so the three pieces mate squarely without binding or leaving gaps.

Glue flange placement and print surfaces

The end panels attach to the main wrap via gluing flanges. These flange areas must remain unprinted and unvarnished to ensure the hot-melt adhesive bonds securely to the raw kraft paper.

Top closure method

The top flaps fold over to form the lid but do not lock mechanically. The packing line will need to apply an external tape seal, strapping, or use an e-commerce variant with pre-applied adhesive strips.

Component bundling strategy

Because the box consists of three pieces, decide whether the main wraps and end panels should be delivered on separate pallets or as collated sets ready for the magazine feeders.

Flange and Clearance Adjustments

Inward versus outward flanges

Depending on the specific Bliss forming equipment and aesthetic preferences, the gluing flanges on the end panels can be designed to fold inward, hiding them inside the box, or outward, leaving them visible on the exterior.

Ventilation and display cutouts

The separate end panels can be die-cut with ventilation holes or display windows without weakening the main wrap-around body, making it adaptable for produce or retail-ready applications.

Carrying handles

Die-cut hand holes can be added to the rigid end panels to help workers lift heavy payloads, though the board grade must be strong enough to prevent the handles from tearing under the weight.

Board and packing details

Digital prototyping for clearance checks

Before committing to a full production run, a short digital run helps verify that the three pieces assemble squarely on the specific machinery, especially when testing new board grades or flute profiles.

Closure and Handling Additions

E-commerce closure strips

Tear tape and self-adhesive strips can be added to the main wrap during manufacturing, allowing the end-user to open the package easily and eliminating the need for external tape on the packing line.

Additional notes

Bliss former size limits

The specific case-erecting equipment will dictate the maximum and minimum dimensions this box can take. Always verify the machine's envelope before finalizing the package size.

FAQs

Assembly and Machinery

Can this box be assembled by hand?

Holding the main wrap and two separate end panels in perfect square alignment while applying glue is highly inefficient and prone to failure. This design requires an automated Bliss former.

Material and Yield

Why use three pieces instead of one?

A one-piece wrap-around box leaves large empty corners on the flat cardboard sheet that get cut away as waste. By separating the end panels, all three pieces become nearly perfect rectangles, maximizing board yield.

Strength and Protection

Does this box stack well on pallets?

The separate, rigid end panels act as vertical support columns. When properly glued, this three-piece construction often provides better top-crush resistance than a standard slotted box of the same material.

Closure and Sealing

How does the top of the box stay closed?

The top flaps fold over to enclose the product, but they do not lock mechanically. Most automated lines apply packing tape or strapping, though self-adhesive strips can be added to the design for e-commerce applications.

Print and Finish

Can the entire box be printed?

The exterior can be fully printed, but the specific flange areas where the three pieces glue together must remain unprinted and uncoated. Hot-melt adhesive requires raw paper fibers to create a structural bond.

Logistics

How is this delivered to the packing facility?

It arrives completely flat. Depending on the supplier and machinery, the main wraps and end panels may be delivered on separate pallets or as collated sets ready for the magazine feeders.

Board Choice

Can I use double-wall board for this box?

Yes, but thick double-wall boards require precise fold clearance adjustments. If the allowances are not tuned correctly, the three pieces will bind and fail to assemble squarely on the machine.

Modifications

Can we add carrying handles to the box?

Yes, die-cut hand holes can be added to the rigid end panels. However, the board grade must be evaluated to ensure the handles do not tear out when lifting heavy payloads.
