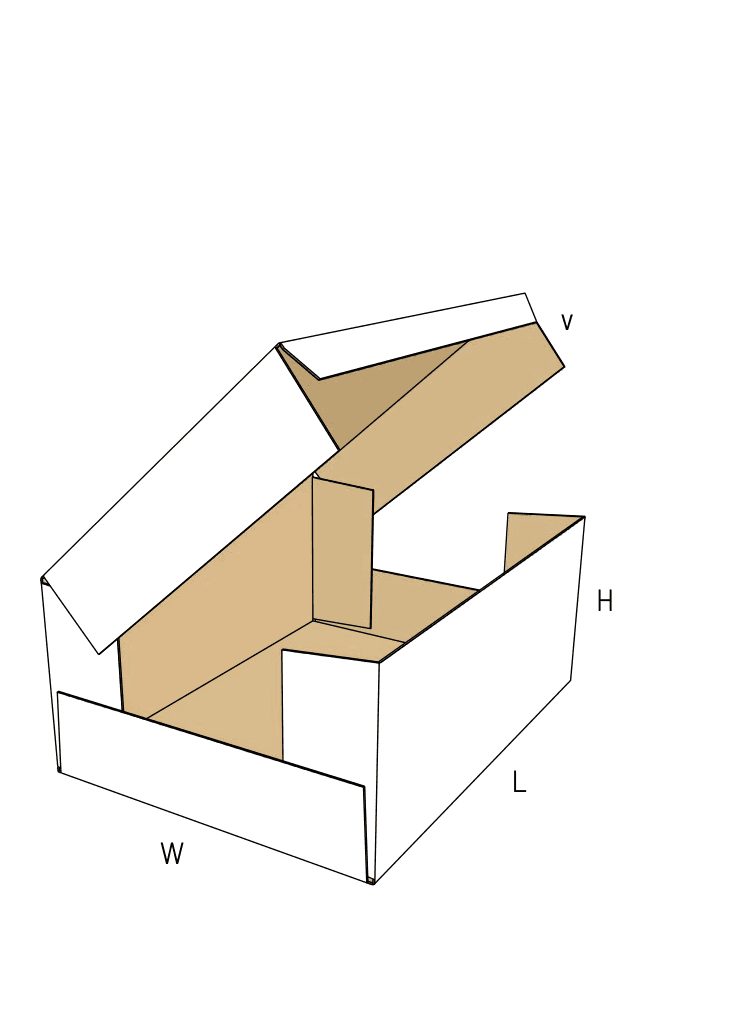

FEFCO 0406

Wrap-Around Case

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Formed directly around the product for a tight fit
  • Requires automated wrap-around casing machinery
  • Sealed via hot-melt glue or tape during the packing process

About this product

The wrap-around case, often called a five-panel wrapper, is built for automated packaging lines. Instead of dropping products into a pre-glued box, the casing machine folds this single flat sheet directly around the payload, creating a tight transit shell.

Because it uses the product itself as a forming block, it eliminates internal void space and maximizes pallet density. It requires dedicated wrap-around casing equipment and is inefficient for hand-packing stations.

Common uses

  • Consolidated retail packs and trays
  • Rigid, flat industrial goods
  • Beverage and dairy lines
  • Long-axis industrial parts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-Volume Automated Casing

Consolidated retail packs and trays

Groups smaller cartons, liquid containers, or trays into a single tight transit unit. The tight wrap prevents internal shifting during distribution.

Rigid, flat goods

Secures reams of paper, books, or flat industrial panels. These products act as a solid internal mandrel, allowing the machine to pull the corrugated board tightly around them.

Beverage and dairy lines

Acts as secondary packaging for bottles, pouches, or cheese blocks where throughput speed and material reduction are the primary goals.

Long-axis industrial parts

Wraps around shelving, flat-pack furniture components, or long extrusions that are difficult to drop into a standard slotted box from the top.

Industries Relying on Wrap-Arounds

Enterprise fulfillment and FMCG

Operations running dedicated casing equipment benefit from the massive material savings and flat-pallet storage density of unglued blanks.

Contract packagers (Co-packers)

Facilities with flexible wrap-around machines use these to quickly switch between different product group sizes while maintaining a tight transit seal.

High-volume food and beverage producers

Dairy, water, and wine producers use this style to group heavy liquid containers tightly, preventing bottle friction during transit.

When to Consider Pre-Glued Boxes or Manual Folders

Manual packing lines

If operators are packing by hand, holding five panels tight while applying glue is ergonomically difficult. Compare a standard pre-glued slotted box (FEFCO 0201) instead.

Low-volume or variable-size fulfillment

If order sizes change constantly, a wrap-around case is too rigid in its machinery requirements. Compare a multi-depth folder or standard mailer.

Close variants and lookalike dielines

The closest library neighbors include 0410, 0447, EVC11903. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Machinery, Flaps, and Board Clearances

Machine plow compatibility

The exact specifications of the casing equipment dictate whether the end flaps should be angled or straight, and whether the glue flap routes inside or outside the main tube.

Board thickness and fold memory

Because the blank wraps 90 degrees four times, thick double-wall boards can bind or crack. Fine flutes generally wrap cleaner and tighter around the product.

Adhesive application zones

Hot-melt glue requires raw, unvarnished board to adhere properly. Print and finish layouts must leave the terminal glue flap and end-flap sealing areas clear.

Wrap orientation

The dimensions of the blank dictate whether it feeds into the casing equipment long-edge or short-edge first. The template must match the specific feed requirements of the packing line.

Glue Flap and Closure Adjustments

Glue flap positioning

The terminal flap can be adjusted in width or placed on either the length or width panel, depending on how the blank feeds into the casing machine.

Tear tape integration

For retail-ready applications where the outer case needs to be opened quickly without knives, tear tape can be added to the blank during corrugation.

Flap angle geometry

Minor flaps can be cut straight or angled. Angled flaps clear high-speed machine guides easier, while straight flaps simplify the manufacturing route.

Board and packing details

Material yield and flat storage

Because the converter does not pre-glue a manufacturer's joint, the blanks ship entirely flat. This maximizes inbound freight density and reduces warehouse footprint before the boxes hit the packing line.

Straight vs. Angled Flap Variants

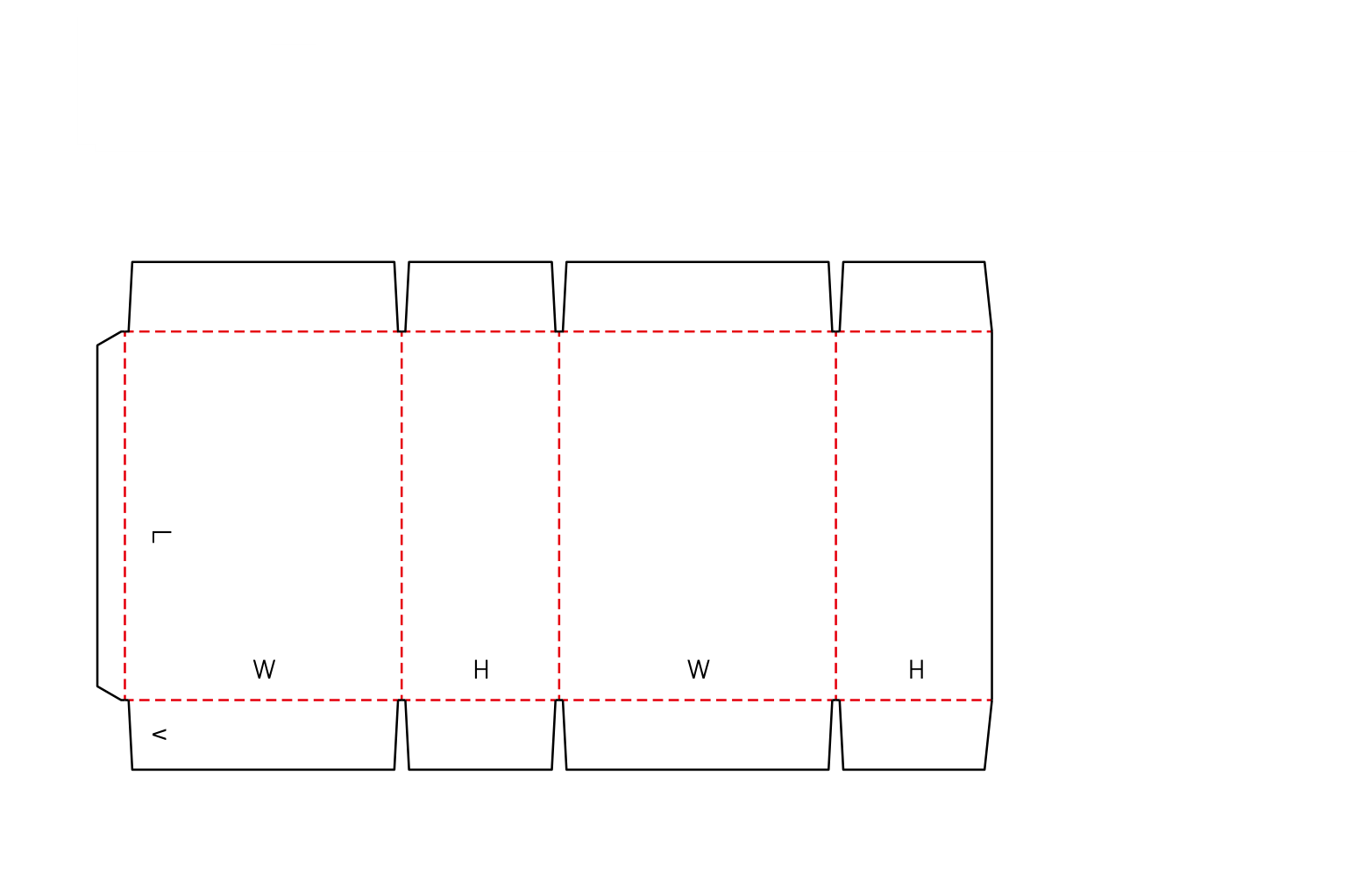

Straight Flaps (0406_1) vs. Angled Flaps (0406)

The standard 0406 uses angled trapezium end flaps to prevent catching on machine guides. The 0406_1 variant uses straight rectangular flaps, allowing it to be produced on standard slotting equipment, provided the casing machine can handle the straight edges.

Additional notes

Machine feed orientation

The dimensions of the blank dictate whether it feeds into the casing equipment long-edge or short-edge first. Sharing your machine's specific feed requirements early ensures the template is oriented correctly.

Related Transit Packaging

0401: Maltese Cross Box

A manual wrap-around folder for flat goods that does not require automated casing equipment.

0410: Five Panel Folder

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0447: Tuck Lock

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Production and Machinery

Can this box be assembled by hand?

It is inefficient for manual assembly. Holding five panels tightly around a product while simultaneously applying glue or tape is difficult. It is designed specifically for automated wrap-around casing machines.

How is this box cut during production?

The standard version with angled flaps requires a flatbed or rotary die-cutter. However, a straight-flap variant can often be produced on standard slotting equipment, depending on your machine's tolerance for straight flaps.

Closure and Sealing

How does the box stay closed?

It relies entirely on external adhesive. The casing machine applies hot-melt glue or tape to the terminal side panel and the overlapping end flaps during the wrapping sequence.

Product Fit

Can it be used for fragile or compressible items?

Wrap-around cases use the product itself as a forming block. If the product cannot withstand the physical tension of the machine wrapping the board tightly around it, a different box style is usually safer.

Board and Material

Why is board thickness so critical for this style?

The blank must fold 90 degrees four times in a continuous sequence. If the board is too thick or the fold allowances aren't perfectly calibrated, the final wrap will be too tight, too loose, or the box will bow.

Retail and Display

Can this be used as a retail-ready display?

While it is primarily a transit shipper, it can be modified with tear tape or specific perforations so retail staff can quickly remove the top section to display the grouped products inside.

Shipping and Storage

How does the blank arrive at the facility?

The blanks arrive completely flat and unglued. This provides excellent pallet density and reduces the warehouse footprint required before the boxes reach the packing line.

Production and Machinery

What happens if the product size changes?

Because the machine wraps the board tightly around the specific payload, any change in product dimensions requires a new box template and a recalibration of the casing equipment.
