Flat Goods, Long Extrusions, and Heavy Panels
Flat-pack furniture and shelving
Long, heavy wooden components are difficult to drop into a vertical tube. The flat-loading base allows packers to arrange parts and protective inserts carefully before enclosing the entire kit.
Metal profiles and extrusions
Sliding a two-meter aluminum extrusion into a regular box risks pushing out the far end. Wrapping the board around the metal provides a tight fit without fighting gravity during loading.
Framed artwork and large panels
Wide, shallow items leave too much empty space in regular cartons. This folder wraps tightly against the edges, reducing internal movement and keeping the final shipping profile as thin as possible.
Rolled industrial mats and blinds
Long cylindrical items often shift or unroll during transit. The tight circumferential wrap of the five-panel folder holds the rolled material securely in place, preventing shifting and edge damage.
Fulfillment, Industrial Packing, and Contract Assembly
Automated furniture packaging lines
High-volume operations use specialized wrap-around or tube-gluing machinery. The product acts as the forming mandrel, and hot-melt adhesive secures the long seam in one continuous motion.
Manual pack benches
For lower volumes, operators lay the blank flat, position the product, and manually fold and tape the panels. Very long items often require two people or custom fixturing to hold the board square against spring-back while sealing.
Contract packing for building materials
Facilities handling mixed lengths of architectural moldings or lumber rely on this style to adapt to varying product lengths while maintaining a consistent wrapping process and tight transit profile.
When to Consider a Different Box Style
Small or lightweight e-commerce goods
If the product is small enough to hold in one hand, the multi-step wrapping and three-side sealing process is too slow. A regular slotted box or a die-cut mailer will assemble much faster on a busy packing line.
When tape or glue is not an option
This package has no mechanical locks. If the packing environment cannot support hot-melt glue systems or heavy-duty taping, a self-locking folder or a tray-and-lid combination may be a better fit.
Board, Sealing, and Production Choices
Board thickness and spring-back tension
Because the board folds 90 degrees five times, thickness accumulates quickly. Heavy double-wall board offers excellent protection but creates severe spring-back tension. The sealing method must be strong enough to hold the overlapping panel flat against this outward pressure.
Blank length and machine limits
The length of this box corresponds to the flat blank before it is folded. For very long products like doors or shelving, the unfolded corrugated sheet can exceed the feed limits of typical converting equipment, requiring specialized large-format production.
Closure method and tape width
The choice between hot-melt glue, heavy-duty tape, or strapping changes how the overlapping fifth panel behaves. Tape must be wide enough to grip both the overlap and the side wall securely without peeling under tension.
Print surface for the overlapping seam
While the continuous wrap allows for unbroken graphics across the main visible panels, the area where the fifth panel overlaps must remain free of heavy ink or varnish to ensure hot-melt glue or tape adheres properly.

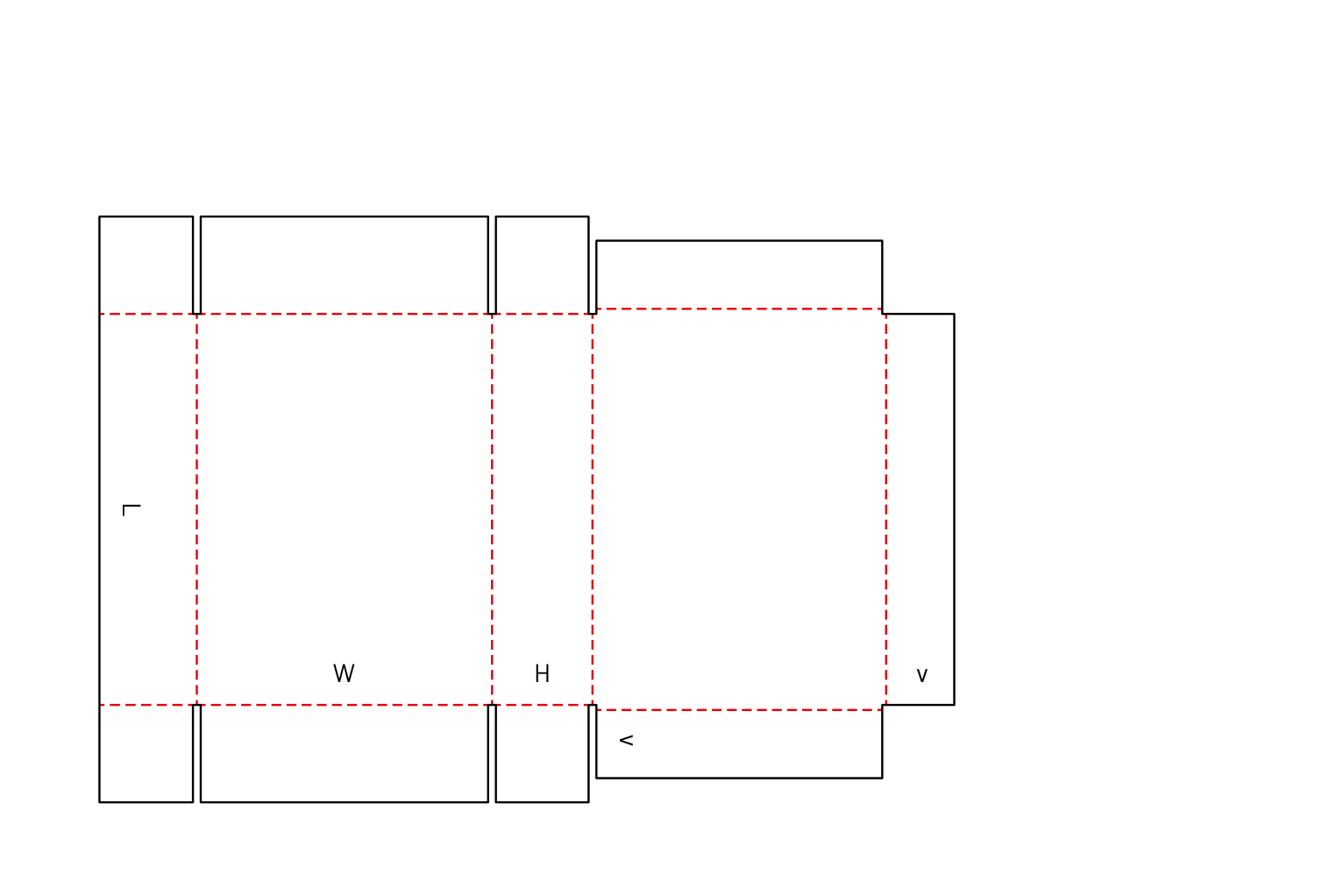

Template Adjustments for Fit and Sealing
Shifting the overlap seam
The height of the wrapping panels can be adjusted asymmetrically. This shifts the final longitudinal seam off-center, which is often necessary to align with the specific glue nozzle positions on automated packaging lines.
Trapezium angle adjustments for thicker board
The minor inner flaps are cut at a slight angle to create a trapezium shape. This angle can be widened or narrowed depending on the exact board caliper, ensuring the flaps do not bind against the inner walls when folded.
Tapered panel profiles for irregular goods
For products that are wider at one end than the other, the longitudinal panels can be cut with a slight taper. This allows the final tube to match the product's shape, preventing loose voids at the narrower end.
Board and packing details
Trapezium end flaps and corner clearance
The minor inner flaps on this package are cut at a slight angle, creating a trapezium shape. This prevents the flaps from binding against the inner walls when folded, ensuring the ends close squarely even when using thicker board grades.
Variants and Options
Asymmetric panel heights (0410a)
A variant that uses diverse panel and flap heights to shift the longitudinal seam off-center or to accommodate slightly tapered product profiles.
Additional notes
Print panel and glue adhesion
The continuous wrap allows for unbroken graphics across the main visible panels. However, the area where the fifth panel overlaps must remain free of heavy ink or varnish to ensure hot-melt glue or tape adheres properly.
FAQs
Closure and Sealing
Does this box require tape or glue?
The five-panel wrap relies entirely on external fastening. The long overlapping seam and both ends must be secured with heavy-duty tape, hot-melt adhesive, or strapping to maintain the tube shape.
Production and Tooling
Does this style require a custom cutting die?
Because the inner end flaps are cut at an angle to prevent binding during assembly, this package must be routed through a die-cutter rather than a simple straight-line slotter.
Packing Labor
Is this practical for manual hand-packing?
It depends on the product length. Short items are easy for one person to wrap and tape. For items over 1.5 meters, a single operator will struggle to hold the long panels square against board spring-back while applying tape, often requiring a second person or a packing fixture.
Shipping Route
Can this be shipped through typical parcel networks?
It can be shipped via parcel carriers provided the three seams are heavily taped. However, very long boxes often incur oversized shipping surcharges from couriers, so the final packed dimensions should be checked against carrier limits.
Board and Fit
Can this be made in heavy double-wall board?
Thick board creates severe outward tension when folded around the product. The fold allowances must be precisely calculated, and the sealing method must be strong enough to prevent the seam from springing open.
Product Context
What product details matter most when specifying a wrap-around box?
Beyond exact product dimensions and weight, it helps to know whether you will be taping by hand or using automated gluing equipment, as this dictates how the overlapping seam should be positioned.
Closure and Sealing
How does board thickness affect the folding process?
As the board wraps 90 degrees five times, the material thickness accumulates. If the fold allowances are not adjusted for the specific board grade, the final overlapping panel will fall short or bow outward, making it difficult to seal.
Print and Finish
Can we print across the entire outer surface?
The continuous wrap allows for unbroken graphics across the main visible panels. However, the specific area where the fifth panel overlaps must remain free of heavy ink or varnish to ensure hot-melt glue or tape adheres properly.
