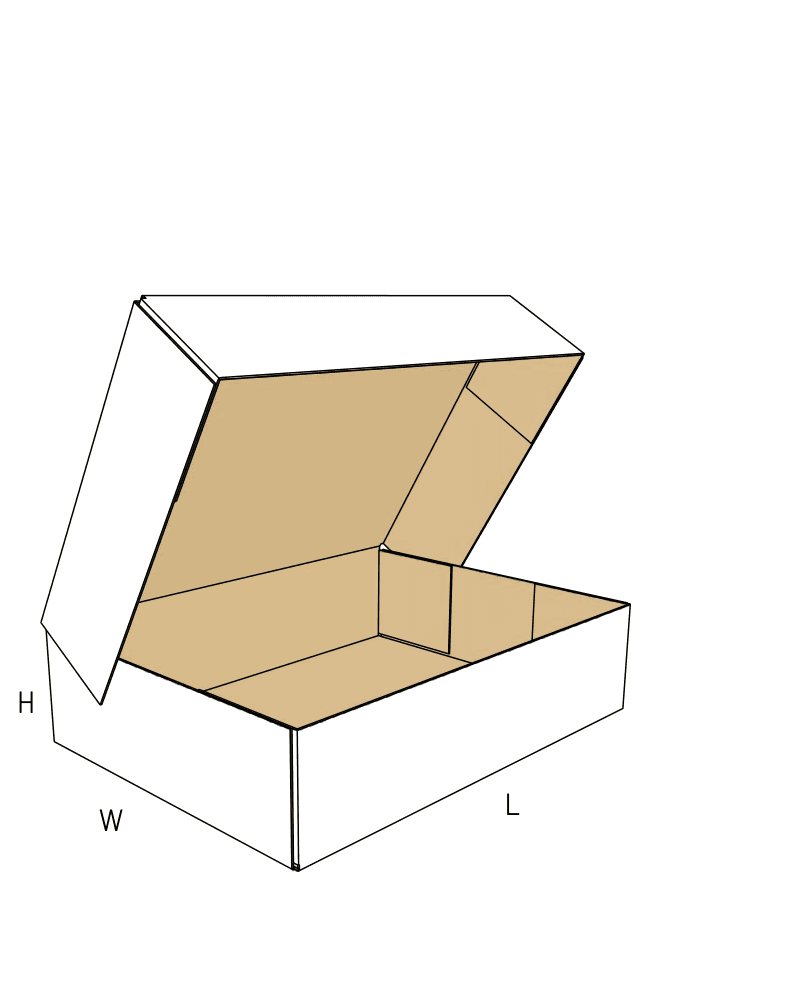

FEFCO 0409

Five-Panel Folder

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Loads from the side, making it practical for long or flat rigid items
  • Requires manual taping or strapping against board spring-back
  • Unbroken base panel supports heavy product weight

About this product

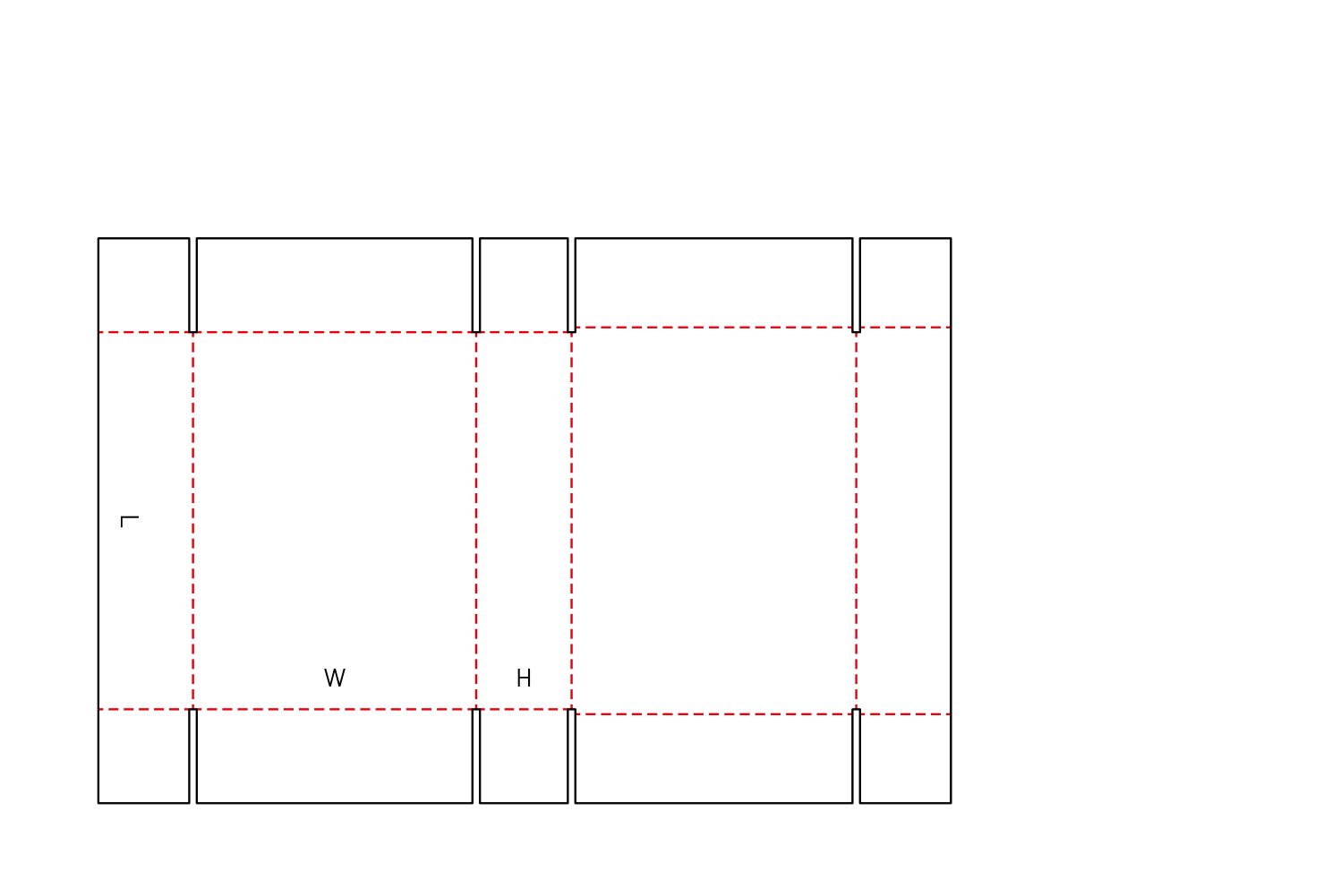

The five-panel folder is a continuous corrugated wrap that rolls entirely around a product to form a rectangular tube. Instead of sliding long, flat, or awkward items through the narrow end of a standard carton, packers place the product directly onto the flat base and fold the walls around it.

Because it relies on a full overlapping fifth panel rather than integrated locks, this style requires external tape, strapping, or glue to hold the tension of the folded board.

Common uses

  • Long metal extrusions
  • Flat-pack furniture panels
  • Framed artwork
  • Rolled textiles

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Flat Goods, Extrusions, and Rolled Materials

Long metal profiles and extrusions

Sliding a heavy, two-meter aluminum extrusion into a standard tubular box is physically difficult and risks pushing out the far end. The five-panel folder allows operators to lay the heavy part flat on the center panel, then fold the corrugated board tightly around it.

Framed artwork and shallow panels

Wide, shallow items leave too much empty space in standard cartons. This folder wraps tightly against the edges of frames or acrylic panels, limiting internal movement and keeping the final shipping profile as thin as possible.

Flat-pack furniture components

When shipping unassembled shelving or table parts, the flat-loading base allows packers to arrange the components and protective inserts carefully before enclosing the package.

Rolled textiles and window blinds

Long, flexible cylinders can bend or buckle when forced into a standard tube. Rolling the five-panel folder around the cylinder provides continuous support along the entire length of the product.

Fulfillment and Industrial Packing

Industrial parts distribution

Distributors shipping varied lengths of pipe, rail, or trim use this style to avoid stocking dozens of different long-tube sizes. The wrap-around approach handles slight variations in product grouping while maintaining a tight fit.

E-commerce fulfillment for awkward shapes

For operations shipping rolled rugs, blinds, or long lighting fixtures, the five-panel folder speeds up packing by removing the struggle of forcing items into narrow openings.

Third-party logistics (3PL) handling mixed long goods

Warehouses managing multiple brands of long or flat items benefit from the flat-storage profile of the 0409, which takes up less pallet space than pre-glued tubes.

When to Consider a Different Box Style

High-speed automated packing lines

If you are running dedicated wrap-around case packers, a folder with a short terminal glue flap is often more efficient than managing the full overlapping fifth panel of the 0409.

Short, bulky items

If the product is short enough to drop into a box easily, a standard slotted container is usually faster to tape and requires less flat bench space to assemble.

Close variants and lookalike dielines

The closest library neighbors include 0410a, 0410, 0440. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Closure, and Production Choices

Managing board spring-back

Wrapping corrugated board 360 degrees creates tension. The thicker the board, the harder the fifth panel will try to spring open. If you specify a heavy double-wall board, your packing team will need strong, high-tack tape or strapping to hold the seam closed.

Blank length limits for very long products

Because the five panels are laid out side-by-side in the flat blank, packaging for very long products can result in an extremely wide sheet of corrugated. This can occasionally exceed the feed limits of standard converting machinery, which may affect production routing.

Closure method selection

Decide whether your packing line will use tape, strapping, or hot-melt glue. Strapping is often faster for heavy industrial extrusions, while H-taping is necessary if the package will travel through a parcel courier network.

Inner void fill versus tight wrapping

The 0409 works well when the product acts as a rigid forming block. If your product is fragile or irregular, you must plan for internal inserts or edge protectors before wrapping the outer board.

Practical Template Adjustments

End flap length

The end flaps can be shortened to save material cost if dust protection is the only goal, or extended to meet in the middle for better end-impact protection during transit.

Offset taping seam

The overlapping top panels can be cut to different heights. This shifts the final taping seam off-center, which can help avoid covering printed branding or make taping easier for the operator.

Tear strip integration

For e-commerce applications, a tear strip can be added to the overlapping fifth panel, allowing the end customer to open the tight wrap without using a knife that might damage the product inside.

Board and packing details

The product as a forming mandrel

This package is designed to be assembled directly around the product. The item being packed acts as the physical block that the board folds against, which means rigid products yield a much squarer, tighter final package than soft or flexible goods.

Package Variants

Trapezium end flaps for thick board (0409a)

When heavy C-flute or double-wall board is required, the standard straight cuts can cause the corners to bind during folding. The 0409a variant uses angled cuts on the end flaps and adjusts panel heights to help the thick board fold cleanly without tearing.

Additional notes

Packing bench space requirements

Because the blank must be laid completely flat before the product is placed on it, this style requires a packing bench at least as wide as the fully unfolded corrugated sheet.

Related Packaging

0406: Automated Wrap-Around Case

Uses a short glue flap instead of a full fifth panel, designed specifically for mechanized case packers rather than manual taping.

0410: Five Panel Folder

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Closure and Assembly

Does this box lock together without tape?

No. The five-panel folder relies entirely on external tape, strapping, or glue. The fifth panel overlaps the side wall and must be physically secured against the natural spring-back tension of the corrugated board.

Product Fit

Can this be used for heavy items?

Yes, the unbroken central base panel supports heavy product weight. However, because the box wraps around the item, the product itself needs to be rigid enough to act as a forming block during assembly.

Shipping and Route

Is this suitable for parcel shipping?

It can be, provided the long overlapping seam and the end flaps are heavily taped. Long taped seams can sometimes catch on sorting belts in rough courier networks, so heavy H-taping is recommended.

Materials

Can I use double-wall board for extra protection?

You can, but it requires careful specification. Wrapping thick double-wall board four times creates severe tension. We often recommend the 0409a variant with angled flap cuts to prevent the corners from binding when using heavy board.

Production

Are there size limits for this style?

The main constraint is the flat blank size. Because all five panels are laid out continuously, packaging for very long items can result in a blank that exceeds standard machinery limits. We verify this during the quoting process.

Closure and Assembly

How does assembly differ from a standard box?

Instead of popping open a pre-glued tube, operators lay the entire blank flat on a bench, place the product in the center, and fold the panels up and over the item. This requires more bench space but eliminates the need to slide long items into a narrow opening.

Product Fit

What happens if the product is shorter than the box?

If the product does not fill the entire length of the folder, the unsupported ends may crush or fold inward during transit. You will need rigid end inserts to maintain the tubular shape.

Print and Branding

Can I print on the overlapping seam?

Yes, but you must account for the overlap in your artwork. The fifth panel covers a portion of the side wall, so critical text or logos should be kept away from the taping zone to remain visible.
