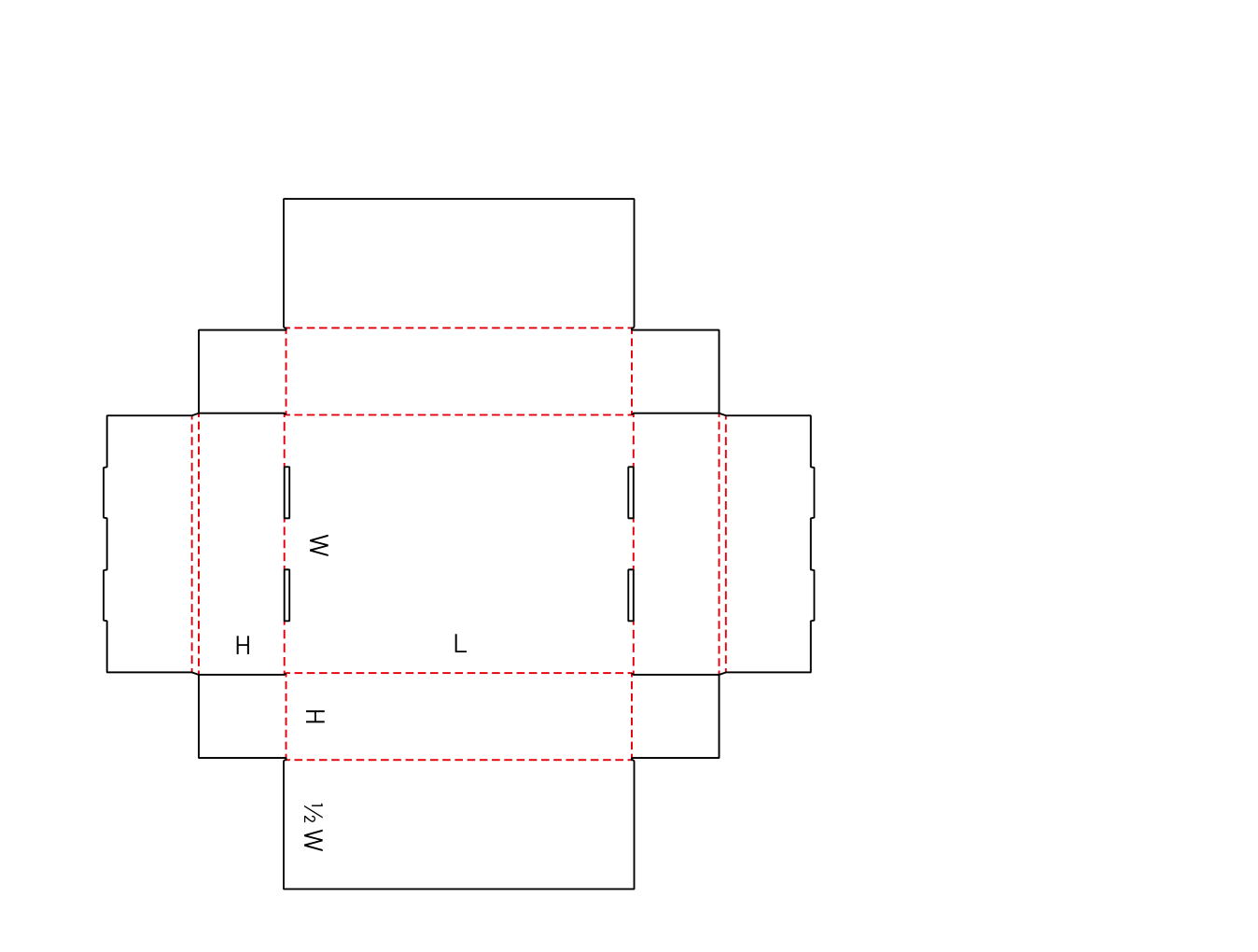

FEFCO 0414

Heavy-Duty Wrap-Around Folder

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Loads flat from the top for heavy, long, or awkward industrial parts
End walls roll over 180 degrees to lock, creating double-thick corner protection
Top flaps meet flush in the center and require an external tape seal

About this product

Instead of forcing heavy, awkward industrial parts down a vertical tube, this one-piece folder allows packers to place the product flat on the base and build the box around it. The defining feature is its double-thick end walls, which roll over and lock into the base to create a rigid, protective frame before the top is even closed.

This locking action provides high end-crush resistance and frees the packer's hands to seal the top flaps. The tradeoff is material area: the sprawling flat blank uses more corrugated board than a standard folder, making it a choice reserved for dense, heavy, or high-value components.
