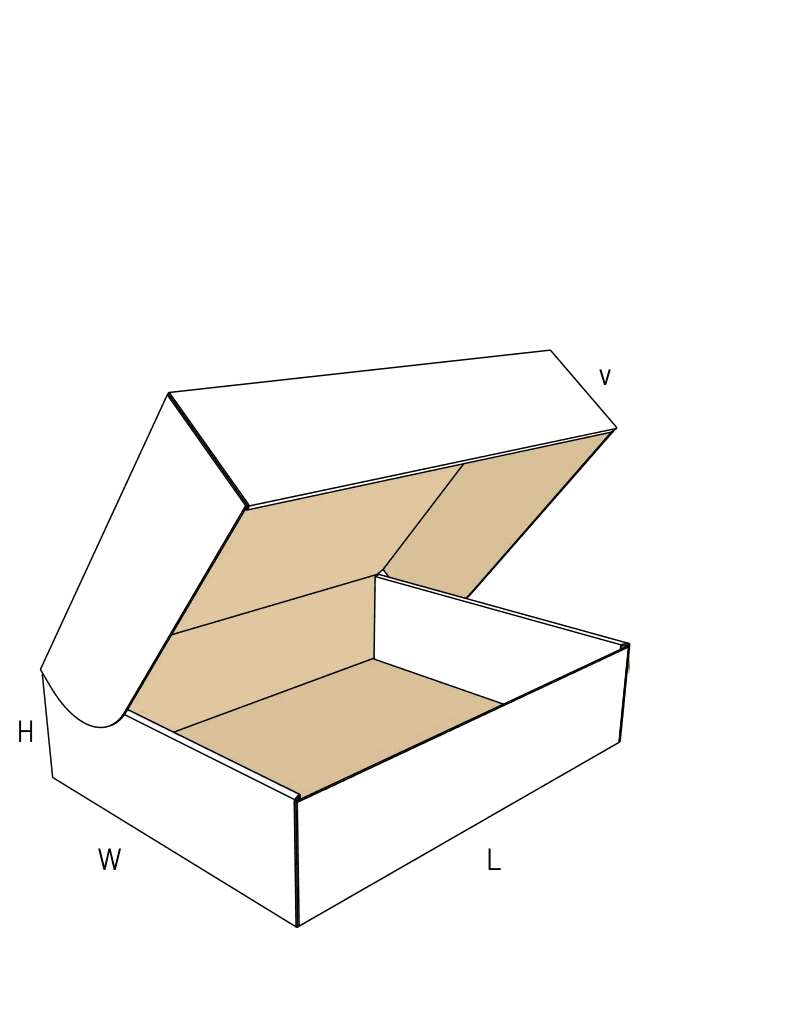

FEFCO 0418

Premium Die-Cut Mailer with Roll-Over Ends

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Assembles entirely by hand using friction locks and a front tuck lid
Double-thick end walls provide excellent end-to-end crush resistance
Requires fine flutes to fold cleanly without cracking the hinges

About this product

A one-piece presentation mailer that folds into a rigid, clean-edged box without any glue or tape, the FEFCO 0418 creates double-thick corner protection while keeping the interior completely free of raw corrugated edges. By rolling its short end walls inward to lock into the base, it leaves the front wall single-layered for a smooth tuck-lid closure.

Often evaluated alongside the common 0427 mailer, this style shifts the structural reinforcement to the ends rather than the front. It makes a strong choice for premium unboxing, subscription kits, and retail presentations where aesthetics matter as much as protection.

Common uses

E-commerce subscription boxes
Retail kitting and gift sets
Small electronics and hardware
Footwear and apparel packaging
Promotional PR mailers

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length (side to side)

Inside width (front to back)

Inside depth (top to bottom)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these boxes reach the final customer?

Will you be placing custom inserts inside the box?

Who will be assembling and packing these boxes?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Kitting, Subscription Boxes, and Premium Mailers

Premium e-commerce and subscription boxes

The clean, unglued interior and hinged lid create a high-end unboxing experience. The tuck flap allows customers to easily reclose the box for returns or storage, keeping the presentation intact.

Retail kitting and gift sets

The double-thick ends provide a rigid frame that holds internal inserts and partitions securely. This makes it well-suited for organizing multiple components, cosmetics, or sample sets without the walls bowing outward.

Small electronics and hardware

The reinforced end walls absorb impact during handling, protecting dense items that might otherwise punch through standard taped carton ends.

Footwear and apparel packaging

The proportions and structural rigidity fit classic shoe models like sneakers and moccasins. The unglued interior ensures delicate fabrics or leathers do not snag on raw corrugated edges.

E-commerce Operations, Agencies, and Boutique Retail

E-commerce fulfillment

Packers can build these boxes on demand at the bench without maintaining hot-melt glue equipment. Because the lid relies on a friction tuck, parcel shipments usually require an external tamper-evident seal or shipping label to stay closed in transit.

Creative agencies and promotional marketing

The flat, unbroken lid and clean interior walls offer an excellent canvas for high-end printing. This makes it a frequent choice for PR kits, sales samples, and influencer mailers where the first visual impression drives the campaign.

Boutique retail and in-store handoffs

Because the blanks store completely flat and fold together quickly, retail staff can assemble them at the counter. This provides an exclusive presentation for boutique customers without taking up excessive backroom storage space.

Reviewing Front-Rolling or Glued Alternatives

When front-wall protection matters more

If you need the double-thick reinforcement on the front wall rather than the ends, review the 0427 mailer. The 0427 rolls over the front panel instead, which changes the unboxing presentation slightly and moves the structural bulk to the front edge.

When packing volume requires automation

If your packing volume is too high for manual folding, a machine-erected glued tray will eliminate the pack-bench bottleneck. Glued alternatives require automated hot-melt equipment but drastically reduce assembly time.

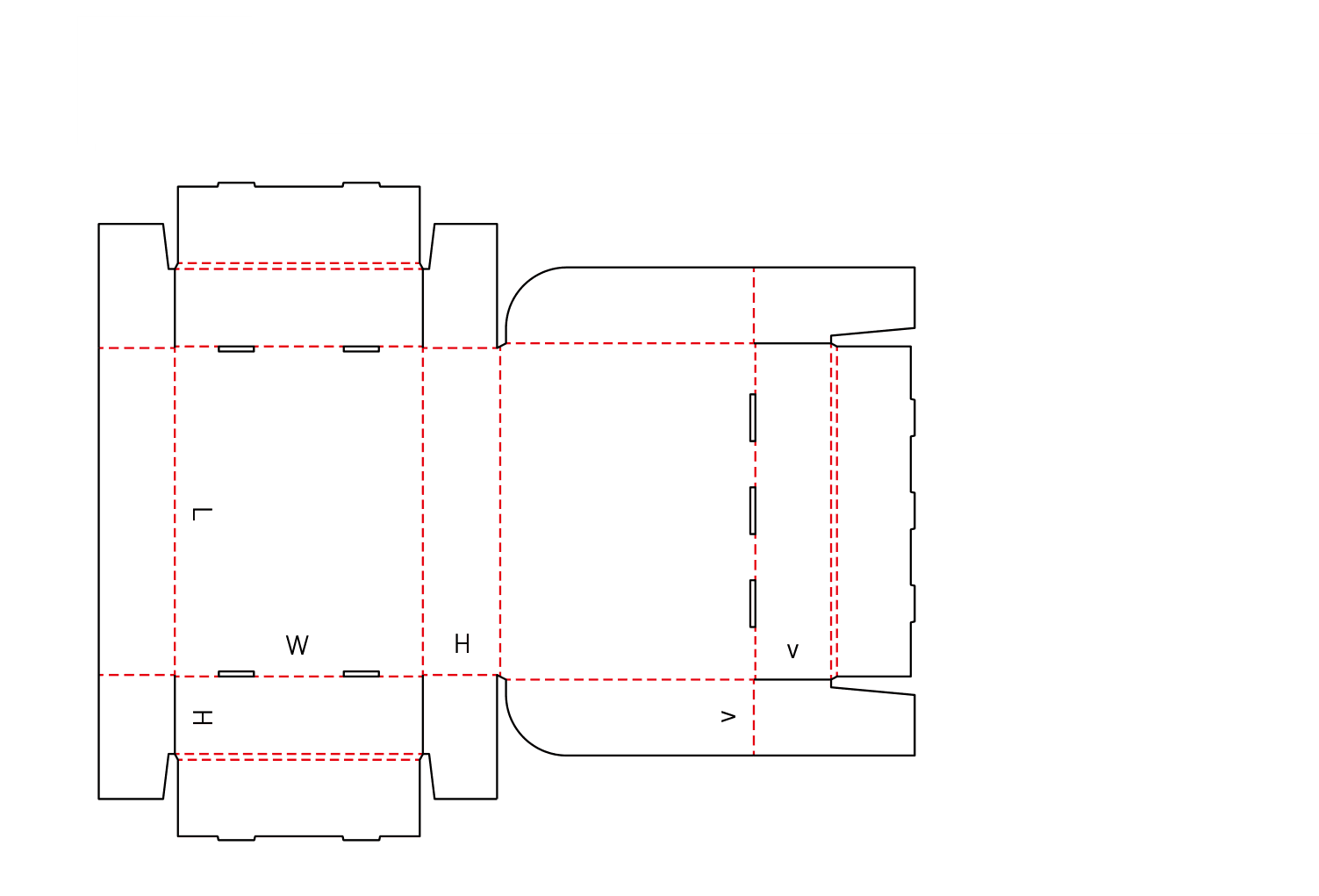

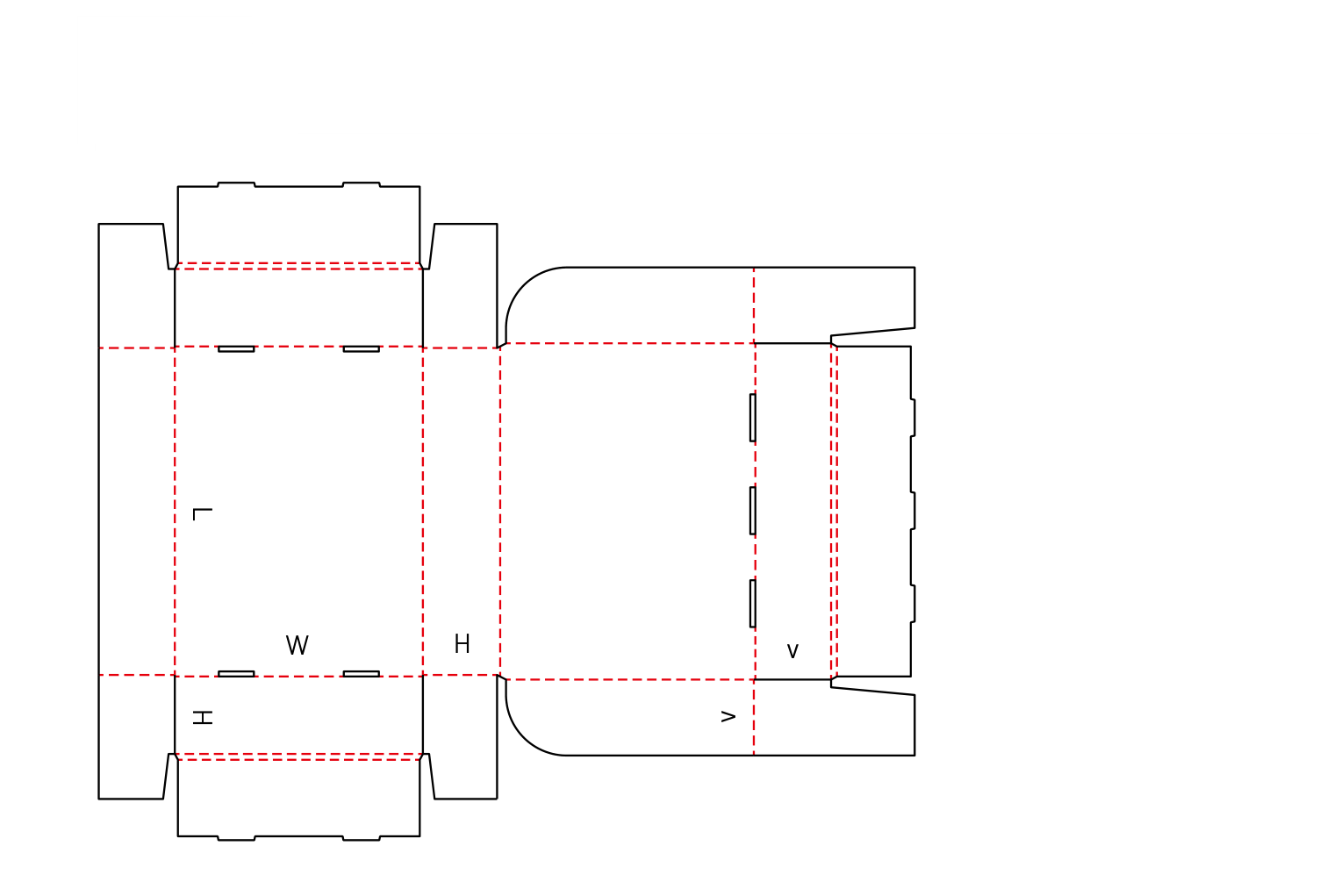

Close variants and lookalike dielines

The closest library neighbors include 0429a, EVC41111, 0427_1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Flute Choice, and Courier Sealing

Board thickness and flute choice

This structure is highly sensitive to board thickness. The 180-degree roll-over walls require precise fold allowances. Fine flutes fold crisply and lock securely. Heavy double-wall boards will bind, crack, and prevent the tabs from locking into the base.

Courier sealing strategy

The front tuck flap keeps the lid closed for presentation and shelf use, but it can pop open if dropped. Plan to use a branded wafer seal, custom tape, or a strategically placed shipping label for courier networks.

Pack-bench labor allocation

Operators must pre-fold the creases, hold the side flaps square, and roll the end walls over to seat the locking tabs. This two-handed manual assembly takes longer than popping open a glued crash-lock box.

Print and finish planning

Because the box ships as a single flat piece of corrugated board, both the inside and outside surfaces run through the press easily. This allows for full two-sided printing before the blank is die-cut.

Lid Security, Clearances, and Friction Catches

Lid security and friction catches

The front tuck flap can be modified with small friction catches that snap into the side walls. This increases transit security at the cost of a slightly firmer opening pull for the customer.

Dust flap extensions

The side dust flaps can be sized to sit perfectly flush inside the rolled-over end walls, ensuring the interior corners remain entirely square for drop-in inserts.

Base slot tolerances

The slots that receive the friction tabs must be calibrated to the exact board thickness. If the board changes, these slots require adjustment so the tabs seat firmly without crushing.

Board and packing details

Blank sprawl and nesting yield

Because the lid and the extended roll-over end walls are all attached to a single base, the flat blank takes up significant area. This can affect material yield on the cutting press compared to a simpler two-piece box.

Additional notes

Insert clearance for small parts

The rolled-over end walls create a clean 90-degree interior corner, making it easy to drop in custom foam or corrugated inserts without fighting raw flaps.

FAQs

Route and shipping

Can this box be shipped without tape?

For palletized freight or retail hand-offs, the tuck lid is sufficient. For parcel courier networks, the friction tuck can pop open if dropped, so an external seal or shipping label is highly recommended.

Production path

Does this require a cutting die?

Yes. The friction tabs, base slots, and roll-over hinges require precise flatbed or rotary die-cutting. It cannot be manufactured on a simple rotary slotter.

Board and finish

Can we use heavy double-wall board for extra protection?

It is highly risky. The end walls must fold 180 degrees inward. Thick boards create too much tension, causing the hinges to crack and the locking tabs to pop out of their slots. Stick to fine flutes or single-wall board.

Packing labor

How long does it take to assemble?

It requires two-handed manual assembly at the pack bench. Operators must pre-fold the creases and roll the ends over to lock them. It is slower to build than a standard taped box but requires no gluing equipment.

Is this a good choice for automated packing lines?

No. The complex roll-over folds and friction locks are designed strictly for manual pack-bench assembly.

Print and finish

Can the inside be printed?

Yes. Because the box ships flat and folds together, both the inside and outside surfaces are easily accessible for premium printing before die-cutting.

Inserts and product fit

Does it work well with custom foam inserts?

Yes. The rolled-over end walls capture the side flaps, creating a clean 90-degree interior corner. This makes it easy to drop in custom foam or corrugated inserts without fighting raw flaps.

Comparison

Why choose this over a standard front-rolling mailer?

The 0418 moves the double-thick structural reinforcement to the short ends. This leaves the front wall single-layered, which changes the unboxing presentation and makes the tuck lid slightly easier to open and close repeatedly.
