Interactive 3D

1 / 3

FEFCO 0420

Tuck-In Presentation Mailer

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Unfolds completely flat for a premium presentation reveal
Uses single-layer walls, requiring less board than roll-over mailers
Friction tuck closure relies on an external tape or label seal for courier shipping

About this product

The tuck-in presentation mailer is a one-piece folder that opens completely flat. When the front tuck flap is released, the single-layer side walls fall outward, leaving the product resting on a flat presentation surface.

Because it relies on single-layer 90-degree walls rather than thick rolled edges, it uses less material than a heavy-duty mailer. This makes it a strong choice for lightweight e-commerce goods, cosmetics, and retail kits where the unboxing reveal matters more than extreme crush resistance.

Common uses

E-commerce presentation kits
Cosmetics and skincare sets
Small electronics and spare parts
Retail shelf displays
Subscription boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these be shipped to the final customer?

What type of items are going inside?

How do you plan to seal the box for delivery?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Presentation and lightweight kitting

E-commerce presentation kits

The flat reveal adds immediate value to cosmetics, skincare sets, or small electronics. Because the friction tuck is vulnerable to opening under drop shock, these kits rely on an outer seal or a master shipper for parcel delivery.

Retail shelf displays

The box can function as a display tray if the lid is left open or removed entirely, keeping the product clearly visible and accessible on the shelf.

Lightweight parts and apparel

The single-layer walls provide an efficient use of board for items that do not need heavy vertical crush protection during transit.

Subscription boxes

The flat reveal works well for curated monthly items, allowing recipients to see everything at once. The friction tuck requires a strong outer seal to keep the contents secure during delivery.

Brands prioritizing the unboxing experience

Direct-to-consumer brands

Brands looking for an unboxing experience that stands out from slotted boxes often use this folder to create a deliberate, stage-like presentation for the customer.

Creative agencies and promotional kitting

When sending welcome kits or PR boxes, the flat plate effect emphasizes the contents immediately without forcing the recipient to reach down into a deep cavity.

Electronics and spare parts distributors

The flat layout allows technicians or customers to see all components at once, making it easier to verify parts without digging through a deep box.

When to consider a different mailer style

Heavy-duty courier transit

If your product requires heavy vertical crush resistance, look at a roll-end tuck-top mailer. Roll-end mailers use double-thick walls that resist crushing, though they do not unfold flat.

Alternative corner locking

If you want a similar flat-unfolding base but prefer the front and rear walls to tuck inside the dust flaps for a different visual finish, a glueless presentation tray may be a better fit.

Close variants and lookalike dielines

The closest library neighbors include 0415, 0415a, 0415_1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, sealing, and assembly choices

Board thickness and flute

Thick double-wall board will bind the 90-degree corners and force the tuck flap open. Fine flutes or solid cartonboard provide the crisp folds needed for reliable friction locks.

Courier sealing

The friction tuck flap is vulnerable to opening if dropped. Decide whether you will use a clear wafer seal, a branded sticker, or packing tape for the outer closure before finalizing the artwork.

Assembly method

The conventional setup is a manual two-hand fold at the pack bench. If you process high volumes, specialized plunger-style tray erectors can hot-melt glue the dust flaps to automate the base formation.

Transit protection strategy

Decide if these will ship individually as parcels or bulk-packed on a pallet. The single-layer walls offer low vertical compression strength, meaning palletized shipments require a sturdy master carton.

Template clearances and slot styles

Tuck flap clearance

The insertion gap behind the front wall can be adjusted based on the exact board caliper to prevent the flap from tearing or fitting too loosely.

Dust flap slot style

The slots separating the dust flaps can be squared or rounded. This changes how the inner corners bind and how stripping waste falls away during the cutting process.

Base locking method

The standard flat folder floor can be replaced with a crash-lock bottom. This speeds up manual assembly, though it removes the flat-unfolding presentation feature.

Board and packing details

Print panel placement

The flat inside base allows uninterrupted two-sided printing. This maximizes the visual impact when the box unfolds and reveals the interior graphics.

Blank sprawl and nesting

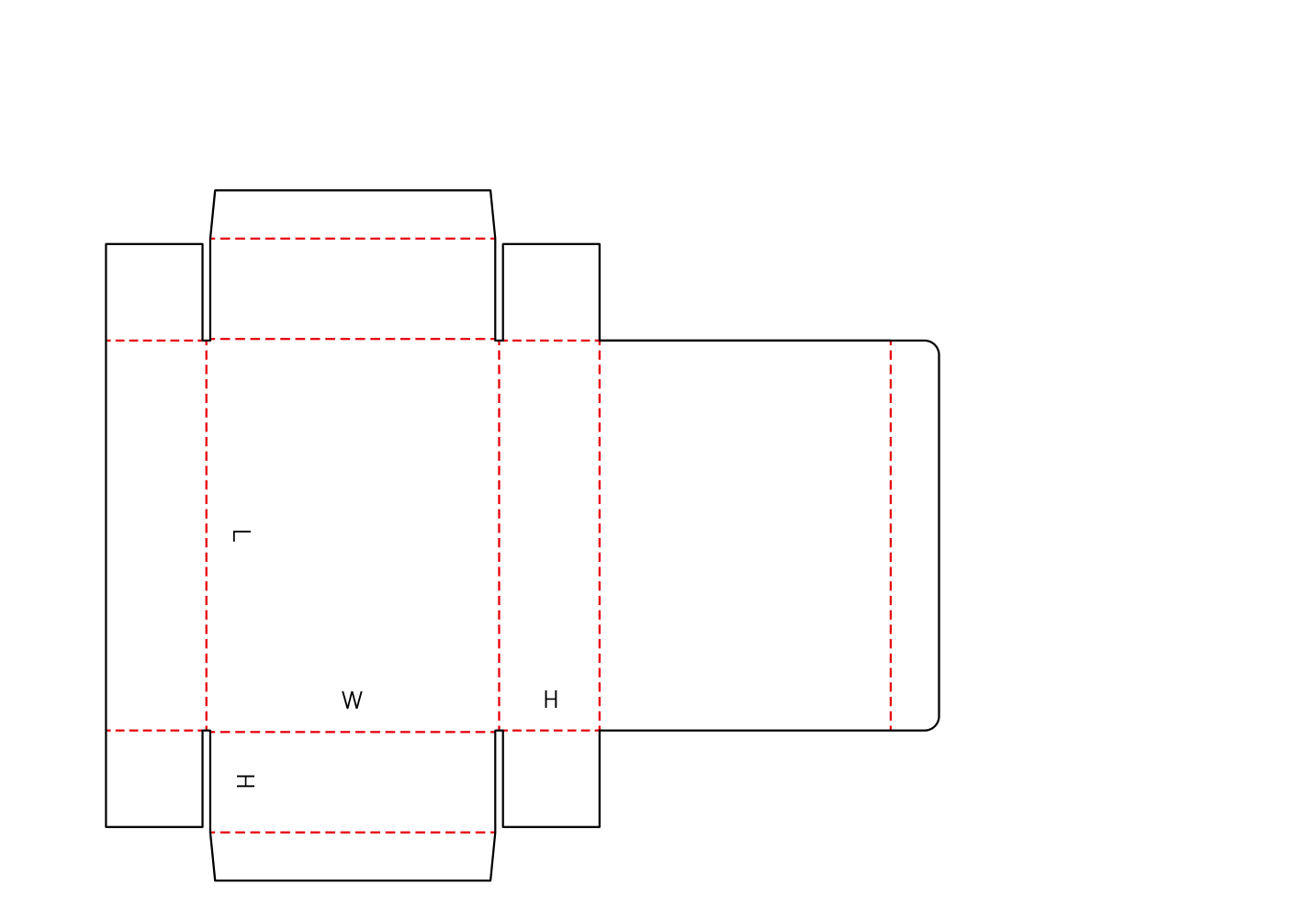

The cross-shaped flat blank is material-efficient compared to mailers with extended roll-over flaps. This keeps the flat footprint smaller and maximizes material use.

Base modifications

Glued lock-bottom base

A base redesign that replaces the flat folder floor with a crash-lock bottom. This speeds up manual assembly significantly, though it removes the flat-unfolding presentation feature.

Additional notes

Sample testing for tuck friction

Always request a physical sample in your exact board grade. If the board is too thick, the tuck flap will tear or refuse to stay closed.

FAQs

Shipping and Route

Can this mailer ship through courier networks without tape?

The friction tuck flap is vulnerable to opening under drop shock or vibration. Parcel shipping relies on an external tape strip or a strong label seal to keep the box closed.

Does this box support heavy pallet stacking?

The single-layer walls offer low vertical compression strength. If you are shipping these in bulk on a pallet, they require a sturdy master carton to bear the weight.

Material and Fit

What board grades fit this folder?

Fine flutes or solid folding cartonboard provide the crisp 90-degree folds needed for the tuck flap to seat correctly. Heavy double-wall board will bind and warp the corners.

Comparison

How is this different from a standard e-commerce mailer?

A standard mailer rolls its side walls over 180 degrees to lock into the base, creating rigid double walls. This folder uses single-layer walls that fall completely flat when opened.

Production and Packing

Can a linear folder-gluer machine assemble this?

Because it ships as a flat unglued blank, linear folder-gluers do not process it. Automated assembly requires specialized plunger-style tray erectors.

Product Fit

Does the flat-unfolding feature weaken the box?

It trades structural rigidity for presentation. The box relies entirely on the front tuck flap to hold the walls upright, which is why an external seal is critical for transit.

Print and Finish

Can I print on the inside of the box?

Because the entire box lays flat when opened, the interior base panel offers a large, uninterrupted canvas for branding, instructions, or promotional graphics.

Assembly

How do the corners stay together without glue?

The side dust flaps fold inward 90 degrees, and the front and rear walls fold up around them. The entire structure is locked in place when the lid's tuck flap slides inside the front wall.
