Variation

1 / 3

FEFCO 0426

Self-Locking Tab Mailer

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Secures via discrete corner tabs and base slots
Double-thick front wall hides raw corrugated edges
Requires an outer seal or label for courier shipping

About this product

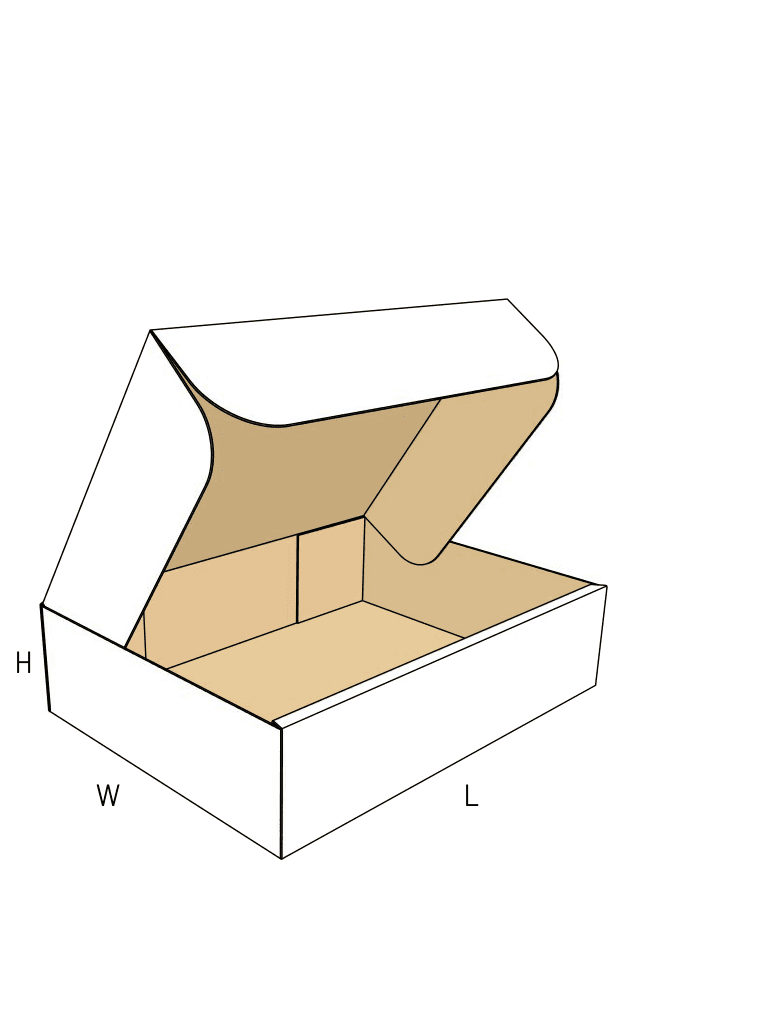

The self-locking tab mailer is a one-piece presentation box that assembles entirely without glue. Instead of a standard tuck flap, its hinged lid features discrete corner tabs that lock firmly into slots at the base of the front wall.

Because the front wall rolls over itself to create these locking slots, the box gains a double-thick front barrier that hides raw corrugated edges. This creates a clean, framed interior that fits subscription boxes, apparel, and retail kits.

Common uses

Subscription boxes
Apparel and flat goods
Retail kitting
Electronics presentation

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be shipped?

What type of items are going inside?

Are you planning a glossy or coated finish?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Presentation, Kitting, and Flat Goods Packing

Subscription boxes and curated kits

The glueless interior and mechanical tab closure provide a deliberate, clean unboxing experience. The rolled front edge frames the products without exposing raw corrugated flutes.

Flat consumer goods and apparel

The wide, shallow footprint suits clothing, textiles, and printed media. The discrete tabs keep the lid secured during handling without requiring internal void fill for structure.

Internal component sorting

Because the tabs can be opened and closed repeatedly without tearing the board, this tray fits moving kitted parts between workstations before final shipment.

Flat media and printed materials

The double-thick front wall provides strong edge protection for books, catalogs, and framed art, absorbing front-facing impacts during transit.

Retail, E-Commerce, and Fulfillment Channels

E-commerce fulfillment

While it requires manual assembly, the one-piece design stores flat and sets up cleanly. For direct-to-consumer shipping, the tab closure usually requires a clear wafer seal or shipping label to prevent springing open during transit.

Retail presentation

The uninterrupted lid and flat base offer excellent surfaces for branding, while the mechanical locks eliminate the need for unsightly tape on the retail shelf.

Third-party logistics (3PL) kitting

The glueless assembly allows fulfillment centers to erect the boxes on demand at the pack bench, saving storage space compared to pre-glued trays.

When to Compare Other Mailers and Shippers

High-speed packing lines

Aligning the individual corner tabs into the base slots takes slightly more manual effort than a continuous tuck flap. If packing speed is the absolute priority, a standard continuous-tuck mailer may be faster.

Heavy industrial components

The single-layer side walls and friction tabs are designed for light to medium weights. Dense, heavy parts shifting during transit can force the tabs out of their slots.

Close variants and lookalike dielines

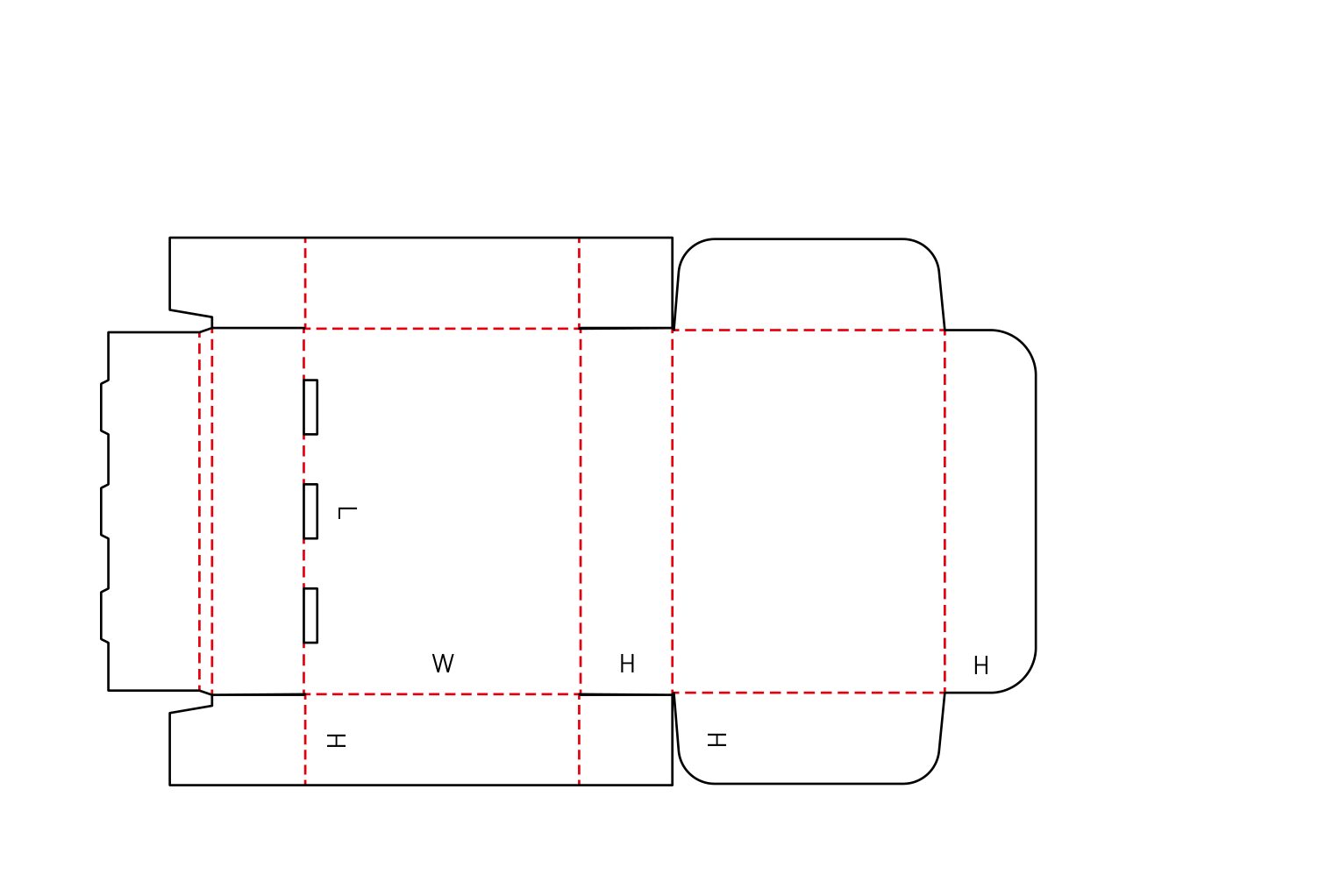

The closest library neighbors include EVC41105, EVC41110_1, EVC41110. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Closure, and Assembly Decisions

Board thickness limits

This design relies on tight folds. Fine flutes create crisp hinges and allow the tabs to seat perfectly. Thick, double-wall board will often cause the front roll-over to bind and the tabs to crush during assembly.

Courier sealing strategy

The friction tabs hold the box closed for handling and presentation, but drop shocks in a courier network can cause them to spring open. Plan to use a branded sticker, clear wafer seal, or outer mailing bag for parcel delivery.

Surface finish friction

High-gloss varnishes or heavy coatings reduce the natural friction of the corrugated board, which can make the locking tabs slip out more easily. Uncoated or matte finishes generally hold the lock better.

Assembly labor planning

Operators must execute a 180-degree roll-over on the front wall and align the lid tabs into the base slots. This two-hand manual fold requires brief training and takes slightly longer than erecting a basic taped box.

Tab Distribution and Fold Clearances

Tab placement and distribution

For very wide boxes, the locking tabs can be distributed proportionally across the front edge rather than kept strictly at the corners, preventing the center of the lid from bowing outward.

Side-wall roll-over variants

While the standard design reinforces the front wall, variants exist that roll the side walls 180 degrees instead. This shifts the double-thick crush protection to the sides, which is useful for long, narrow items.

Lock slot clearance tuning

The width of the receiving slots can be adjusted to match specific board grades, ensuring the tabs enter with firm friction without crushing the corrugated flutes.

Board and packing details

Assembly sequence

The front wall must be rolled a full 180 degrees over the side dust flaps to properly form the receiving slots. If this fold is loose, the lid tabs will not have a clear path to lock into the base.

Side-Wall and Tab Variants

Double side-wall variants (0426a)

Rolls the side walls 180 degrees instead of the front wall, shifting the double-thick crush protection to the sides.

Distributed tab variants (0426b)

Calculates tab placement proportionally across the front edge, providing balanced retention for wider boxes.

Additional notes

Board thickness and lock clearance

The width of the receiving slots is calculated based on the exact board thickness. Changing board grades without adjusting the cutting template will cause the locks to fail.

FAQs

Closure and Shipping

Can I ship this box without tape?

For parcel networks, an outer seal is highly recommended. While the tabs lock the box securely for handling and presentation, rough courier transit can cause the tabs to dislodge. You will need a shipping label, wafer seal, or outer bag to secure it for the mail.

Assembly

Is this box difficult to assemble?

Assembly requires a specific two-hand folding sequence. The front wall must be rolled over completely to create the slots for the lid tabs. It is fast for trained operators but slower than a basic taped box.

Materials

Can this be made in heavy double-wall board?

Thick board is highly discouraged for this style. The 180-degree roll-over and the narrow locking slots require precise clearances. Heavy board causes the hinges to crack and prevents the tabs from fitting into the base.

Comparison

What is the difference between this and a standard roll-end tuck-front mailer?

A standard tuck-front mailer uses one long flap that tucks inside the front wall. This box uses separate, discrete tabs on the corners of the lid that insert into specific slots at the bottom of the front wall.

Product Fit

Is this suitable for heavy items?

This mailer fits light to medium-weight goods like apparel, printed media, or curated kits. Heavy items shifting against the front wall can force the locking tabs out of their slots.

Print and Finish

Does the surface finish affect how the box stays closed?

Surface coatings directly impact closure security. The tabs rely on the natural friction of the board to stay locked. Heavy gloss coatings or varnishes make the surface slippery, increasing the risk of the tabs dislodging.

Inserts

Can I use custom inserts with this mailer?

The flat base and vertical walls accommodate die-cut corrugated or molded pulp inserts well, keeping multiple components organized for presentation.

Prototyping

Should I request a physical sample before ordering?

Testing a physical sample is highly recommended. Because the locking tabs rely on exact friction, verifying the fold clearances with your chosen board grade prevents assembly issues on the packing line.
