FEFCO 0428

Front-Lock Presentation Mailer

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Assembles manually via mechanical foot-locks without tape or glue
  • Reinforced front wall provides a clean, framed unboxing experience
  • Friction-tuck lid requires an outer seal or master carton for parcel shipping

About this product

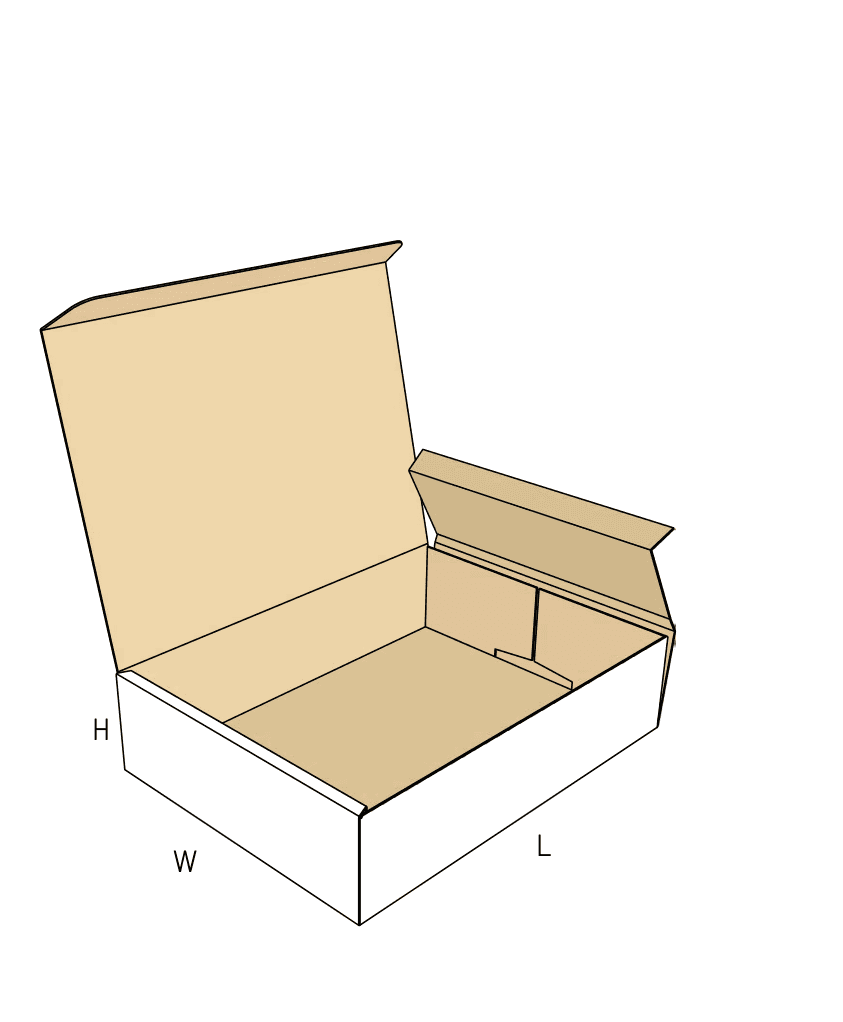

The front-lock presentation mailer is a one-piece, unglued box that folds into a clean tray with a hinged lid. By rolling its front wall 180 degrees inward, it traps the corner dust flaps and locks securely into the base, creating a reinforced front edge without exposing raw corrugated flutes.

Because the side walls remain single-layer, this design prioritizes a premium, easy-to-open presentation over heavy-duty lateral crush resistance. It is an excellent choice for retail kits, electronics, and internal sorting where the unboxing experience matters more than relying on the box as a standalone courier shipper.

Common uses

  • Retail sales kits
  • Lightweight consumer electronics
  • Subscription boxes packed inside a master shipper
  • Internal sorting trays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Presentation, Kitting, and Retail Display

Retail sales kits and sample sets

The glueless interior and friction-tuck lid allow sales representatives or retail customers to open and close the box repeatedly without destroying the packaging. The rolled front edge provides a framed, finished look for the contents.

Lightweight consumer electronics

The flat base and clean interior walls accommodate custom inserts or molded pulp trays easily. The reinforced front wall absorbs minor impacts, protecting delicate components during handling.

Subscription boxes inside master shippers

For curated deliveries that prioritize the unboxing reveal, this tray offers a clean presentation. It works well when placed inside a larger transit box that handles the external shipping stress.

Internal parts organization

The glueless construction means the tray can be broken down flat when not in use. The hinged lid keeps dust out of sorted components as they move between workstations.

Fulfillment and Sales Channels

E-commerce fulfillment

While it requires manual assembly at the pack bench, the presentation value makes it popular for curated deliveries. Because the lid relies on friction, e-commerce operators must plan for an external tamper seal or place the mailer inside a master shipping carton.

Agency and promotional mailings

Marketing kits often require a premium feel without the use of visible tape or glue. The front-lock design hides raw edges and provides a clean billboard for branding on the lid.

Retail shelf presentation

The flat base and reinforced front edge make it suitable for stacking on retail shelves, provided the products are lightweight and do not require heavy vertical compression resistance.

When to Consider a Different Mailer

Heavy lateral pressure or dense products

If the box will face heavy side-to-side pressure during transit, the single-layer side walls may bow. A side-locking mailer provides double-thick lateral walls for better crush resistance.

High-speed automated packing

This box requires a packer to manually fold the dust flaps, raise the walls, and press the front foot-locks into place. For high-volume lines, a machine-erected glued tray will reduce labor time.

Close variants and lookalike dielines

The closest library neighbors include 0420, 0441, 0747. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Finish, and Packing Decisions

Board thickness and lock clearance

This design is highly sensitive to material thickness. Heavy double-wall boards can cause the front roll-over hinge to crack and prevent the foot-locks from seating properly. Fine flutes generally yield the crispest folds and tightest locks.

Surface finish and lid friction

The hinged lid stays closed by rubbing against the inside of the front wall. High-gloss varnishes or slick coatings can reduce this friction, making the lid more likely to pop open unexpectedly.

Closure method for transit

Decide early if the box will ship inside a master carton or on its own. If shipping individually, you must plan for a clear wafer seal, branded sticker, or shrink wrap to keep the friction lid closed during handling.

Insert compatibility

The 90-degree side walls and flat floor make it easy to drop in molded pulp, foam, or corrugated partitions. Determine the insert depth early to ensure the lid tuck flap does not interfere with the internal components.

Practical Template Adjustments

Tuck flap depth and friction

The depth of the front tuck flap can be adjusted to increase or decrease the opening resistance, balancing transit security against the customer's unboxing effort.

Dynamic clearance adjustments

For thicker boards or complex fold build-ups, the template can dynamically calculate the lid hinge clearance to prevent binding, ensuring the lid sits flat when closed.

Lock tab friction tuning

The geometry of the front foot-locks can be modified to increase or decrease the manual force required to seat them, depending on the board grade and assembly speed requirements.

Board and packing details

Blank footprint and material yield

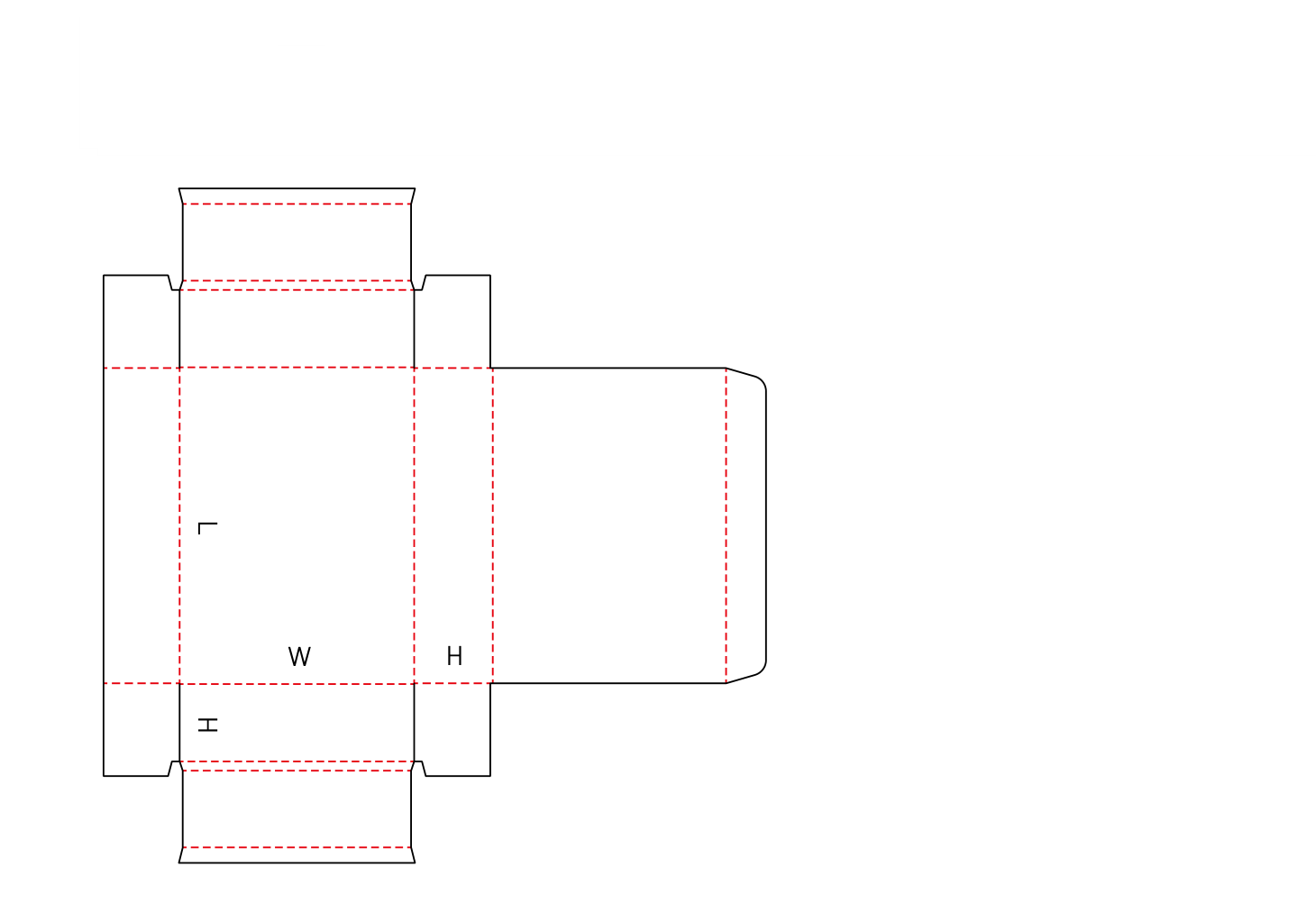

Because the flat template includes an attached lid, extended front roll-over flaps, and side dust flaps, it creates a cross-shaped footprint. This sprawl limits how efficiently the boxes can be nested on a sheet of corrugated board, which affects material usage compared to simpler slotted boxes.

Clearance and Lock Variants

Dynamic clearance adjustments (0428a)

For thicker boards or complex fold build-ups, a variant template dynamically calculates the lid hinge clearance to prevent binding, ensuring the lid sits flat when closed.

Additional notes

Print panel and scuff risk

The large, unbroken lid provides an excellent billboard for branding. However, if the box is shipped without an outer carton, this primary display panel will be exposed to courier labels and transit scuffing.

Related Packaging

0441: Tray with Hinged Lid

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Shipping and Route

Can I ship this box through a parcel network without tape?

The friction-tuck lid is designed for easy reopening, not for rough transit. If shipped individually through a courier network, it will likely pop open when dropped. You will need an external clear seal, a branded sticker, or a master shipping carton.

Assembly and Labor

Does this box require any glue or equipment to assemble?

No. It is entirely self-locking. However, the manual assembly requires an operator to press the front foot-locks into the base slots, which can cause thumb and wrist fatigue over hundreds of units.

Material and Fit

What board type is practical for this style?

Fine flutes are usually the most practical starting point. They allow the front wall to roll over 180 degrees cleanly without cracking the hinge or binding the locks. Thicker boards require precise template adjustments to fold correctly.

Can I use double-wall corrugated board?

Double-wall board is a high-risk choice for this design. The thick material will cause the front roll-over hinge to bind and the locking tabs to pop out unless the fold clearances are perfectly recalibrated.

Comparison

What is the difference between this box and a standard 0427 mailer?

A standard 0427 mailer rolls its side walls inward, creating double-thick flanks. This box rolls its front wall inward instead, leaving the side walls as a single layer. Choose this style for front-edge presentation, and the 0427 for side-impact protection.

Inserts and Product Fit

Can this box hold custom inserts?

Yes. The flat base and 90-degree side walls make it easy to drop in molded pulp, foam, or corrugated inserts to hold kitted parts or electronics securely in place.

Samples and Prototypes

Why is a physical sample important for this box?

Because the front wall and lid rely entirely on friction and tight clearances to stay closed, a physical sample proves whether your chosen board thickness and surface finish will lock securely or spring open.

Assembly and Labor

How does the front wall lock in place?

The front wall folds up and rolls over 180 degrees, trapping the side dust flaps. Extended foot-lock tabs on the edge of the front wall then press into receiving slots in the base panel, holding the structure together.
